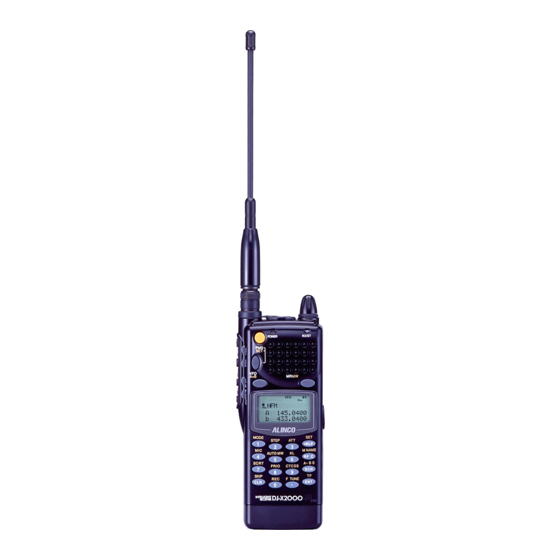

Alinco DJ-X2000 Instruction Manual

Wide range scanning receiver
Hide thumbs Also See for DJ-X2000:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
www.r6‐ru4montesecchieta.it
WIDE RANGE SCANNING RECEIVER
DJ-X2000
Instruction Manual
Thank you for purchasing this ALINCO
receiver.The DJ-X2000 instruction
manual contains important safety and
operating instructions. Read this manual
carefully before using the product.
iz5ccv
3
2
1
6
5
4
9
8
7
0
C L R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DJ-X2000 and is the answer not in the manual?

Questions and answers

geoffrey
February 17, 2025

i have a DJ-X2000 screen is very faint just able to see it any ideas

0
1 comments:
Mr. Anderson
February 17, 2025

One user reported fixing a similar issue by disassembling the unit, lifting the middle board from the front board, and adjusting a potentiometer before returning it to the same position. This process unexpectedly resolved the problem and improved functionality.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Alinco DJ-X2000

Summary of Contents for Alinco DJ-X2000

  • Page 1 WIDE RANGE SCANNING RECEIVER DJ-X2000 Instruction Manual Thank you for purchasing this ALINCO C L R receiver.The DJ-X2000 instruction manual contains important safety and operating instructions. Read this manual carefully before using the product.

  • Page 2: Features

    Features The Alinco DJ-X2000 is a professional multifunctional receiver which covers a wide band of radio media from the low-frequency band (LF) to ultrahigh- frequency (UHF) band. It has the following features: 1. Wide frequency range The DJ-X2000 covers a wide frequency range from 0.1 to 2149.999950 MHz.
  • Page 3 The DJ-X2000 can return scrambled voice transmission to normal voice reception. 15. Flash tune If there are signals around the DJ-X2000, it tunes to the strongest frequency in a flash. 16. RF checker This function allows you to use the DJ-X2000 as a radio frequency counter.

  • Page 4: Table Of Contents

    1.3.1 Top, front and left side panels 1.3.2 Rear and right panels 1.3.3 Display 1.3.4 Key pad 1.4 Setting up the DJ-X2000 1.4.1 Attaching the antenna 1.4.2 Attaching the belt clip 1.4.3 Attaching the wrist strap 1.5 About the batteries 1.5.1 Attaching the battery pack...
  • Page 5 2.11 Turning beep ON/OFF 2.12 Locking/Unlocking 2.13 Setting the clock 2.13.1 Setting the OFF timer 2.13.2 Setting the ON timer 2.14 Basic modes 2.14.1 VFO mode 2.14.2 PMS mode 2.14.3 MR mode 2.15 Using HELP menu 3. Other Useful Functions 3.1 Functions common to all modes 3.1.1 Selecting a modulation mode 3.1.2 Setting the frequency step...
  • Page 6 3.1.26 A/B squelch 3.1.27 Transweeper™ 3.1.28 Recording function 3.1.29 Sound pickup 3.1.30 Directly changing the settings Functions in the VFO mode 3.2.1 VFO link function 3.2.2 Scanning between VFO's A and B(AB SCAN) 3.2.3 Copying frequencies from memories to the VFO 3.2.4 Copying frequencies from the PMS mode to the VFO 3.3 PMS mode functions 3.3.1 Programmed scan operations...

  • Page 7: How To Read This Manual

    How to read this manual The following typographical and graphic conventions are used in this instruction manual. Bold typeface indicates titles of chapters and sections as well as messages shown on the display. When used to indicate displayed messages, only the part of the message that is pertinent to the explanation is given.

  • Page 8: Before Use

    • If the receiver emits smoke or strange odors, shut power OFF immediately and promptly contact an authorized dealer. • Do not disassemble or tamper with the receiver. The DJ-X2000 is not warranted for troubles or accidents resulting from unauthorized modifications, regardless of the warranty period.

  • Page 9: Names Of Parts And Their Functions

    1.3 Names of parts and their functions This section describes parts by name and function. 1.3.1 Top, front and left side panels C L R 1. Dial Use to switch frequency and memory channel, to adjust the audio volume and squelch level, and to make other settings.
  • Page 10 (Function) key Use this key in combination with other keys to call up specific functions. MONI Temporarily cancels the squelch for the duration it is held down. Used independent of squelch level. SRCH Press to start scanning within a 40-channel range. Use in combination with key to start scanning in a 7- channel range.

  • Page 11: Rear And Right Panels

    1. DC-IN Connect an external DC supply here (10 - 16 V). 2. Holes for attaching belt clip Screw the included belt clip to the DJ-X2000 here. 3. Battery case lock Slide to the right to detach the battery case.

  • Page 12: Display

    1.3.3 Display Meter for displaying sound level. Displayed when the key has been pressed to indicate that you can access the subfunctions of the keys. 3. PRIO Displayed while the priority function is ON. 4. M Displayed in the MR mode. 5.

  • Page 13: Key Pad

    1.3.4 Key pad MODE Inputs 1. Press in combination with the key to switch the modulation mode. STEP Inputs 2. Press in combination with the key to set the frequency step. Inputs 3. Press in combination with the key to turn the attenuator ON/OFF.

  • Page 14: Setting Up The Dj-X2000

    1.4 Setting up the DJ-X2000 Before using your receiver, attach the included antenna securely. If you want to use the belt clip or wrist strap, attach them too. 1.4.1 Attaching the antenna Fit the base of the antenna over the projections on the connector, press downward and turn clockwise.

  • Page 15: About The Batteries

    • To attach the battery pack Fit the battery pack into the holes on the DJ-X2000 and push in the direction of the arrow until the case snaps into the place.

  • Page 16: About The Battery Pack

    Before using the included EBP-37N battery pack, please note the following: 1. The battery pack is not charged before it is shipped from the factory. Charge the pack before using the DJ-X2000 for the first time. 2. Approximately 1 hour is required to fully charge the battery pack with the charger.

  • Page 17: Ni-Cd Battery Charger

    1.5.3 Ni-Cd battery charger The supplied battery charger (EDC-88) is designed exclusively for use with our NiCd battery pack. Precautions in using the charger 1. The battery charger is designed exclusively for use with our NiCd battery pack. Never use it to recharge any other rechargeable battery or dry cell. 2.
  • Page 18 • Recharging procedure Plug the AC power cord into the AC power socket on the battery charger. Insert the battery pack being recharged, along CL R the guides provided on both sides of the battery charger. The lamp will be illuminated in red, and quick recharge will be started.

  • Page 19: Battery Low Alarm

    It may become unable to accept any external power. If the DJ-X2000 will not start even when you press the power switch, press the hardware reset key or detach the battery case more...

  • Page 20: Basic Operations

    2. Basic operations This chapter describes the basic operations for the DJ-X2000. 2.1 POWER switch To turn ON/OFF the DJ-X2000, perform the following operation: • Turning ON Hold down the POWER switch for approx. 1 second until the message “ALINCO INTELLIGENT RECEIVER™”...

  • Page 21: Squelch Control

    2.3 Squelch control Squelch is used to mute the speaker noise when no signal is being received. Squelch level can be selected between S00~S32. Setting is made as follows. A squelch level can be selected from the range between S00 and S32. To select a squelch level, press the SQL key located on the left side of the body, and then press the UP/DOWN...
  • Page 22 Note: If you enter any frequency that cannot be divided by the set frequency step, “S ” appears on the display. • Setting with the UP/DOWN key For higher frequencies, press the UP key. For lower frequencies, press the DOWN key. The frequency will increase/decrease in the set frequency steps.

  • Page 23: Switching Frequency Band

    2.5 Switching frequency band The DJ-X2000 uses a dual VFO system, so that a frequency change can be done smoothly by inputting a new frequency on the second band in advance. The frequency currently being monitored is displayed next to the capital letter on the top line of the display.

  • Page 24: Searching(Channel Scope™)

    2.8 Searching (Channel Scope™) The search function, or Channel Scope of the DJ-X2000 checks frequencies in the set frequency steps, and displays signals within a 40-channel or 7-channel range at one time. The function is useful for checking the spectrum occupancy at a glance.

  • Page 25: Monitoring(Squelch Off)

    (Noise is heard if no signal is being received.) MONI When the key is released, the squelch comes back ON and the DJ-X2000 returns to its original state. • To keep the monitor ON at all times MONI Press the...

  • Page 26: Turning Backlight On/Off

    2.10 Turning backlight ON/OFF The DJ-X2000 has a backlight to make it easier to use at night. The backlight can be turned ON/OFF as follows. 2.10.1 Turning backlight ON/OFF manually • To turn the backlight ON LAMP Press the key. The display will be lit while operating the dial or keys.

  • Page 27: Turning Beep On/Off

    Select a backlight mode as follows: Using the dial or UP/DOWN key, point the arrow at a desired mode, and then press the key (the initial setting is the MOMENTARY mode). AUTO: The backlight is lit for 5 seconds after the dial or key is used.

  • Page 28: Locking/Unlocking

    ON. The OFF timer allows you to set the time that will be taken until the power is automatically turned OFF. Since the timers for the DJ-X2000 use a 24-hour system, the power is automatically turned ON/OFF in accordance with the time settings every day.

  • Page 29: Setting The On Timer

    Call up the OFF timer screen. Point the arrow at +OFF Timer using the dial or UP/DOWN T i me r key, and then press the key. O F F Set the OFF timer. Point the arrow at ON using the UP/DOWN key, and then set the time that will be taken until the power is automatically turned OFF (the initial setting is OFF).

  • Page 30: Basic Modes

    • If the battery is removed or if the hardware reset key is pressed, the setting is canceled. 2.14 Basic modes The DJ-X2000 has three basic modes: VFO, PMS, and MR. The current mode is displayed along the top of the display. • VFO mode This mode is used to select a frequency with the dial or UP/DOWN key and then receive signals at that frequency.

  • Page 31: Pms Mode

    T V 1 - 3 c h Bands are preregistered before the DJ-X2000 is shipped from the factory, but they can be changed in the expert's mode. (See "3.3.1 Programmed scan operations" on page 64.) Select between P and p.

  • Page 32: Using Help Menu

    Select a channel. Using the dial or UP/DOWN key, select a channel between 00 and 39. The assigned frequency will appear on the upper line of the display and its name on the lower line. 2.15 Using HELP menu The HELP menu is used to display information on whatever function or operation you want to know.

  • Page 33: Other Useful Functions

    3. Other Useful Functions This chapter describes the useful functions of the DJ-X2000. 3.1 Functions common to all modes This section describes the functions that are commonly available in the VFO, PMS, and MR modes. 3.1.1 Selecting a modulation mode...

  • Page 34: Attenuating Interference From Other Channels(Att)

    In this case, however, the 8 1 . beep sound is emitted and “S” appears on the display 1 4 5 . 3 4 showing that the DJ-X2000 is operating in non-standard steps. 3.1.3 Attenuating interference from other channels (ATT) The attenuator reduces interference from strong signals on other channels so that the signal you want is heard more clearly.

  • Page 35: Battery Save

    Note: • The attenuation level slightly varies depending on the frequency. • In the PMS or MR mode, setting DIRECT WR to ON enables selection of a frequency step and modulation mode and adjustment of the attenuator and CTCSS decoders. For further details, see “3.1.30 Directly changing the settings”...

  • Page 36: Copying Data Between Two Receivers(Clone)

    3.1.5 Copying data between two receivers (CLONE) You can copy settings stored in memory from one DJ-X2000 (master) to another (slave). This is referred to as "cloning". Cloning requires a cable with 2.5ø stereo plug to connect the two receivers.

  • Page 37: Selecting A Communication Speed

    When the cloning procedure is finished, the slave unit returns to the normal screen and the master unit to the CLONE menu. Finish the cloning procedure. Once the cloning procedure is finished, disconnect the cable from both DJ- SKIP X2000 units. Press the key on the master unit to exit the CLONE menu.

  • Page 38: Selecting A Language Mode

    9600 bps. 3.1.7 Selecting a language mode The DJ-X2000 was set to the English mode at factory, but may be changed to the Japanese mode. Call up the LANGUAGE screen.
  • Page 39 • Meter display mode Call up the RF CHECK menu. M NAME Press the . The RF CHECK menu will appear. Point the arrow at CHECKER using the dial or UP/DOWN key, and then press the key. C L R Measure the electric field strength.

  • Page 40: Displaying Battery Voltage

    3.1.9 Displaying battery voltage The battery voltage can be displayed as follows: Call up the BATT VOLT screen. Press the key, and then press the key while HELP 4 . 9 V shown on the display. The MENU will appear. Point the arrow at +CONFIG using the dial or UP/DOWN key, and then press the key.

  • Page 41: Selecting The Bell Mode

    3.1.11 Selecting the BELL mode In this mode, when the squelch is canceled, a buzzer sounds. Call up the BELL screen. Press the key, and then BEL L press the key while HELP OF F shown on the display. The MENU will appear. Point the arrow at +CONFIG using the dial or UP/DOWN key, and then press the key.

  • Page 42: Resetting The Receiver

    11 characters ahead. 3.1.13 Resetting the receiver This command resets the DJ-X2000. Be careful as all settings you made up until now may be cleared from memory, depending on your selection. While holding down the key, turn ON the power.

  • Page 43: Tuning In Frequencies In The Pms/Mr Modes(M.tune)

    Press the keys. 3.1.15 Setting scan resume condition (SCAN MODE) This setting determines what the DJ-X2000 does when it picks up a signal while scanning. This is referred to as the “scan mode”. Call up the SCAN menu. Press the...

  • Page 44: Setting Scan Signal Level

    3.1.16 Setting scan signal level This setting specifies the minimum signal level used in scanning. Scanning will stop only when the DJ-X2000 locates a signal of this strength or stronger. Call up the SCAN menu. Press the key, and then press...

  • Page 45: Setting The Scanning Pause Period

    Select an S-meter level. Point the arrow at ON using the UP/DOWN key. Select a level from 1 through 7 using the dial, and then press the key. If you do not want to select any S- meter level, select OFF and then press the key (the initial setting is OFF).

  • Page 46: Turning The Priority Function On/Off

    If the priority feature is ON, the CH SCOPE mode is disabled. 3.1.19 Selecting a priority option Select an operation option of the DJ-X2000, which is applicable if signals are received on the priority channel when the priority feature is active.

  • Page 47: Setting A Priority Channel

    Select a priority option using the dial or UP/DOWN key, and then press key. The available options are listed below (the initial setting is STOP). BUSY When signal is received on the priority channel, the DJ-X2000 stays on the priority frequency until ithe signal vanishes. STOP When signal is received on the priority channel, the DJ-X2000 stays on the priority frequency even after the signal vanishes.

  • Page 48: Specifying A Priority Interval

    Call up the PRI MEMORY screen. Point the arrow at +MEMORY using the dial or UP/DOWN key, and then press the key. R I MEMORY The PRI MEMORY screen will appear. Select a channel. Select the desired memory bank and channel, and then press the key.

  • Page 49: Setting Search Resume Condition(Srch Mode)

    3.1.22 Setting search resume condition (SRCH MODE) For the DJ-X2000 to perform the Channel Scope function, its receiver is used for searching for signals, and the sound will be intermittent at the moment when the search takes place. This setting determines how often the search takes place in the Channel Scope function.

  • Page 50: Flash Tune

    3.1.23 Flash tune The DJ-X2000 automatically tunes in to the detected radio frequency, allowing you to instantaneously tune in to and receive unknown radio frequencies. • Selecting the Flash tune. The Flash tune is available in two modes, FLASH TUNE and F COUNTER.
  • Page 51 Select the Flash tune. Point the arrow at the desired option using the dial or UP/DOWN key, and then press the key (the initial setting is FLASH TUNE). FLASH TUNE Instantaneously checks for a radio frequency and automatically tunes in to the detected frequency. F.

  • Page 52: Descrambler

    Note: •Only the NFM type radio signals can be descrambled. •The descrambler function on this page is not available in the DJ-X2000 which is sold in the United States. The unauthorized use of this feature in the U.S. may result in penalties (Privacy Protection Act 1986).

  • Page 53: Ctcss Decoding Function

    3.1.25 CTCSS decoding function This function is used to receive CTCSS tones. It allows you to receive 38 CTCSS tones and even select reverse reception. The function is also applicable to taxi radio. Note: Only the NFM modulation can receive CTCSS tones. •...
  • Page 54 • CTCSS reversing This function used to reverse the CTCSS decoding function. When it is set to ON, the DJ-X2000 receives those signals that do not match the CTCSS tones. When the DJ-X2000 receives those signals that match the CTCSS tones, their sounds are muted.

  • Page 55: A/B Squelch

    3.1.26 A/B squelch This function is used to start squelch by detecting Continuous Carrier Repeater System (CCRS) carrier signal. Call up the A/B SQ SET screen. Press the key, and then press A / B SQ SET OF F key while is shown HELP on the display.

  • Page 56: Transweeper

    If you previously assign any frequency expected for bugging purposes to the memory channel or auto memory channel, the DJ-X2000 will scan for that frequency. The settings for bank link and channel skipping will become valid.
  • Page 57 (where there are too many echoes). • If the DJ-X2000 is suddenly moved during its transweeper process, the Doppler effect causes a malfunction. • The transweeper may not work normally depending on the relation between the orientation of the speaker and the location of the bug.

  • Page 58: Recording Function

    3.1.28 Recording function This function is used to record the received sound or sound from the speaker using the internal IC. It allows you to record such sound for 160 seconds maximum. Recording, playback, and erasing can be repeatedly recorded approximately 10,000 times.
  • Page 59 Stop or pause the recording. STEP To stop the recording, press the key. F TUNE To pause (temporarily stop) the recording, press the key. If you press the F TUNE key again, the recording is resumed. When the recording time reaches 160 seconds, “END” appears on the display and the recording stops automatically.

  • Page 60: Sound Pickup

    The sound picked up through the microphone can be amplified and heard using an earphone or external speaker. • Picking up sound Connect an earphone or external speaker to the SP terminal on the top of the DJ-X2000. Start picking up sound. Press the key, and then press...

  • Page 61: Directly Changing The Settings

    3.1.30 Directly changing the settings This function allows you to enable/disable the direct changes of the settings for modulation mode, frequency step, attenuator, and CTCSS decoding function in the MR or PMS modes. When it is turned ON, the settings for modulation mode, frequency step, attenuator, and CTCSS decoding function can be directly changed in the currently displayed MR or PMS mode.

  • Page 62: Functions In The Vfo Mode

    The frequency on the upper line may exceed 2149.999950 MHz (the upper limit for the DJ-X2000) when it is changed. In this case, press the toggle between bands A and B. The band shown on the upper line will be switched to the lower line.

  • Page 63: Scanning Between Vfo's A And B(Ab Scan)

    3.2.2 Scanning between VFO's A and B (AB SCAN) This function is for scanning the band between the current frequencies of VFO-A and VFO-B. • To scan between VFO’s A and B Set frequency on each band A and B. 1 4 5 .

  • Page 64: Copying Frequencies From The Pms Mode To The Vfo

    3.2.4 Copying frequencies from the PMS mode to the VFO You can copy frequencies in the PMS mode to the VFO. Call up the frequency in memory. Press the key to get the PMS mode. Then set the program bank No. you want to display in the VFO mode.

  • Page 65: Pms Mode Functions

    3.3 PMS mode functions This section explains operations in the PMS mode. 3.3.1 Programmed scan operations This section is for programmed scan operations. Starting the scanning frequency apply for low frequency, and ending the scanning frequency apply for high frequency in the VFO. A modulation mode and a frequency step apply for the active VFO (indicated in uppercase A or B) settings.

  • Page 66: Setting Scan Pass-Frequency

    Give a name to the program. Select each character by turning the dial and then e t PMS NAME establish it by pressing the DOWN key. The established A BCDE FGH I J K character can be canceled by pressing the UP key. Up to 8 characters may be entered for the name.

  • Page 67: Setting Program Link

    3.3.3 Setting program link This function lets you scan a combination of frequency ranges. Call up the PMS Bank Link screen. Press the key, and then press MS Ba n k L i n k key while is shown HELP P - - - - - - - - - - on the display.

  • Page 68: Moving A Scanning Program

    Select a source program. Using the dial or a numeric key, select the program you F TUNE want to copy. Press the key (pressing the 1 4 5 . 3 4 toggles between the uppercase P and lowercase p). Select a destination program. Using the dial or a numeric key, select the program to which you want to copy the source program.

  • Page 69: Deleting Scan Programs

    Select the desired destination program. Using the dial or a numeric key, select the destination F TUNE program number. Press the key (Pressing the P 2 - - - - . - - - - key toggles between the uppercase P and the lowercase - - - - - - - - SKIP To retry the setting, press the...

  • Page 70: Mr Mode Functions

    3.4 MR mode functions This section explains operations of the MR mode. 3.4.1 Memorizing frequencies This function saves selected frequencies of memory channels. Set the frequency you want to memorize, in the VFO mode. Press the key to get the VFO mode. Then, set the frequency on the top line (currently used) band.

  • Page 71: Setting The Auto Memory Write Function

    3.4.2 Setting the auto memory write function This function is used to automatically assign a frequency that has been received during scanning in the PMS mode, to the memory bank. Call up the scanning program. Press the key to enter the PMS mode. Select a program bank number. The programmed scanning will start.

  • Page 72: Setting Memory Scan Radio System(Mode Sel)

    3.4.4 Setting memory scan radio system (MODE SEL) By setting a mode in the “MODE SEL” menu, the DJ-X2000 will selectively scan the memory channels of the specified mode. Call up the MODE SEL screen. Press the key, and then press...

  • Page 73: Using The Bank Link Function

    3.4.5 Using the Bank Link function This function lets you scan specific memory banks. Call up the Bank Link screen. Press the key, and then press key while is shown HELP on the display. MR L I NK MODE S E L The MENU will appear.
  • Page 74 Select the program bank in which you want to set a memory channel for scanning. Using the dial or UP/DOWN key, point the arrow at the program you want to set. Press the key. B ANK B ANK 1 Select the program number you want to assign to a memory channel. Using the dial or UP/DOWN key, point the arrow at the program number you want to select.

  • Page 75: Scanning The Memory Channels Selected In The Pmr Screen

    3.4.7 Scanning the memory channels selected in the PMR screen This function is used to scan only the memory channel selected on the PMR screen (See “3.4.6 Selecting memory channels for scanning” (page 72)). • Scanning only the memory channels selected on the PMR screen. Press the key in the MR mode, and then press the A~B S...

  • Page 76: Copying Memory Channels

    Select a source memory bank. Using the dial or a numeric key, select the bank number F TUNE OPY BANK you want to copy. Press the key (Pressing the = - - key toggles from bank groups A through E). Select a destination memory bank.

  • Page 77: Moving A Memory Bank

    Select the bank that includes the memory channel to be copied. Select the bank number using the dial or a numeric key F TUNE (Pressing the key toggles from bank groups A A 2 - - - - . - - - - through E).

  • Page 78: Moving A Memory Channel

    Call up the MOVE BANK screen. Point the arrow at +MOVE BANK using the dial or UP/DOWN key, and then press the key. MR ED I T MO V E B ANK DE L B ANK Select the memory bank you want to move. Using the dial or a numeric key, select the memory bank OVE BANK you want to move.
  • Page 79 Call up the MOVE CH screen. Point the arrow at +MOVE CH using the dial or UP/DOWN key, and then press key. Select the bank that includes the memory channel you want to move. Select the bank number using the dial or a numeric key F TUNE (Pressing the key toggles from bank groups A...

  • Page 80: Deleting Memory Banks

    3.4.12 Deleting memory banks This function deletes entire memory banks. Call up the MR EDIT menu. Press the key, and then press MR ED I T key while is shown HELP COP Y CH on the display. MOV E CH The MENU will appear.

  • Page 81: Deleting And Restoring Memory Channels

    3.4.13 Deleting and restoring memory channels This function is used to delete and restore the frequency and name assigned to a memory channel. Call up the MR EDIT menu. Press the key, and then press key while is shown MR ED I T HELP COP Y CH on the display.

  • Page 82: Searching For A Memory Tag

    3.4.14 Searching for a memory tag This function is used to search for a stored memory channel using its name. Call up the MR NAME SRC screen. Press the key, and then press M NAME key while is shown A BCDE FGH I J K on the display.

  • Page 83: Appendix

    4. Appendix 4.1 Specifications Range of 0.1MHz 2149.999950MHz received frequencies Re ceiv ed r adi o ty p e WFM, NFM, AM, USB, LSB, CW AUTO STEP, 50Hz, 100Hz, 200Hz, 500Hz, 1kHz, 2kHz, 5kHz, 6.25kHz, 8.33kHz, 9kHz, 10kHz, 12.5kHz, 15kHz, 20kHz, 25kHz, Frequency steps 30kHz, 50kHz, 100kHz, 125kHz, 150kHz, 200kHz, 250kHz, 500kHz, USER STEP...

  • Page 84: Troubleshooting

    The display turns OFF. 4.3 Optional items The optional items available for the DJ-X2000 are listed below: EBP-33N NiCd battery pack (4.8V 650mA) EBP-34N NiCd battery pack (4.8V 1200mA) EBP-35N NiCd battery pack (7.2V 900mA)

  • Page 85: List Of Help Menu Items

    4.4 List of Help menu items The list of Help menu items is given below. For the items marked with in the column for "Function involved", when the key is pressed, the currently displayed function or setting is executed. For the operation procedure for the Help menu, see "2.15 Using Help menu" (page 31). Organization of Help menu Describes how to use the Help information.
  • Page 86 Functions Operational Menu S u b me n u Function involved explanation available Inst COPY A=B COPY MR. CH COPY PMS Inst COPY CH DEL CH COPY BANK DEL BANK MR LINK MODE SEL SCAN SKIP SET CTCSS M. TUNE Inst SCAN PASS COPY...
  • Page 87 Operational Men u S u b me n u Function involved explanation available AUTO MOMENTARY LAMP ALTERNATE Inst TIMER BEEP TONE STEREO BELL BATT SAVE BATT VOLT Japanese LANGUAGE English DIRECT WR MESSAGE Inst CLONE TX CLONE RX CLONE MANUAL CTCSS SET REVERSE SYSTEM...
  • Page 88 Office: "TWIN 21" MID Tower Building 25F 1-61, 2-chome, Shiromi, Chuo-ku, Osaka, 540-8580, JAPAN Phone: 06-6946-8150 Fax: 06-6946-8175 E-mail: export@alinco.co.jp Copyright 2000, Alinco,Inc. Osaka Japan Printed in Japan PS0364A...
