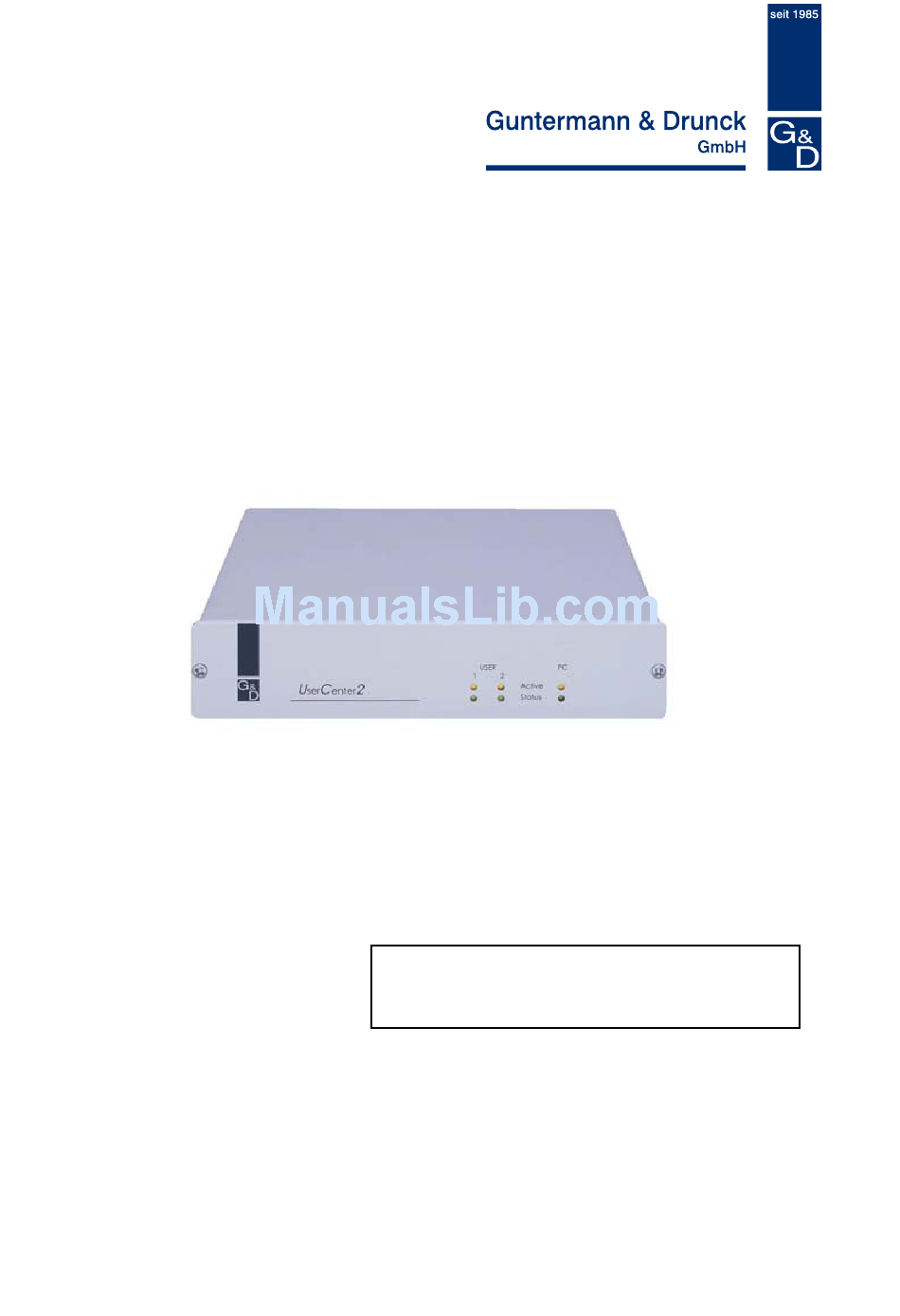

Page 1: Operating Instructions
UserCenter2/4 Operating Instructions Copyright G&D 20/06/2006 M 6.50; S 5.60 Errors and technical changes excepted! -
Page 2: Table Of Contents
UserCenter 2 (4) Table of Contents Description......................1 Scope of Delivery ....................1 Installation......................1 Switching on the units / LED displays..............2 Operation........................ 3 Switching ......................3 Manual Hold function..................3 GET function....................... 4 Dark-Switching of the screen whilst manual hold function ......... 5 Dark-Switching of the screen whilst GET-function .......... - Page 3 NFORMATION Warning N ORDER TO AVOID THE RISK OF AN ELECTRIC SHOCK THE DEVICE IS NOT TO BE OPENED OR THE COVERS NOT TO BE REMOVED N CASE OF AN ERROR PLEASE CONTACT OUR TECHNICIANS EFORE YOU TAKE THIS DEVICE INTO OPERATION PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY OLLOW ALL THE WARNINGS OR OPERATING HINTS WHICH ARE ON THE DEVICE OR IN THE OPERATING INSTRUCTIONS...
-
Page 4: Description
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Description UserCenter 2 (4) allows you to operate a single computer from either 2 or four different workplaces (monitor, keyboard, mouse). Thus, the system makes an active contribution to reducing costs, energy and space for additional computers and allows for more efficient use of existing computers. -
Page 5: Console Installation
Console installation: • Connect the monitor, keyboard and mouse of each workstation (up to 4) with the appropriate ports on the reverse side of the UserCenter 2 (4). • Please ensure that the three connections are allocated correctly to a connecting group. -
Page 6: Operation
Both connected monitors show simultaneously the picture of the computer. Manual Hold function The UserCenter 2(4) makes it possible that one of the 2 (4) consoles has access to the computer. This prevents that the system enables the other console after a preset time out of approx 1 second. -
Page 7: Get Function
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) The enabled hold function is indicated • by the slowly flashing keyboard LED “Scroll Lock” at the console where the hold function was enabled. • by the fast flashing keyboard LED “Scroll... -
Page 8: Dark-Switching Of The Screen Whilst Manual Hold Function
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) dark switched again. After this the automatic changeover as described in chapter 5.1 is enabled again. Default: The manual hold-function is enabled. If you wish to disable the manual hold function, proceed as described in chapter 6.5. -
Page 9: Setup Mode
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Setup Mode With the setup mode you can adapt UserCenter 2(4) exactly to your individual needs. The following settings can be done via keyboard: • Establishing the default condition • Changing the keyboard scan code •... -
Page 10: Establishing The Default Condition
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Establishing the default condition To establish the default condition proceed as follows: Call up the setup mode with CTRL BACKSPACE The setup mode will be indicated be the flashing of the three keyboard LEDs (NUM-Lock, CAPS-Lock, SCROLL-Lock). -
Page 11: Manual Hold Function
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Manual hold function With this setting you define whether the user can start the hold function with CTRL PRINT or not. For enabling the manual hold function you proceed as follows: •... -
Page 12: Darkening Of A Screen If The Hold Function Is Enabled
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Darkening of a screen if the hold function is enabled With this setting you define whether the screen of a console will be darkened if another console is active. To enable darkening proceed as follows: •... -
Page 13: Defining The Double Hotkey
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Defining the double hotkey With this setting you define whether one or two hotkeys are necessary for calling up a function. For this setting you proceed as follows: • Call up the setup mode with... -
Page 14: Time-Out For Automatic Switch
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) 6.10 Time-out for automatic switch With this setting the time-out for the automatic switch between the local and the remote console is defined. To change the time-out for the automatic switch proceed as follows:... -
Page 15: Automatic Mouse-Reset
Operating Instructions UserCenter 2 (4) 6.12 Automatic mouse-reset With this setting you define whether UserCenter 2(4) sends a mouse-reset to the computer during the switch-on or not (does not work with Unix computers). For enabling the automatic mouse-reset proceed as follows: •... -
Page 16: Mouse-Enable (Manually)
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) 6.14 Mouse-enable (manually) With this function you can manually establish a mouse-enable (on other Operating Systems than Windows). For the manual mouse-enable proceed as follows: • Call up the setup mode with... -
Page 17: Specifications
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Specifications Interfaces: Monitor: - input HD 15 pole socket output HD 15 pole SUB socket Transmittable signals: analog color graphics signals, R, G, B, H sync, V sync, Sync. in green, composite Sync. -
Page 18: Appendix
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Appendix Key Seizure SETUP Mode Setting Configuration key Chapter CALLING UP THE CTRL + BACKSPACE SETUP MODE Establishing the default condition Selecting the keyboard = scan code 2 scan code = scan code 3... -
Page 19: Key Seizure / Setup Mode
Guntermann & Drunck GmbH Operating Instructions UserCenter 2 (4) Key Seizure / SETUP Mode Page 16... - Page 20 Guntermann & Drunck GmbH Systementwicklung Dortmunder Str. 4a , 57234 Wilnsdorf Tel.: 02739/89010 , Fax.: 02739/890120 Email: sales@GDsys.de http://www.GDsys.de ©Sun, MAC, RS 6000, HP 9000, SGI, DEC Alpha Station sind eingetragene Warenzeichen der jeweiligen Hersteller.
