User Manual

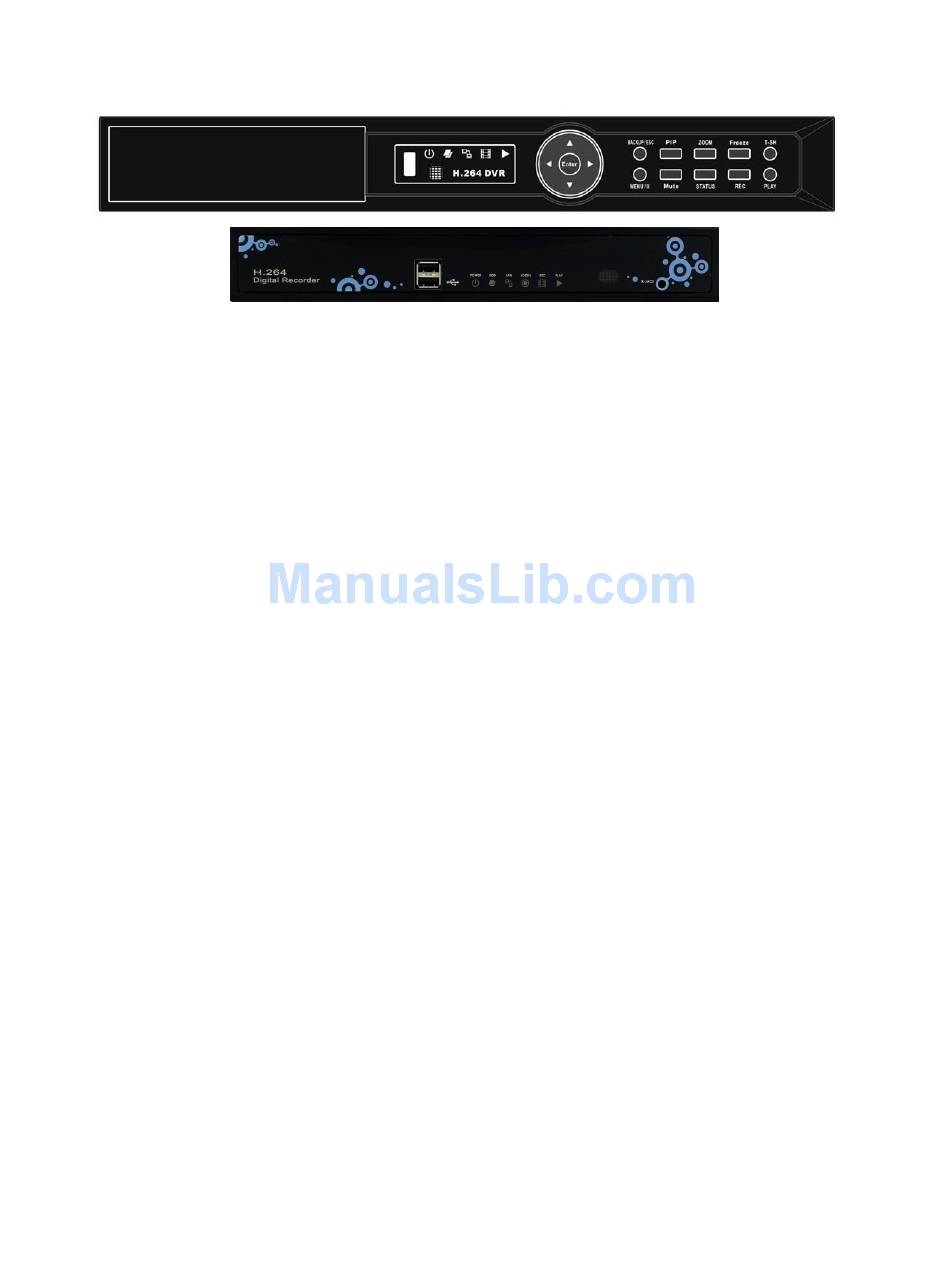

NETWORK SET UP GUIDE FOR
RVH1004/US411
RVH1008/US811
RVH1016/US611
st
nd
rd
1
G/2
G/3
G
UGI
H.264 DVR
SUPPORTING ROUTER
DLINK
LINKSYS
NETGEAR
Belkin
- p1
Network Setup
Advertisement
Related Manuals for Rayvision RVH1004
Summary of Contents for Rayvision RVH1004
- Page 1 NETWORK SET UP GUIDE FOR RVH1004/US411 RVH1008/US811 RVH1016/US611 H.264 DVR SUPPORTING ROUTER DLINK LINKSYS NETGEAR Belkin - p1 Network Setup...
- Page 2 Welcome to this step by step network set up guide for our ICatch/Rayvision DVRs, US411/RVH1004, US811/RVH1008, and US611/RVH1016. Following this guide you should be able to connect your DVR to the Internet, and then you can view your DVR anytime anywhere on any computer.
- Page 3 user name and password indicated At the website, key in the the CD sleeve, and then click “Logon”. C. After you are log in, go to the “Add New Record” section, and name of your choosing enter a in the blank space under “host.Domain”.
- Page 4 Please note, remember to log in to this website once in a while and click on the “update” bottom under “actions”. This will refresh your dynamic IP address with the host to ensure your host domain is kept updating with your dynamic IP. STEP- 2 Set up your DVR Now we need to set up the DVR so it will enable the DDNS service.
- Page 5 B. Enter DVR →Main Menu → Network Setup → “HTTP Setup” on “Enable HTTP Service”, the left hand side; check the top box for then change the “Port” to (8888) Click Ok to save. Same thing here, you can change the Port number to any number other than...
- Page 6 Router is the bridge between your DVR and the Internet. We have already set up both the DVR and the Internet, now we need to connect them with the router. Due to the various brand and model of routers in the market, this guide might not cover all the aspect of setting your router.
- Page 7 I use “8888”. After you finish, check the box at the front and click “Save Settings” on the top to exit. B. LINKSYS Router - p7 Network Setup...
- Page 8 In the address bar, type in default gateway “Http://192.168.1.1” Click “Log In” with blank Username and “admin” for Password if you never change the password before. In the “Applications & Gaming” tab on the top, choose “Port Range Forward”. Under “Application”, enter a name for your DVR. In my case, I use “DVR”.
- Page 9 In the address bar, type in default gateway “Http://192.168.1.1” and click “Log In” with “admin” for Username and “admin” for Password if you never change the password before, then you will see the below screen. Scroll down to the “Advanced” heading at the lower-left corner of the window.
- Page 10 D. Belkin Router Open a Web Browser on your computer. Please type in Http://192.168.2.1 In the address bar of the Web Browser, Click Login in the upper right hand corner of the page. The router does not ship with a password, so just click submit. Click on Virtual Servers under Firewall in the menu on the left Enter the following information Click Enabled...
- Page 11 Now load up your Internet Explorer and in the address bar, type in “http://host domain:port number”, in my example, it is “http://Rayvision.i-dvr.net:8888” and press Enter key. You should be prompted with “User Name and “Password”. Now you need to type in the User Name and Password to the DVR, not the information on the CD sleeve.
- Page 12 Enter the “DVR Address” as the Host Domain; my example is “Rayvision.i-dvr.net”. Enter “Port” as “8888”. Enter the default Username as “admin” and “Password” as “123456” if you haven’t changed it in the DVR setting. Click “Ok” to connect.
- Page 13 STEP-5 Using Static IP Address If you have Static IP address, please skip step one Here is the DSL setup Quick check list without it your remote view will not work; 1- Make sure your DSL Router/Modem is bridged, if your DSL modem/router not bridged you have two routers back to back and your remote view will not work.
