Summary of Contents for Rayvision RVH1004
- Page 1 User Manual 411L v0.6(M02) 4CH DVR This document contains preliminary information and subject to change without notice. 2010.01.22 411L User Manual V0.6(M02)
- Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a class digital device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Table of Contents CHAPTER 1 PACKING DETAIL AND INSTALLATION _____________________ 5 1-1 PACKING ____________________________________________________ 5 1-2 Hard Disk Installation _________________________________________ 6 CHAPTER 2 PANEL LOCATION ________________________________________ 9 2-1 FRONT PANEL CONTROLS ____________________________________ 9 2-2 4CH REAR PANEL CONNECTORS _____________________________ 10 CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS _________________ 11 3-1 LIVE Mode__________________________________________________ 11 3-2 PLAYBACK Mode____________________________________________ 14... - Page 4 CHAPTER 6 Rempte Software Installation and Setup ____________________ 44 6-1 AP Software Installation and instruction _______________________ 44 6-2 How to do remote monitoring through IE ______________________ 46 6-3 AP Software Operation _______________________________________ 47 CHAPTER 7 SPECIFICAITONS_______________________________________ 48 CHAPTER 8 MOBILE APPLICATION INSTALLATION AND USAGE __________ 50 8-1 Mobile Application Installation and Operation for Symbian System 50 8-1.1 Mobile Application Installation____________________________ 50 8-1.2 Mobile Application Operation_____________________________ 51...
-
Page 5: Chapter 1 Packing Detail And Installation
CHAPTER 1 PACKING DETAIL AND INSTALLATION 1-1 PACKING 1. DVR 2. Quick Start 3. IR Remote Control 4. Batteries x2 5. CD 6. SATA Cord x1 7. Screws x4 8. Power Adaptor Note: Standard shipping products do not include HDD 2010.01.22 411L User Manual V0.6(M02) -
Page 6: Hard Disk Installation
1-2 Hard Disk Installation Step 1: Take off the three screws from the bottom of the DVR as indicated in red circles in the picture below. Step 2: Open the cover follow the way the arrows indicate. Step 3: Fix the HDD to rack mount and connect SATA and the power cable as indi cated. - Page 7 Step 4: Put DVR bottom up, screw to fix the HDD as indicated. Step 5: Put the cover back and put the three screws back to fix the cover in the bottom of the DVR. 2010.01.22 411L User Manual V0.6(M02)
- Page 8 NOTE: The initialization of new-installed HDD is required before recording, please refer to manual “4-8UTILITY SETUP” for detail. 2010.01.22 411L User Manual V0.6(M02)
-
Page 9: Chapter 2 Panel Location

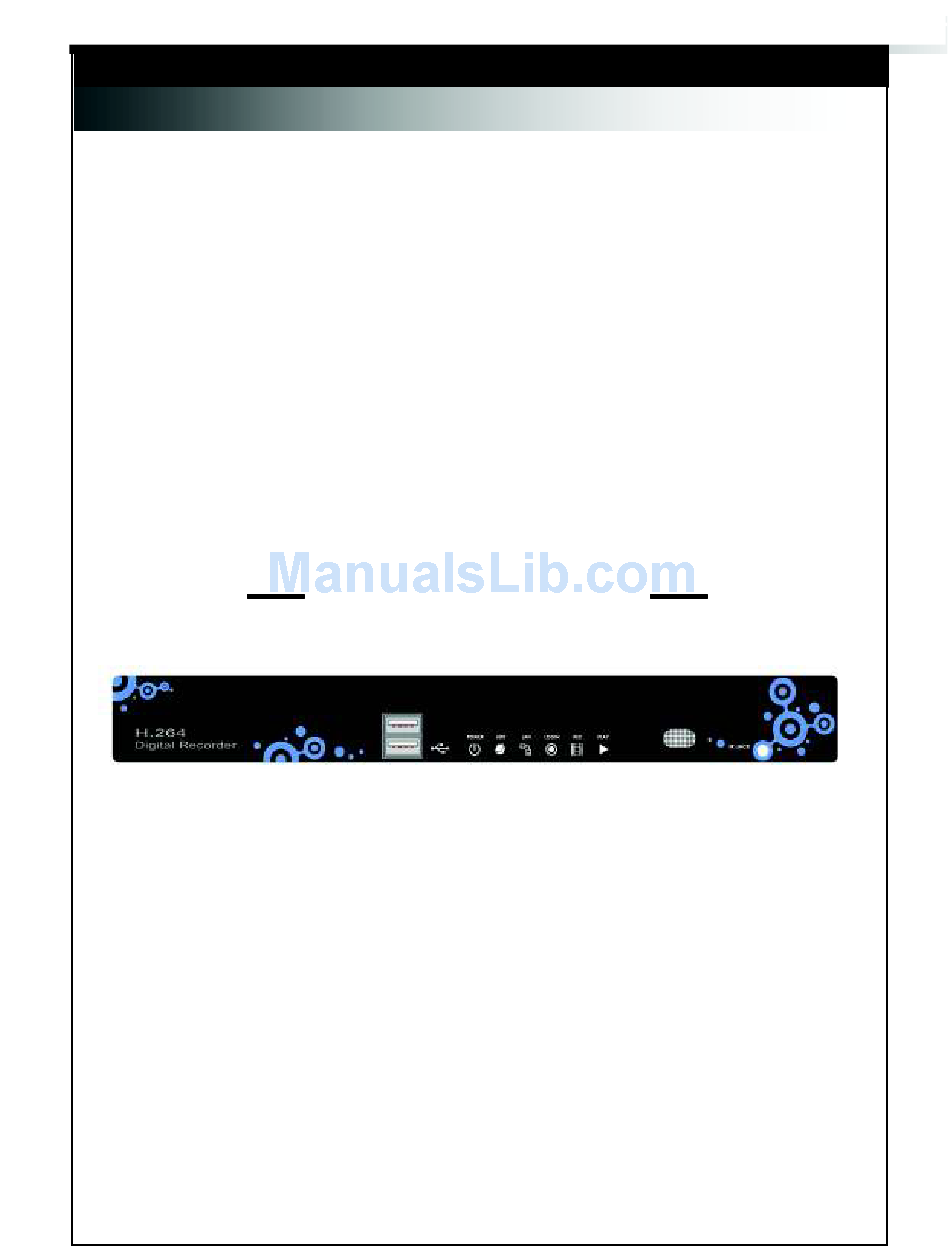

CHAPTER 2 PANEL LOCATION 2-1 FRONT PANEL CONTROLS Top(USB2.0) is used to plug the USB memory stick USB Port Bottom(USB1.1) is used to plug the mouse DVR Power is on. Power LED Display Hard disk is in use. LED Display Connected to the internet. -
Page 10: 4Ch Rear Panel Connectors
2-2 4CH REAR PANEL CONNECTORS Socket for a DC 12V input. DC 12V BNC port for the main monitor. MAIN monitor VIDEO IN BNC input ports for cameras, 16 in total. AUDIO IN RCA input port for audio signal. RCA output for audio signal. AUDIO OUT NTSC PAL Switch Switch between NTSC and PAL format. -
Page 11: Chapter 3 Live, Playback And Ptz Operations
CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS The IR remote control and mouse operate differently under each mode; this chapter describes the functions of them under three different modes: LIVE, PLAYBACK and PTZ. 3-1 LIVE Mode You can monitor all the channels, listen to audio signal and have some related operations under LIVE mode. - Page 12 Table 3-1.2 Graphical icons that will display after right-clicking your mouse under LIVE mode. Icon Description Resting the cursor on this icon will bring up the following four menu icons. Main menu. Search menu. Backup menu. PTZ mode. Turn on/off recording. Playback.
- Page 13 Table 3-1.3 Description of on screen graphical icons in LIVE mode Icon Description Recording is on Live Audio is on Live Audio is off Motion detected on the channel Sensor triggered on the channel Video loss detected on the channel USB device detected DVD burner is detected Connected to the LAN cable.
-
Page 14: Playback Mode
3-2 PLAYBACK Mode Switch to PLAYBACK mode by pressing “PLAY” under the LIVE mode, the graphical icon will show up on the upper center of the screen and the operation panel ( see below picture) will show up at right lower corner of the screen. You can drag the panel by mouse to place it on any location of your screen. - Page 15 Table 3-2.2 The mouse operation under the PLAYBACK mode. Icon Description Fast rewind Fast forward Play/pause / SLOW slow playback stop playback Playback channel by channel with snap shot display Full screen display Quad display Zoom-in display 2010.01.22 411L User Manual V0.6(M02)
-
Page 16: Ptz Mode
3-3 PTZ Mode Switch to the PTZ mode by pressing “PTZ” button under the LIVE mode. The PTZ icon will appear on upper left side of screen and the control panel will appear on the down right side of screen. Table 3-3.1 Remote Control functions under the PTZ mode Description Button... - Page 17 Table 3-3.2 Mouse operation under the PTZ mode Icon Description Leave PTZ Mode back to the LIVE mode Pre-set number N. (0~255) Go to pre-set number N. Set current PTZ location at pre-set number N. TOUR press to activate pre-set tour Set current PTZ location as the start of line-scan.
-
Page 18: Chapter 4 Main Menu Setup
CHAPTER 4 MAIN MENU SETUP To enter the main menu and set up DVR, log-in account and user password are required. The default password of the administrator is “123456”. Please check the “Account Setup” for related setup of other log-in users. Table 4-0.1 Some definition of virtual keyboard. -
Page 19: Record Setup
Table 4-0.2 The operation of remote control under the setting menu Item Description Switch to different options under one item Switch to different items MENU Save setup and back to LIVE mode Back to Upper level of menu without saving ENTER Enter the menu, or display virtual keyboard PS. -
Page 20: 4-1.1 Quality & Frame Rate Setup
4-1.1 Quality & Frame Rate Setup Item Description Normal setup/ Select recording mode event setup Select recording resolution: NTSC:360x240, 720x240, 720x480 Resolution PAL:352X288,704X288,704X576 Record Type You can setup quality and FPS separately for record type. Check/uncheck the box enable/disable selected channel recording Quality Select quality: Below Basic/ Basic/ Normal/ High/ Highest Select recording frame rate. -
Page 21: 4-2.1 Motion Setup
Item Description Motion Setup Enter to set up motion detection Sensor Setup Enter to set up sensor detection 4-2.1 MOTION SETUP Item Description Check the box to Enable/Disable popup screen function for all Motion Popup channels. When motion is detected in LIVE mode, the detected channel image will pop up in full screen display. -
Page 22: 4-2.1.1 Motion Area Setup
4-2.1.1 MOTION AREA SETUP The motion detection has been divided into 16x12 grids. The default detection area is full screen as it marked in transparent for local DVR and purple for remote access. Areas deselected for motion detection are marked in red for both local and remote site. Item Description Mask Mouse Selection... -
Page 23: Schedule Setup
Item Description Sensor Popup Check the box to Enable/Disable popup screen function for all channels. When Sensor is detected in LIVE mode, the detected channel image will pop up in full screen display. All Off Set all sensor off Set all sensor polarity low All Low All High Set all sensor polarity high... -
Page 24: 4-3.1 Schedule Record Setup
4-3.1 Schedule Record Setup Click on the time on the left side. The setup menu will be displayed. You can have detail setup by dates, Time and event. 4-3.2 Holiday Setup Since holidays are different by different country and region, you can setup the holiday of your location accordingly. -
Page 25: Camera Setup
4-4 CAMERA SETUP Item Description You can setup independently for each channel. Mask Check the box to Enable/Disable mask function for LIVE mode Drag the bar or press to adjust Sharpness of your camera from Sharpness value 1 to 255. The default value is 1. Drag the bar or press to adjust Brightness of your camera from Brightness... -
Page 26: Account Setup
4-5 ACCOUNT SETUP The Account Setup menu is used to provide role-based permission independently setting for each user (maximum of 2 users) to access DVR over network. The default admin account and password is “admin” and “123456” The default password remains the same after firmware upgrade, however, it requires 8-digits for password length when you setup a new one Item Description... -
Page 27: 4-5.1 Permission Setup
4-5.1 Permission Setup The Account Setup is set to provide individual user (maximum of 2 users) role-based permissions, including access to Setup menu, Network operation, PTZ function, Playback, Utility, Backup, Password expiry date and Mask on specific channels while playing back. 4-5.2 User Picture Setup User can select picture wished to be changed to from hard drive. -
Page 28: Networking Setup
4-6 NETWORKING SETUP Item Description Connect type Setup mode for network connection: (DHCP LAN ADSL). HTTP Setup Enter to set up HTTP DDNS Setup Enter to set up DDNS Mail Setup Enter to set up mail 4-6.1 NETWORKING SETUP There are three ways to connect to the network as followed. 4-6.1.1 DHCP When DHCP is selected, IP address will be assigned by DHCP server automatically. -
Page 29: 4-6.1.2 Lan
4-6.1.2 LAN Select LAN for network connection, the following information is required. Item Description IP Address Enter IP address provided by ISP Subnet Mask Enter IP address of Subnet Mask provided by ISP Gateway Enter IP address of Gate way provided by ISP Enter DNS address provided by ISP. -
Page 30: 4-6.2 Http Setup
4-6.2 HTTP Setup Item Description Enable HTTP Check to enable HTTP server. Users can remotely access into the DVR over the network if the HTTP function is activated. Server Port Enter a valid port value from 1 up to 65000. The default value is 80. Assign each channel with its maxima accessible fps Auto Chanel number... -
Page 31: 4-6.4 Mail Setup
Item Description Enable DDNS Enable/disable DDNS function. Enter the registered SMTP Server: DDNS Server ez-dn I-DVR.NET DYNDNS.ORG NO-IP.ORG 3322.ORG SMTP Server Enter the completed registered SMTP Server. (Including username + Server) If the user name is h.264 and you choose i-dvr as your server, you should enter: h.264.i-dvr.net User Name... -
Page 32: Ptz & Rs485 Setup
Item Description Enable E-mail Notification Check the box to enable/disable E-mal Notification function. Enter to set up SMTP Server name. SMTP Server (Varies according to the user) User Name Enter to set up User Name. Password Enter to set up Password. Sender E-mail Enter to set up e-mail address of receivers. -
Page 33: System Setup
4-8 SYSTEM SETUP Item Description DVR Name The name of DVR will be shown when users login from remote access. DVR Location The location of DVR will be shown when users login from remote access Click or press to select OSD language from English, Traditional Language Chinese, Simplified Chinese, Japanese, Greek, Portuguese Default ID is 0. -
Page 34: 4-8.1 Display Setup
4-8.1 DISPLAY SETUP Item Description Auto-Seq Interval Set up duration time in seconds for the interval between channels under Auto-Seq mode. Show OSD Turn On / Off OSD display Show DVR Status Turn On / Off DVR illustration and record status display Show Date/Time Turn On / Off date and time display Show Channel Name... -
Page 35: 4-8.2.1 Change Date & Time
Item Description Hour Format 12HOURS/ 24HOURS Date Format MM-DD-YY/DD-MM-YY/YY-MM-DD Date/Time Position Choose the position of Time and Date display Change Date & Time Setup time and date of DVR Time Zone Setup Set up GMT and Daylight Saving Time. Internet Time Setup Setup automatic synchronization with internet server 4-8.2.1 CHANGE DATE &... -
Page 36: 4-8.2.3 Internet Time Setup
Item Description Select Time Zone Enter to modify GMT from GMT- 13 to GMT+ 13 Daylight Saving Time Turn on/ off Daylight Saving Time 4-8.2.3 INTERNET TIME SETUP Synchronize your DVR time with internet time server. Item Description Check to enable DVR automatic synchronization function. Automatic Effective by this option selected, DVR will automatically synchronize the time upon rebooting or by every 24 hours after... -
Page 37: 4-8.4 Spot Setup
Item Description Key Tone Enable/Disable keystrokes. Enable/Disable buzzer operation when the alarm is triggered for Buzzer HDD Error, Video Loss, Motion and Sensor. Enable/Disable the signal to be sent to the RELAY OUT blocks Relay when the alarm is triggered for HDD Error, Video Loss, Motion and Sensor. -
Page 38: Utility Setup
Item Description Channels display in spot for three different modes: MANUAL: select channels to display manually. SPOT MODE SEQUENCE: Auto-sequence for all channels in order. EVENT: Display channels with event occurred. The duration time in seconds for the interval between channels under Interval (Seconds) SPOT mode. -
Page 39: Diagnostic
4-10 DIAGNOSTIC Item Description Version The current firmware version of DVR The connected IP address of DVR. If disconnected from network, screen will display” NETWORK DISCONNECT”. MAC Address of DVR HDD Status HDD number Volume HDD Capacity Used Percentage of space used on HDD. Shows HDD status. -
Page 40: Chapter 5 Backup & Search
CHAPTER 5 BACKUP & SEARCH 5-1 BACKUP SETUP User can backup any segment of recorded data in a specified time frame. To do so, either a CD R/W or storage device, like USB, must be connected to the DVR. Recorded data can also backup into NB/PC through our remote access software: DVRemoteDesktop.exe and be... -
Page 41: Search Setup
5-2 SEARCH SETUP Item Description Event Search Event search menu Time Search Enter time search menu 2010.01.22 411L User Manual V0.6(M02) -
Page 42: 5-2.1 Event Search
5-2.1 EVENT SEARCH The DVR automatically records events with type, time and channel information included. If there is recording data for an event, a yellow signal will be shown on the left side of time information. Rest your cursor under the line and press “enter”, or left click your mouse to playback the recording data. -
Page 43: 5-2.2 Time Search
5-2.2 TIME SEARCH TIME SEARCH can search for the specific time of recording data to playback. Press “Enter” or left click on the desired date to playback. Note that dates with recording data are marked with a red square “ “System will start playing back according to the date you selected. -
Page 44: Chapter 6 Rempte Software Installation And Setup
CHAPTER 6 Rempte Software Installation and Setup 6-1 AP Software Installation and instruction AP software: DVR Remote Desktop can allow you to remotely access and control the DVR from PC. p.s. Operation system currently supports Windows XP SP2 and above and Window s Vista, Windows 7 Step One Enter the IP address of DVR in IE browser Step Two: Windows as below will show up. - Page 45 Step Four: Run or Save our AP software. Step Five: If you choose to run the software, Start window will be shown up. Please enter information of login DVR: IP, Port, Username and Password, or choose “Play Recorded File” to open backup files in your PC. Step Six: You’ve logged into the DVR 2010.01.22 411L User Manual V0.6(M02)
-
Page 46: How To Do Remote Monitoring Through Ie
6-2 How to do remote monitoring through IE Step One Enter the IP address of DVR in IE browser. The address appeared in this image is only for demonstration. Actual address is depending on the setup of on-site DVR. Step Two: Windows as below will show up. Please enter the user name and password. Default user name and password is admin/123456. -
Page 47: Ap Software Operation
Step Four: DVR images appear. 6-3 AP Software Operation Open the file “DVRemoteDesktop.exe”; enter the information of DVR “IP address”, “Port” “Username” and “Password” and click “OK”. You should be able to login DVR successfully and start to use the software. The default username and password is admin/ 123456 “DVRemoteDesktop.exe”... -
Page 48: Chapter 7 Specificaitons
CHAPTER 7 SPECIFICAITONS 1. VIDEO Input Level 1.0 Vp-p±10% Composite, 75 Balanced NTSC 120fps Display Speed 100fps NTSC 704(H) X 480(V) Display Resolution 704(H) X 576(V) Monitor Output 2Vp-p Composite, 75 Balanced 2. RECORDING Compression Method H.264 Recording Speed Refer to table 7-1 NTSC 704 X 480, 704 X 240, 352 X 240 Recording Resolution... - Page 49 8. PHYSICAL Dimension 300(W) x 175(D) x 46(H) mm 1.3 KG not including HD Weight 9. BACKUP USB Stick Video Data, Audio BACKUP Network Video Data, Audio 10. SEARCHING & PLAYBACK Searching Type Event/ Time Playback speed 120 FPS 11. MULTI-REMOTE SURVEILLANCE Monitoring Environment Web/AP/CMS Max.
-
Page 50: Chapter 8 Mobile Application Installation And Usage
CHAPTER 8 MOBILE APPLICATION INSTALLATION AND USAGE You can remotely monitor all channels of DVR through your mobile device. The required mobile application is from DVR manufacturer and it supports mobile OS for both Windows mobile 5.0 above and Symbian. Please confirm network function of DVR has been activated before mobile connection: Main menu Network Setup... -
Page 51: 8-1.2 Mobile Application Operation
8-1.2 Mobile Application Operation After the installation, enter the Program Files menu in your mobile device to run a file called “DVRH264”. Select “Menu” at the right lower corner of your mobile screen, 4 commands, Login Add Modify and Delete, will show up. -
Page 52: 8-1.2.3 Modify The Login Information Of Dvr
8-1.2.3 Modify the Login Information of DVR You can use the “Modify” command to change the login information of DVR. The dialogue is identical to that of the “Add” command. 8-1.2.4 Delete the Login Information of DVR “Delete” command can be used to remove the DVR information if it is no longer useful. Select the DVR on the name list then choose “Delete”... -
Page 53: 8-1.3.1 Scroll The Image
device. 8-1.3.1 Scroll the Image You can use the keypad on your mobile device to scroll the image if it’s oversized. Action Scroll Up Scroll Left Scroll Right Scroll Down 8-1.3.2 Image Quality Setup Select “Quality” under the “Menu” There will be 5 levels for your to choose: Low Normal Middle High and Highest. -
Page 54: 8-1.3.4 Size Of Image
8-1.3.4 Size of Image The screen size of different mobile device can be different. You can select “Size” under the “Menu” to choose from “Original” or “Fit Screen” to resize the display image. Item Description Original The image will be shown in original size. -
Page 55: Mobile Application Installation And Operation For Windows Mobile System
8-2 Mobile Application Installation and Operation for Windows Mobile System There are two kinds of applications for Window Mobile OS: JPEG compression and H.264 compression. The one for H.264 compression can transfer both audio and video signal to your mobile device. System Requirement: Mobile device OS Windows mobile system 5.0 above. -
Page 56: 8-2.2 Mobile Application Operation
8-2.2 Mobile Application Operation After the installation, enter the Program Files menu in your mobile device to run files named “Jrviewer” and “H264Pocket”. This application allows you to remotely logon and monitor DVR. Press “OK” to bring up the operation menu, see below chart to further information. Item Function Description... -
Page 57: 8-2.3 Operation Under The Live Monitoring
8-2.3 Operation under the LIVE monitoring. After successful logon the DVR, press “View” to bring up operation menu. You can choose the channel, resize the image, choose the quality, and turn on/off the status bar, alarm, full screen display….etc Item Function Description Choose from CH1~16 to display. -
Page 58: Chapter 9 Cms Installation And Usage Guide
CHAPTER 9 CMS INSTALLATION AND USAGE GUIDE 9-1 CMS Installation System Requirement: Intel Pentium 4 processor or equivalent. Microsoft Windows Vista Windows XP Windows 2003 Server. Besides OS and other required APs, there will be 512MB remaining memory needed or above. 512MB memory above.(500M requested for group DVR connection and 180M for single DVR) 20MB HD space. - Page 59 5.”Confirm Installation” window shows. Select ‘Next’ then the installation starts. 6. Select ‘Close’ to finish installation when the “Installation Complete” window shows. 2010.01.22 411L User Manual V0.6(M02)
- Page 60 Instruction for Log-in Failure to CMS After Upgrade Log in to CMS with the default account and password after CMS upgrade. If an error message occurs as shown in the image, please follow the instruction to solve the error. Step 1: Please enter file manager to enter folder, “Windows” and then folder “Systme32” (ex:C:\Windows\System32) Step 2: Locate file, “iCMS.dat”...
-
Page 61: Cms Login And Environment
9-2 CMS LOGIN AND ENVIRONMENT To enter CMS, the administrator’s user name and password are required. The defaults are ‘admin’ and ‘123456’. After successful login, the following image shows on your screen: DVRs, Groups & Information about DVRs, groups and events. See “9-3 Information List”... -
Page 62: Dvrs, Groups & Events
9-3 DVRs, Groups & Events Icon Description View list of logged in DVR Group. View Logs: list all the event information of DVR 9-3.1 View DVR Group List Single left click on ‘DVR’ or ‘Group’ will expand/collapse the entire DVRs and groups list. -
Page 63: 9-3.2 View Event Logs
9-3.2 View Event Logs Under this page, all the events of a DVR can be expanded/collapsed in the order of Re mote in/Remote out, Video Loss, Motion, Sensor, Others (Power Reset, Key Lock, Key Unlock, HD Full). 9-4 Local PC Information and Control Located at the left lower corner of the screen, please see the chart below: Icon Function... -
Page 64: Main Display
9-5 Main Display The main display area is where the live image of DVR is shown. You can drag to change the location of screen for each channel and turn on/off audio signal with mouse-click. 9-5.1 Audio Control In live mode, you can turn on/off the audio signal of Ch1~Ch4: Audio signal is On Audio signal is Off Turn on/off by clicking on the graphical icon, please note there can allow only one chan... -
Page 65: 9-5.2 Emap Display
9-5.2 eMAP Display In Live mode, pressing will bring the e-MAP drag-down menu. If the channel has been set up to use e-MAP, the menu will show all the e-MAP titles that have been entitled to this channel; otherwise, “No eMaps” will be shown. Please check “9-6.4 eMAP administration”... -
Page 66: 9-5.3 Ptz Control
9-5.3 PTZ Control In the main display, right click on the channel will bring up PTZ control panel as below. Icon Description 8 direction key Rotate the PTZ ZOOM+ Zoom in ZOOM : Zoom out Setup the PTZ spot as pre-set N. FOCUS+ : Focus in FOCUS- Focus out Move to pre-set N. -
Page 67: Operation Bar
9-6 Operation Bar 10 Operations to be listed as below: Table 9-6.1 description of 10 operations: Icon Description User Administration. Please see “9-6.1 User administration” DVR Administration. Please see “9-6.2 DVR Administration” Group Administration. Please see “9-6.3 Group Administration” eMap Administration. Please see “9-6.4 eMap Administration”. Remote Playback. -
Page 68: 9-6.1 User Administration
9-6.1 User administration Before the CMS can be used on a PC, user accounts should be added with proper authority. Each user should also be assigned a password and optionally a description. If a user does not have certain authority assigned, he/she will not be able to operate the corresponding function on the Operation Bar. -
Page 69: 9-6.3 Group Administration
9-6.3 Group Administration A ‘Group’ means a set of video channels from one or many DVRs, which means, user can organize channels from different DVRs to be set in a group. This function allows you to monitor and manager channels from multiple DVRs easily and flexible. Steps: 1. -
Page 70: 9-6.4 Emap Administration
9-6.4 eMap Administration If geographical locations are relevant, or if it is desired to use a picture as the background, eMap can be used for the purpose. With eMap, the background picture can be picked by the user and channels from multiple DVRs can be placed and dragged around on the picture. Steps to follow: 1. -
Page 71: 9-6.5 Remote Play
9-6.5 Remote Play Video images recorded on a DVR can be displayed on a remote CMS. With Remote Play function, select a DVR and a display mode on top of the screen. After the recorded segments are listed below, double click on one to show its image on the right. Icon Description Start playing. -
Page 72: 9-6.6 Hdd Playback
9-6.6 HDD Playback You can directly play the recording data in the HDD that’s uninstalled from DVR by CMS. See the picture below, the left part of screen is recording data in list that’s separated by hour and the right part is main display. You can change the display modes and play files fast forward or rewind. -
Page 73: 9-6.8 Event Playback
9-6.8 Event Playback Event recordings on the DVR can be played back in CMS. Steps to follow: 1. Select a DVR and a display mode. 2. Select a date. 3. Double click an event and play back the images on the right. Use buttons at the bottom to control the playback. -
Page 74: 9-6.10 Recording Data
9-6.10 Recording Data It can play all the recording files you’ve recorded in line in “Recording Data”. You can play or delete them here. Steps to follow: 1. Choose the recording time at upper left corner, it will be played on the main display. 2. -
Page 75: Appendix I I-Dvr.net Registration
APPENDIX I I-DVR.NET REGISTRATION DDNS Registration on I-DVR.NET In the package of each DVR, you will find a sticker shows account information including username and password that allows users to login I-DVR.NET for registration. To register DDNS on I-DVR.NET, please follow the steps as shown. Step 1. - Page 76 Step 4. Enter DVR Main Menu Network Setup DDNS. Activate DDNS functions and input related information. DDNS work properly when this option selected. This part of the information required and the same within the i-dvr.net Step 5.Back to the i-dvr.net, on this page by pressing "F5: Refresh", IP will be automatically updated into the DVR of the real IP location.
-
Page 77: Appendix Ii Remote Monitoring Ie Activex Control Installation Instruction
APPENDIX II Remote Monitoring IE ActiveX Control Installation Instruction When using IE for remote monitoring for the first time, IE ActiveX Control is needed to be downloaded. 1. When remote monitoring on IE for the first time, an alert message occurs “Install ActiveX control”... - Page 78 4. After installation, IE remote monitoring image appears. 5. If message, “Your security Settings do not allow web sites to use ActiveX controls installed on your computer.” pops on when logging in, please follow the next instruction. 6. First select “Tools” on the tool bar and then select “Internet Options” 2010.01.22 411L User Manual V0.6(M02)
- Page 79 7. Select Security Trusted Sites Sites 8. Enter DVR address (This address is only for demonstration. Please use the address depends on the setup of on-site DVR.) into the blanks shown in picture, and then press “add.” 2010.01.22 411L User Manual V0.6(M02)
- Page 80 9. Newly added website will appear at the trusted web sites list. Press close. 10. Go back to IE window, press refresh button or F5. 2010.01.22 411L User Manual V0.6(M02)
