4CH/8CH/16CH DVR
Quick Start Guide
1. Packing........................................P.3
2. Hard Disk Installation................P.4
3. Front Panel Controls..................P.6
4. Rear Panel Connectors..............P.7
5. Live Operations........................P.10
6. Playback Operations................P.13
7. PTZ Operations.........................P.14
Advertisement
Table of Contents
Related Manuals for Rayvision X11ZS series
Summary of Contents for Rayvision X11ZS series
-

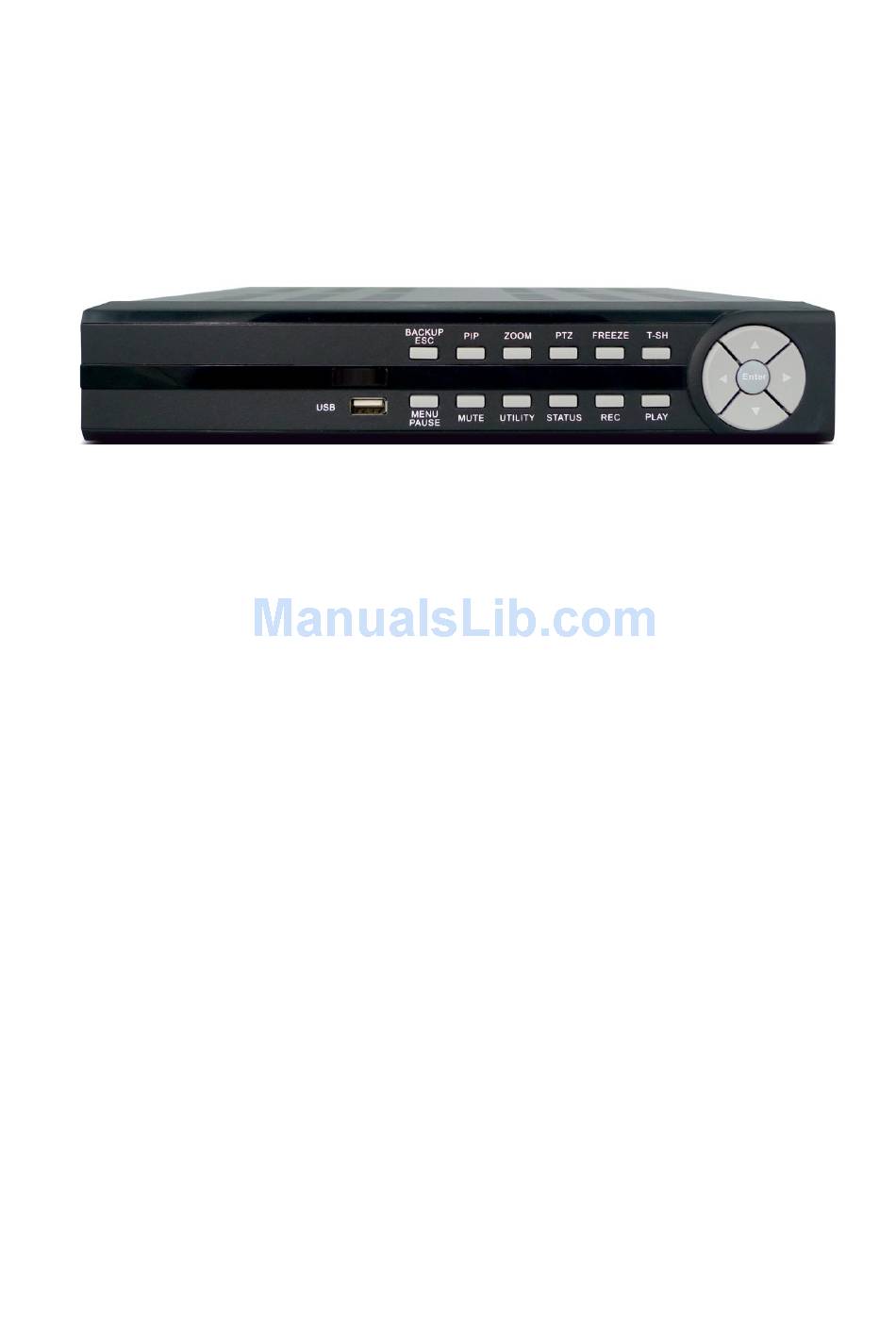

Page 1: Quick Start Guide
4CH/8CH/16CH DVR Quick Start Guide 1. Packing........P.3 2. Hard Disk Installation....P.4 3. Front Panel Controls....P.6 4. Rear Panel Connectors....P.7 5. Live Operations….....P.10 6. Playback Operations....P.13 7. PTZ Operations……....P.14... - Page 2 2011.07.05 4CH/8CH/16CH-J01(V1.0) Quick Start Guide P.2...
- Page 3 1. DVR 2. Quick Start 3. IR Remote Control 4. Battery 5. CD 6. Hard Disk Mount 7. Screws 8. Power Adaptor 9. SATA Cord Note: Standard shipping products do not include HDD 2011.07.05 4CH/8CH/16CH-J01(V1.0) Quick Start Guide P.3...
- Page 4 Step１) Take out the screws as pictures show. Back panel 3 screws Step 2) Open the cover follow the arrow direction. 2011.07.05 4CH/8CH/16CH-J01(V1.0) Quick Start Guide P.4...
- Page 5 Step３) Connect SATA & Power wire to Hard Disk and put it on the rack mount. Step 4) Put the cover back and fix it with 3 screws as Step 1 indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual Utility Setup for reference.
- Page 6 Power: Power is on. HDD: Hard disk is in use. ① LAN: Connected to the internet (in red: Remote user logged in). Display REC: Recording. PLAY: Playing back. In LIVE mode, press to display the BACKUP menu. In SETUP ② BACKUP/ESC mode, press to return to previous page.
-
Page 7: 4Ch Rear Panel Connectors
4CH REAR PANEL CONNECTORS ① HDMI HDMI port. (Option) ② VIDEO IN BNC input ports for cameras, 4 in total. ③ SPOT SPOT output. ④ AUDIO OUT RCA output port for audio signal. ⑤ AUDIO IN RCA input port for audio signal. ⑥... -
Page 8: 8Ch Rear Panel Connectors
8CH REAR PANEL CONNECTORS ① HDMI HDMI port. (Option) ② VIDEO IN BNC input ports for cameras, 8 in total. ③ SPOT SPOT output. ④ AUDIO OUT RCA output port for audio signal. ⑤ AUDIO IN RCA input port for audio signal. ⑥... -
Page 9: 16Ch Rear Panel Connectors
16CH REAR PANEL CONNECTORS ① MAIN BNC port for the main monitor. ② VIDEO IN BNC input ports for cameras, 16 in total. ③ AUDIO IN RCA input port for audio signal. ④ LAN Network port. ⑤AUDIO OUT RCA output port for audio signal. ⑥... -
Page 10: Enter／Mode
You can monitor all the channels, listen to audio signal and have some related operations under LIVE mode. This paragraph describes the IR remote control, mouse operation and on screen graphical icons under LIVE mode. Table 5-1 Functions of remote control under LIVE mode Button Description Start/Stop recording. - Page 11 Table 5-2 Graphical icons that will display after right-clicking your mouse under LIVE mode Icon Description Resting the cursor on this icon will bring up the following four menu icons. Main menu. Search menu. Backup menu. PTZ mode. Turn on/off recording. Playback.
- Page 12 Table 5-3 Description of on screen graphical icons in LIVE mode 圖示 說明 Recording is on Live Audio is on Live Audio is off Motion detected on the channel Video loss detected on the channel USB device detected Connected to the LAN cable. AUTO-seq is on Freeze is on, screen is frozen LOCK is on...
- Page 13 Switch to PLAYBACK mode by pressing “PLAY” under the LIVE mode, the graphical icon will show up on the upper center of the screen and the operation panel ( see below picture) will show up at right lower corner of the screen. You can drag the panel by mouse to place it on any location of your screen.
- Page 14 Switch to the PTZ mode by pressing “PTZ” button under the LIVE mode. The PTZ icon will appear on upper left side of screen and the control panel will appear on the down right side of screen. Table 7-1 Mouse operation under the PTZ mode Icon Description Leave PTZ Mode，back to the LIVE mode...
