- Page 1 COOKTOP PARTS 36" ELECTRIC For Models: KECD866RBL04, KECD866RWW04 BUILT−IN DOWNDRDAFT COOKTOP (Black) (White on White) 1−08 Litho in U.S.A. (amd) Part No. W10188473 Rev. A...

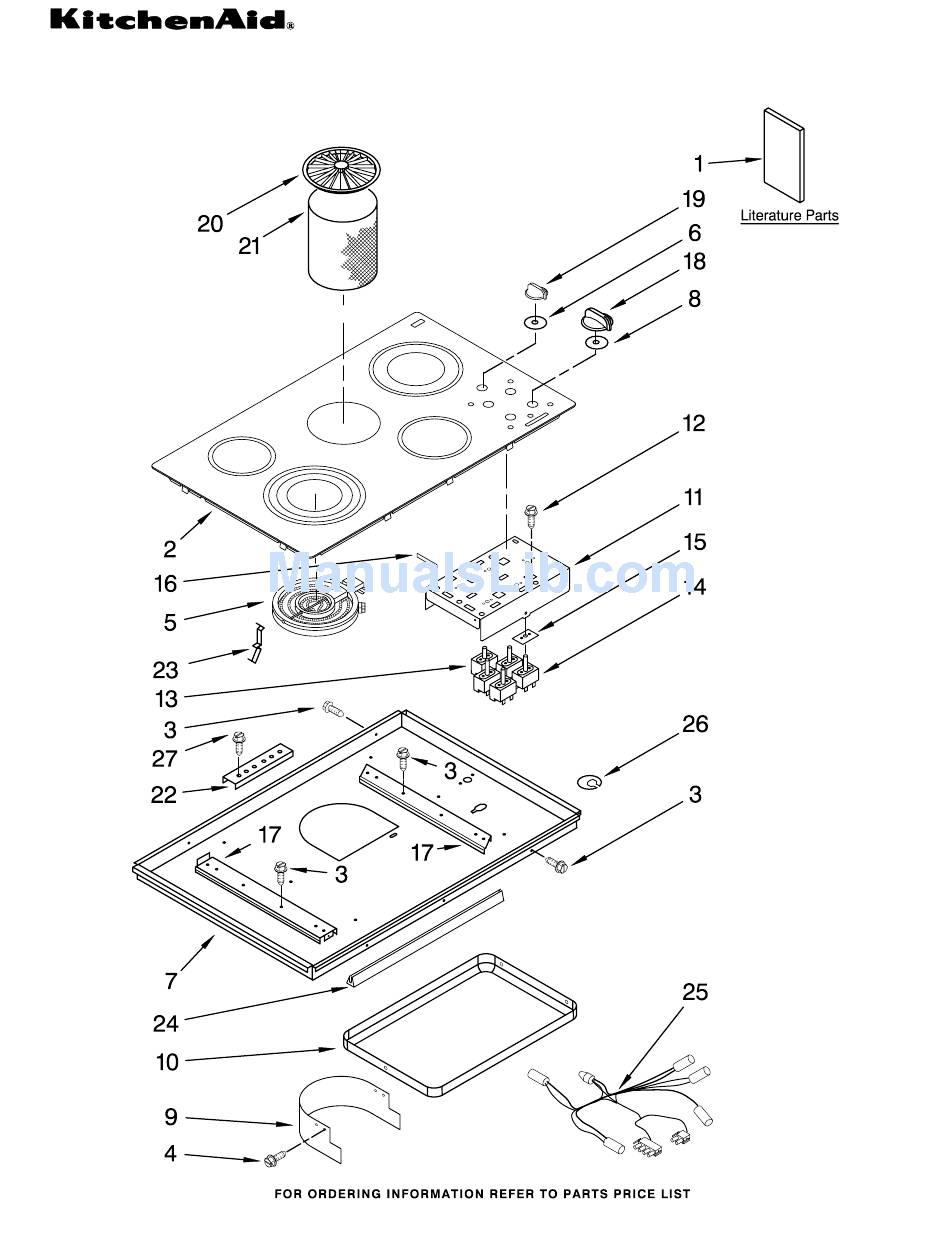

- Page 2 3177991 Screw Element, Surface 8523698 LR 1200W 8285846 LF 900/1800/2500W 8285842 RR 1000/2000W 8523697 RF 1500W 3191387 Seal, Switch (4) COOKTOP PARTS For Models: KECD866RBL04, KECD866RWW04 (Black) (White on White) Illus. Part DESCRIPTION 8285810 Box, Burner 3183956 Seal, Switch Cover...
- Page 3 1 W10169759 Bracket, Vent Shield 3192403 Bracket, Blower Mounting 3196537 Screw 9760484 Ring, Inlet 9760485 Screen, Inlet 9760483 Adapter, Vent 7 W10109930 Blower Motor Asm. (Includes Fan Asm) W10188473 BLOWER UNIT PARTS For Models: KECD866RBL04, KECD866RWW04 (Black) (White on White)
- Page 4 Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED Miscellaneous 8286642 Tape, Form OPTIONAL PARTS For Models: KECD866RBL04, KECD866RWW04 (Black) (White on White) Illus. Part DESCRIPTION FOLLOWING PARTS NOT ILLUSTRATED SPLICING WIRES−−25FT. LENGTH 242828 Wire, Black 12 Ga. 150 C 242820 Wire, Black 14 Ga.
