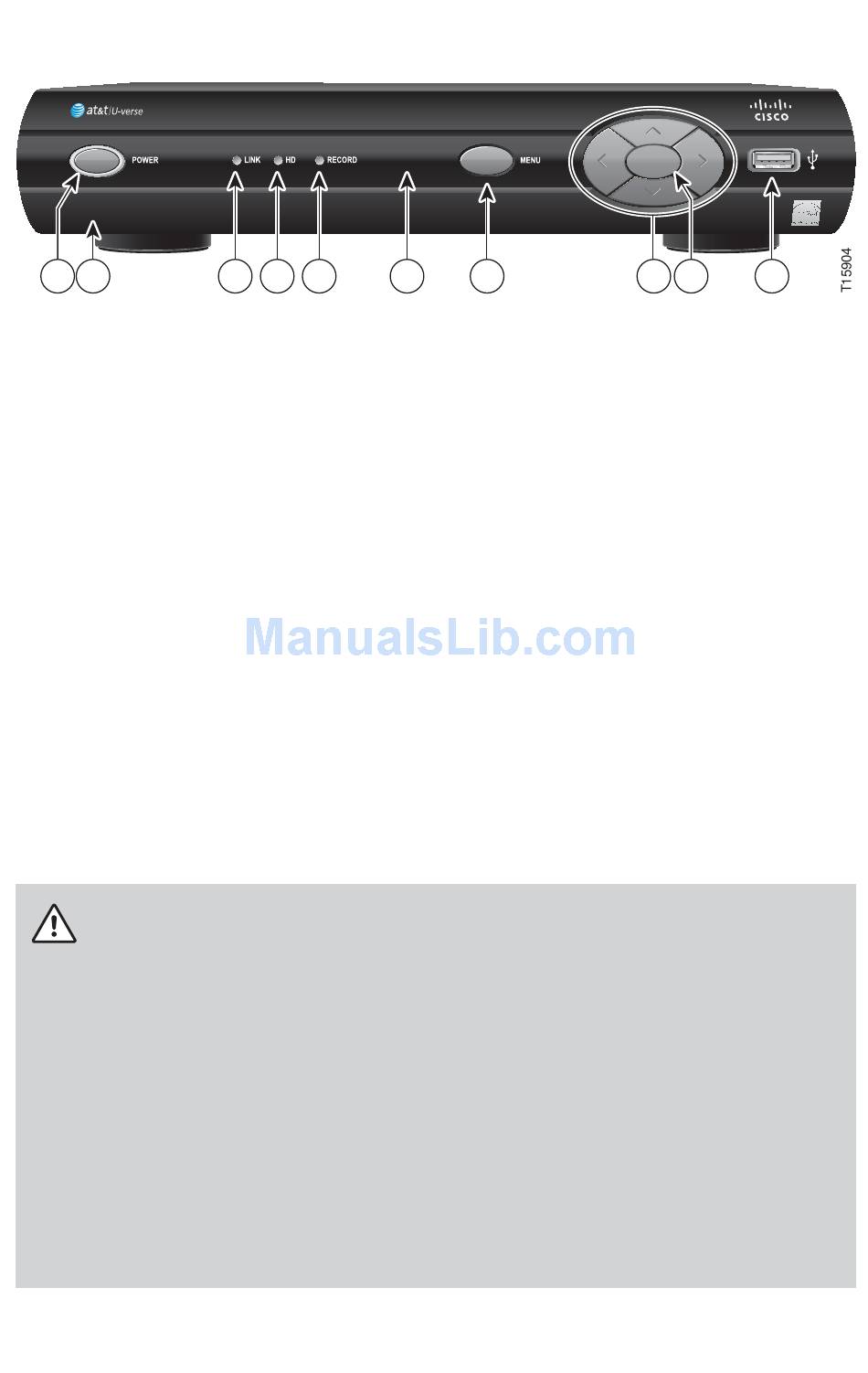

Front Panel
ISB7500
1
2
1 Power
2 Model Number
3 Link
4 HD
5 Record
6 IR Sensor
7 Menu
8 Arrow Keys
9 OK
10 USB Port
Note: This illustration may vary from the actual product.
CAUTION:
Your receiver may be equipped with a hard disk drive to store programs that
you record and to allow you to rewind and pause live TV. Any time the receiver
is powered on (power LED is illuminated) or a recording is in progress (the
record LED is illuminated) the hard disk drive is in use.
If you need to move the receiver, complete the following steps to allow the
hard disk drive to shut down properly. First, make sure that no recording is
in progress (record LED is off ). Then, turn off power by pressing the Power
key. Finally, unplug the unit and wait 10 seconds for the hard disk drive to
spin down (stop). At this point the unit can be moved safely.
You should handle this product with the same level of care you would use
when handling other electronics containing a hard disk drive, such as a
laptop computer or other hard disk drive-equipped devices.
8
3
4
5
Turns the receiver on or places it in standby. To restart the receiver,
press and hold the POWER button for 10 seconds. The LED is green
Identifi es the model number of your receiver as ISB7000 or ISB7500
Indicates network link status. The LED is green
Indicates the set-top is set to a resolution of 720p, 1080i, or 1080p.
The LED is blue
Indicates that a recording is in progress. The LED is red
Receives the infrared signal from the remote control. The sensor is
behind the front panel
Accesses the on-screen menu
Accesses on-screen services (such as the on-screen guide, video-on-
demand, or pay-per-view) and navigates menus
Selects the current item
USB connector. (Reserved for future use)
6
7
OK
OK
OK
8
9
10
