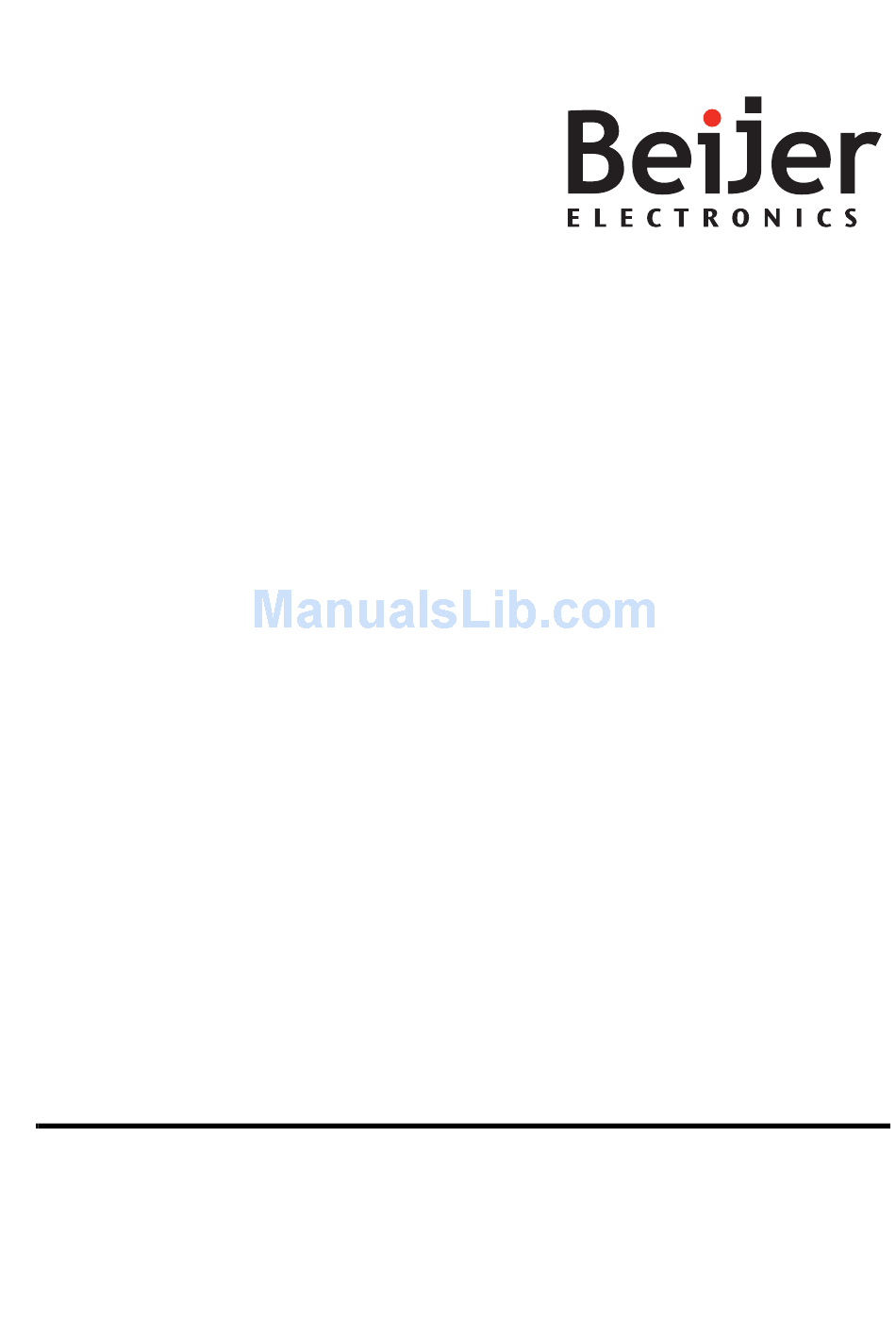

- Page 1 EPC 150/T150 / 170/T170 / 190/T190 / Box Nautic Installation Manual English MAEN953B, 2009-01...
- Page 2 Please read the entire installation manual prior to installing and using this equipment. Only qualified personnel may install, operate or repair this equipment. Beijer Electronics AB is not responsible for modified, altered or renovated equipment. Because the equipment has a wide range of applications, users must acquire the appropriate knowledge to use the equipment properly in their specific applications.
-
Page 3: Table Of Contents
3.10 ATX Power Switch................16 4 Operation ..................... 17 Operating System................17 BIOS Settings ................... 18 Important Items Regarding Software Installation................19 Touch Screen Installation..............20 Graphic Board Installation ..............24 Installation of LAN-/Network Card ..........25 Beijer Electronics, MAEN953B... - Page 4 EPC T170/170 Nautic Front View ...........46 EPC T170/170 Nautic Cut Out Drawing.........47 EPC T170/170 Nautic Outline Drawings.........48 EPC T190/190 Nautic Front View ...........49 EPC T190/190 Nautic Cut Out Drawing.........50 EPC T190/190 Nautic Outline Drawings.........51 7.10 EPC Box Nautic Outline Drawings...........52 Beijer Electronics, MAEN953B...
-
Page 5: Safety Precautions
1.1 Nautic Approvals and Certificates The EPC Nautic series are certified according to the following list: Model DNV ABS 60945 EPC 150 Nautic EPC T150 Nautic EPC 170 Nautic EPC T170 Nautic EPC 190 Nautic EPC 190 Nautic... -
Page 6: General
– The supplier neither guarantees that the EPC is suitable for your particular application, nor assumes responsibility for your product design, installation or operation. Beijer Electronics, MAEN953B... -
Page 7: During Installation
1.4 During Use – Keep the EPC clean. – Emergency stop and other safety functions may not be controlled from the EPC. – Do not use too much force or sharp objects when touching the keys, touch screen etc. Beijer Electronics, MAEN953B... -
Page 8: Service And Maintenance
1.6 Dismantling and Scrapping – The EPC or parts thereof shall be recycled according to local regulations. – The following components contain substances that might be hazardous to health and the environment: lithium battery, electrolytic capacitor and dis- play. Beijer Electronics, MAEN953B... -
Page 9: Supplied Equipment
Length: approximately 3.0 m. 24 V DC units are delivered without cable. Installation manual This manual describes specific information about Beijer Electronics products only – not about third party components. Note: Separate documentation of third party components is included on the enclosed driver software CD + as printed documentation. -
Page 10: Description Of Parts
The EPC Nautic consists of a Front Unit and a PC Unit. These are installed in the same way independent of the display size. Front unit PC unit The EPC Box Nautic consists of the PC unit only. Beijer Electronics, MAEN953B... -
Page 11: Display
- (brightness down) the monitor on the dimmer button Press the power button and keep it Changes video input pressed, and at the same time press + (DVI/VGA) (brightness up) on the dimmer button Beijer Electronics, MAEN953B... -
Page 12: Communication Ports 230 V Ac
PS/2 3 x 3.5 mm USB 4 USB 2.0 mini jack Mouse ATX button USB 3 USB 2.0 Keyboard DB15HDF COM2 LAN 1 RJ-45 Power remote DB9M USB 2 USB 2.0 screw terminal USB 1 USB 2.0 Beijer Electronics, MAEN953B... -
Page 13: Configuration Of Com4
9-11 (12 V), 10-12 (5 V) On Auxiliary power When configured as RS485, the pins are assigned at half-duplex according to be- low: Pin number Description Pin 1 RX/TX+ Pin 2 RX/TX- Pin 5 Ground Pin 9 (optional) +5 V (auxiliary power supply) Beijer Electronics, MAEN953B... -
Page 14: Motherboard
The quality of the memory module may influence the system stability. When updating the memory module, or adding a second one, please only use memory modules cleared by Beijer Electronics. Memory modules are electrostatic sensitive compo- nents. Relevant protective measures (earth) have to be considered during assembly/ disassembly. -
Page 15: Power Supply
EN60950. The EPC Box Nautic can also be operated with extra low voltage in accordance with EN60950. The con- trolling transformer has to comply with EN60742. Note: Check the power supply system with the relevant data on the type plate. Beijer Electronics, MAEN953B... -
Page 16: Earthing System
A manual actuation of the ATX power switch, i.e. to start the BIOS menu au- tomatically to check and confirm correct settings, can be necessary if the system registers an error during shut-down or booting. This is not a malfunction but a safety feature. Beijer Electronics, MAEN953B... -
Page 17: Operation
“D:” is a complete free partition which for example can be used for your data (beneficial for example for data back-up). Drive “E:” contains all data required for a new installation (drivers and operation system). This partition always uses a FAT 16 data system. Beijer Electronics, MAEN953B... -
Page 18: Bios Settings
4: 1280x1024 48(bit) 19" 4: 1280x1024 48(bit) Integrated Peripherals/ PWRON After PWR-Fail Super IO Device Integrated Peripherals/ Serial Port 3 Use IRQ IRQ4 Super IO Device Integrated Peripherals/ Serial Port 4 Use IRQ IRQ3 Super IO Device Beijer Electronics, MAEN953B... -
Page 19: Important Items Regarding Software Installation
After operating the system for the first time we recommend that you make start discs (emergency discs). These might be required to restore an operational system. Additionally, we recommend making backup copies of your own data and applica- tions. Beijer Electronics, MAEN953B... -
Page 20: Touch Screen Installation
Technical data: (check the BIOS settings when re-installing) – Serial Tsharc 12 Touch-Controller – Com 3 (check the BIOS settings) – 3E8 hex – IRQ 4 – 9600 bps Perform the SETUP.EXE under: – E:\Driver\Driver-EPC-PM\Touch\Touch – CD-ROM: (D:) E:\EPC-PM\Touch Beijer Electronics, MAEN953B... - Page 21 Operation 1. Follow the instructions on the screen and press Continue. 2. Accept the license provisions. Beijer Electronics, MAEN953B...
- Page 22 Operation 3. Select Autodetect or manually select the technical connection data. Beijer Electronics, MAEN953B...
- Page 23 4. Press Finish and follow the instructions for a re-start. 5. After a re-start of the operating system you will find Hampshire Control Panel among the programs. 6. Calibrate the touch screen with your finger or with a rounded pointed touch pen. Beijer Electronics, MAEN953B...
-
Page 24: Graphic Board Installation
The grafic driver will be installed twice. 2. After finishing the installation and re-starting the EPC Nautic and EPC Box Nautic the following entries are available under the Display icon in the Control Panel, or in the display properties. Beijer Electronics, MAEN953B... -
Page 25: Installation Of Lan-/Network Card
– Via the MS-DOS window, under Start/All Programs/Accessories/ Command prompt, you can set a “connection PING” to test your connec- tions to the server and other PC’s. (for example: C:\ping 192.168.5.100). Beijer Electronics, MAEN953B... - Page 26 Operation Beijer Electronics, MAEN953B...
-
Page 27: Service
Inside the appliance there are electronic components which can be destroyed by electrostatic charges. Therefore cautionary measures have to be taken from the moment the appliance is opened. These can be found in the guidelines for electro- static endangered components (EGB-guidelines). Beijer Electronics, MAEN953B... -
Page 28: Changing The Fan
1. To change the fan you have to remove the left hand part of the rear enclo- sure. To open the enclosure, remove the six (6) marked screws with an Allen key. 2. Lift the enclosure and pull out the fan cable, according to the picture below. Beijer Electronics, MAEN953B... - Page 29 Unplug and remove the fan. 4. Remove the protective cover of the fan and remove the fan with a Phillips head screw driver. 5. After changing the fan, assemble the appliance in the reverse order. Beijer Electronics, MAEN953B...
-
Page 30: Pci-Board Installation
To install a PCI-board the right hand side part of the rear enclosure has to be removed. 1. To open the enclosure remove the marked seven screws with an Allen key. After removing the screws the enclosure can be easily removed. Beijer Electronics, MAEN953B... - Page 31 The picture of the opened appliance below shows the board holder (1) and the 2 PCI-slots (2). 2. Remove the cover of the desired slot to insert your PCI-board, by removing the screw and pulling out the cover. Beijer Electronics, MAEN953B...
- Page 32 4. Insert the PCI-board, if necessary bend the slot bracket a little bit. Please ensure a correct fit at the rear edge (3) of the slot and make sure the metal bracket goes into the groove (4). Beijer Electronics, MAEN953B...
- Page 33 Service 5. Mount your PCI-board and make sure to properly tighten the screw. 6. Re-assemble the board holder and tighten the two screws properly. Beijer Electronics, MAEN953B...
- Page 34 This way the support can be used in the correct way. Note: If two wide boards are used, the short support (5) can be removed. Beijer Electronics, MAEN953B...
-
Page 35: Memory Module
1. To change or expand the memory card you have to remove the left hand part of the rear enclosure. To open the enclosure, remove the six (6) marked screws with an Allen key. 2. Lift the enclosure and pull out the fan cable, according to the picture below. Beijer Electronics, MAEN953B... - Page 36 4. The picture above shows one free (3) and one occupied slot. If a memory expansion is carried out the memory module is positioned vertically and pushed into the slot, the fixing brackets (4) shall snap shut. Beijer Electronics, MAEN953B...
- Page 37 6. To mount a new memory board, center it into the slot, and push it firmly but gently down until the holding brackets snap shut. 7. Bend back and plug in the ribbon cable. 8. Subsequently plug in the fan cable and reposition the enclosure. 9. Re-fix the enclosure. Beijer Electronics, MAEN953B...
- Page 38 Service Beijer Electronics, MAEN953B...
-
Page 39: Technical Data
170/190 models have an antireflective glass. EPC T150 Nautic EPC T170 Nautic EPC T190 Nautic Parameter EPC 150 Nautic EPC 170 Nautic EPC 190 Nautic Size, W x H x D, 412 x 351 x 157 430 x 390 x 157 483.2 x 444 x 157... - Page 40 Technical Data EPC T150 Nautic EPC T170 Nautic EPC T190 Nautic Parameter EPC 150 Nautic EPC 170 Nautic EPC 190 Nautic Fuse 1 AT (230 V) or 6.3 AT (24 V) Power supply options 115-230 V AC ± 15%. 1 A max (switch on peak 30 A).
- Page 41 24 V DC ± 15%. 3 A max (switch on peak 15 A). Ambient temperature 0 ° to +55 °C Relative ambient humidity 30% to 90% non-condensed -20 ° to +70 °C Storage temperature Relative storage humidity 10% to 90% non-condensed Beijer Electronics, MAEN953B...
- Page 42 Technical Data Beijer Electronics, MAEN953B...
-
Page 43: Drawings
Drawings Drawings 7.1 EPC T150/150 Nautic Front View R5.0 Brightness Up Power On-Off 1x USB waterproof Brightness Down Beijer Electronics, MAEN953B... -
Page 44: Epc T150/150 Nautic Cut Out Drawing
Drawing Cut out dimensions: 369.0 x 324.0 mm. max. thickness 5.0 mm 6 x boreholes Ø 6.5 Mounting method: 6 x M6x25 V2A-screws DIN 6912. Screws and o-ring seals are included. Max. 5 mm thick mounting frame. Beijer Electronics, MAEN953B... -
Page 45: Epc T150/150 Nautic Outline Drawings
Drawings 7.3 EPC T150/150 Nautic Outline Drawings Bottom view R3.0 Rear view Side view +2.0 -0.0 Beijer Electronics, MAEN953B... -
Page 46: Epc T170/170 Nautic Front View
Drawings 7.4 EPC T170/170 Nautic Front View 430±0.1 414±0.1 200±0.1 R10.0 1 x USB waterproof Power On-Off Brightness Up Brightness Down Beijer Electronics, MAEN953B... -
Page 47: Epc T170/170 Nautic Cut Out Drawing
Cut out dimensions: 396.0 x 364.0 mm. max. thickness 5.0 mm 8 x boreholes Ø 6.5 200±0.2 414±0.2 Mounting method: 8 x M6x25 V2A-screws DIN 6912. Screws and o-ring seals are included. Max. 5 mm thick mounting frame. Beijer Electronics, MAEN953B... -
Page 48: Epc T170/170 Nautic Outline Drawings
Drawings 7.6 EPC T170/170 Nautic Outline Drawings Bottom view R3.0 Rear view Side view +2.0 -0.0 Beijer Electronics, MAEN953B... -
Page 49: Epc T190/190 Nautic Front View
Drawings 7.7 EPC T190/190 Nautic Front View 483.2±0.1 465.2±0.1 230±0.1 8 x boreholes Ø 6.5 R10.0 1 x USB waterproof Power On-Off Brightness Up Brightness Down Beijer Electronics, MAEN953B... -
Page 50: Epc T190/190 Nautic Cut Out Drawing
Cut out dimensions: 438 x 416 mm. max.thickness 5.0 mm 8 x boreholes Ø 6.5 230±0.2 465.2±0.2 Mounting method: 8 x M6x25 V2A-screws DIN 6912. Screws and o-ring seals are included. Max. 5 mm thick mounting frame. Beijer Electronics, MAEN953B... -
Page 51: Epc T190/190 Nautic Outline Drawings
Drawings 7.9 EPC T190/190 Nautic Outline Drawings Bottom view 386.5 188.6 104.6 47.5 R3.0 Rear view Side view +2.0 -0.0 Beijer Electronics, MAEN953B... -
Page 52: Epc Box Nautic Outline Drawings
Drawings 7.10 EPC Box Nautic Outline Drawings Bottom view Side view 166.1 82.1 Rear view R3.5 R2.3 R4.2 6 x boreholes Ø 4.6 Beijer Electronics, MAEN953B... - Page 53 Head Office Subsidiaries Sweden Germany China Beijer Electronics Products AB Elektronik-Systeme Lauer GmbH & Co. KG Beijer Electronics Co. Ltd Box 426 Kelterstraße 59 Room 201, Buildning B, No. 1618, 201 24 Malmö, SWEDEN 72669 Unterensingen, GERMANY Yishan Road, Shanghai 201103, CHINA Tel: +46 40 35 86 00 Tel.: +49 70 22/96 60-101...
