- Page 1 H-T60 Installation and Operation Manual English MA00824 2005-10...
- Page 2 Please read the entire installation manual prior to installing and using this equipment. Only qualified per- sonnel may install, operate or repair this equipment. Beijer Electronics AB is not responsible for modified, altered or renovated equipment. Because the equipment has a wide range of applications, users must acquire the appropriate knowledge to use the equipment properly in their specific applications.
-
Page 3: Table Of Contents
System Menu ................18 Key Pad..................19 Bench and Function Tests ............20 Setting Parameters..............20 Downloading an Application ............. 21 Uploading an Application ............22 Uploading/Downloading a Recipe ..........23 Copying an Application ............. 24 7.10 Passwords................... 25 Beijer Electronics, MA00824... - Page 4 Contents Beijer Electronics, MA00824...
-
Page 5: Safety Precautions
– The supplier neither guarantees that the operator terminal is suitable for your particular application, nor assumes responsibility for your product design, in- stallation or operation. Beijer Electronics, MA00824... - Page 6 Dismantling and Scrapping – The operator terminal or parts thereof shall be recycled according to local regulations. – The following components contain substances that might be hazardous to health and the environment: lithium battery, electrolytic capacitor and display. Beijer Electronics, MA00824...
-
Page 7: Installation
– Operator terminal H-T60 – 4 installation fasteners – Battery (CR2032) – Power connector (connected to the 24 V DC power outlet) – Printer cable (only for H-T60b-P, H-T60b-N, H-T60c-P and H-T60c-N) – This installation and operation manual (MA00824) Beijer Electronics, MA00824... -
Page 8: Product Specifications
Active area of 117.2 x 88.4 mm. display, W x H 40 x 30 characters of 8 x 8 size can be displayed. Display Via touch screen and via potentiometer on the back. adjustment Touch screen Analog Beijer Electronics, MA00824... - Page 9 0.5 mm displacement, 10-55 Hz, 2 hours per X-, Y- and Z-axis direc- endurance tions Shock 10 G, 11 ms 3 times in each direction of X-, Y- and Z-axes endurance RF emissions CISPR 22, Class A Electrostatic IEC61000-6-2 Discharge IEC61000-6-3 susceptibility High frequency IEC61000-6-4 transients Cooling Natural cooling Beijer Electronics, MA00824...
-

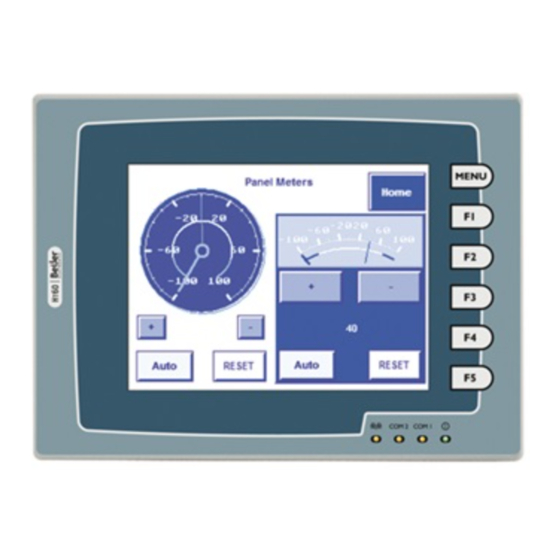

Page 10: Description Of Parts
Product Specifications Description of Parts Front Fixture mounting holes Function keys Power lamp Communication lamps Network lamp Display Back Battery cover Printer/keyboard connection DC power outlet DIP switches (1-10) Contrast adjustment COM1: RS232/RS485 COM2: RS232/RS422/RS485 Network connection Beijer Electronics, MA00824... -
Page 11: External And Cut-Out Dimensions
1. Remove the battery cover. 2. Insert the battery into the operator terminal by pressing the battery down and pushing it slightly. To remove the battery, push it down and then take it out. 3. Put back the battery cover. Beijer Electronics, MA00824... -
Page 12: Mounting Procedure
Do not tighten the screws with too much or uneven force, or it may cause the deformation of the operator terminal. STEP 1 STEP 2 STEP 3 Maximum torque: 0.3 Nm Beijer Electronics, MA00824... -
Page 13: Grounding
3. Plug in the connector to the power outlet of the operator terminal. Note: The power connector is already plugged into the power outlet of operator terminal when the package is first opened. Beijer Electronics, MA00824... -
Page 14: Dip Switches
COM1 Port For RS485, this switch has to be set ON. SW10 Com2 Port For RS485, this switch has to be set ON. For RS422, this switch has to be set OFF. Beijer Electronics, MA00824... -
Page 15: Communication Ports
RS422 TX- (RS485-) RS232 TXD RS232 RXD RS422 RX+ RS232 RTS RS422 RX- Signal ground RS232 CTS RS485- RS232 RTS Signal ground RS232 CTS Optional; +5V@100mA output Optional; +5V@100mA output RS422 RTS+ RS422 RTS- RS422 CTS+ RS422 CTS- Beijer Electronics, MA00824... -
Page 16: Lcd Contrast Adjustment
See also section 7.2 System Menu. The contrast can also be adjusted using the potentiometer on the back of the operator terminal. Use a small screwdriver to turn the potentiometer (clockwise = contrast down; counter-clockwise = contrast up). Beijer Electronics, MA00824... -
Page 17: Operation
“Failed” in the self-test results after power is restored. If this happens, the user can simply follow the download procedure to re-download the applica- tion or data. After downloading again, all items should pass the self-test. Beijer Electronics, MA00824... -
Page 18: System Menu
- to set the value of the field. F3 - Copy Copies application data to another H-T60. F4 - Set Adjusts touch panel LCD contrast and clears data RAM. See also section 6 LCD Contrast Adjustment. F5 - Run Runs the application. Beijer Electronics, MA00824... -
Page 19: Key Pad
Menu key Functional keys F1-F5 When a key is pressed, the operator terminal will make a “beep” sound to signal that a command is pressed. The default setting, a 200 ms beep, and can be con- figured. Beijer Electronics, MA00824... -
Page 20: Bench And Function Tests
Remember to set dip switch SW5 = ON if parameters are set in the operator terminal. To set parameters in H-Designer, select Application/Workstation Setup. Select the Connection tab to set communication parameters. Note: Remember to set dip switch SW5 = OFF if parameters are set in H-Designer. Beijer Electronics, MA00824... -
Page 21: Downloading An Application
Then select Application/Download Firmware/Application in H-Designer if it is a first time to download the application to the operator terminal; otherwise, select Application/Download Application. The following appears on the screen while the operator terminal is downloading: Beijer Electronics, MA00824... -
Page 22: Uploading An Application
Open dialog. Open the uploaded application file (*.C64 or *.AA6). The appli- cation screen will be displayed on the PC monitor. Finally, select File/Save As to save the application as a *.V6F file. Thus a source file can serve the purposes of maintenance and modification. Beijer Electronics, MA00824... -
Page 23: Uploading/Downloading A Recipe
Also remember to upload the format of recipes from the operator terminal be- fore starting to edit a new set of recipe data in the PC. For further information about creating/editing recipes, please see the corre- sponding chapter in the H-Designer User’s Manual. Beijer Electronics, MA00824... -
Page 24: Copying An Application
H-Designer from Application/Workstation Setup. Once the correct password is entered, the H-T60 starts to copy the application to the other H-T60. For information about setting a password, please see section 7.10 Passwords. The following appears on the screens during the copying: Beijer Electronics, MA00824... -
Page 25: 7.10 Passwords
After registering passwords and user levels, set the dip switch SW6 = ON (i.e. password required). Restart the operator terminal and after the self-test the user will be prompted to enter a password in order to run the operator terminal. Beijer Electronics, MA00824... - Page 26 Therefore, this button can be applied to raise or drop one’s privileges while the operator terminal is in operation. How to configure an Action Button is described in the H-Designer User’s Manual. Beijer Electronics, MA00824...
- Page 27 Note that setting this password is different from the passwords set in Scenarios 1-3. To set this password, select Application/Workstation Setup in H- Designer. Under the Password tab, the designer is able to set the password. Beijer Electronics, MA00824...
