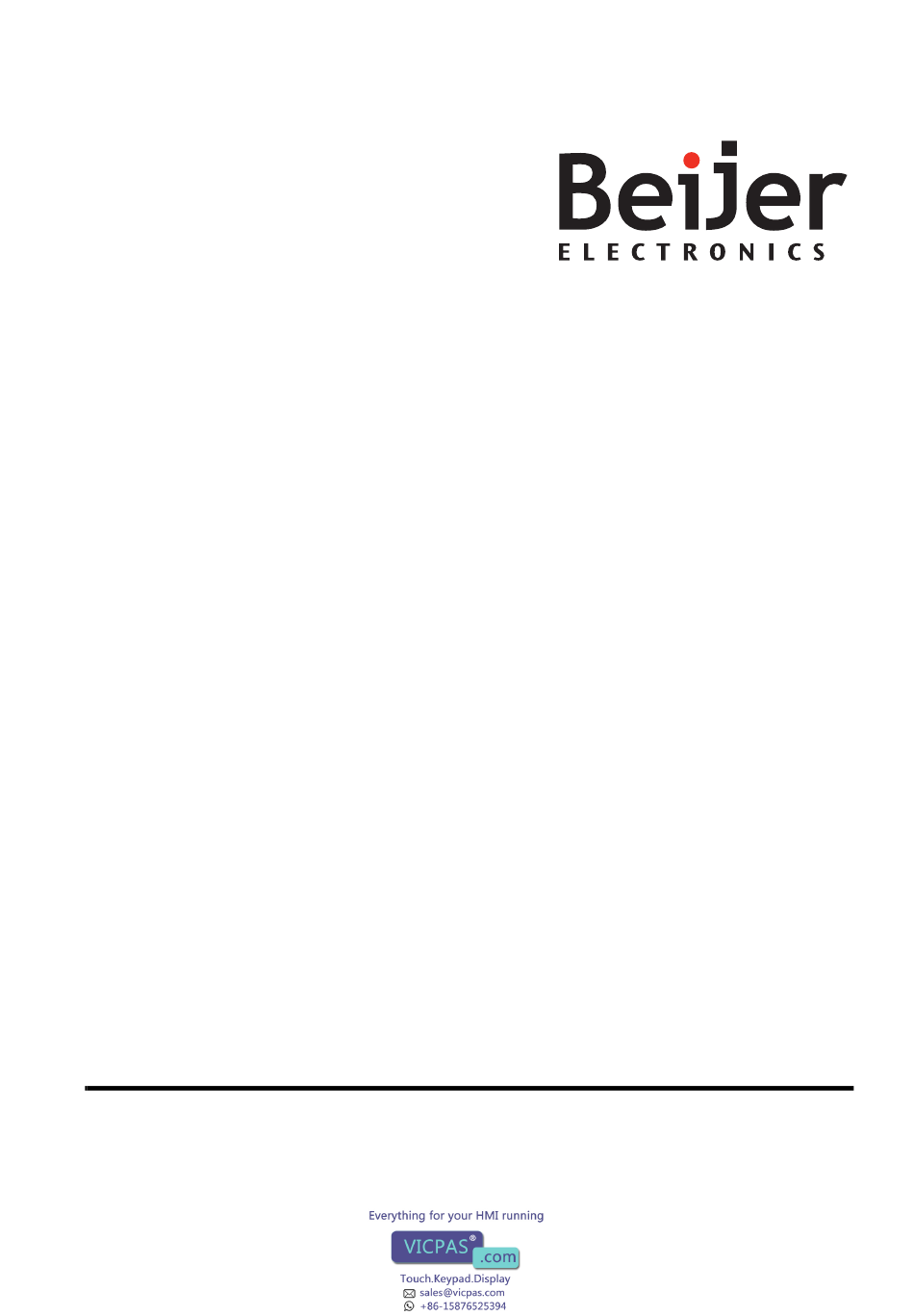

- Page 1 H-T40m Installation and Operation Manual English MAEN945B, 2009-03...
- Page 2 Please read the entire installation manual prior to installing and using this equipment. Only qualified per- sonnel may install, operate or repair this equipment. Beijer Electronics AB is not responsible for modified, altered or renovated equipment. Because the equipment has a wide range of applications, users must acquire the appropriate knowledge to use the equipment properly in their specific applications.
-
Page 3: Table Of Contents
Self Test ..................15 System Menu ................16 Bench and Function Tests ............17 Setting Communication Parameters ........... 17 Touch Screen Calibration............18 Downloading an Application ............. 19 Uploading an Application ............20 Copying an Application ............. 21 Passwords................... 22 Beijer Electronics, MAEN945B... - Page 4 Contents Beijer Electronics, MAEN945B...
-
Page 5: Safety Precautions
– The supplier neither guarantees that the operator terminal is suitable for your particular application, nor assumes responsibility for your product design, in- stallation or operation. Beijer Electronics, MAEN945B... - Page 6 Dismantling and Scrapping – The operator terminal or parts thereof shall be recycled according to local regulations. – The following components contain substances that might be hazardous to health and the environment: lithium battery, electrolytic capacitor and display. Beijer Electronics, MAEN945B...
-
Page 7: Installation
Installation Installation Package Contents The following parts are found in the box: – Operator terminal H-T40m – 4 installation fasteners – Power connector (connected to the 24 V DC power input) – Installation and operation manual (MAEN945B) Beijer Electronics, MAEN945B... -
Page 8: Product Specifications
Vibration endurance 0.5 mm displacement, 10-55 Hz, 2 hours per X-, Y- and Z-axis directions Shock endurance 10 G, 11 ms 3 times in each direction of X-, Y- and Z- axes EN61000-6-4, EN61000-6-2 Cooling Natural cooling Beijer Electronics, MAEN945B... -
Page 9: Description Of Parts
Product Specifications Description of Parts Front Fixture mounting holes Power lamp Communication lamp Display Back DC power input DIP switches (1-10) COM1: RS232/RS422/RS485 Beijer Electronics, MAEN945B... -
Page 10: External And Cut-Out Dimensions
Product Specifications External and Cut-out Dimensions CUTOUT DIMENSION Beijer Electronics, MAEN945B... -
Page 11: Mounting Procedure
3. The operator terminal is to be installed within the angle of 0 to 135 shown below. Grounding To make sure that the operator terminal works properly and to prevent it from radiating radio frequency noise, it must be connected to the earth ground. Beijer Electronics, MAEN945B... -
Page 12: Power Supply And Wiring
The power connector is already plugged into the power input of operator terminal when the package is first opened. ° Use copper conductors only, 60/75 Wire Gauge Stripped Type Torque (AWG) Length Solid 28-12 7-8 mm 4.5 lb-in Stranded 30-12 7-8 mm 4.5 lb-in DC 24V Beijer Electronics, MAEN945B... -
Page 13: Dip Switches
The default user level is set to 9 if the operator terminal requires no password to start its operation. COM1 Port For RS485, this switch has to be set ON. For RS422, this switch has to be set OFF. SW10 Reserved Beijer Electronics, MAEN945B... -
Page 14: Communication Port
Make sure that the connection is in accordance with the setting of the dip switches, for example RS485 corresponds to SW9 = ON. See section 4 Dip Switches. Function RS422 TX+ (RS485+) RS232 RXD RS232 TXD RS422 RX+ Signal ground RS422 TX- (RS485-) RS232 RTS RS232 CTS RS422 RX- Beijer Electronics, MAEN945B... -
Page 15: Operation
The results of the self-test will be displayed on the screen according to the following picture. Human Machine Interface ROM BIOS Version 1.0 (C) 2008 Beijer Electronics AB Display Type = Mono STN LCD System RAM Size ... 256K Bytes Application Memory Size ... -
Page 16: System Menu
+ and - to set the value of the field. Copy Copies application data to another H-T40m. Calibrates the touch panel and adjusts LCD contrast. See also section 6.5 Touch Screen Calibration. Runs the application. Beijer Electronics, MAEN945B... -
Page 17: Bench And Function Tests
Remember to set dip switch SW5 = ON if parameters are set in the operator terminal. To set parameters in H-Designer, select Application/Workstation Setup. Select the Connection tab to set communication parameters. Note: Remember to set dip switch SW5 = OFF if parameters are set in H-Designer. Beijer Electronics, MAEN945B... -
Page 18: Touch Screen Calibration
2. Follow the route on the screen. 3. Touch the square on the center of the screen to complete the task. Note: When using the Set command all RAM data will be cleared. See also section 6.2 System Menu. Beijer Electronics, MAEN945B... -
Page 19: Downloading An Application
Then select Application/Download Firmware/Application in H-Designer if it is a first time to download the application to the operator terminal; otherwise, select Application/Download Application. The following appears on the screen while the operator terminal is downloading: Beijer Electronics, MAEN945B... -
Page 20: Uploading An Application
*.V6F file. Thus a source file can serve the purposes of maintenance and modification. Note: When uploading for the first time, make sure to first run the application once, or else the upload function will not work. Beijer Electronics, MAEN945B... -
Page 21: Copying An Application
For information about setting a password, please see section Passwords. The following appears on the screens during the copying: Note: When copying for the first time, make sure to first run the application once, or else the copy function will not work. Beijer Electronics, MAEN945B... -
Page 22: Passwords
2, then the operator terminal will set the user level to 2. User level 1 has the highest privilege and User level 9 has the lowest. Note: Only users of User Level 1 has the right of access to the password table. Beijer Electronics, MAEN945B... - Page 23 H-T40m to another. Note that setting this password is different from the passwords set in Scenarios 1-3. To set this password, select Application/Workstation Setup in H-Designer. Under the Password tab, the designer is able to set the password. Beijer Electronics, MAEN945B...
- Page 24 Head Office Subsidiaries Sweden Germany China Beijer Electronics Products AB Elektronik-Systeme Lauer GmbH & Co. KG Beijer Electronics Co. Ltd Box 426 Kelterstraße 59 Room 201, Buildning B, No. 1618, 201 24 Malmö, SWEDEN 72669 Unterensingen, GERMANY Yishan Road, Shanghai 201103, CHINA Tel: +46 40 35 86 00 Tel.: +49 70 22/96 60-101...
