CONNECTING YOUR MONITOR : ProLite X2783HSU

Ensure that both the computer and the monitor are switched off.
Connect the computer to the monitor with the signal cable.
Connect the monitor to the audio equipment with the Audio Cable for computer when using the
audio features.
Connect the Power Cable to the monitor fi rst and then to the power supply.
Turn on your monitor and computer.
NOTE  The signal cables used for connecting the computer and monitor may vary with the
type of computer used. An incorrect connection may cause serious damage to both
the monitor and the computer. The cable supplied with the monitor is for a standard
connector. If a special cable is required please contact your local iiyama dealer or
regional iiyama offi ce.
 For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama offi ce for a suitable adaptor.
 Make sure you tighten the fi nger screws at each end of the signal cable.

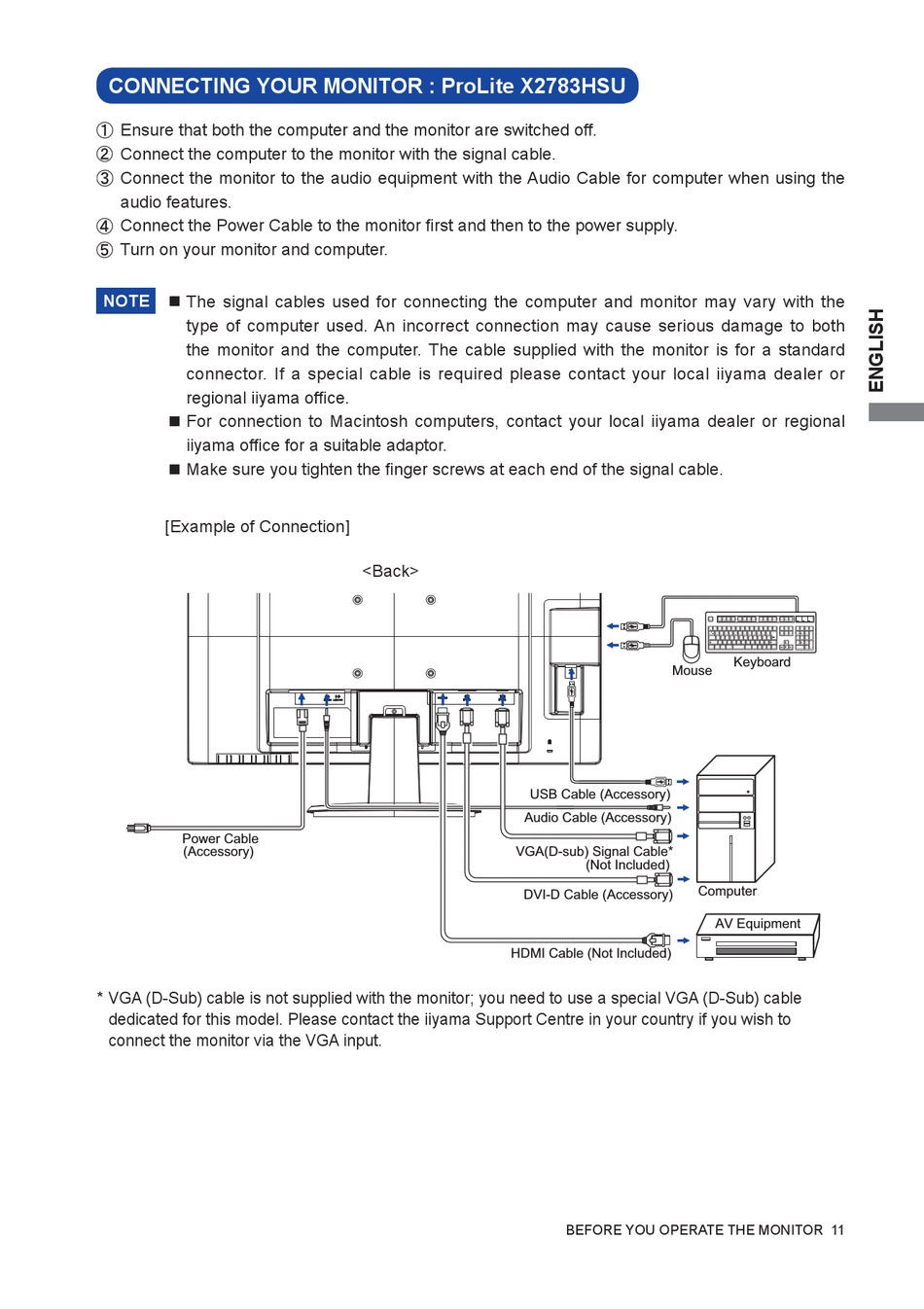

[Example of Connection]
Power Cable
(Accessory)
* VGA (D-Sub) cable is not supplied with the monitor; you need to use a special VGA (D-Sub) cable
dedicated for this model. Please contact the iiyama Support Centre in your country if you wish to
connect the monitor via the VGA input.
<Back>
USB Cable (Accessory)
Audio Cable (Accessory)
VGA(D-sub) Signal Cable*
DVI-D Cable (Accessory)
HDMI Cable (Not Included)
Keyboard
Mouse
(Not Included)
Computer
AV Equipment
BEFORE YOU OPERATE THE MONITOR 11
