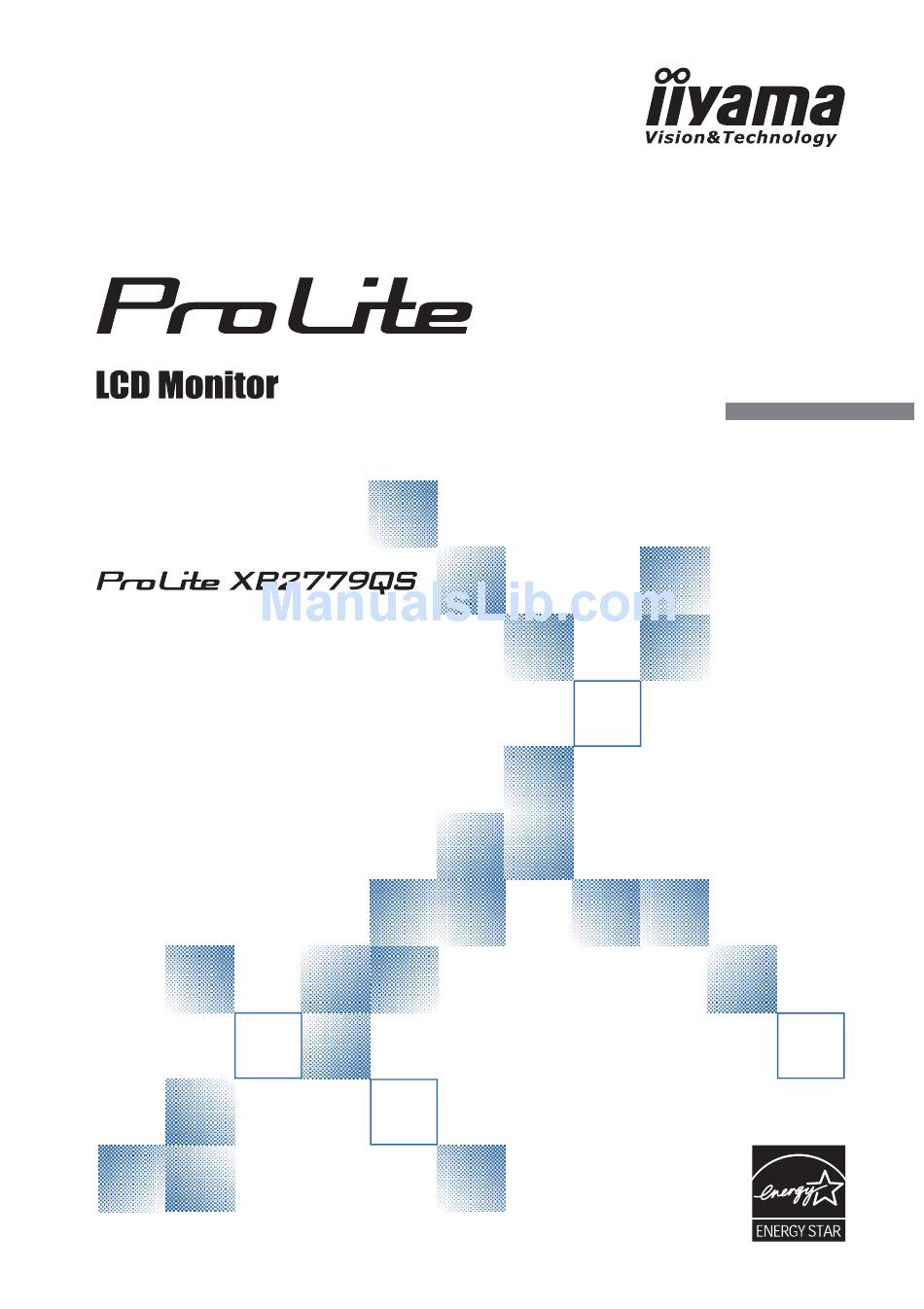

USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............3 CLEANING ..................3 BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE ..........6 CONTROLS AND CONNECTORS..........7 CONNECTING YOUR MONITOR ..........8 COMPUTER SETTING ..............9...
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage.
Page 6
CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself.
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce.
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ...
CONTROLS AND CONNECTORS <Front> <Back> Power Switch ( Power Indicator Blue: Normal operation NOTE Orange: Power Management Select / Input select Button ( Scroll up / Volume Button ( Scroll down / i-Style Color Button ( Menu Button ( Speakers Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed...
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce....
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 24: COMPLIANT TIMING. ADJUSTING THE HEIGHT AND THE VIEWING ANGLE 17° For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference.
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 24. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS.
ADJUSTMENT MENU CONTENTS Picture Adjust Adjustment Item Problem / Option Button to Press Too dark 1,2,3 Brightness * Too bright Too dull Contrast * Too intense Typical Contrast Ratio Adv. Contrast * Increased Contrast Ratio Normal Brightness of back-light is reduced. ECO Mode * Brightness of back-light is reduced more than 1.
Page 16
Input Select Direct Adjustment Item Problem / Option Button to Press Select the VGA input. Select the DVI input. HDMI Select the HDMI input. Input Select DisplayPort Select the DisplayPort input. Search for an available input source and select Auto automatically.
Color Adjust Adjustment Item Problem / Option Button to Press Warm Greenish white Normal Reddish white Cool Bluish white Too weak User Color Green Too strong Blue Return to a state set by color adjustment except i-Style Color. For general windows environment and monitor Standard default setting.
Page 18
Manual Image Adjust Adjustment Item Problem / Option Button to Press Too left H. Position Too right H./V. Position * Too low V. Position Too high Too narrow Clock * Too wide Phase * To correct fl ickering text or lines You can change the picture quality from 0 to 100 (soft to sharp).
Page 19
Dutch Nederlands Traditional Chinese Polski Polish iiyama Logo does not display when the monitor is turned on. Opening Logo iiyama Logo displayed when the monitor is turned on. The Power Indicator is turned Off. The Power Indicator is turned On.
● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons for about 10 seconds. If you try to access the OSD by pressing any of the buttons , message "OSD Locked" will appear on the screen. 2.
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com).
Page 22
C Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
Page 23
G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer.
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem...
The Audio Cable is properly connected. A strange noise is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 22 TROUBLE SHOOTING / RECYCLING INFORMATION...
