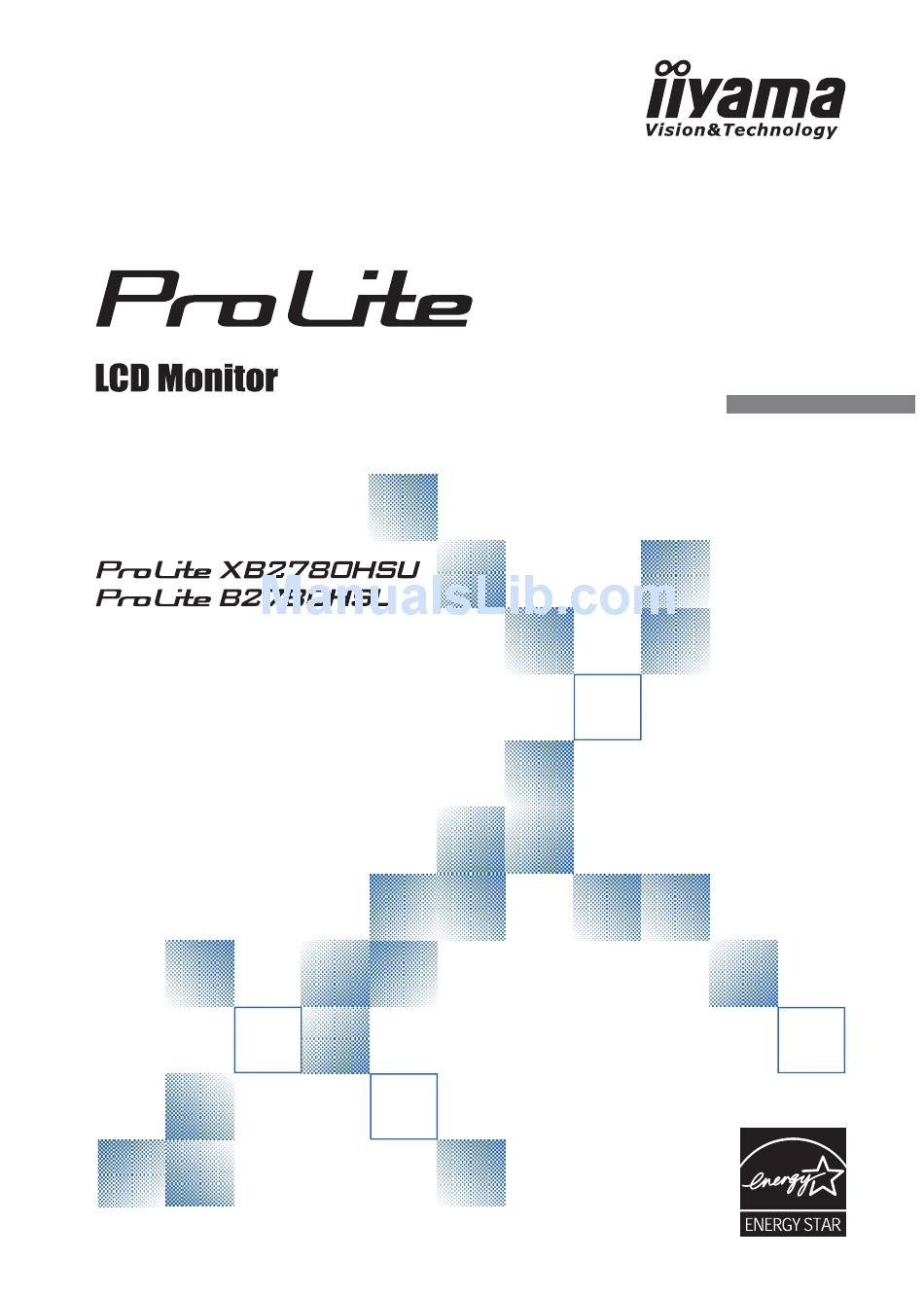

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... - Page 3 Congratulations! This display is designed for both you and the planet! The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on the climate and our natural environment.
-
Page 4: Ce Marking Declaration Of Conformity
For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing refl ections from surrounding light and bright surfaces. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 5: Table Of Contents
PANEL ROTATION ..............10 OPERATING THE MONITOR ............11 ADJUSTMENT MENU CONTENTS ..........12 SCREEN ADJUSTMENTS ............18 POWER MANAGEMENT FEATURE ...........21 TROUBLE SHOOTING ..............22 RECYCLING INFORMATION ............23 APPENDIX ..................24 SPECIFICATIONS : ProLite XB2780HSU ........24 SPECIFICATIONS : ProLite B2780HSU ........25 DIMENSIONS ................26 COMPLIANT TIMING ..............26... -
Page 6: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 8: Special Notes On Lcd Monitors
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Wall Mounting
WALL MOUNTING When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 11: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE The monitor is supplied complete with a stand. If you prefer to wall mount the monitor, please follow the instructions below to remove the stand. Be sure to include the stand with the monitor if it is necessary to return the unit. -
Page 12: Controls And Connectors
CONTROLS AND CONNECTORS HDMI D-SUB <Back> <Front> Power Switch ( Menu / Select Button (MENU) + / Volume Button ( + / Power Indicator Blue: Normal operation NOTE Orange: Power Management - / ECO Mode Button ( - / Auto Button (AUTO) Speakers USB Downstream Connector ( USB Downstream Connector (... -
Page 13: Connecting Your Monitor
The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi... -
Page 14: Computer Setting
Change to the desired signal timing listed on page 26: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 15: Adjusting The Height And The Viewing Angle
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. Hold the panel so that the monitor does not topple when you change the monitor’s height or angle. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 26. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 18 for SCREEN ADJUSTMENTS. -
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Luminance Luminance Contrast Brightness i-Style Color Standard Adv. Contrast Adjustment Item Problem / Option Button to Press Too dull Contrast Too intense Too dark Brightness * Too bright Normal Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. - Page 18 Image Setup Image Setup Clock Phase H.Position V.Position Aspect Full Adjustment Item Problem / Option Button to Press Too narrow Clock* Too wide Phase* To correct fl ickering text or lines Too left H. Position* Too right Too low V. Position* Too high Full Expansion display...
- Page 19 Color Temp. Color Temp. Gamma Mode1 Color Temp. Warm User-R User-G User-B Adjustment Item Problem / Option Button to Press Mode1 Normal Gamma Mode2 Dark Mode3 High contrast User-R Too weak User User-G Too strong User-B Color Temp. sRGB sRGB Greenish white Warm Normal...
- Page 20 OSD Setup OSD Setup H.Position V.Position Timeout Language English Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time Timeout between 5 and 60 seconds.
- Page 21 Others Others Reset Signal Select Auto HDMI audio LINE IN Over Drive Information Input : Auto Resolution : 1920(H) 1080(V) H.Frequency : 68KHz V.Frequency : 60Hz Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Reset Return to Menu. Auto Select the signal input automatically.
- Page 22 Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations. Volume: Press the + Button when the Menu is not displayed. Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Only Analog Input...
-
Page 23: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 24 C Press the Auto Button. (Auto Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 25 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and NOTE G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
-
Page 26: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 27: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 28: Recycling Information
H A strange noise is The Audio Cable is properly connected. heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLESHOOTING / RECYCLING INFORMATION... -
Page 29: Appendix
APPENDIX SPECIFICATIONS : ProLite XB2780HSU Size Category 27" LCD Panel Panel technology MVA Size Diagonal: 27" (69cm) Pixel pitch 0.3113mm H × 0.3113mm V Brightness 300cd/m (Typical) Contrast ratio 5000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left / Up / Down: 89 degrees each (Typical) -
Page 30: Specifications : Prolite B2780Hsu
SPECIFICATIONS : ProLite B2780HSU Size Category 27" LCD Panel Panel technology TN Size Diagonal: 27" (69cm) Pixel pitch 0.3113mm H × 0.3113mm V Brightness 300cd/m (Typical) Contrast ratio 1000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left: 85 degrees each Up / Down: 80 degrees each (Typical) Response time 2ms (Gray to Gray), 5ms (Black, White, Black) Display Colours... -
Page 31: Dimensions
DIMENSIONS 642.0mm/25.3” 65.0mm/2.5” 599.5mm/23.6” ) : Maximum adjustment range COMPLIANT TIMING PC Input Horizontal Vertical Video Mode Dot Clock Frequency Frequency 640×480 31.469kHz 59.940Hz 25.175MHz SVGA 800×600 37.879kHz 60.317Hz 40.000MHz 65.000MHz 48.363kHz 60.004Hz 1024×768 1280×1024 63.981kHz 60.020Hz 108.000MHz SXGA VESA 1440×900 55.935kHz 59.887Hz...
