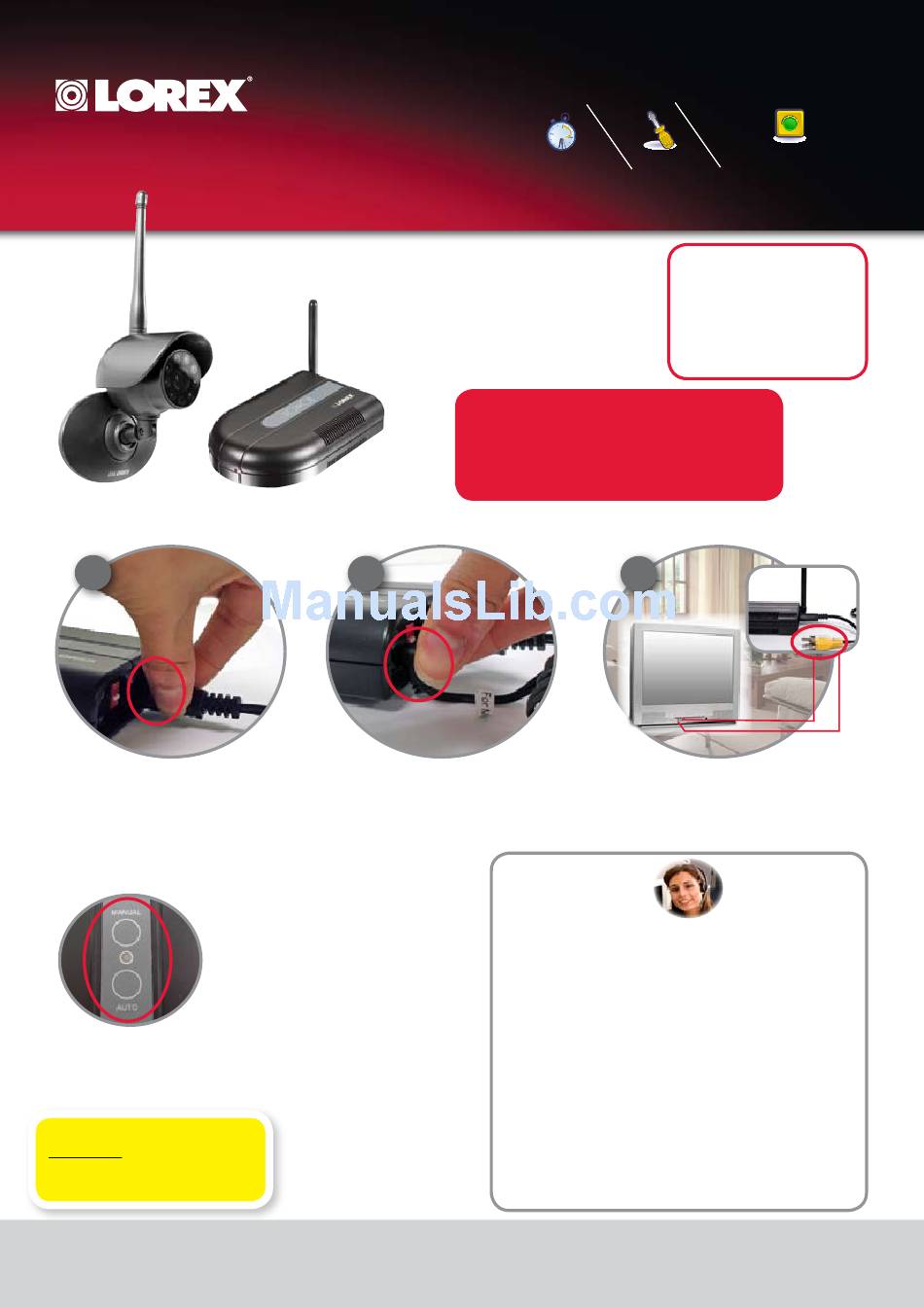

Color Wireless Surveillance System
with Indoor/Outdoor Night Vision Camera(s)
*
Step 1
- Wireless Receiver Set-up Installation
1
Connect one end of the AV Cable to the back
of the receiver. Connect the other end to the
Video IN (Yellow) and Audio IN (White) ports
on the TV or Monitor for viewing and VCR or
DVD Recorder for recording
How to use the Control Buttons:
AUTO BUTTON
Mode, it will continuously switch between the cameras
that are set to ON. The dwell time is set to 4 seconds per
camera (by default), however this can be adjusted to 2~30
seconds. To adjust the dwell time, press and hold both
the AUTO and MANUAL buttons at the same time – this
will produce beeps indicating one second increments (i.e.
each beep represents one second in dwell time). Once the
desired dwell time has been reached, release the buttons.
MANUAL BUTTON
switch between available cameras. The Receiver will
switch to a different camera (if available and configured)
each time the MANUAL button is pressed.
The LW1001 series product is
expandable. To order additional
cameras please visit our website
at www.lorexcctv.com
** Requires viewing/recording device with RCA. Viewing/Recording device sold separately
***Additional receivers and/or cameras sold separately. See product manual for details
Includes:
1 x Wireless Receiver
1 x Power Adaptor (for receiver)
1 x RCA Video Cable
Camera Battery Adaptor Cable(s)*
Wireless Camera(s)*
Power Adaptor(s) (for camera*)
2
Plug the Receiver power cable into the
9V POWER input. Plug the power adaptor
into a wall outlet or surge protector.
– When the receiver is set to AUTO
– Press the MANUAL button to
Time
under 15 minutes
Tools
Time
Hand Tools
Under 15 Minutes*
* Installation time may vary based on
Skill Level
application and camera cabling
easy
* Number of cameras may vary by model. Check your
package for specific content information.
* Connect power adaptor to local AC power outlet
* 1 of each provided with the LW1001 System/ 2 of each
provided with the LW1002 System.
3
TV
(not included)
Place the receiver in a place that will have
clear reception to your camera(s). Try to
avoid placing the receiver near other 900MHz
devices (such as older cordless phones, etc.)
Helpful Tips:
• Use of other 900MHz products (including older model cordless phones) may
cause interference with the picture quality. Try changing the channels on
the Receiver and Camera, or moving the interfering device to another area.
• Better reception can often be accomplished by changing the position of the
Receiver unit -or-changing the position of the Camera.
• The Receiver is a wireless product, and is subject to a number of
environmental conditions. Walking between the receiver and camera may
cause temporary interference.
• The optimal distance of the camera (during low light / nighttime use) from
the person or object is 4~6 feet (up to 2 meters). The picture may become
grainy beyond this distance due to lack of light –an additional light source
in the room, such as a night light or illuminator may improve the picture
quality.
• During low light / night use, the closer the Receiver is to the Camera, the
better the picture quality. The picture may become grainy at farther
distances. The optimal distance for normal home use is 15~60 feet (3~18
meters), however the MAXIMUM RANGE is up to 300feet in optimal
conditions.
• Audio feedback may appear when the receiver and cameras are too close
(under 15 feet / 3 meters).
Hand Tools
under 30 minutes
under 60 minutes
over 60 minutes
Skill Level
Skills - Easy
Hardware
Hi Speed
easy
Router
Plug & Play connectors,
Hand Tools
On screen set up
Intermediate
advanced
NOTE: AVOID INSTALLING IN
A LOCATION WHICH REQUIRES
THE WIRELESS SIGNAL TO PASS
THROUGH CEMENT, CONCRETE
AND METAL STRUCTURES. THIS
WILL REDUCE THE
TRANSMISSION RANGE.
LW1001 Series
Quick Start Guide_EN_R1 - Page 1
Hardware
Hi Speed
Router
Intermediate
advanced
