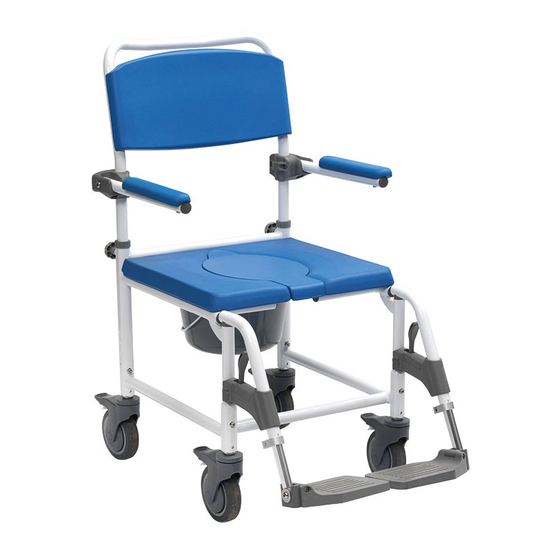

- Page 1 Aston Shower Commode Chair Owner’s Handbook...
- Page 2 Introduction – Aston Shower Commode Chair These instructions aid the user and/or carer about the safe and efficient use of this product, including assembly, cleaning and maintenance, and operation of the product. Ensure that you fully read these instructions before using this product.
-
Page 3: Parts Description
Footrest (RHS) Z33311-16 Axle Bracket (RHS) Z33306-16 Footrest (LHS) Z33312-16 Axle Bracket (LHS) Z33307-16BL Seat Z33313-16PU 24” Rear Wheel Z33308-16BL Aperture Cover Z33314-16 Brake (RHS) Z33309-16BL Backrest Z33315-16 Brake (LHS) Z33316-16 ‘E’ Clip Aston Shower Commode (CWC003) Page 3 of 12... - Page 4 Add the potty and aperture cover if required (see instructions). If required, install the castors. Follow the procedure on adjusting the castors for installation and adjustment procedures. Aston Shower Commode (CWC003) Page 4 of 12...
- Page 5 2. To adjust the footplate angle, slacken the bolt near the bottom of the inner tube (chrome). Adjust the footplate to the required angle and resecure the bolt. Aston Shower Commode (CWC003) Page 5 of 12...
- Page 6 Models will be supplied with either ‘E’ clips or a nut and bolt to secure the castor. ‘E’ clips do not require any tools for height adjustment, whereas the nut and bolt solution requires a spanner and allen key. Aston Shower Commode (CWC003) Page 6 of 12...
- Page 7 The potty can be cleaned and disinfected manually or in an autoclave. It should be cleaned after each use. Replacement potties are available from Drive Medical under product code Z33303-16. Seat Operation and Removal The seat is a horse shoe shape with removable cover for the aperture.
- Page 8 To remove or install the rear wheels without tools, press the button on the quick release pin in the centre of the wheel whilst pulling or pushing to insert or remove the wheel. Ensure the wheel is secure before use. Aston Shower Commode (CWC003) Page 8 of 12...
-
Page 9: Brake Operation
(above) when the chair is stationary. Aston Shower Commode (CWC003) Page 9 of 12... - Page 10 7” (W) x 11” (D) Armrest 70 – 75cm Underseat 43 – 48cm Height 28” – 30” Clearance 17” – 19” Total 13.4kg (29lb) Weight 150kg Weight Limit (24 stone) Aston Shower Commode (CWC003) Page 10 of 12...
- Page 11 The issuer or user should routinely check the following items, and when the device is reissued. It is recommended that a Drive Medical dealer services the wheelchair annually, where these items should be...
- Page 12 Warranty Your Drive branded product is warranted to be free of defects in materials and workmanship for one year from date of purchase. This device was built to exacting standards and carefully inspected prior to shipment. This warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the customer.
