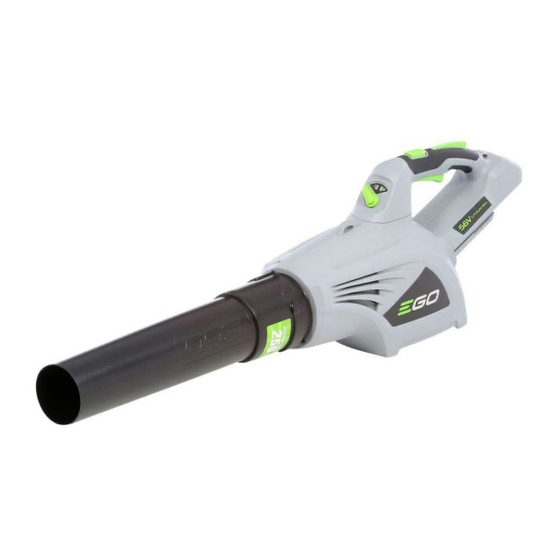

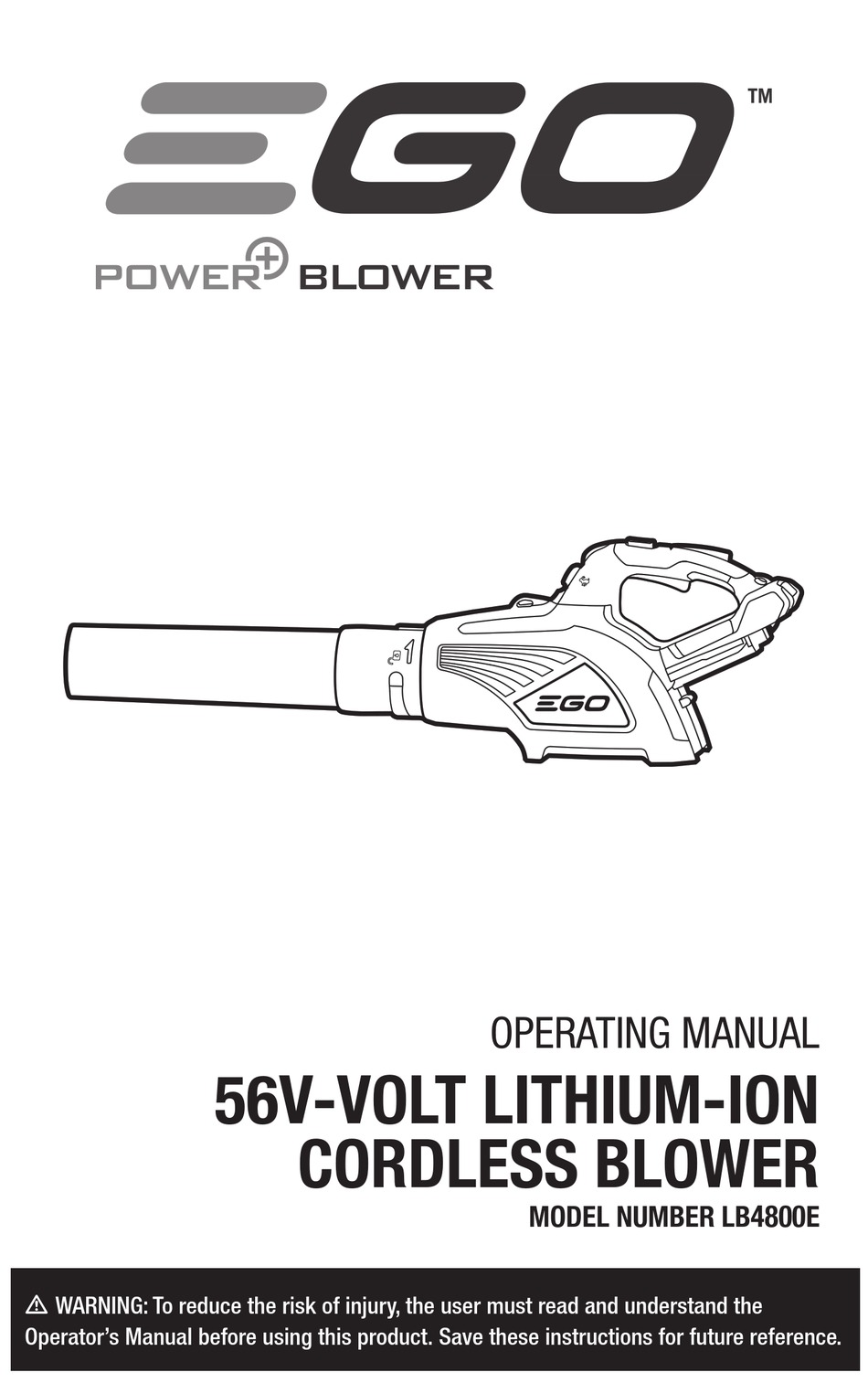

- Page 1 OPERATING MANUAL 56V-VOLT LITHIUM-ION CORDLESS BLOWER MODEL NUMBER LB4800E • WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
-
Page 2: Table Of Contents
Parts List ..........26 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... -
Page 3: Read All Instructions
Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker. WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... -
Page 4: Safety Symbols
We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection complying with Australian Standards AS1337.1 2010. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... -
Page 5: Safety Instructions
Keep Bystanders Away Keep all bystanders at least 15m away. Class II Construction Double-insulated Construction. Do not use in the rain or leave outdoors Do Not Expose To Moisture while it is raining. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... - Page 6 Never allow people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator. Never operate the appliance while people, especially children, or pets are nearby. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
- Page 7 Do not overreach and keep your balance at all times. Always be sure of your footing on slopes. Walk, never run. Keep all cooling air inlets clear of debris. Never blow debris in the direction of bystanders. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
- Page 8 Do not allow the blower to be used as a toy. Close attention is necessary when used by or near children. Use only as described in this manual. Use only manufacturer’s recommended attachments. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
- Page 9 Use only with battery packs and chargers listed below. BATTERY PACK CHARGER BA2240E CH5500E BA1120E CH2100E WARNING: - The battery pack must be removed from the appliance before it is scrapped. - The battery shall be disposed of safely. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
- Page 10 Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the blower’s operation. If damaged, have the blower serviced before using. Many accidents are caused by poorly maintained blowers. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
- Page 11 An exploded battery can propel debris and chemicals. If exposed, flush with water immediately. Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
- Page 12 Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan this tool to someone else, also loan these instructions to them to prevent misuse of the product and possible injury. SAVE THESE INSTRUCTIONS! 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
-
Page 13: Introduction
It has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please contact EGO customer service center 1300 000 EGO (1300 000 346). This manual contains important information on to the safe assembly, operation and maintenance of your hedge trimmer. -
Page 14: Specifications
Low: 420m Boost: 148km/h Air Velocity High: 120km/h Low: 72km/h 10min. (Boost) Approx. Run Time 18min. (High speed) (with EGO BA1120E 56V Battery 2.0Ah) 60min. (Low speed) Blower Weight (Without battery pack, with tube) 2.34kg 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... -
Page 15: Assembly
Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool. If any parts are damaged or missing, please return the product to the place of purchase. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... - Page 16 (Fig. 1&2). 2. Turn the tube in the direction of the arrow until both of the knobs slide into the lock positions (Fig. 2&3). Lock Position 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
-
Page 17: Packing List
The safe use of this product requires an understanding of the information on the tool and in this instruction manual as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... -
Page 18: Operation
APPLICATION You may use this product for the purposes listed below: Clearing hard surfaces such as driveways and walkways Keeping decks and driveways free from leaves and pine needles 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... - Page 19 Press the battery-release button; the battery pack will disengage from the latch and the ejection mechanism will assist with removal. Remove the battery pack from the blower. Battery Release Button Mounting Slot 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
- Page 20 To reduce the air velocity, turn the knob counterclockwise to the “tortoise” position. To enhance the air velocity, press the boost button to temporarily amplify the air speed to the maximum.The blower will resume the previous speed when this button is released. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
- Page 21 Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away. After using blowers or other equipment, clean up! Dispose of debris properly. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
-
Page 22: Maintenance
Clean all foreign material from the air inlets of the blower. Store indoors in a place that is inaccessible to children. Keep away from corrosive agents, such as garden chemicals and de-icing salts. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... -
Page 23: Troubleshooting
Excessive wearing of Contact EGO service motor fan. center for repair. The air velocity decreases obviously. The air inlet is blocked Remove the battery by debris. pack, clear the debris. 56V LITHIUM-ION CORDLESS BLOWER — LB4800E... -
Page 24: Warranty
SERVICE WARRANTY FOR FIVE YEARS from the date of original retail purchase, this EGO product is warranted against defects in material or workmanship. Defective product will receive free repair. FOR THREE YEARS from the date of original retail purchase, the EGO Power+ System battery pack and charger are warranted against defects in material or workmanship. - Page 25 Chervon Australia Pty Ltd, Unit 13, 1488 Ferntree Gully Rd, Knoxfield, VIC. 3180. Phone Number: 1300 000 EGO (1300 000 346). Email address: support@egopowerplus.com.au...
-
Page 26: Parts List
The Model Number will be found on the Nameplate attached to the housing of the blower. Always mention the Model Number when ordering parts for this tool. EXPLODED VIEW Blower Tube PARTS LIST No. Part Number Part Name Quantity 3127195000 Blower Tube 56V LITHIUM-ION CORDLESS BLOWER — LB4800E...
