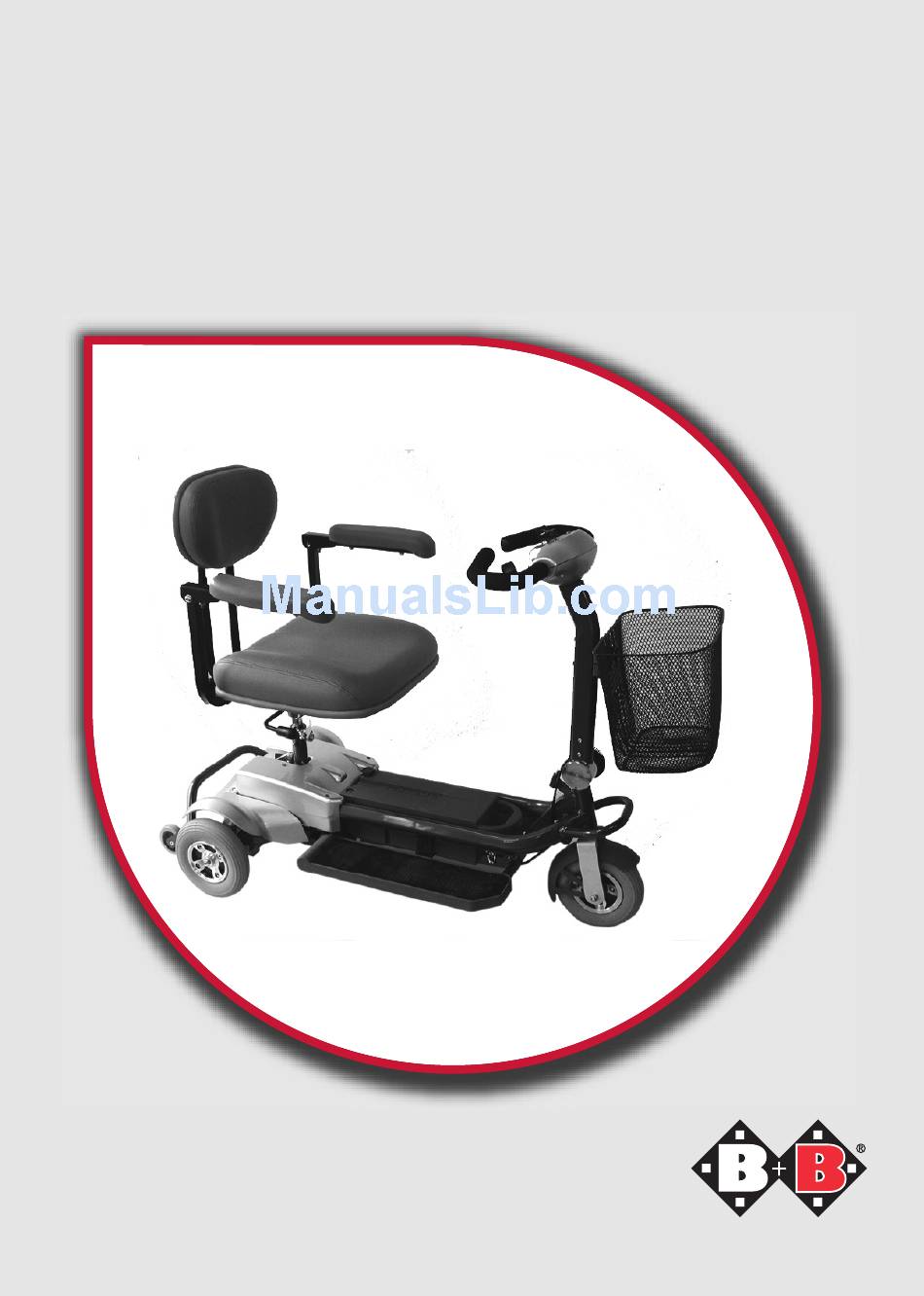

- Page 1 Bischoff & Bischoff Instruction manual B+B Scooter Agil Enjoy mobility.
-
Page 2: Table Of Contents
Dear customer, You are now the owner of a Bischoff & Bischoff Agil Scooter, a high-quality German product, thousands of which are already in professional use. This instruction manual is designed to familiarise you with the operation and use of your scooter. -
Page 3: Important Instructions, Inspection On Delivery
Agil Important instructions Please note that any repair work that is not described in this operating manual in more detail must be done by the authorised dealer or by Bischoff & Bischoff (referred to below as B+B) only. It is also important to note that the scooter is designed for a maximum load of 100 kg and this must not be exceeded. -
Page 4: Delivery
2. Delivery Your B+B Agil scooter is delivered in two cartons (chassis and seat). Fig. 1 To make it as easy as possible for you to handle your scooter, we have included detailed instructions in writing and also detailed illustrations. You can find the names of the various modules and how they fit together in the picture below. -
Page 5: How Do I Start My Scooter
Agil 1. Turn the key clockwise. 2. When the function LED lights, this means that your scooter is ready for use. 3. When the battery status display is in the green area, the battery has sufficient charge. If it is in the yellow area, the battery must be charged. -
Page 6: The Seat
5. The seat Adjusting the height of the seat The seat can be set to one of four heights.To adjust the height open the clamp under the seat and pull the locking pin out. Caution! When pulling the locking pin hold Fig. -
Page 7: The Steering Column
Agil 6. The steering column Positioning the steering column • Hold the steering column with one hand and the thumb screw with the other hand. • Loosen the screw and move the steering column to the desired position. Fig. 8 •... -
Page 8: Action In Emergency Situations
Scooter stops suddenly • Check the battery; if it is flat, it should be recharged immediately. • If you are climbing a long and steep incline Fig. 11 (greater than 12%), your scooter may stop suddenly. (Cause: electrical current and overload protection). Wait 2 minutes and then press the power feed button, which is at the back under the battery cover. -
Page 9: The Battery
Agil Everything you should know about the battery and charging it. Our product is an electronic replaceable charging module. It has been developed for electric vehicles that are powered by non-lead-acid batteries. Please follow the above directions and instructions and be careful when riding your scooter on public roads. -
Page 10: Manual Handling
To be able to push the scooter manually, pull the clutch switch upwards. This is necessary if the battery is flat. Fig. 12 Please follow the steps below: • Before switching on the battery charger check that the power supply is 115V or 230V. •... -
Page 11: Transport
Agil For easy transport the chassis can be disassembled into two main sections • Remove the seat as described in section 5 (height adjustment) • Remove the battery - press the red locking lever forward Fig. 14 and pull the battery upwards out of the chassis at the same time. - Page 12 We recommend the following instructions for care to ensure that you can enjoy your scooter for a long time: Before and after using it • Check the battery charge. If the display is in the red section, the battery must be charged. •...
-
Page 13: Technical Data
Agil 16. Technical data Overall length: 1130 mm Overall width: 500 mm Ground clearance: 75 mm Obstacle height: 100 mm Wheels: 200 x 50 mm Brakes: electro-magnetic Overall weight: 42 kg Load capacity: 100 kg Range: about 12 km Speed: up to 6,4 km/h Slope climbing: 12°... -
Page 14: Warranty
The warranty covers all defects of the scooter that can be confirmed to be the result of material or manufacturing defects. If you make a claim under the warranty, please submit the completed warranty certificate with the claim. The warranty will only apply if the vehicle is used for stan- dard travel. - Page 15 Agil Warranty - certificate (Please note our general business terms and conditions) Model: Scooter Agil Serial number:* (to be entered by dealer) Dealer Date and stamp * See the side frame for information stickers Bischoff & Bischoff GmbH • 04.05.2011...
- Page 16 Bischoff & Bischoff GmbH Becker-Goering-Strasse 13 • D-76307 Karlsbad Tel.: +49 700/60000 7070 • Fax: +49 700/60000 8080 www.bischoff-bischoff.com info@bischoff-bischoff.de...
