Summary of Contents for Monoprice Wireless Speaker Transmitter

  • Page 2: Package Contents

    Attempting to disassemble or modify the unit will VOID THE WARRANTY! Package Contents Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. • 1 x Wireless Audio Transmitter •...
  • Page 3: Front Panel

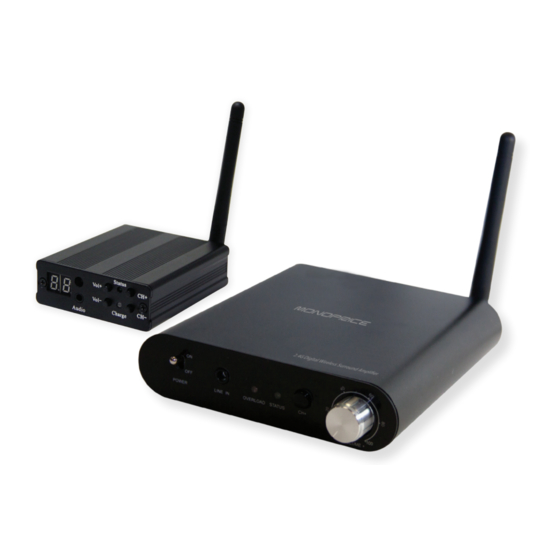

    Transmitter Diagram Front Panel Rear Panel Not utilized on PID 10601 Charging LED Indicator Volume Up Channel Down Power LED Indicator Antenna Channel Up Setup Mode Switch Channel/Volume Display Power Switch Audio In DC Power In Volume Down...
  • Page 4: Installation Instructions

    Receiver/Amplifier Diagram Front Panel Rear Panel DC14V/2.5A Power Switch Antenna Audio In Right Output “-” Overload Indicator Right Output “+” Power/Signal Indicator Left Output “-” Channel Selector Left Output “+” Master Volume DC Power In Installation Instructions 1. Use ordinary speaker wire (not included) to connect the left and right outputs from the Receiver/Amplifier to the inputs of a pair of speakers (not included).
  • Page 5 110V Outlet Transmitter Rear Panel 0 DB STANDBY 20 DB MUSIC POWER DC 3.6V 6V Computer or other STATUS audio source VOL+ VOL- CHARGE AUDIO Transmitter Front Panel 3. Using the 3.5mm stereo audio cable, connect one end to the Audio jack on the front of the Transmitter and the other end into the output of your audio source (smartphone, computer, etc.).
  • Page 6: Input Selection

    Input Selection The 3.5mm Audio jack on the front of the transmitter can accept line-level audio input or a microphone. The MUSIC/MIC switch on the back is used to select the type of source being used. Music: Select this option if you are using a line-level audio signal (which could be musical, spoken word, etc.).
  • Page 7: Restoring Factory Default Settings

    One-to-Multiple-Pairing In addition to operating as multiple independent pairs, you can also configure the system to have a single transmitter broadcasting to any number of receivers within range. 1. Ensure that the transmitter and the first receiver/amplifier are powered on. 2.
