Summary of Contents for Monoprice 38360

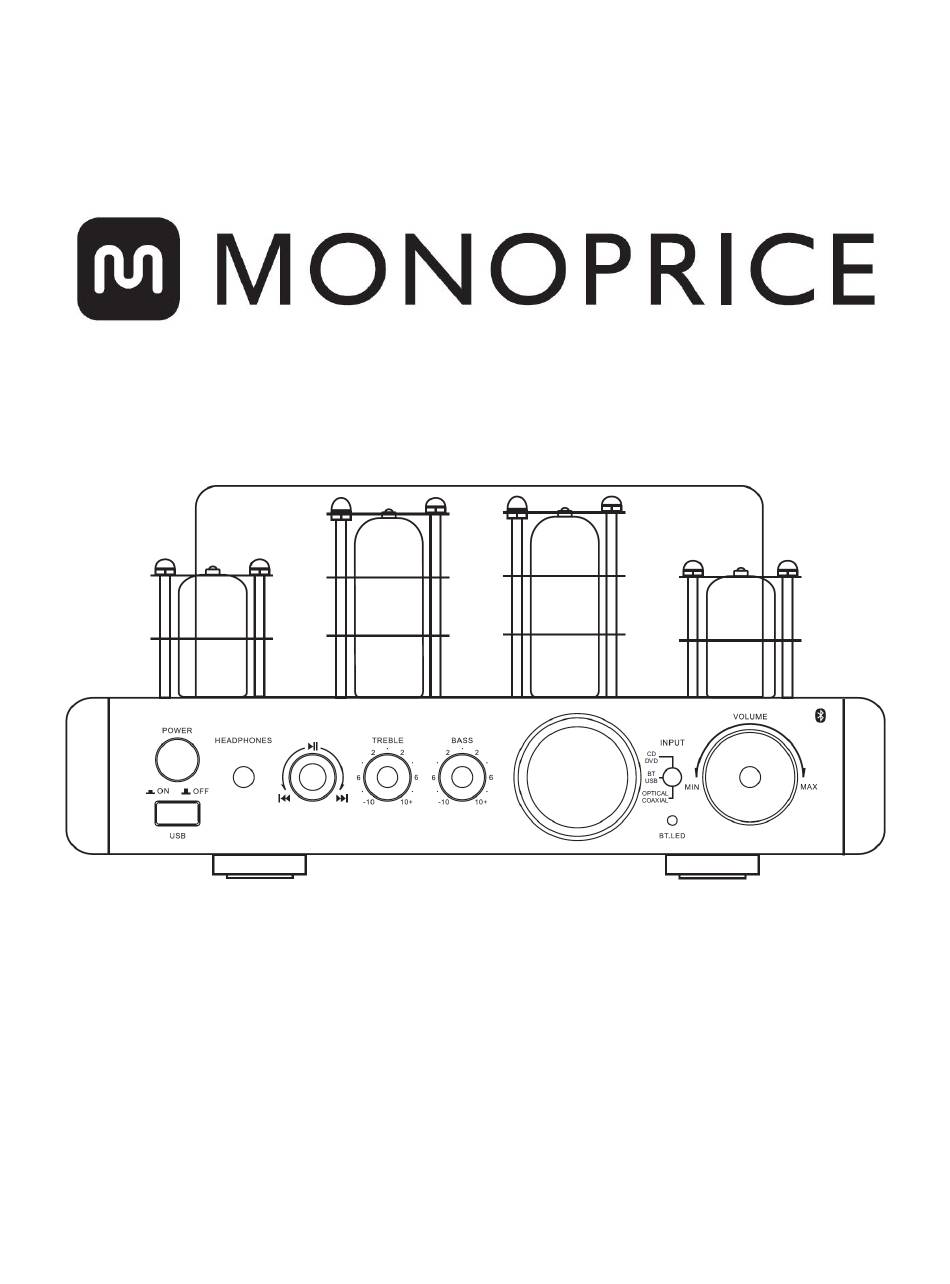

- Page 1 25-Watt Stereo Hybrid Tube Amplifier P/N 38360 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 4: Product Overview
PRODUCT OVERVIEW Front Panel 1. POWER: Press the button to turn the amplifier on or off. 2. USB: USB port for use with a USB flash drive with audio files. 3. HEADPHONES: 3.5mm TRS headphone jack. The speaker output is disabled when headphones are plugged in. - Page 5 Rear Panel 1. AUDIO INPUT CD/DVD: A set of stereo RCA line level input jacks. 2. BASS OUTPUT GROUP 2: A set of stereo RCA line output jacks for connecting a powered subwoofer. 3. OPTICAL/COAXIAL: Slide switch for selecting the OPTICAL or COAXIAL digital audio input.
-
Page 6: Sample Connection Diagram
SAMPLE CONNECTION DIAGRAM BLUETOOTH® PAIRING Perform the following steps to pair your mobile device with the amplifier. 1. Press the POWER button on the front panel to turn the amplifier on. 2. Ensure that there is no USB drive connected to the front panel USB input. -
Page 7: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 8: Specifications
SPECIFICATIONS Model 38360 1x stereo RCA line, 1x digital optical, Inputs 1x digital coaxial, 1x Bluetooth®, 1x USB Output Power (RMS) 25 watts/channel Frequency Response 22Hz ~ 17kHz Total Harmonic Distortion ≤ 0.02% Signal-to-Noise Ratio ≥ 86dB Input Impedance 47kΩ... -
Page 9: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. - Page 10 Notice for Industry Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
