Centrality PA168X IP Phone LAN Configuration Guide
Centrality PA168X IP Phone LAN Configuration Guide
This guide supplies a step-by-step operation on how to install and configure
Centrality PA168X IP Phone in LAN.
1
Install the IP Phone (Take PA168S IP phone as example):
1) Insert handset cord into handset cord jack at the left side of the base to
connect the handset to the base. Refer to Fig 1.1 please.
2) Plug the power adapter cord into the Power Jack. Then plug the other
end of the cord into the appropriate wall outlet. Refer to Fig 1.2 please.
Beijing Centrality Communications Co., Ltd.
Handset cord Jack

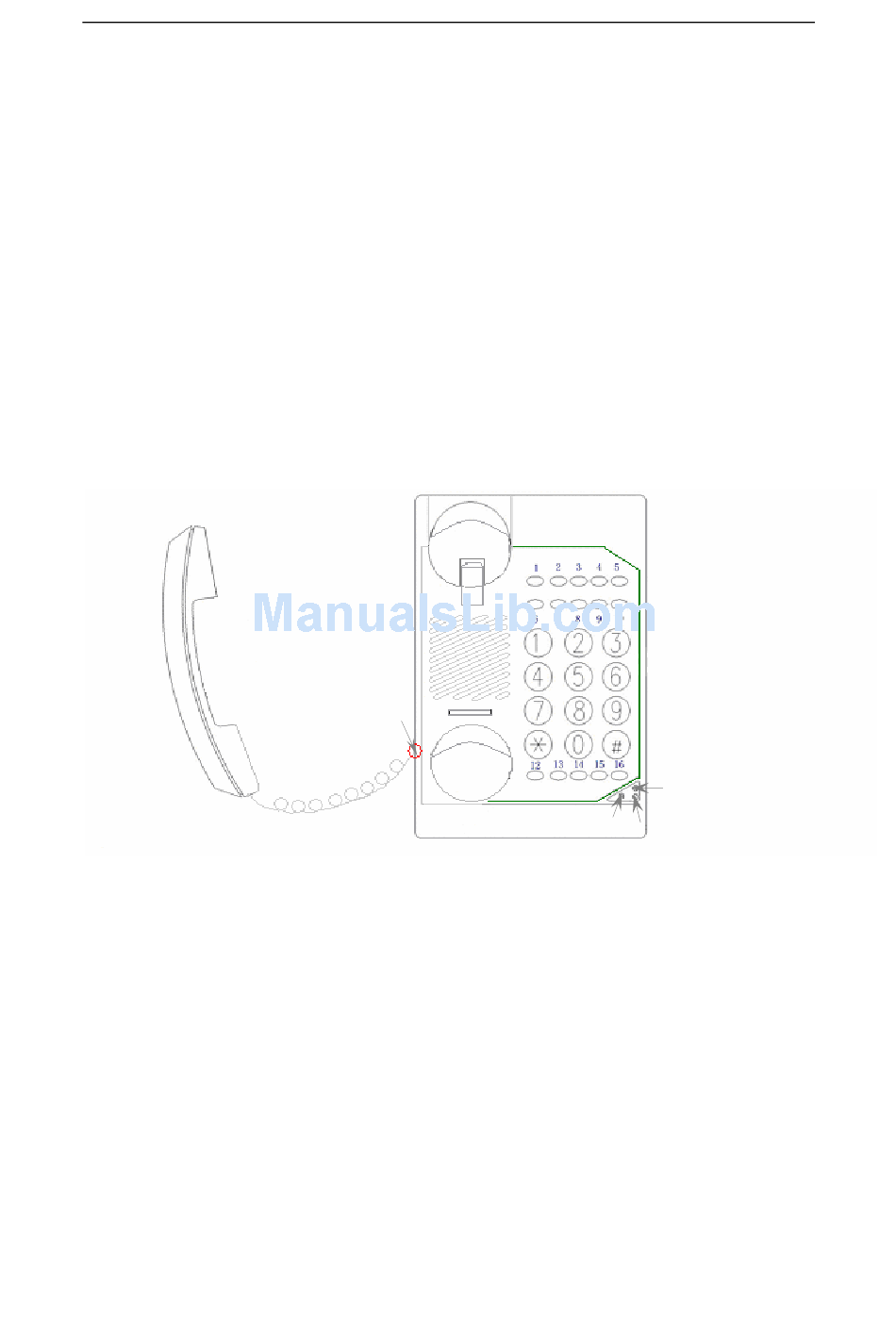

Fig 1.1 Connect the Handset and the Base of the Phone
20
18 19
1
