- Page 1 CABINET PARTS WINE CELLAR For Models: KUWS24RSBS00, KUWS24RSSS00 (Black Cabinet) (SS Cabinet) Part No. 8214863 3−06 Litho In U.S.A. (rcg)
-
Page 2: Cabinet Parts

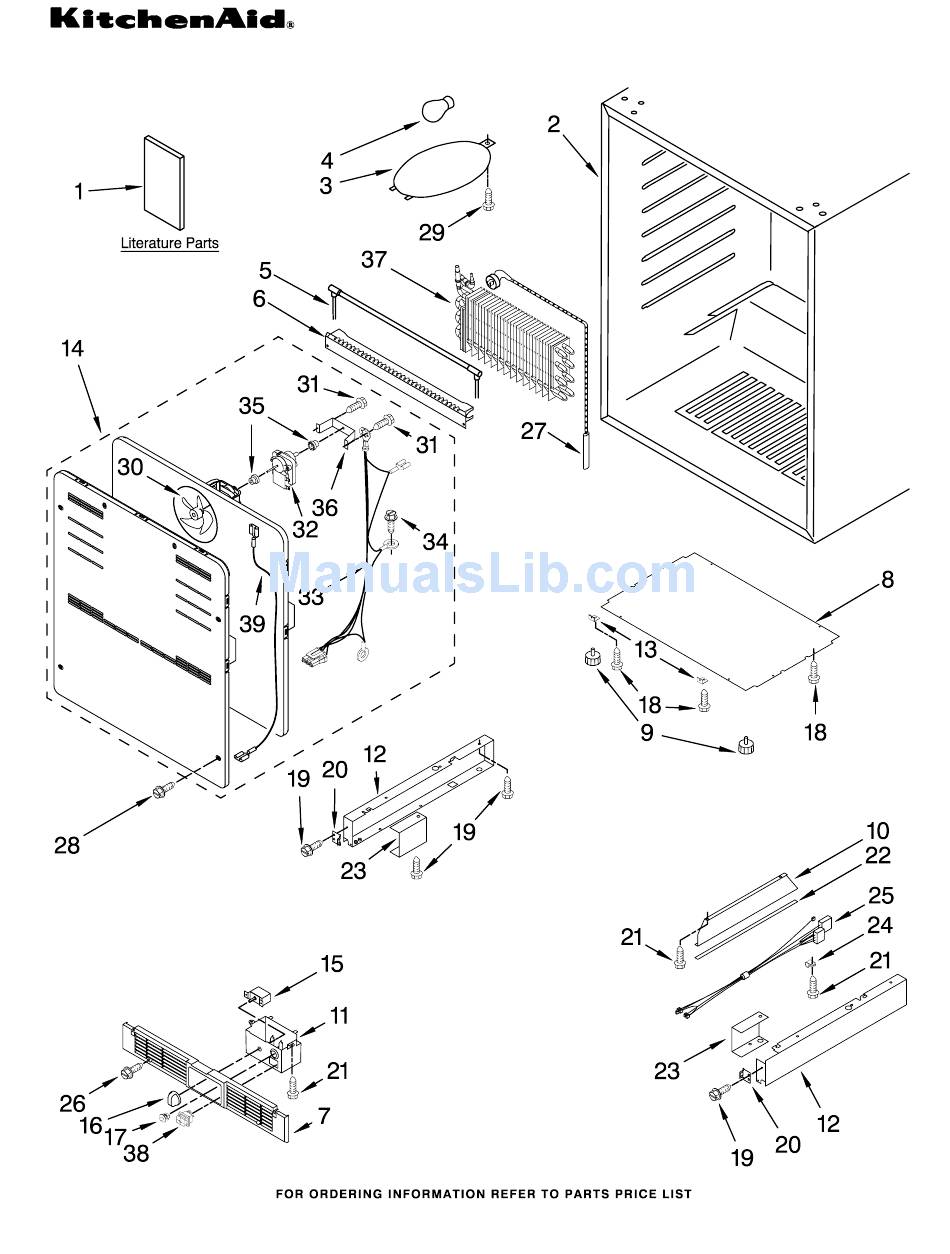

For Models: KUWS24RSBS00, KUWS24RSSS00 Illus. Part DESCRIPTION Literature Parts 2300272 Use & Care Guide 4344900 Wiring Diagram Cabinet (Not A Service Part) 4344739 Lens, Light 4344740 Bulb, Light 4344746 Heater, Defrost 4344747 Heat Shield 4344761 Grille 4344762 Plate, Bottom 4344763 Foot, Leveling... -
Page 3: Shelf Parts
4344845 Wine Rack, (1) 4344848 Wine Rack, Lower Ladder, Shelf 4344842 Left Side 4344843 Right Side 4344794 Screw 8214863 SHELF PARTS For Models: KUWS24RSBS00, KUWS24RSSS00 (Black Cabinet) (SS Cabinet) Illus. Part DESCRIPTION 4344795 Washer 4344850 Stop, Lower Rack 4344851 Screw... -
Page 4: Door Parts
For Models: KUWS24RSBS00, KUWS24RSSS00 Illus. Part DESCRIPTION 4344853 Door Assembly (Includes Gasket) 4344753 Hinge, Bottom 4344754 Hinge, Top 4344755 Spacer, Top Hinge 4344756 Spacer, Bottom Hinge 4344757 Actuator, Switch 4344758 Door Stop 4344852 Door Gasket 4344810 Handle, Door DOOR PARTS... -
Page 5: Unit Parts
Compressor 4344780 Bolt, Compressor 4344781 Fan Motor, Condenser 4344782 Baffle, Air 4344783 Fan Blade 4344784 Bracket, Motor 8214863 UNIT PARTS For Models: KUWS24RSBS00, KUWS24RSSS00 (Black Cabinet) (SS Cabinet) Illus. Part DESCRIPTION 4344785 Bracket, Motor 4344786 Cover, Rear 4344837 Capacitor 4344836 Clip...
