- Page 1 CABINET PARTS WINE CELLAR For Models: KUWS24LSBS01 (Black) Part No. W10182638 Rev.A 01−08 Litho In U.S.A. (rrm)

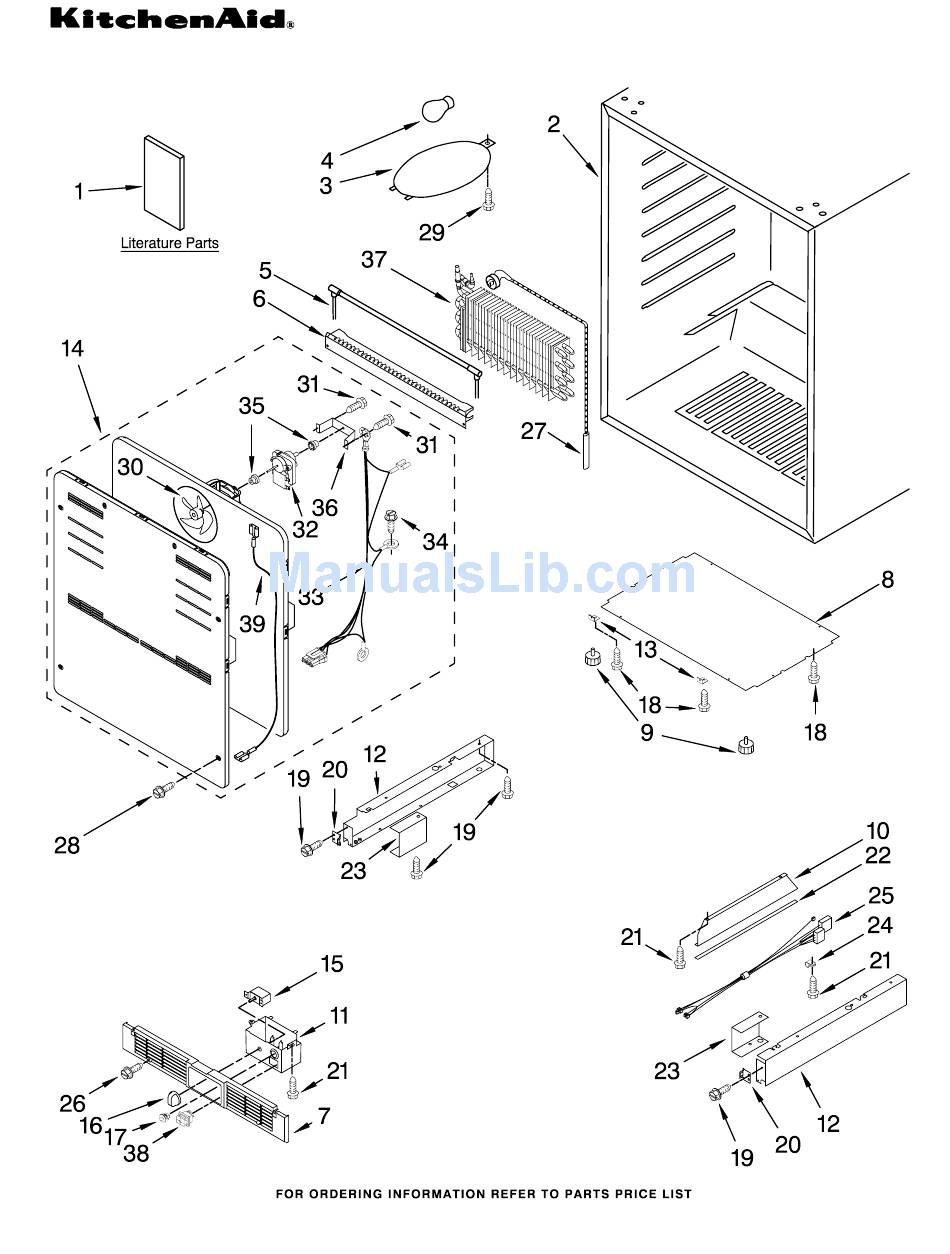

- Page 2 4344761 Grille 4344762 Plate, Bottom 4344763 Foot, Leveling 4344764 Brace, Support 4344898 Control Box Frame, Side 4344789 Left Side 4344790 Right Side CABINET PARTS For Models: KUWS24LSBS01 (Black) Illus. Part DESCRIPTION 4344771 Bracket, Grille 4344840 Evaporator Fan Assembly 4344859 Thermostat...
- Page 3 4344847 Wine Rack, (1) 4344849 Wine Rack, Lower Ladder, Shelf 4344842 Left Side 4344843 Right Side 4344794 Screw W10182638 SHELF PARTS For Models: KUWS24LSBS01 (Black) Illus. Part DESCRIPTION 4344795 Washer 4344850 Stop, Lower Rack 4344851 Screw 4344882 Trim, Top And...
- Page 4 4344754 Hinge, Top 4344755 Spacer, Top Hinge 4344756 Spacer, Bottom Hinge 4344757 Actuator, Switch 4344758 Door Stop 4344852 Door Gasket 4344810 Handle, Door DOOR PARTS For Models: KUWS24LSBS01 (Black) Illus. Part DESCRIPTION 4344856 Door Skin, Stainless Steel 4344760 Washer 4344788 Spacer, Door...
- Page 5 Compressor 4344780 Bolt, Compressor 4344781 Fan Motor, Condenser 4344782 Baffle, Air 4344783 Fan Blade 4344784 Bracket, Motor W10182638 UNIT PARTS For Models: KUWS24LSBS01 (Black) Illus. Part DESCRIPTION 4344785 Bracket, Motor 4344786 Cover, Rear 4344837 Capacitor 4344836 Clip 18 W10163276 Trap, Drain...
