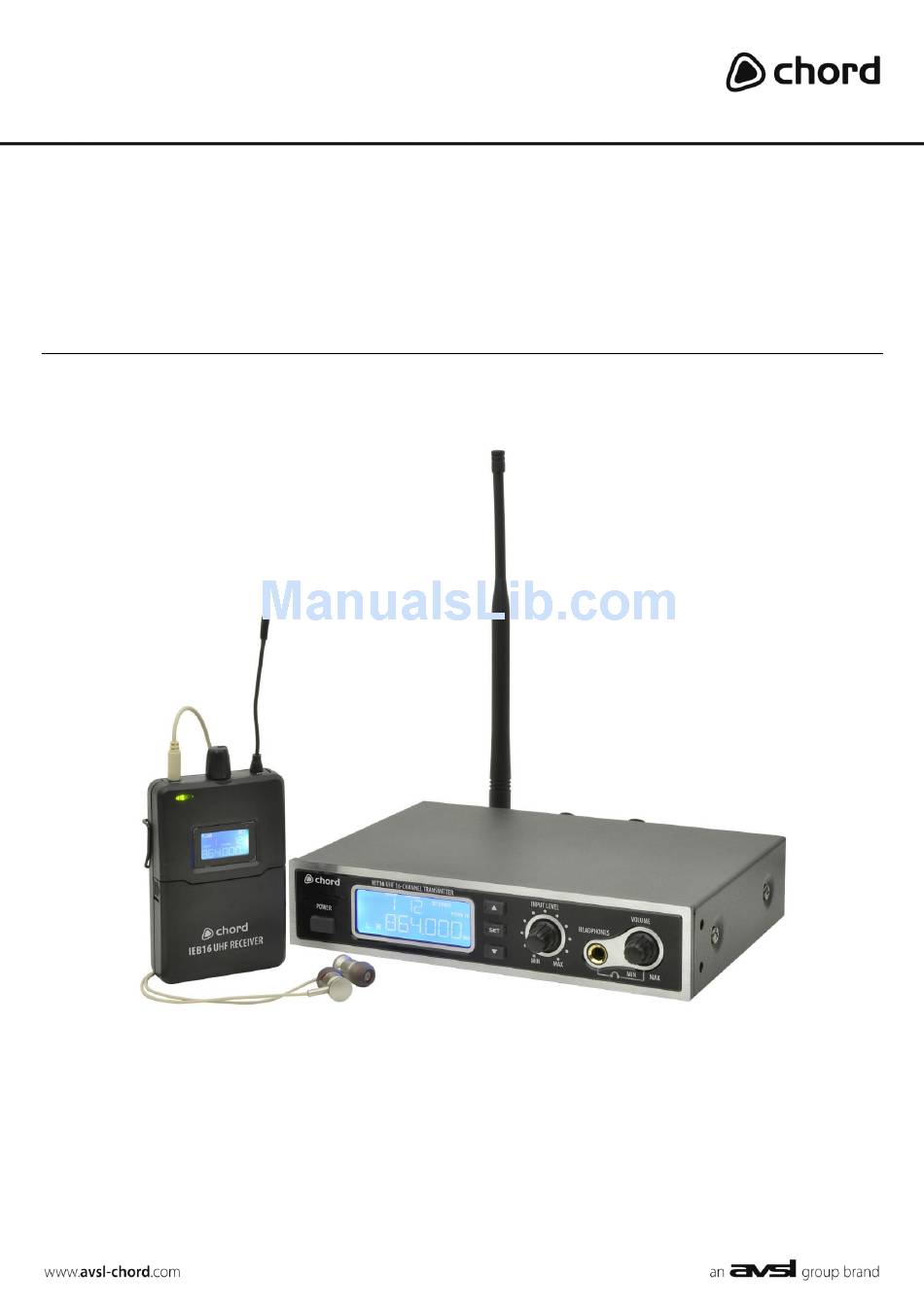

- Page 1 IEM16 In-Ear Monitoring System Item ref: 171.892UK User Manual...
- Page 2 Damage caused by misuse is not covered by the warranty Introduction Thank you for choosing this Chord IEM16 UHF in-ear monitoring system. This professional system provides high quality wireless foldback for accurate audio reference with full freedom of movement. Please read this manual before using this equipment in order to avoid damage through incorrect operation and to get the best performance from your purchase.
- Page 3 Transmitter front panel 1. Power button 2. Up, Down, Set buttons 3. Input Level control 4. 6.3mm stereo headphone jack 5. Headphone volume control Transmitter rear panel 6. DC inlet 7. Left & Right XLR/jack inputs 8. Pad level switch 9.
- Page 4 Operation - Transmitter unit The ½ rack transmitter unit has a large LCD window with 3 buttons alongside it. Press and hold the Power button (1) on the left of the unit will power up the transmitter and the LCD display will be lit. Any audio signal played into the transmitter unit will be indicated by L + R bar meters on the left of the LCD display.
- Page 5 Operation - Bodypack receiver Switch on the bodypack receiver by turning the rotary Volume/On/Off rotary control clockwise and the LCD display will be lit. Turning this control further increases the output level to the earphones. Flipping open the front cover reveals 4 buttons above the battery compartment for settings adjustment.
-
Page 6: Specifications
Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines. Errors and omissions excepted. Copyright© 2014. AVSL Group Ltd. 171.892UK User Manual...
