Siqura Dual Rate SFP Media Converter Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

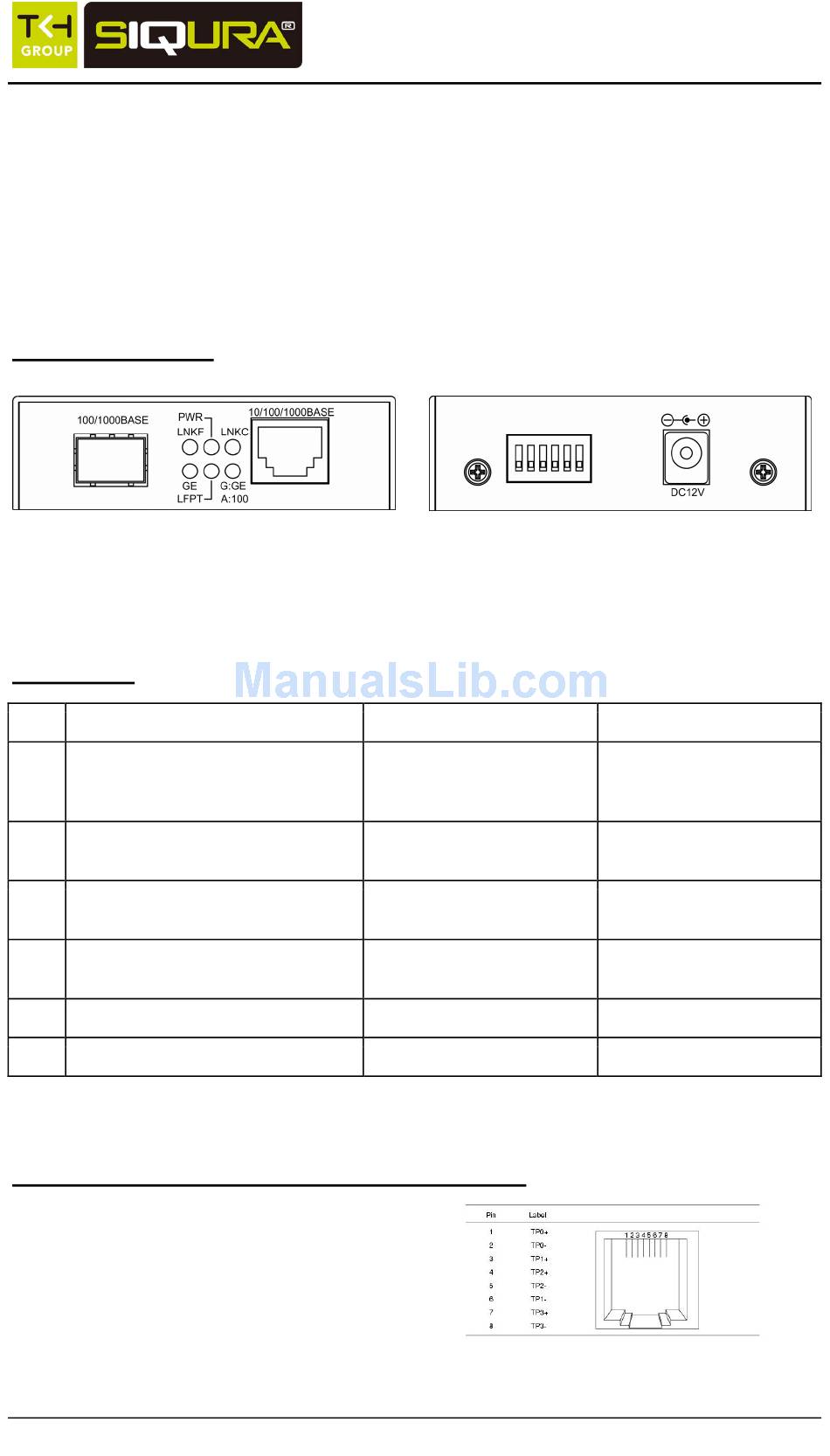

Quick Start Guide

This quick start guide describes how to install and use the Dual Rate SFP media
converter. The converter introduced here provides one channel media conversion
solution.

Physical Description

Product Overview
This Dual Rate SFP media converter is a plug-and-play device. Connect the supplied
AC to DC power adaptor to the receptacle on the rear panel of the Dual Rate SFP media
converter, and then attach the plug into a standard AC outlet.
DIP Switch
No.
Down
1
Disable LFPT
2
Enable Auto-Negotiation for TX port
3
TX port Force mode: Full-duplex
4
TX port Force mode: 100Mbps
5
SFP at 100Mbps
6
Function reserved
<Note> Power must be off/on after re-setting LFPT function.
The 10/100/1000Base-TX and SFP Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of
10/100/1000Base-TX port.
User's Manual
Dual Rate SFP Media Converter
Important: Note that XSNet Series manuals may cover
multiple models. To establish if a particular feature or
specification in this manual applies to the unit at hand,
consult the datasheet of the given model.
Up
Enable LFPT
Enable Force mode for TX
port
TX port Force mode:
Half-duplex
TX port Force mode:
10Mbps
SFP at 1000Mbps
Function reserved
LFPT:
Link-Fault-Pass-Through
function
