Summary of Contents for Siqura EVE ONE

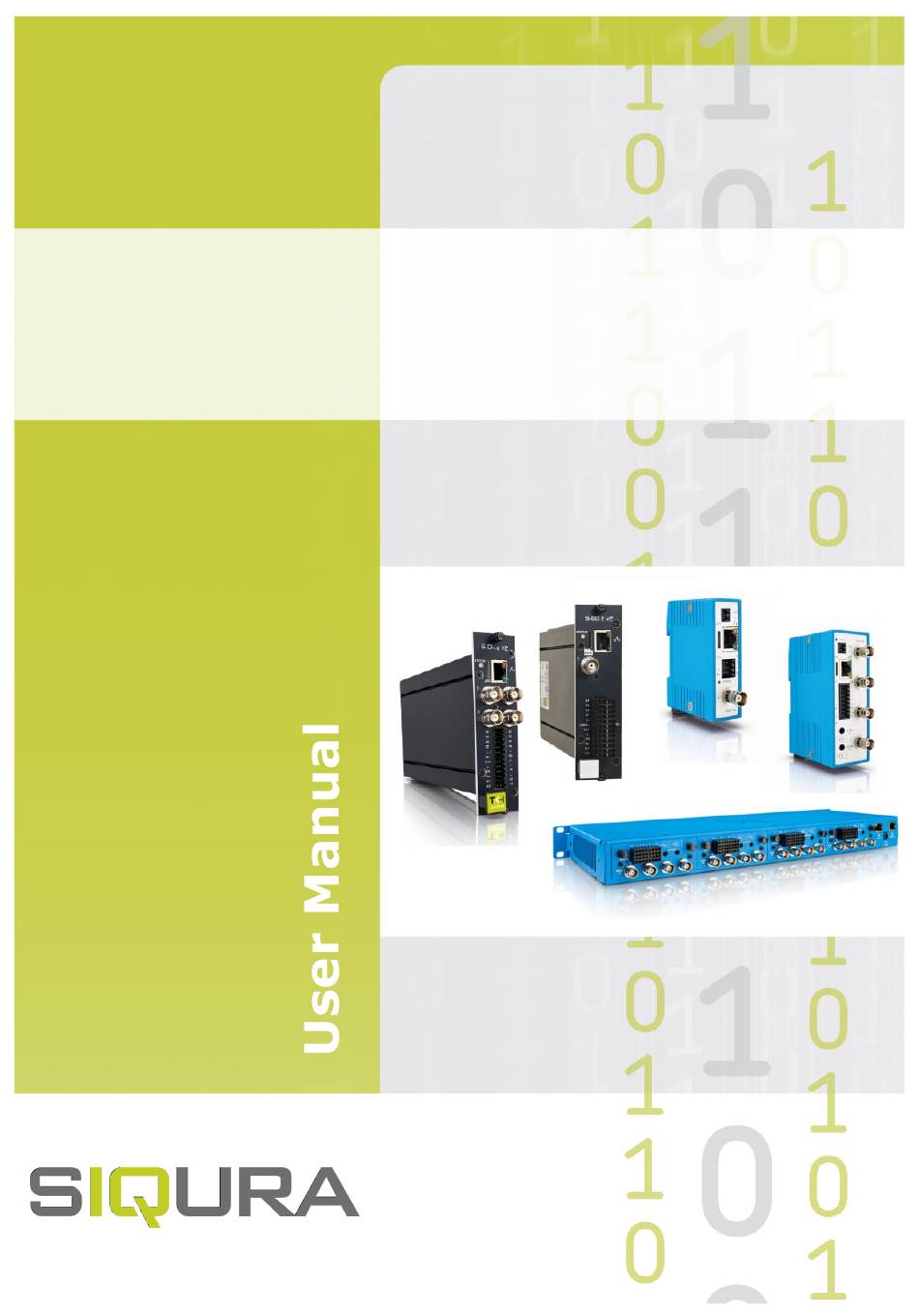

- Page 1 S-60/S64 E v2 / EVE Firmware version 2.20 H.264 Video encoder series...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability Siqura accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Table Of Contents
Contents S-60/S-64 E v2 / EVE Help ................ Meet the S-60/64 E v2 family ..............Meet the EVE family .................. Get access to the unit ................Get access via web browser ..............Get access via Device Manager .............. Get access via UPnP ................Log on to the unit ................ - Page 4 Contents 12.3 Quality Monitor ..................Advanced ....................13.1 Direct Streaming ................. 13.2 Data ....................13.3 Audio ....................13.4 RTSP ....................Troubleshooting ..................14.1 Date & Time issues ................14.2 FTP issues ..................14.3 Logon issues ..................14.4 Network issues ..................14.5 PTZ issues ..................
-
Page 5: 60/S-64 E V2 / Eve Help
Where to find more information Find product specific datasheets, manuals, EU Declarations of Conformity and firmware updates at siqura.com/downloads/software. Make sure that you have the latest version of this manual. Who this manual is for These instructions are for all professionals who will install, operate or maintain this unit. -
Page 6: Meet The S-60/64 E V2 Family
Meet the S-60/64 E v2 family S-60 E v2 ● One-channel H.264 video encoder ● ONVIF Profile S ● Edge recording ● Picture enhancement ● Image quality monitor ● Advanced tamper detection ● 960H Support ● Duplex serial data ● Open Streaming Architecture (OSA) ●... -
Page 7: Meet The Eve Family
Meet the EVE family EVE ONE ● One-channel H.264 video encoder ● Click & Go – compact DIN rail mounting ● 2x Digital I/O ● Edge storage on μSDHC card ● Available with Power over Ethernet (PoE) EVE FOUR ●... - Page 8 Meet the EVE family EVE 4x4 ● Modular 4x four-channel H.264 encoder ● Edge storage on μSDHC card (4x) ● 4x 4 Audio in; 4x 1 audio out ● 4x 8 Digital I/O EVE family shared features ● High resolution: 960 H support (960x576 pixels) ●...
-
Page 9: Get Access To The Unit
Install Device Manager Download the latest version of Device Manager at siqura.com/downloads/software. Double-click the setup file. Follow the installation steps to install the software. -
Page 10: Get Access Via Upnp
Get access to the unit Get access via UPnP Universal Plug and Play (UPnP) support is enabled by default on the unit. With the UPnP service enabled in Windows, you can get access to the unit from Windows Explorer. Connect to the unit via UPnP In Windows Explorer, open the Network folder. -
Page 11: Webpage Features
(Show help) in the Title bar of the page. Note: The Embedded Help topics offer generic Help information for a range of Siqura products. Whether or not a described feature, mode or setting is available on the unit at hand depends on the model you purchased. -
Page 12: Live Stream
Live Stream The Live Stream page is the home page of the unit. This is where you can: ● View and record live video ● Take snapshots ● Control a connected PTZ camera ● Adjust the focus and iris Layout The Live Stream page is taken up entirely by the camera preview. - Page 13 Live Stream Important: In the web interface and in this manual, these controls are referred to as "PTZ controls". Note, however, that a fixed camera connected to the unit does not have pan/tilt (PT) functionality. The zoom (Z) function is supported though - that is, if PTZ control is enabled.
- Page 14 Live Stream Adjust zoom, focus, and iris To zoom the camera or adjust the focus and iris, use the sliders in the lower-left corner of the preview. Drag the slider to the left or right and watch the preview until you achieve the desired effect.
-
Page 15: Camera
Camera On the webpages grouped under Camera, you can adjust the settings for camera management, image quality, overlays, video streaming and PTZ. In This Chapter 7.1 Camera Management.....................15 7.2 Image Quality...................... 16 7.3 Overlays......................17 7.4 Streaming Profiles....................19 7.5 PTZ........................22 7.6 Privacy Mask...................... -
Page 16: Image Quality
Camera Image Quality On the Image Quality page, image quality settings are overlaid over the video in the preview. Use these settings to enhance the image quality for optimal display in your web browser or in an application you are using to extract the video stream. Any changes you make are immediately effective and visible in the preview. -
Page 17: Overlays
Camera Overlays On the Overlays page, text can be superimposed on the video streamed by the unit. You can, for example, have the camera name, date and time information, measurements or a custom text displayed. Depending on model, you can also add an image overlay, such as a logo. Note: On multichannel units, use the Next/Previous buttons to go to the camera you need, and then make the required changes. - Page 18 Camera Your adjustment is immediately effective. See the preview for visual feedback. Click Position. In the Position list, select a preset position. - or - Click Free positioning and type custom values in the X position and Y position boxes to freely place the shape over the video image.
-
Page 19: Streaming Profiles
Camera Delete a font Click the arrow which expands Font Management. Click Select font to delete. Click the font you wish to delete. Click Delete. Upload an image Click the arrow which expands Image Management. Drag the image file onto the dashed rectangle. - or - Use Click to select file to locate and select the file. - Page 20 Camera Create a custom profile If the supplied factory-set profiles do not meet your requirements you can create a custom streaming profile. Click the camera name at the top of the webpage. Click Stream 1 or Stream 2, to select the stream to assign the streaming profile to. In the Profile list, select the factory profile to be used as a basis for the custom profile.
- Page 21 Camera NTSC 960H 960x576 960x480 720x576 720x480 2/3 D1 480x576 480x480 1/2 D1 352x576 352x480 4CIF 704x576 704x480 2CIF 720x288 720x240 352x288 352x240 QCIF 176x144 176x120 640x480 640x480 QVGA 320x240 320x240 Traffic shaping Traffic shaping sets the maximum network bit rate per encoder. Traffic shaping will spread network traffic bursts which helps the network infrastructure handle the traffic.
-
Page 22: Ptz
Camera Overview The PTZ page has the following tabs: ● Camera-# Use this tab to enable PTZ camera control from your browser, assign an ID to the camera and manage the PTZ presets you have created on the Live Stream page. ●... - Page 23 Camera Drag the driver file (with .js file extension) onto the dashed rectangle. Click Upload. The driver is added to the User section of the driver list. Delete a PTZ driver Uploaded drivers that you no longer need can be deleted. It is not possible to delete the factory-installed drivers.
-
Page 24: Privacy Mask
Camera Privacy Mask To avoid intrusive monitoring, privacy masks can be used to conceal sensitive areas within the field of view of a camera. Add a privacy mask You can create up to ten privacy masks. In the upper-right corner, click Add privacy mask. The mask appears as an overlay. -
Page 25: Event
Event On the Event pages, you can define how the unit is to handle incoming events. In This Chapter 8.1 Event Management....................25 8.2 Connection Monitor....................25 8.3 Digital I/O......................26 8.4 FTP Push......................27 Event Management On the Event Management page, you can link actions to specific events. Once the event occurs, it triggers the selected action automatically. -
Page 26: Digital I/O
The number of digital I/O channels that is provided depends on the model of your encoder (see the table below). Each of the I/O pins can function as a digital input or a digital output (but not simultaneously). Product Digital I/O channels EVE ONE EVE FOUR EVE 4x4 S-60 E v2 S-64 E v2 On the Digital I/O page, you can set the mode for each pin. -
Page 27: Ftp Push
Event Mode Description Force closed I/O contact is closed Input I/O pin is input pin Output (inverted) I/O pin is output pin (output inverted) Output I/O pin is output pin On the Event Management page, you can add events triggered by "I/O # closed" and define actions to be taken when such events occur. -
Page 28: Recording
Recording The unit provides edge recording. This function makes it possible to record and store video locally - that is, at the unit itself. Recorded video clips are stored on the microSD card inside the unit. From the Edge Recording page, the clips can be downloaded for further processing. In This Chapter 9.1 Camera-#......................28 9.2 SD Card.......................29... -
Page 29: Sd Card
Recording ● signal loss ● audio level rising above a threshold Note: If you set connection loss as a trigger you also need to set up the Connection Monitor to monitor the connection. Persistent recording Recording to the microSD card is persistent. This means that powering the unit off and on does not erase the existing recordings on the microSD card. -
Page 30: Nas Recording
Recording SD card usage We advise to use high-grade, highly-durable microSD cards. Note that microSD cards are limited to the number of write cycles ranging from 200 (off-the-shelf TLC NAND) to 100.000 (4 GB industrial SLC NAND). Intensive usage will eventually wear out the card. The number of write cycles times the capacity of the microSD card gives you the total amount of data that can be written to the card in its life time. - Page 31 Recording Path In the Path box, type the name of the folder where the unit should store its recording data. For SMB/CIFS, the path always starts with the share name, followed by the directory in the share. Example: camera/camera0016. User name In the User name box, type the user name to be used to connect to the NAS server (only applicable for SMB/CIFS).
-
Page 32: Device
Device Users with an Administrator or Operator account can access the Device pages to configure the device, network, date and time, security, and SNMP settings. Administrators can also manage user accounts. In This Chapter 10.1 Device Management.................... 32 10.2 Network......................33 10.3 Date &... -
Page 33: Network
Device Using the Firmware upgrade section you can write a new firmware version to the upgrade image area. An upgrade image can replace an existing upgrade image written to the unit at an earlier upgrade. Important: It is essential that the upgrade image is compatible with the unit. To open the upgrade section, click Firmware upgrade. - Page 34 A DHCP server is found and an IP address is assigned from its pool of addresses. The unit can then be found with Device Manager - a software tool available for download at siqura.com/downloads/software. You can use this tool to connect to the web interface of the unit.
- Page 35 In that case, the unit can still be controlled from ONVIF clients that "know" of its existence. Select this check box if you need to establish MX connections. MX/IP is a proprietary UDP protocol used to communicate with Siqura equipment over a network connection.
-
Page 36: Date & Time
Device UPnP If enabled, UPnP (Universal Plug and Play) allows the unit to advertise its presence and services to control points on the network. A control point can be a network device with embedded UPnP, a VMS application or a spy software tool, such as Device Spy. With the UPnP service enabled in Windows, you can connect to the unit from Windows Explorer. -
Page 37: Security
Device Use a time server We strongly recommend that you use a time server. Without a time server, the real-time clock will deviate from the actual time after a few days. There are two options for specifying which time server is to be used. ●... - Page 38 Device Certificates To implement HTTPS on the unit, you need to install an HTTPS certificate. You can use a self- signed certificate or one created by a Certificate Authority (CA). CA-issued certificates provide a higher level of security and inspire more trust than self-signed certificates. Self-signed certificates are often installed for test purposes or as a temporary solution until a CA-issued certificate has been obtained.
-
Page 39: User Management
Device Refresh the page. Log on to the unit. Your browser is now using a secure connection to communicate with the unit. 10.5 User Management Initial setup Out of the box, the unit is freely accessible - that is, when you connect to the web server you are not prompted to log on. -
Page 40: Snmp
A trap is sent when bad image quality or camera tampering is detected and another one when the situation returns to normal. Required MIB files can be downloaded at siqura.com/downloads/software. System information This section shows the network/device data specifically made available to the SNMP manager for making the device, its location and service manager(s) traceable. - Page 41 Camera Tampering events. Variables, which can be read from the unit's MIB through an SNMP manager, indicate why the alarm occurred. The OPTC-VCA-MIB required for this can be downloaded, together with the other MIBs for the unit, at siqura.com/downloads/software. In the Version list, click the SNMP version used.
-
Page 42: Diagnostics
Diagnostics The Logging page can assist you when you need to troubleshoot encountered issues. In This Chapter 11.1 Logging......................42 11.2 LED........................42 11.1 Logging The unit includes logging functionality which can be used for diagnostic purposes. Download a log file To view the logfile of the unit, you need to download it to your computer. -
Page 43: Analytics
Analytics Siqura video encoders include video analytics which can monitor the video images and raise an alert when the following events occur: ● The image quality becomes too poor. ● The camera's position or field of view has changed. ●... -
Page 44: Tampering
Analytics 12.2 Tampering As a result of tampering, or more accidentally, after cleaning, a camera may no longer cover the area designated for monitoring. The Tampering function can detect camera position changes and scene changes such as a blocked camera view. It does so by comparing the current image to one or more reference images that were captured and stored earlier. -
Page 45: Quality Monitor
Analytics 12.3 Quality Monitor The Quality Monitor can detect if images produced by the camera are still usable. Four coloured dials give an indication of the performance of the camera and show whether or not it needs attention. A quality check is made against what is normally a good picture. Examples of detectable occurrences ●... -
Page 46: Advanced
Advanced The Advanced menu gives access to the Direct Streaming, Data, and Audio (if supported) pages. Important: We recommend that you have in-depth understanding of the Advanced settings and their values before you make any changes. If in doubt, do not change the default values. -
Page 47: Data
Advanced Direct Streaming The unit supports direct media streaming to a multicast or unicast IP address (a decoder or viewing application, for example). In IP address, type the destination IP address. In Port, type the destination port number. Default: 50010. Use even numbers only. Select Enable. -
Page 48: Audio
Advanced Biasing If biasing is needed, it should be enabled on at least one module on the bus. Termination Normally, the devices at the two extremes of a bus are terminated, while intermediate devices are not. Therefore: RS-422, always enable (being point-to-point); RS-485, enable only for the first and last module connected to the bus configuration. -
Page 49: Troubleshooting
Troubleshooting If you experience problems with your unit the following sections may help you to identify and resolve underlying causes. In This Chapter 14.1 Date & Time issues....................49 14.2 FTP issues......................49 14.3 Logon issues.......................49 14.4 Network issues....................50 14.5 PTZ issues......................50 14.6 Upgrade issues.................... -
Page 50: Network Issues
Insert a straightened paper clip into the reset button hole which is located: - to the left of the VIDEO IN BNC connector (EVE ONE). - below the Digital I/O connector (EVE FOUR). -
Page 51: Upgrade Issues
Troubleshooting 14.6 Upgrade issues Successful upgrades are reported as "Successfully upgraded to version ...". In the event of an unsuccessful upgrade, the following error messages may help you pinpoint the cause of the problem. Upgrade procedure already in progress Cause: The unit received multiple upgrade requests at approximately the same time. However, only one request can be handled at a time. -
Page 52: Webpage Issues
Troubleshooting Solution: Set a lower resolution for one or more video streams and disable the quad view stream if not needed. Frame rate drops Cause: On multichannel units, the four encoders can simultaneously handle video encoding at full frame rate at 960H resolution. It is not recommended, however, to generate eight video streams at 960H. -
Page 53: Acknowledgements
Acknowledgements Our units use the following Open Source Components / Libraries: Component/Library ● Linux Kernel 2.6 - licensed under the GNU https://www.kernel.org/ General Public License (GPL), version 2 ● alsa-lib - licensed under the GNU Lesser Public https://www.kernel.org/ License (LGPL), version 2.1 ●... -
Page 54: Index
Index Acknowledgements......... 53 Meet the EVE family........7 Advanced..........46 Meet the S-60/64 E v2 family.....6 Analytics..........43 Motion Detection........43 Audio............ 48 NAS recording........30 Camera..........15 Network..........33 Camera Management......15 Network issues........50 Camera-#..........28 Connection Monitor......... 25 Overlays..........17 Data............. - Page 55 Index Webpage issues........52...
