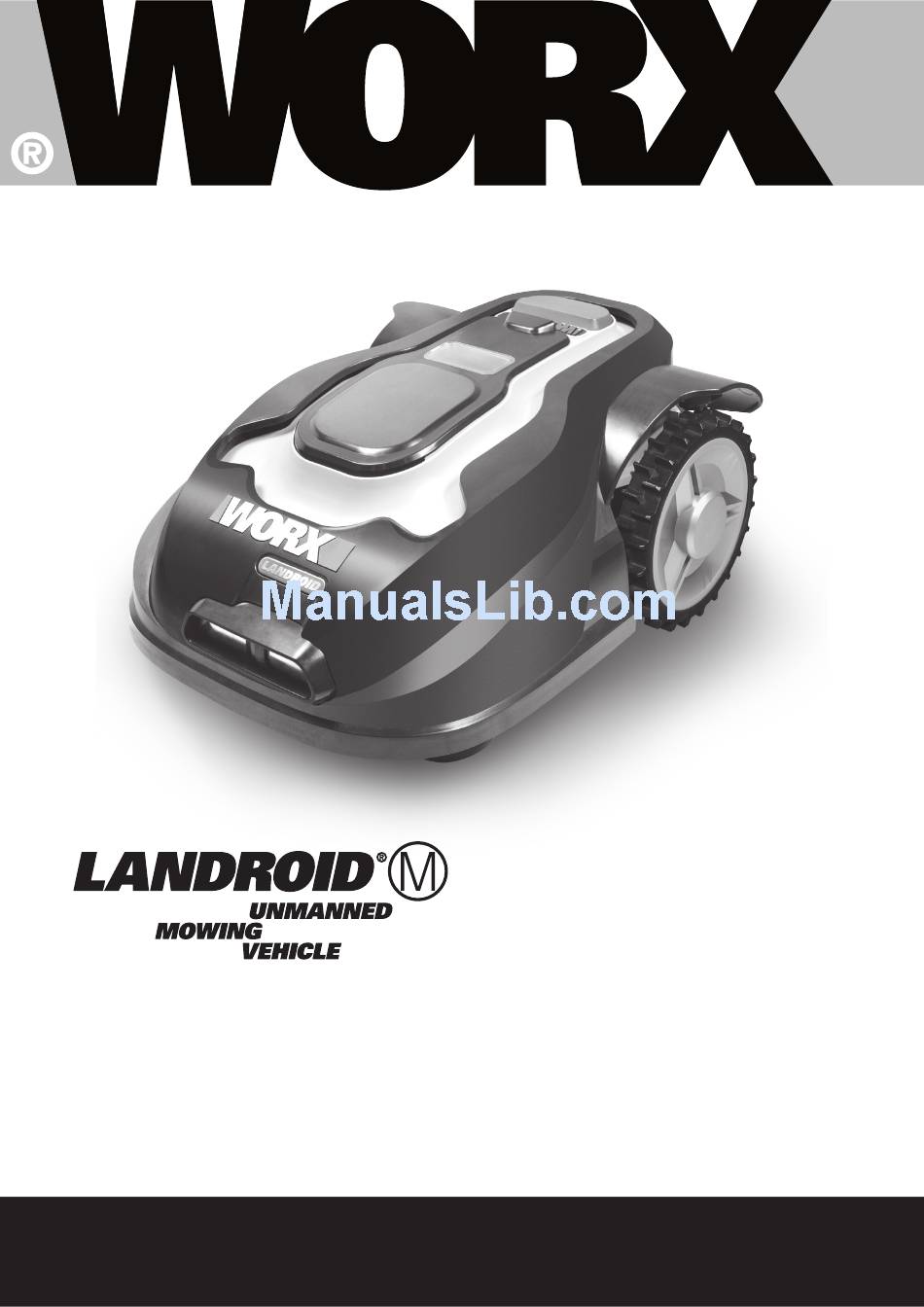

- Page 1 SAFETY AND OPERATING MANUAL Lawn Mowing Robot WG794E...
-
Page 2: Table Of Contents
OrIgINAL INSTrUCTIONS TABLE OF CONTENTS 1. Safety Instruction 1.1 General & Additional safety instructionr ® 1.2 Information on the Landroid 2. Technical Data and Component List 2.1 Technical data 2.2 Component list ® 3. Understanding Your Landroid ® 3.1 How does my Landroid M know what to mow? ®... - Page 3 1. Product Safety 1.1 Safety Warnings for power tool WArNINg: read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference.
- Page 4 e) Use extreme caution when reversing the appliance towards you; f) Always switch on the motor according to instructions with feet well away from the blades(s); MAINTENANCE AND STOrAgE WArNINg! When the mower is turned upside down the main switch must always be set to the OFF position The main switch should be set to the OFF position during all work on the mower’s underframe, such as cleaning or replacing the blades.
-
Page 5: Information On The Landroid
® 1.2 Information on the Landroid WARNING - Robotic lawnmower can be dangerous if incorrectly used. Read through the Operator’s manual carefully and understand the content before using your robotic lawnmower. WARNING - Keep a safe distance from the machine when operating. WARNING - Operate the disabling device before working on or lifting the machine. - Page 6 Do not wash the machine with a high pressure washer This product has been marked with a symbol relating to removing electric and electronic waste. This means that this product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European Directive 2002/96/CE.
-
Page 7: Technical Data And Component List
Technical Data and Component List 2.1 Technical data Type: Wg794E (790-799-Designation of machinery, representative of lawn mowing robot) Rated voltage Max* No load speed 2800/min Cutting diameter 180mm Cutting height 20-60mm Cutting height positions Battery type Lithium-Ion Battery model WA3225 Charging time 1.5h approx. -
Page 8: Component List
2.2 Component List Lawn Mowing Robot WG794E... - Page 9 hANDLE BAr LOW VOLTAgE CABLE CONTACT PINS ChArgINg BASE ChArgINg STrIP DISPLAY WINDOW CONTrOL PANEL COVEr STOP BUTTON rAIN SENSOr 10. rEAr DrIVINg WhEEL 11. hANDLE 12. BATTErY PACK 13. BLADE TUrNINg DISC 14. CUTTINg BLADE 15. FrONT WhEEL 16. STArT KEY 17.
-
Page 10: Understanding Your Landroid
® Understanding Your Landroid ® We would like to congratulate you on your new purchase of the Landroid M and entering into the care-free life of automatic ® mowing. In the following, we would like to help you better understand how your Landroid M thinks. -
Page 11: How Does My Landroid M Know Where To Go
® 3.2 how does my Landroid M know where to go? ® Your Landroid M is capable of doing things on its own. The ® Landroid M knows when it needs to go to its Charging Base (4) to charge, can sense when it is raining, can stop itself if it senses a problem, and knows to stop, draw back, and then turn around when it bumps into something blocking its path, such as a person, pet, or ®... -
Page 12: How Big An Area Can My Landroid
® If the Landroid M senses that something is wrong, it will display a fault message on the Display (16), and will turn itself off if it does not receive any input from the user within 20 min (for information on fault messages refer to the Programming and Troubleshooting Guide). -
Page 13: Boundary Wire Basics
4.2 Burying the Boundary Wire We recommend that you bury your boundary wire a few centimeters underground. This will ensure trouble-free operation year after year, season after season. For burying the Boundary Wire you may purchase the optional WORX Territorial Marker ®... -
Page 14: Turn On And Test Installation
® provided with your Landroid M. Spare blades are also available at your nearest WORX retailer. A. rotate and flip the blades ® Your Landroid M carries 3 Blades that are all screwed onto your its Blade Turning Disc (13). The Blades are what let the ®... -
Page 15: Keep It Clean
® Before attempting to replace your Landroid M’s Blades, turn the power off and put on protective gloves. Then follow these steps: ® Gently flip the Landroid M over Take the screws off the Blades with a screwdriver Firmly screw on the new Blades (See Fig. K) IMPOrTANT: After screwing the Blade to the Blade Disc, make sure the Blade is able to spin freely. -
Page 16: Battery Life
5.3 Battery life ® The heart of the Landroid M is its 28-volt lithium-ion battery. No maintenance is required. For proper storage of the battery, make sure it is fully charged in kept in a cool dry place between (20°C-60°C). ®... - Page 17 PIN Code Area: Lawn Mowing Robot WG794E...
- Page 20 Copyright © 2014, Positec. All Rights Reserved.
