Summary of Contents for THOMSON DPL933VD

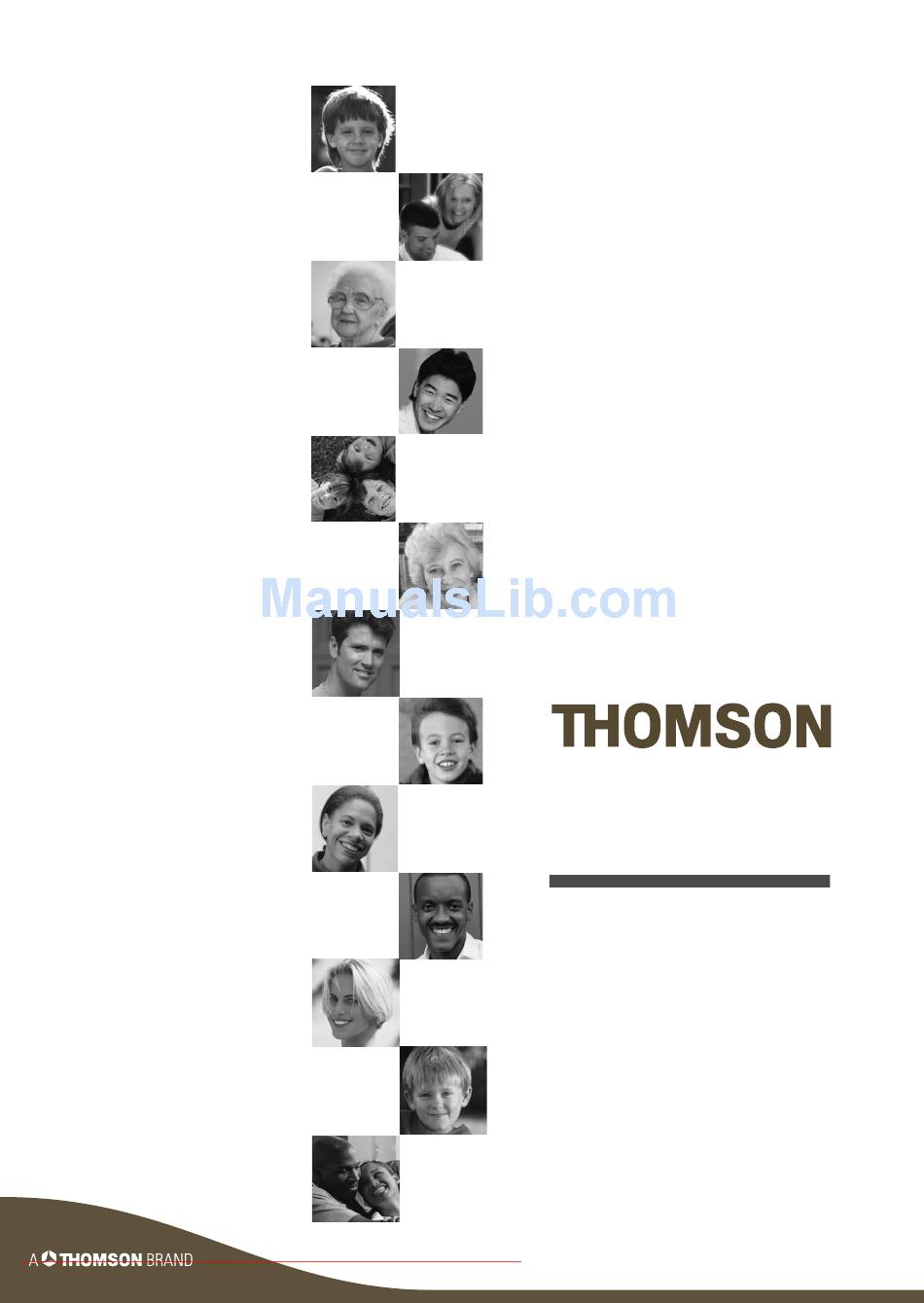

- Page 1 DPL933VD U s e r m a n u a l Downloaded From TheatreSystem-Manual.com Manuals...
- Page 2 CAUTION RISK OF ELECTRIC SHOCK - DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).NO USER- THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE THE EXCLAMATION POINT WITHIN THE TRIANGLE IS SERVICEABLE PARTS INSIDE. REFER SERVICING TO TRIANGLE IS AWARNING SIGN ALERTING YOU OF A AWARNING SIGN ALERTING YOU OF IMPORTANT QUALIFIED SERVICE PERSONNEL.
-
Page 3: Table Of Contents
HELPLINE life, should be disposed of separately from your household waste. You can contact THOMSON by dialling: 0871 712 1312 (for United Kingdom, £0.10/mn inc VAT) Please, dispose of this equipment at your local community www.thomson-europe.com waste collection/recycling centre. -
Page 4: Connections And Setup
Connections and Setup Some points to check before you connect your TV set • Ensure that the mains supply in your house complies with that indicated on the identification sticker located on the back of your appliance. • Install your appliance horizontally, away from any source of heat (fireplace) or appliances generating strong magnetic or electric fields.The components of this appliance are sensitive to heat.The maximum ambient temperature should not exceed 35°... -
Page 5: Front Panel Controls
Connections and Setup Front panel controls (buttons appearing left to right below) DVD Home Cinema System DPL933VD VOLUME ON/ECO SOURCE SUBWOOFER SD/MMC/SM/MSC CARD Compact Flash ON/ECO - To switch the appliance on and off. during playback.To move to the next preset memory location in Tuner mode. -
Page 6: Connecting To Audio-Visual Equipment
Connections and Setup Connecting to audio-visual equipment Cables are not provided OPTICAL IN COMPONENT VIDEO V I D E O O U T Note: Use only one of the connection methods shown above for each type of equipment. SCART VIDEO OUT The SCART video socket provides the best quality for video signal. -
Page 7: Connecting The Aerial
Connections and Setup Optical digital audio input (OPTICAL IN) This socket offers a higher level of sound quality compared to that provided using an analogue audio connection. Use this socket to connect your satellite Optical cable receiver to the DVD Player using an optical cable (not supplied). AUDIO IN L (left) and AUDIO IN R (right) sockets (AUX 1 and AUX 2) These are analogue audio input sockets.The AUDIO L socket and cable are... -
Page 8: Positioning Speakers
Connections and Setup Positioning speakers 1 Left, Right (Front Speakers) They mainly transmit music and sound effects. 2 Centre In surround mode, the centre speaker transmits much of the dialogue as well as music and effects. It should be positioned between the left and right speakers. 3 Surround (Rear Speakers) Their overall sound balance should be as close as possible Courtesy Dolby Laboratories... - Page 9 Connections and Setup Preferred surround position Location If possible, place surround speakers at either side of the viewing area, not behind it. Height If space permits, install surround speakers 2-3 feet above viewers.This helps minimise localisation effects. Direction Directing surround speakers straight across the room, rather than down at viewers, helps create a more open, spacious surround sound field.
-
Page 10: The Remote Control
Connections and setup The remote control Navigating through menus Use the direction buttons to navigate through the menus. Press the button on the remote control to confirm any selection you make. Functions in DVD . CD mode To switch the appliance on and off. DVD . -
Page 11: Inserting Batteries In The Remote Control
Functions in Tuner mode This remote control can be used with some recent TV set models from the following To select the tuner. TUNER brands:Thomson, Saba, Brandt, Ferguson, To adjust the sound volume. Telefunken and Nordmende. (mute) To mute and restore the sound. -
Page 12: Basic Playback Operations
Basic Playback Operations Operating the DVD player Switch on your TV set. DVD . CD Press the button on the remote control. Press the button on the remote control or the button located on the DVD player’s front panel. ON/ECO When the player first comes on a menu appears asking you to select the player menu language. -
Page 13: Playback
Basic Playback Operations Playback Variable slow motion Switch the DVD player and TV set on. While the disc is playing, press the PAUSE button once. Press the button on the front of the appliance to open the disc tray. PAUSE is displayed. Put the disc in with the printed side Press the button a number... -
Page 14: Info Menu
Info Menu Using the Info Menu You can display information about the disc during playback using the Info menu. It will also allow you to access certain functions.To display the menu, press to start playback and then press PLAY INFO button on the remote control. -
Page 15: Time Display
Info Menu Press the button on the remote control while a INFO disc is playing to display the Info menu. Use the buttons on the remote control to Left select the icon you want.Then use the buttons to select an option and press to confirm your Right Down... -
Page 16: Audio
Info Menu Audio (DVD,VCD and DivX) Some discs have several audio tracks used for different languages or different audio formats. To change the language or audio format during play: Press the button, then select the Audio icon with the INFO Audio icon buttons, or press the button on the remote control. -
Page 17: Bookmark
Info Menu Bookmark (DVD and audio CD) The player can store up to 12 disc locations as long as the disc remains in the player and the unit remains switched on. Note:This function is only available with discs whose elapsed or remaining time appears in the Info menu. -
Page 18: Mp3,Wma, Jpeg And Divx Files
mp3, WMA, JPEG and DivX files mp3 is an audio file format which compresses recorded music. It was developed in collaboration with .The main advantage of the mp3 format is that it means CD-quality music tracks can be stored on a personal computer in user-friendly compressed files. WMA (Windows Media Audio) is another audio file format developed by Microsoft. -
Page 19: Displaying Jpeg Files Or Playing Mp3 Or Wma Files
mp3, WMA, JPEG and DivX files Displaying JPEG files or playing mp3 or WMA files Before inserting a disc, check that it is compatible with the player. Open the tray by pressing the button. Place the disc with the printed side facing up. Select a folder using the buttons on the remote control, then press... -
Page 20: Playing Jpeg And Mp3 Music Files At The Same Time
mp3, WMA, JPEG and DivX files Playing JPEG and mp3 music files at the same time You can display JPEG files while listening to mp3 music files recorded on the same disc. Insert the disc containing the two types of file in the player. - Page 21 mp3, WMA, JPEG and DivX files Note:To guarantee playback of DivX files the audio must be mp3 format. DivX Certified devices can play back any interleaved mp3 audio at any bitrate, both CBR and VBR.The audio must be sampled at standard frequencies, such as 32 kHz, 44.1 kHz, and 48 kHz, and must conform to the AVI file specification.
-
Page 22: Radio
Radio The player has a built-in tuner that allows for Manual preset FM radio function. Tune to a radio station (see "Manual tuning" for details). Manual tuning Press on the remote control. MENU Connect the FM aerial in the correct manner. PRESET will appear on the display. -
Page 23: Player Menus
Player menus Using the player’s menus The player’s main menu is displayed when there is no disc in the player or when the disc has been interrupted during playback by pressing the button. Select a menu option using the STOP buttons. -
Page 24: Parental Control Settings
Player menus Parental Control settings You can control access to the player and the type of discs Play your family can watch with the lock function.There are Play Mode Lock Player Parental Control eight levels of parental control. Display Change Password Select the Parental Control option from the main menu Sound Rated Titles... -
Page 25: Display Settings
Player menus Display settings Select the Display option in the main menu using the Play buttons, and press to confirm. Play Mode Parental Control TV Image standard Select an option using the buttons, and press Display Front display to confirm. Sound Black level Normal... -
Page 26: Sound Settings
Player menus Sound settings You can adapt your player to other equipment and access Play Play Mode Night Mode specific functions with the Sound menu. Parental Control Distance Select the Sound option in the main menu using the Display Test Tone buttons and press to confirm. -
Page 27: Language Settings
Player menus Language settings With this menu, you can set the language for player Play Play Mode menus, dialogue, subtitles and the disc menus. English Parental Control Player Menus If you chose "English" during initial set-up, the main menu Display Disc Menus English is displayed in English, any menus generated by the disc are... -
Page 28: Additional Information
Additional Information Troubleshooting • Aim the remote control at the appliance. The infrared beam must not be blocked or The appliance does not switch on. interrupted. • Make sure it is plugged into a mains socket. • Check that the remote control is •... -
Page 29: Precautions
Additional Information Precautions Handling and caring for discs • If your appliance has been stored in a cool place for any length of time, during a journey for example, wait for about 2 • Handle your discs with care. Hold the disc hours before using it. -
Page 30: Technical Data
Additional Information equipment.THOMSON does not accept any Discs and formats you can play liability if the appliance is used in any way In spite of the progress made to ensure playability of other than in accordance with this manual. all disc types , it is not possible to guarantee playback of discs which do not comply with DVD, CD,VCD or SVCD standards.This unit may not play some... -
Page 31: Sound Enhancement Systems
Additional Information DivX files • WMA filenames should not exceed 8 characters, and should end with the “.wma” extension. DivX is the name of a revolutionary new video codec General name format:Title.wma.When composing your which is based on the new MPEG-4 compression title ensure that you use 8 characters standard for video. - Page 32 Model and serial number DPL933VD THOMSON Multimedia Sales Europe 46, quai A. Le Gallo 92648 Boulogne Cedex FRANCE 322 019 464 RCS NANTERRE http://www.thomson-europe.com © Copyright THOMSON 2004 Dealer's address Downloaded From TheatreSystem-Manual.com Manuals...
