1.

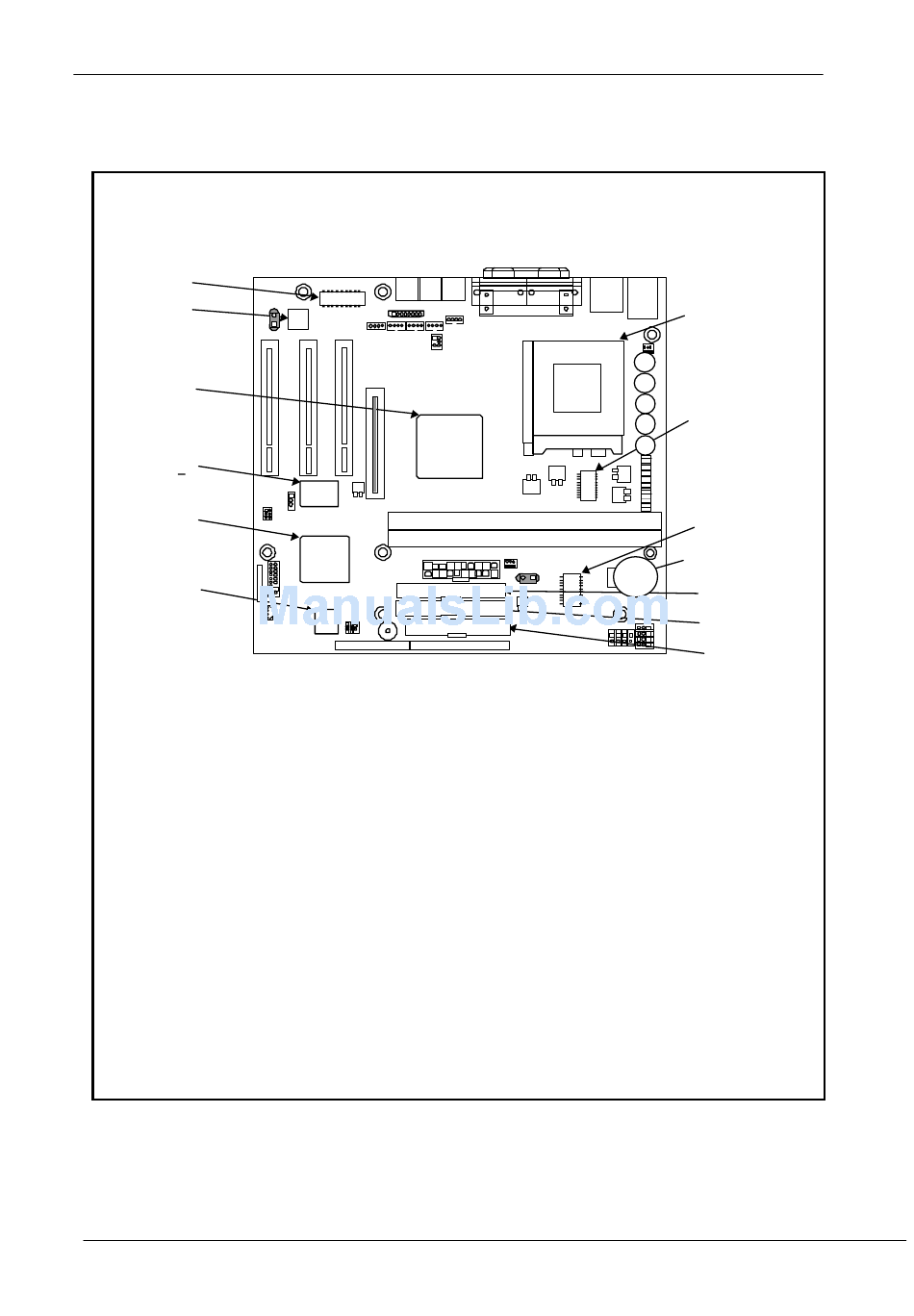

Major Units

1
2
3
4
5
6
1. Audio Power AMP
2. AC97 Codec
3. North bridge
4. PCI Sound
5. South bridge
6. Flash ROM
7. FDD Connector
8. IDE Connector2
9. IDE Connector1
10. Battery
11. Clock generator
12. DC-DC Converter
13. CPU Socket
Format No: TGDFBD06-A
: TPA1517
: CS4297A
: VT82C694X(z)
: CS4281
: VT82C686A
: W29C020P-12
: FDD (34 Pins)
: Secondary IDE (40 Pins)
: Primary IDE (40 Pins)
: CR2032
: ICS9248-98
: SC1164
: Intel FC-PGA Pentium III processor
Page7/18
13
12
11
10
9
8
7
