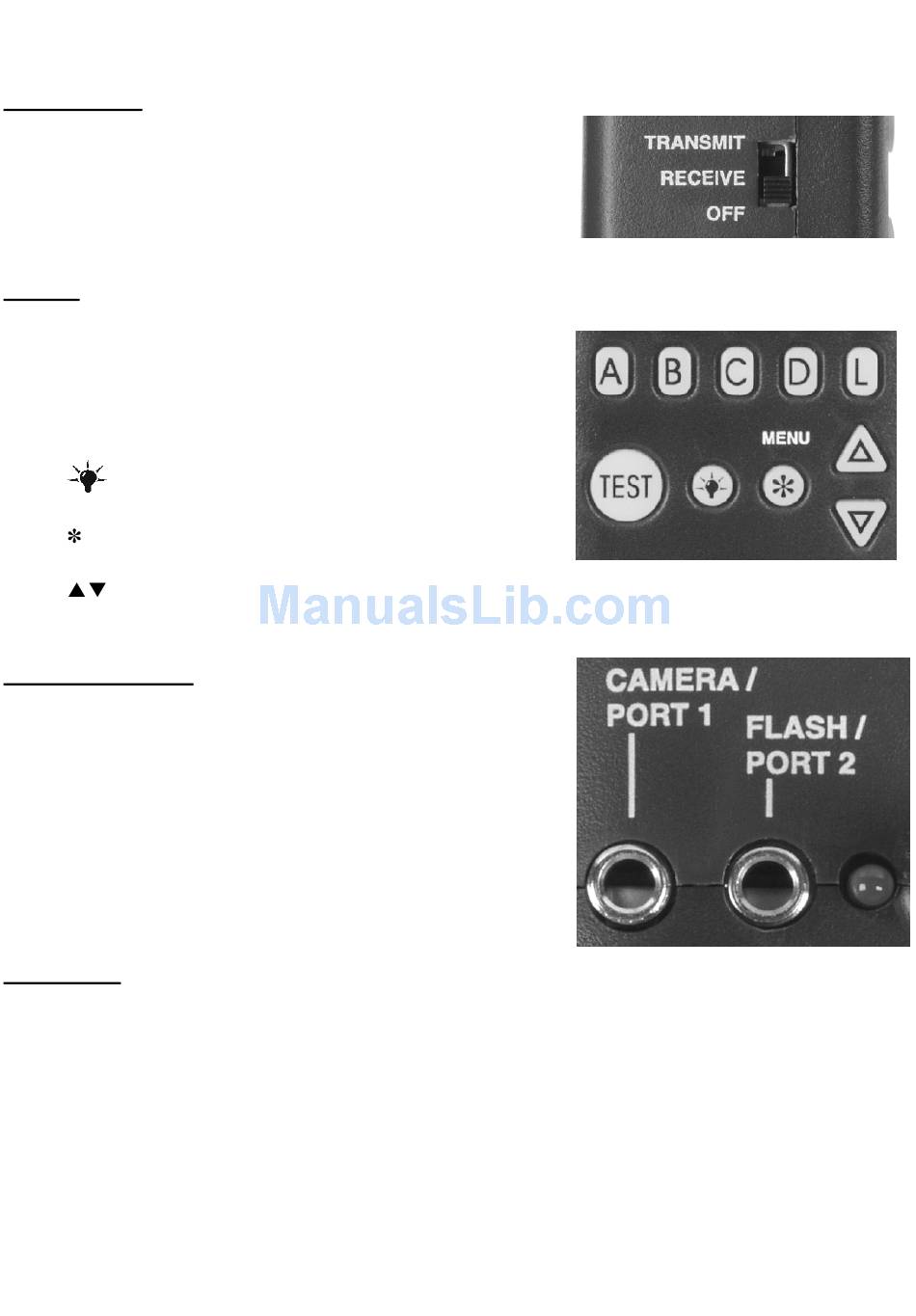

Controls

Power Switch

• T R A N SM IT
• RECEIVE
• OFF

Keypad

A B C D L Selec ts Q uad-T riggerin g Z ones
•
TEST
•
•
/M E N U
•
•

P O R T 1 / P O R T 2

• CAM ERA / PORT 1 =
• Inp ut f rom cam era s ync term inal,
external trigger button, Flash
Confirmation Cable, or other device
• O utpu t to cam era motor d rive, flash, or
other device
• FLASH / PORT 2 =
• O utpu t to flash , cam era motor d rive, or
other device

Status LED

Displays the following information:
• Blink ing every few sec onds = pow er on, ready f or trigger
• Blinking in sync with trigger = normal triggering
• Stead y =
• continuously triggered from radio, hot shoe, or PORT 1
• p er for m in g d elay or con tac t tim e
• Slow blink every sec ond = perfor min g Intervalom eter or Mu lti-pop fu nc tion
• Dar k = p ower off or poor battery c ondition
12
U nit is pow ered on in
TR ANS MITT ER (T X) mode
U nit is pow ered on in
REC EIVER (R X) mode
Unit is powered OFF
and Local. Also used in menu
navigation and num eric entry
Triggers MultiMAX. Press to test
operation or to trigg er rem ote units
and/or attac hed c ameras /flash es
(Back Light) Illuminates LCD and
keypad. Hold down for key lock
En ters or exits men u s ystem .
Stores num bers in numeric entry
(U p / D own) Selec ts c hann els.
Also used in num eric entry
Power Switch
Keypad
PORT 1 / PORT 2 / Status LED
