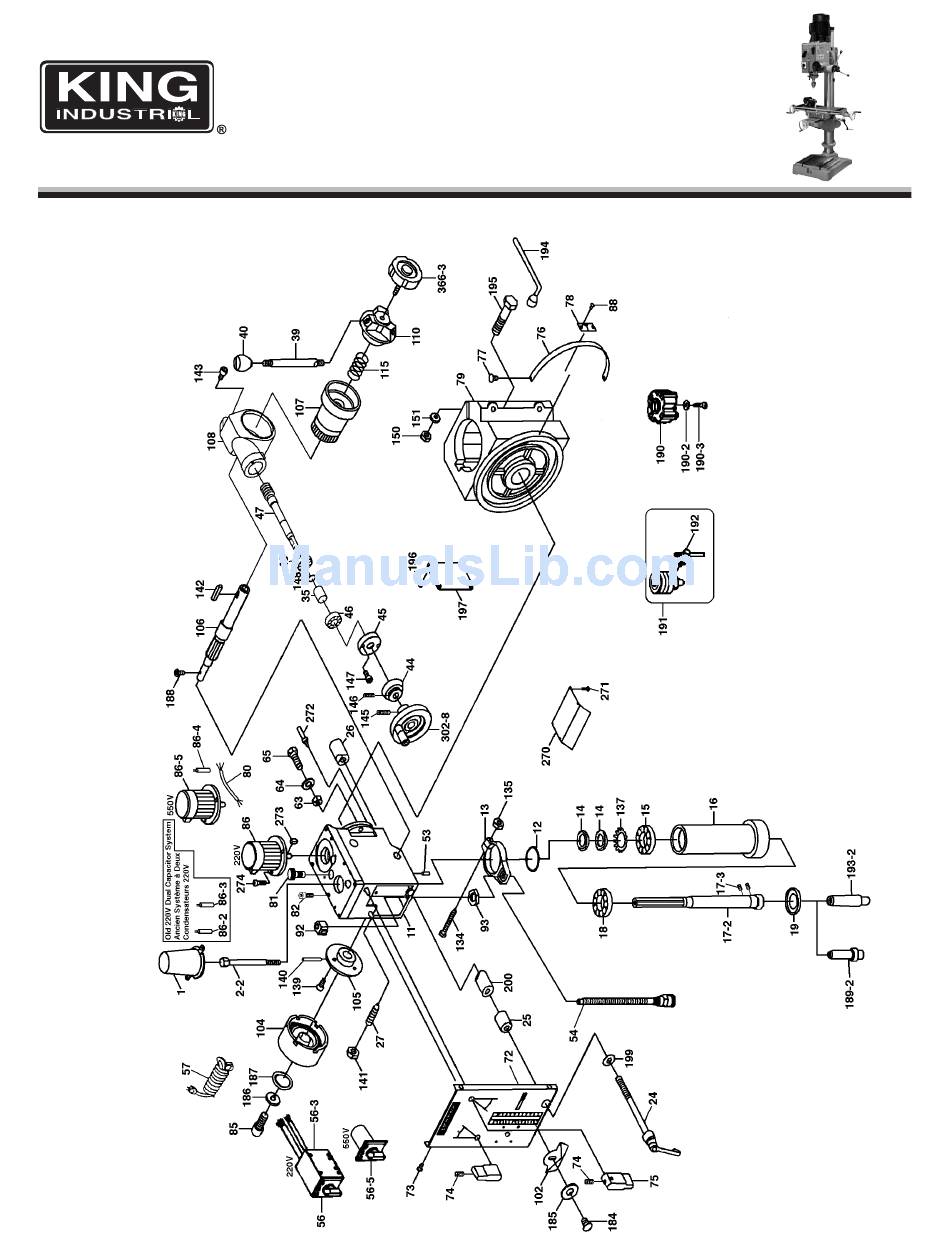

- Page 1 Service Manual / Manuel de Service Gearhead Milling Drilling Machine Perceuse et Fraiseuse avec Tête à Engrenage Revised/Revisé 08/2008 KC-40HC(-5) Main Diagram / Diagramme Principale...
- Page 2 Service Manual / Manuel de Service Gearhead Milling Drilling Machine Perceuse et Fraiseuse avec Tête à Engrenage Revised/Revisé 08/2008 Gear Box Diagram / KC-40HC(-5) Diagramme du Boîtier D’Engrenage...
- Page 3 Service Manual / Manuel de Service Gearhead Milling Drilling Machine Perceuse et Fraiseuse avec Tête à Engrenage Revised/Revisé 08/2008 Work Table & Column Diagram / KC-40HC(-5) Diagramme du Table de Travail et du Colonne...
- Page 4 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 1204000010 ARBOR BOLT COVER 1204000022 CHUCK ARBOR BOLT 1204000030 RETAINING RING/SHAFT 1204000040 RETAINING RING/BORE 1204000050 BALL BEARING 1204000060 SPINDLE SLEEVE GEAR 1204000070 OIL SEAL 1204000080 SEAL RETAINER 1204000090 1204000100...
- Page 5 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 1204000470 WORM SHAFT 1204000480 1204000490 GEAR ASS'Y 1204000500 OIL SEAL 1204000510 BALL BEARING 1204000530 OIL DRAIN PLUG 1204000540 GRADUATED ROD 1204000560 F/R SWITCH ASS'Y (220V) 56-3 1204000563 SWITCH BOX...
- Page 6 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 1204001400 SPRING PIN 1204001410 HEX. NUT 1204001420 1204001430 CAP SCREW 1204001450 SET SCREW 1204001460 SET SCREW 1204001470 CAP SCREW 1204001480 RETAINING RING/SHAFT 1204001500 HEX. NUT 1204001510 WASHER 1204001840...
- Page 7 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 1204002580 UP-DOWN HANDLE 1204002590 WORM SHAFT 1204002650 CAP SCREW 1204002660 SET SCREW 1204002680 BUSHING BRACKET 1204002700 DUST PLATE 1204002710 PAN HD SCREW 1204002720 MITER PIN 1204002730 1204002740 CAP SCREW...
- Page 8 Parts Pricing List / Liste de Prix des Pièces Diag. Order # Com. English Description 1200408180 CAP SCREW 1200408181 CENTER BASE 1200408189 SET SCREW 1200408190 3" ANGLE VISE 1200408211 WORK TABLE CRS SL. & COL. BRACK. 1200408241 TABLE BASE (COLUMN BRACKET) 120400MENG KC-40HC/HS ENGLISH MANUAL Pricing subject to change without prior notice.
