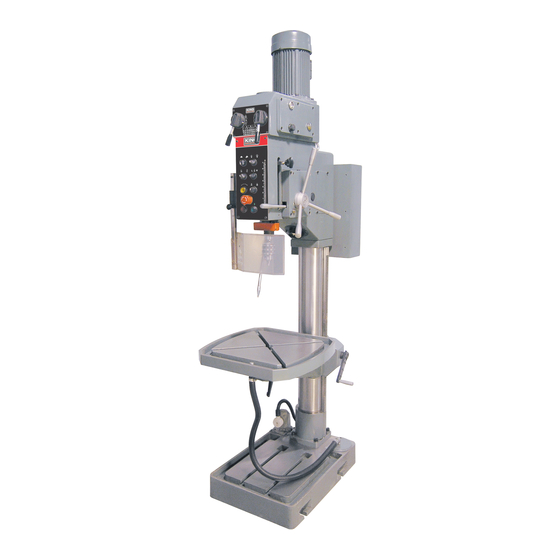

- Page 1 28 ” GEARHEAD DRILLING MACHINE WARNING! This machine does not come with oil in the feed box and speed box, see “Maintenance” section before operating. MODEL: KC-50 INSTRUCTION MANUAL COPYRIGHT © 2021 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 IMPORTANT INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARANTY FOR THIS DRILLING MACHINE FOR INDUSTRIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable.
- Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS VOLTAGE WARNING: Before connecting the tool to a power source (receptacle, outlet, etc.) be sure the voltage supplied is the same as that specified on the nameplate of the tool. A power source with voltage greater than that for the specified tool can result in SERIOUS INJURY to the user - as well as damage to the tool.
- Page 4 ELECTRICAL INFORMATION, TRANSPORTATION & CLEANING WARNING ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THIS DRILLING MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY WARNING: YOUR DRILLING MACHINE MUST BE CONNECTED TO A 550V (3 PHASE) CIRCUIT.
- Page 5 2. Work light switch 28” VARIABLE SPEED gearhead DRILLING MACHINE 3. Forward - Reverse switch PERCEUSE À VITESSE VARIABLES AVEC TÊTE À ENGRENAGE 28” mod.: KC-50 4. Low - High selector (speed selection) 5. Tap Return button LR174325 6. Drill - Stop - Tap button 7.
- Page 6 SPECIFICATIONS, ADJUSTMENTS & OPERATIONS MODEL KC-50 Drilling cap. in light alloy steel 1-3/8” Drilling cap. in mild steel 1-1/2” Chuck size 5/8” Spindle taper MT #4 Spindle sleeves MT#4-MT#3, MT#4-MT#2 Swing 27-1/2” Stroke 7” Max. distance spindle to table 26”...
- Page 7 ADJUSTMENTS & OPERATIONS AUTOMATIC FEED SPEED SELECTOR (B-Fig. 5) To select the feed speed, turn the side selector (B-Fig.5) to the desired feed speed setting (0.1 or 0.2 m/min). To engage the feed speed, press the ON button found on the control panel.
-
Page 8: Maintenance
MAINTENANCE FILLING SPEED BOX AND FEED BOX WITH OIL WARNING! THIS MACHINE IS SUPPLIED WITHOUT OIL IN THE SPEED BOX AND THE FEED BOX WARNING! FOR TRANSPORT REASONS. PLEASE FOLLOW THE INSTRUCTIONS FOR FILLING THE MACHINE WITH OIL: This machine does The speed box (Fig.13) has an oil pump which lubricates the higher, hard to reach gears.
