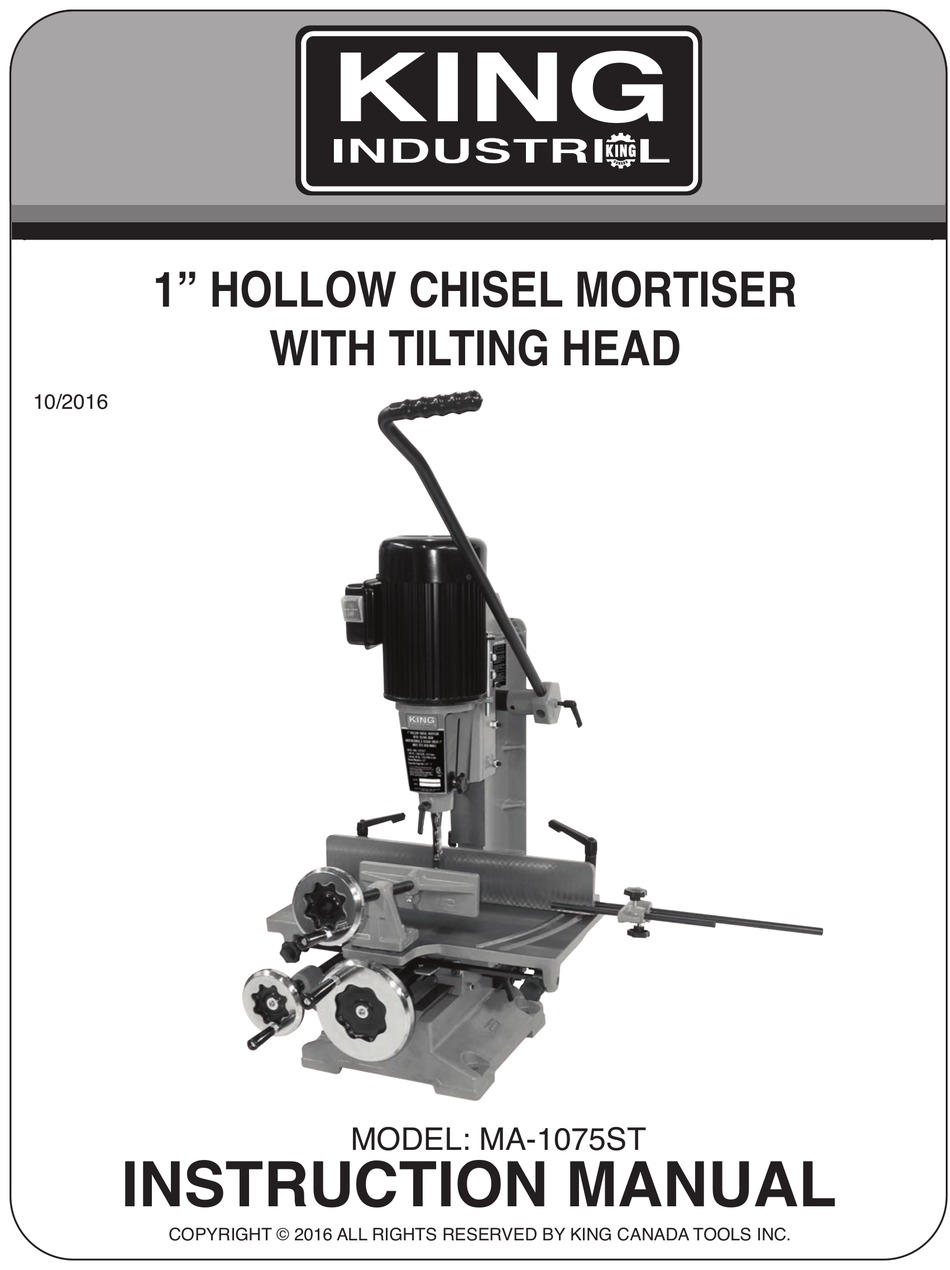

- Page 1 1” HOLLOW CHISEL MORTISER WITH TILTING HEAD 10/2016 INSTRUCTION MANUAL MODEL: MA-1075ST COPYRIGHT © 2016 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS 1” MORTISER FOR COMMERCIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. -
Page 3: General Safety Instructions For Power Tools
GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL footwear is recommended. Wear protective hair covering to con- Read and understand the owners manual and labels affixed to the tain long hair. Roll up long sleeves above the elbows. 12. -
Page 4: Electrical Information
ELECTRICAL INFORMATION WARNING! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY WARNING: YOUR MORTISER MUST BE CONNECTED TO A 110- 120V WALL OUTLET, WITH A MINIMUM 15-AMP. BRANCH CIRCUIT AND USE A 15-AMP TIME DELAY FUSE OR CIRCUIT BREAKER. -
Page 5: Specifications
19. Transversal travel lock handle 20. Gib adjusting set screw & nut (2 on each gib) 21. Head tilt positive stop pin SPECIFICATIONS MODEL ....................................MA-1075ST CHISEL CAPACITY ................................1/4” TO 1” CHUCK CAPACITY ..................................1/2” MAXIMUM CHISEL STROKE ................................8” MAXIMUM DISTANCE FENCE TO CENTRE CHISEL ........................3”... - Page 6 ASSEMBLY Assembly Warning! This mortiser must be mounted to a workbench or stand before at- tempting to assemble or operate this machine. 1. Install the downfeed handle (A) Fig.3 to the handle hub (B) and secure handle by tightening the hub lock handle (C). FIGURE 3 2.
-
Page 7: Assembly And Adjustments
ASSEMBLY & ADJUSTMENTS Chisel and Bit Installation continued... Insert bit into chisel and insert chisel and bit up through hole in head assembly. NOTE: The opening in the side of the chisel should always be to the right or left, never to the front or rear. The opening allows chips to escape during oper- ation. - Page 8 ADJUSTMENTS Raising and Lowering the Head A downfeed handle (A) Fig.10 on the right side of the head is provided to raise and lower the head. This handle may be repositioned for maximun leverage and comfort during operation. To do this, loosen lock handle (B), remove down- feed handle from hub (C) and reposition in an alternate mounting hole (D) in the hub, retighten lock handle (B) and continue with your operation.
- Page 9 ADJUSTMENTS Tilting Head (for specialized woodworking applications) The head can be tilted from 0 to 30 toward the right or the left. To tilt the head, first begin by holding the head with one hand. Then with the other hand, loosen both head fixing hex.
- Page 10 ADJUSTMENTS Adjusting longitudinal travel stops The logitudinal travel range of the sliding table can be adjusted by adjusting the position of the right and left side table stops (A) Fig.18. Loosen the correspon- ding lock knob (B) and move the stop at the desired location and retighten lock knob.
-
Page 11: Operation And Maintenance
OPERATION & MAINTENANCE Quick Setting of the Mortise Depth Put a mark on an easily accessible end of the workpiece to be mortised, at the depth you require. Loosen the height stop lock knob so that the bushing sits on the stop plate and follows the head movement.
