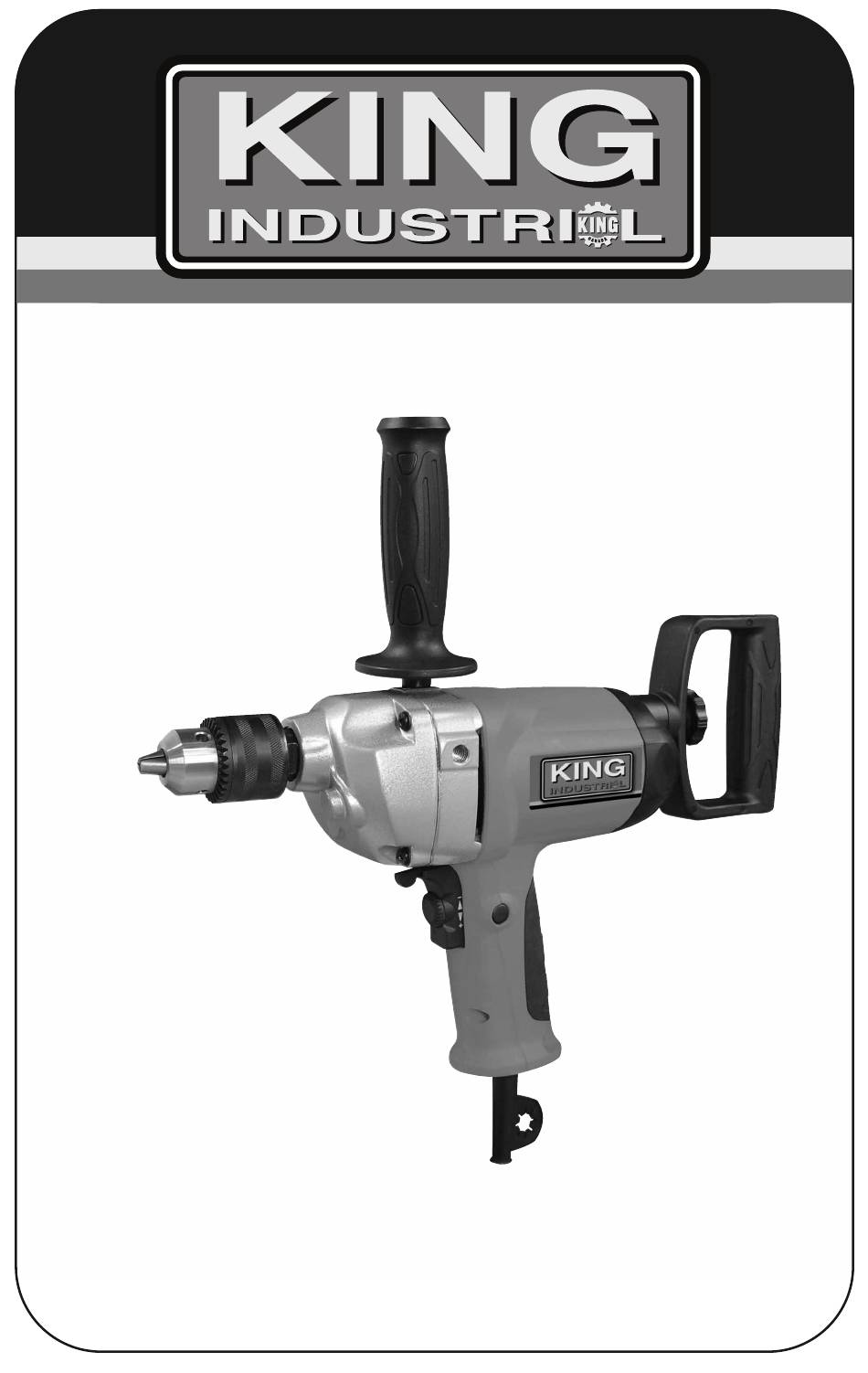

- Page 1 1/2” DRILL & MIXING KIT MODEL: KC-8316 INSTRUCTION MANUAL COPYRIGHT © 2021 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR NON-COMMERCIAL USE. FOR THIS DRILL & MIXING KIT PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada.
- Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS 1. KNOW YOUR TOOL Read and understand the instruction manual and labels affixed to the tool. Learn its application and limitations as well as its specific potential hazards. 2. Don’t use power tools in damp or wet locations or expose them to rain. Keep work area well lit and provide adequate surrounding work space.
- Page 4 ELECTRICAL INFORMATION WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by the operator.
- Page 5 F. Forward/reverse lever mix) G. Speed control selector dial N. Chuck key H. Trigger O. Adjustment wrench SPECIFICATIONS Model ........................KC-8316 Amperage ........................9A Voltage........................120V Cycle/Phase ....................60Hz, 1 phase No load speed (RPM) ....................0-600 Chuck size ........................1/2” Mixing paddles ................24” (10mm hex. shank)
- Page 6 OPERATION SWITCH ACTION WARNING: Before pluging into power source, make sure the trigger switch can be pressed down smoothly and will return to its “OFF” position when the trigger is released. The drill is equipped with a “safety” button which is designed to prevent accidental starts.
- Page 7 OPERATION INSTALLING CHUCK & CHANGING DRILL BIT • To install 1/2” chuck to the drill, simply screw the chuck on the drill arbor shaft. Place adjustment wrench on the flat of the arbor shaft and tighten chuck. • To install a drill bit, first clean and remove any foreign objects away from the drill bit and chuck, otherwise the bit might not be tightened securely and thus producing unsatisfactory results and...
- Page 8 MAINTENANCE MAINTENANCE IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustments should be performed by an authorized service center or other qualified service technician, always using identical replacement parts. 1. Air vents of the tool should be cleaned regularly to avoid overheating of the motor which is caused by the blocking of the air vents.
