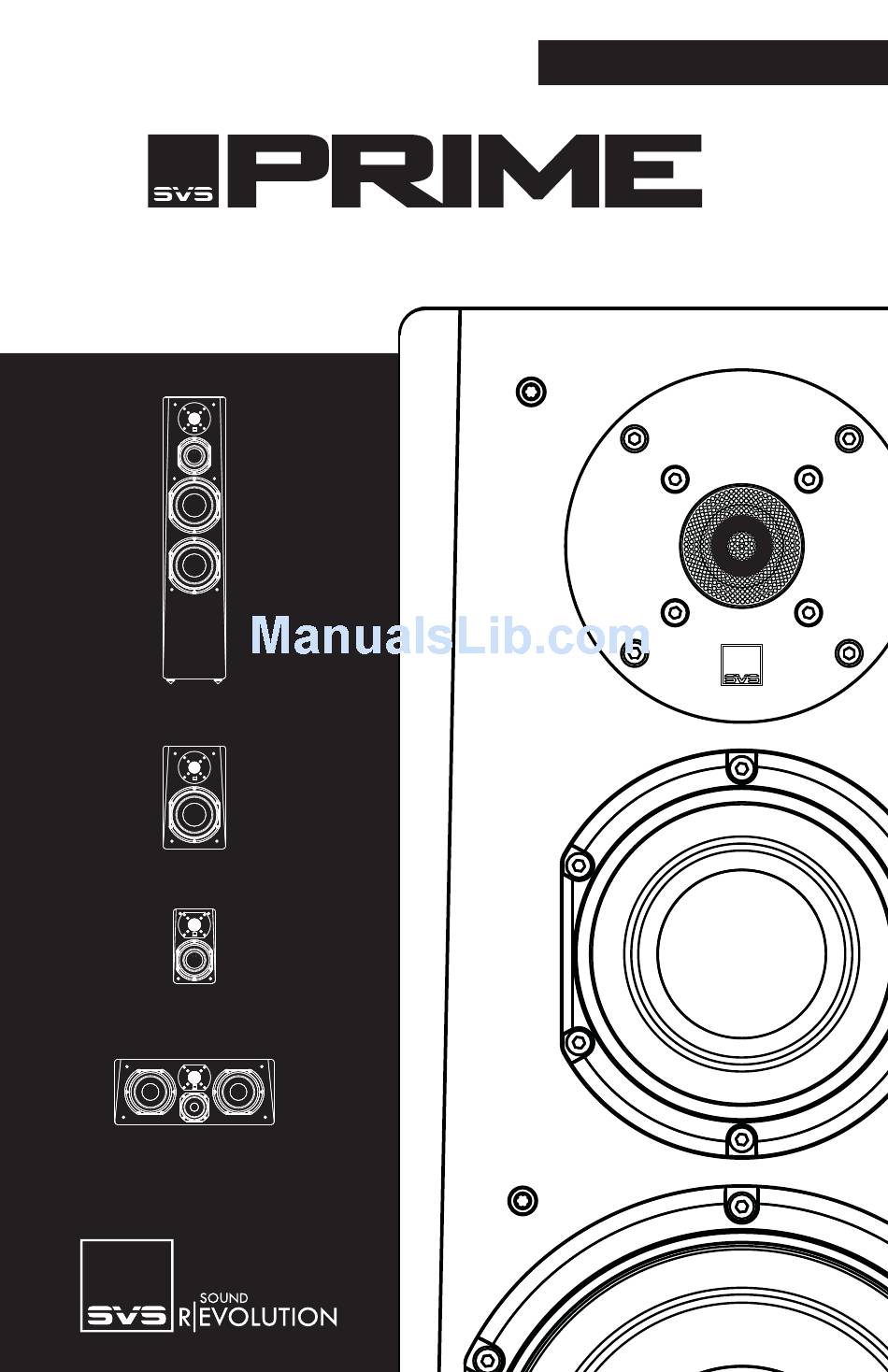

- Page 1 OWNER’S MANUAL S P E A K E R S PRIME TOWER PRIME BOOKSHELF PRIME SATELLITE PRIME CENTER...
- Page 3 We’re proud to say that you won’t find speakers with better sound quality or performance value at this price. If you ever have any questions about your SVS product, or need help setting them up, feel free to contact us directly.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SETTING UP YOUR PRIME SPEAKERS FOOT OPTIONS ACOUSTICS & ROOM PLACEMENT ROOM PLACEMENT SPEAKER MOUNTING SPEAKER CONNECTION CARING FOR YOUR PRIME SPEAKERS WARRANTY SHARE YOUR THOUGHTS FEATURES & SPECIFICATIONS PRIME TOWER PRIME BOOKSHELF PRIME CENTER PRIME SATELLITE... -
Page 5: Setting Up Your Prime Speakers
SETTING UP YOUR PRIME SPEAKERS FOOT OPTIONS The Prime Tower speakers come packaged with two sets of foot support options that allow optimal placement on a variety of floor substrates. The Elastomer Isolation feet that come pre-installed on the Prime Towers can be removed (unscrew to remove) and replaced with the included Threaded Metal Spike kit. -
Page 6: Acoustics & Room Placement
SVS recommends starting with the front loudspeakers located 30-degrees to the left and right (i.e., a 60-degree total window) of the listening position. - Page 7 SETTING UP YOUR PRIME SPEAKERS ACOUSTICS & ROOM PLACEMENT Toeing-in the loudspeakers 5-10 degrees can often improve imaging, however this is also a function of the distance from nearby boundaries and the ratio of direct- to-reflected sound, so experimentation with toe-in is recommended to obtain optimal results.
-
Page 8: Room Placement
SETTING UP YOUR PRIME SPEAKERS ROOM PLACEMENT (cont’d) Surround Speakers In a 5-channel system, the side surround speakers should be located 90-110 degrees off-axis. For the best sense of spaciousness, the tweeter height should be about 2 feet above ear level. In a 7.1 system, dedicated rear surround speakers are placed behind the primary seating position for enhanced rear panning effects. - Page 9 ROOM PLACEMENT (cont’d) SETTING UP YOUR PRIME SPEAKERS Wide Speaker Channels The wide speaker channels are intended to be placed between the main front speakers and the side surround speakers. The goal of the wide speaker is to minimize any gaps in panning and imaging between the front main speakers and the side surround speakers and provide an additional sense of envelop- ment.
-
Page 10: Speaker Mounting
SETTING UP YOUR PRIME SPEAKERS SPEAKER MOUNTING Wall-Mounting Your Prime Satellites Each Prime Satellite comes from the factory ready to be wall-mounted. The pre-installed keyhole bracket makes hanging your Prime Satellite a simple and convenient process. Simply attach a screw to your wall at the desired mounting location, and insert the keyhole bracket of the speaker over the head of the screw until the speaker rests securely in place. -
Page 11: Speaker Connection
SETTING UP YOUR PRIME SPEAKERS SPEAKER CONNECTION Connecting Your Speakers All Prime Speakers include terminals with convenient gold-plated 5-way binding posts, which will accept wires terminated with banana plugs, speaker pins, spade connectors and of course, bare wire. Simply attach each Prime Speaker to the appropriate amp channel of your receiver/power amplifier. -
Page 12: Caring For Your Prime Speakers
Prime Speakers and all of its products to be free from defects in the workmanship for 5 years from date of purchase. This, and all of the SVS customer Bill of Rights can be viewed online at www.svsound.com/bill-of-rights. -
Page 13: Features & Specifications
PRIME SPEAKER FEATURES & SPECIFICATIONS ALL SPECIFICATIONS ARE SUBJECT TO CHANGE. SVS IS CONSTANTLY WORKING TO IMPROVE OUR PRODUCTS AND GIVE YOU, THE CUSTOMER, THE BEST LISTENING EXPERIENCE FROM YOUR PURCHASE. PRIME TOWER Frequency Response and Electro-Acoustic Data: • Rated bandwidth: 30 Hz-25 kHz (+/-3 dB). -
Page 14: Prime Bookshelf
PRIME SPEAKER FEATURES & SPECIFICATIONS PRIME BOOKSHELF Frequency Response and Electro-Acoustic Data: • Rated bandwidth: 48 Hz-25 kHz (+/-3 dB). • Nominal impedance: 8 ohms. • Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz). • Recommended amplifier power: 20-150 watts. Loudspeaker Physical Description: •... -
Page 15: Prime Center
PRIME SPEAKER FEATURES & SPECIFICATIONS PRIME CENTER Frequency Response and Electro-Acoustic Data: • Rated bandwidth: 48 Hz-25 kHz (+/-3 dB). • Nominal impedance: 8 ohms. • Sensitivity: 86 dB (2.83V @ 1 meter full-space, 300-3kHz). • Recommended amplifier power: 20-200 watts. Loudspeaker Physical Description: •... -
Page 16: Prime Satellite
PRIME SPEAKER FEATURES & SPECIFICATIONS PRIME SATELLITE Frequency Response and Electro-Acoustic Data: • Rated bandwidth: 69 Hz-25 kHz (+/-3 dB). • Nominal impedance: 8 ohms. • Sensitivity: 85 dB (2.83V @ 1 meter full-space, 300-3kHz). • Recommended amplifier power: 20-150 watts. Loudspeaker Physical Description: •... - Page 17 NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 18 NOTES ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 20 6420 Belmont Ave. Girard, Ohio 44420 United States (877) 626-5623 www.svsound.com...
