Summary of Contents for SVS Ultra Evolution Pinnacle

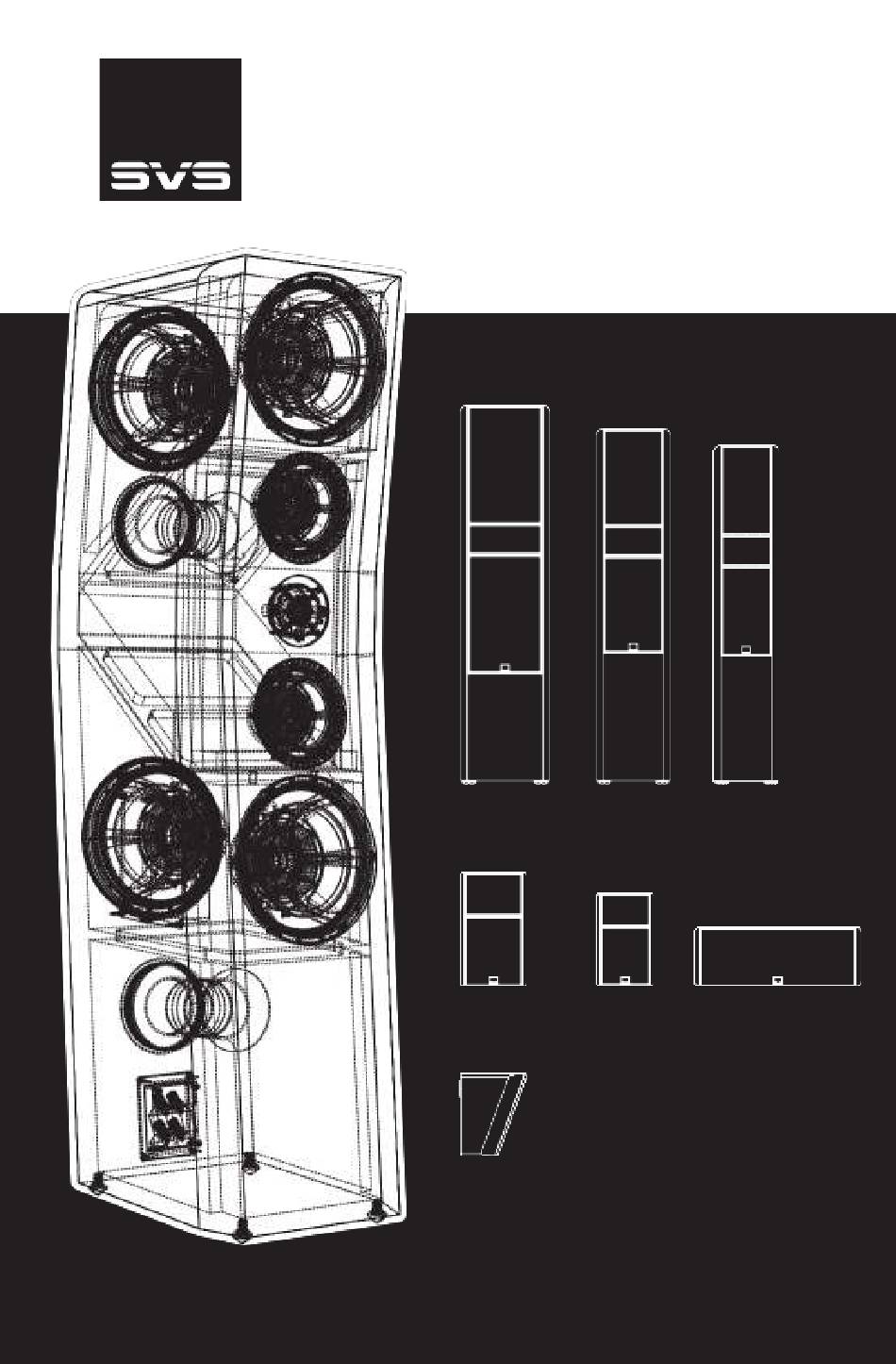

- Page 1 Ultra Evolution Reference speakers [Highlight] [Titan] [Tower] [Bookshelf] [Nano] [Middle] [Height] Manual...
- Page 3 USER MANUAL SPEAKER SERIES Thank you for choosing SVS. We believe that an unwavering passion for sonic excellence combined with design innovation are the keys to creating world-class audio products. We think you would agree. Breakthroughs in driver technology, tweeter design, materials science, and cabinet geometry are all prominent in the new SVS Ultra Evolution speakers.
-
Page 4: Table Of Contents
Table of contents SETTING UP YOUR ULTRA EVOLUTION SPEAKERS ________________________ 3 FOOT OPTIONS __________________________________________ 3 ACOUSTICS AND PLACEMENT OF THE ROOM____________________ 4 SPACE PLACEMENT | FRONT SPEAKERS _______________________ 4 SPACE PLACEMENT | CENTER CHANNEL SPEAKER _______________ 5 SPACE PLACEMENT | SURROUND SPEAKERS ___________________ 6 SPACE PLACEMENT | DOLBY ATMOS HEIGHT SPEAKERS __________ 7 LOUDSPEAKER CONNECTION ________________________________ 8 CARING FOR YOUR ULTRA EVOLUTION SPEAKERS ______________________ 10... -
Page 5: Setting Up Your Ultra Evolution Speakers
Setting Up Your Ultra Evolution Speakers Foot options Each of the Ultra Evolution tower speakers comes with two sets of footrest options that allow for optimal placement on different floor surfaces. The elastomer insulation feet are pre-installed on the Ultra Evolution tower speakers and can be removed (unscrewed to remove) and replaced with the included threaded metal spike kit. -
Page 6: Acoustics And Placement Of The Room
SVS recommends starting with the front speakers that are located 30 degrees to the left and right ( i.e., a total window of 60 degrees) from the listening position. The speakers can be tilted slightly in the direction of the listening position. -
Page 7: Space Placement | Center Channel Speaker
Setting Up Your Ultra Evolution Speakers Center Channel Placement: The center speaker should be placed directly below your TV or screen and pointed at the primary speaker listening position . TIP – Pull the center speaker forward so that the bottom edge of the front bulkhead aligns with the edge of the surface it sits on to reduce unwanted acoustic reflections. -
Page 8: Space Placement | Surround Speakers
Refer to your AV receiver's manual for instructions on how to place additional channels. Please contact the SVS Sound Experts if you have any questions or concerns about posting your Ultra Evolution speakers. -
Page 9: Space Placement | Dolby Atmos Height Speakers
Setting Up Your Ultra Evolution Speakers Dolby Atmos Height Speakers: SVS Ultra Elevation speakers are recommended for the best height speaker experience based on their easy installation and pristine, accurate sound. Height speakers should be directed towards the listening position. -
Page 10: Loudspeaker Connection
Setting Up Your Ultra Evolution Speakers SPEAKER CONNECTION The Ultra Evolution Pinnacle, Titan, Tower, Bookshelf, and Center feature dual-input speaker terminals and convenient gold-plated 5-way terminals that accommodate wires and cables terminated with banana plugs, speaker pins, spade connectors, and bare wire. As with any speaker cable, it's a smart idea to measure twice, cut once, and allow an extra foot or two just to be safe. - Page 11 Setting Up Your Ultra Evolution Speakers Ultra Evolution Nano The Ultra Evolution Nano includes single-input speaker terminals and convenient gold-plated 5-way terminals that accept wires and cables terminated with banana plugs, speaker pins, spade connectors, and bare wire. Simply connect each speaker to the appropriate amplifier channel on your receiver or power amplifier.
-
Page 12: Caring For Your Ultra Evolution Speakers
Share your opinion At SVS, we strive to deliver products that exceed every expectation. After you've had the opportunity to install and listen to your Ultra Evolution speakers, please share your comments for our team and other customers to see. -
Page 13: Ultra Evolution Features & Specifications
Ultra Evolution Speaker Features & Specifications Ultra Evolution Pinnacle Specifications: • In-room frequency response: 24Hz to 40kHz (+/-3 dB) • Nominal Impedance: 6 ohms • Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) • Recommended amplifier power: 20 – 300 watts •... - Page 14 Ultra Evolution Speaker Features & Specifications Ultra Evolution Titan specifications: • In-room frequency response: 27Hz to 40kHz (+/-3 dB) • Nominal Impedance: 6 ohms • Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) • Recommended amplifier power: 20 – 300 watts •...
- Page 15 Ultra Evolution Speaker Features & Specifications Ultra Evolution Tower Specs: • In-room frequency response: 30Hz to 40kHz (+/-3 dB) • Nominal Impedance: 6 ohms • Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) • Recommended amplifier power: 20 – 300 watts •...
- Page 16 Ultra Evolution Speaker Features & Specifications Ultra Evolution Bookshelf Specifications: • In-room frequency response: 40Hz to 40kHz (+/-3 dB) • Nominal Impedance: 6 ohms • Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) • Recommended amplifier power: 20 – 150 watts •...
- Page 17 Ultra Evolution Speaker Features & Specifications Ultra Evolution Nano Specifications : • In-room frequency response: 44Hz to 40kHz (+/-3 dB) • Nominal Impedance: 6 ohms • Sensitivity: 85dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) • Recommended amplifier power: 20 – 150 watts •...
- Page 18 Ultra Evolution Speaker Features & Specifications Ultra Evolution Center Specifications: • In-room frequency response: 40Hz to 40kHz (+/-3 dB) • Nominal Impedance: 6 ohms • Sensitivity: 87dB (2.83V @ 1 meter full-space, 300Hz – 3kHz) • Recommended amplifier power: 20 – 225 watts •...
- Page 20 340 Victoria Rd. Youngstown, Ohio 44515 USA (877) 626-5623 www.svsound.com...
