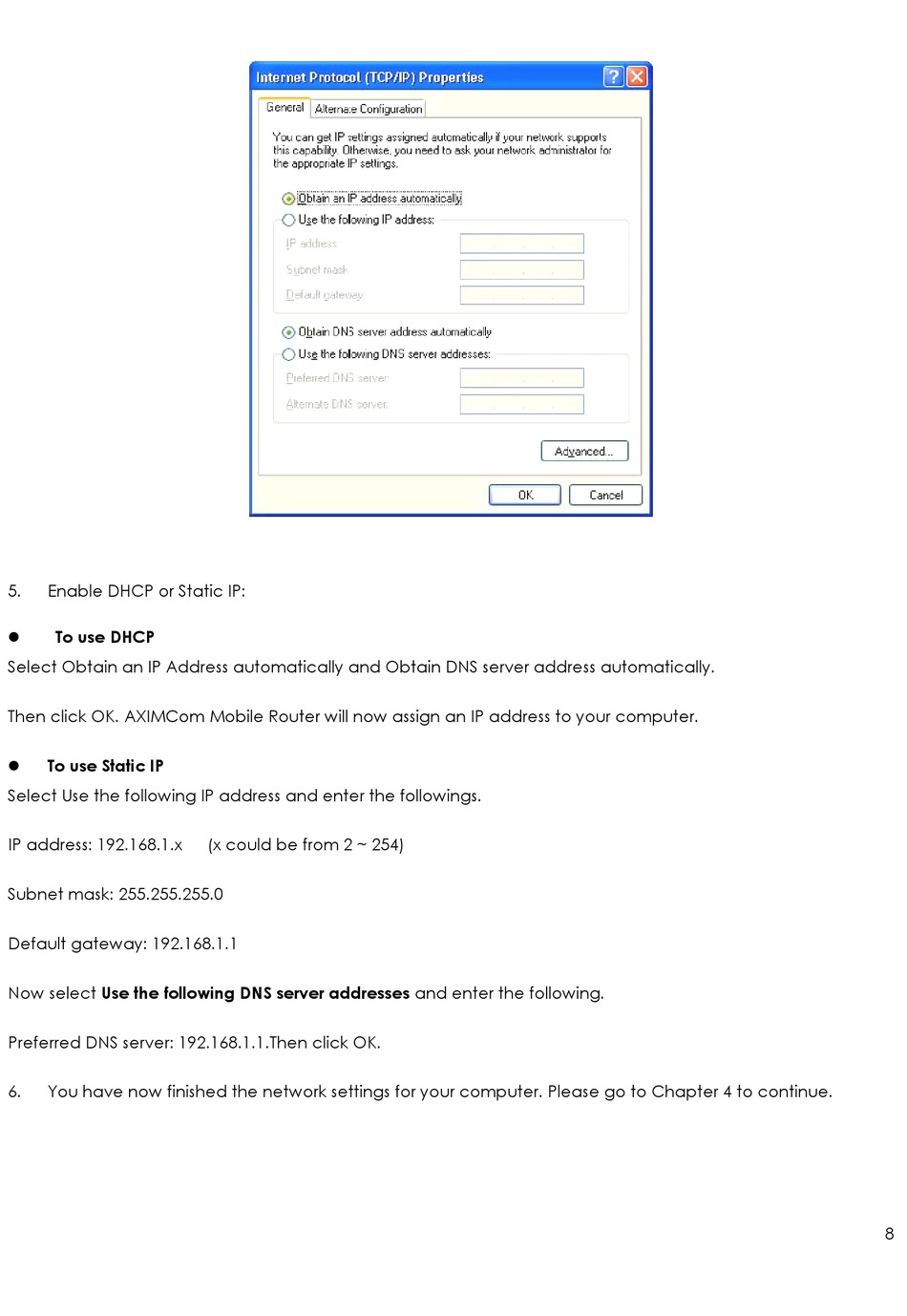

5. Enable DHCP or Static IP:
To use DHCP

Select Obtain an IP Address automatically and Obtain DNS server address automatically.
Then click OK. AXIMCom Mobile Router will now assign an IP address to your computer.
To use Static IP

Select Use the following IP address and enter the followings.
IP address: 192.168.1.x
Subnet mask: 255.255.255.0
Default gateway: 192.168.1.1
Now select Use the following DNS server addresses and enter the following.
Preferred DNS server: 192.168.1.1.Then click OK.
6. You have now finished the network settings for your computer. Please go to Chapter 4 to continue.
(x could be from 2 ~ 254)
