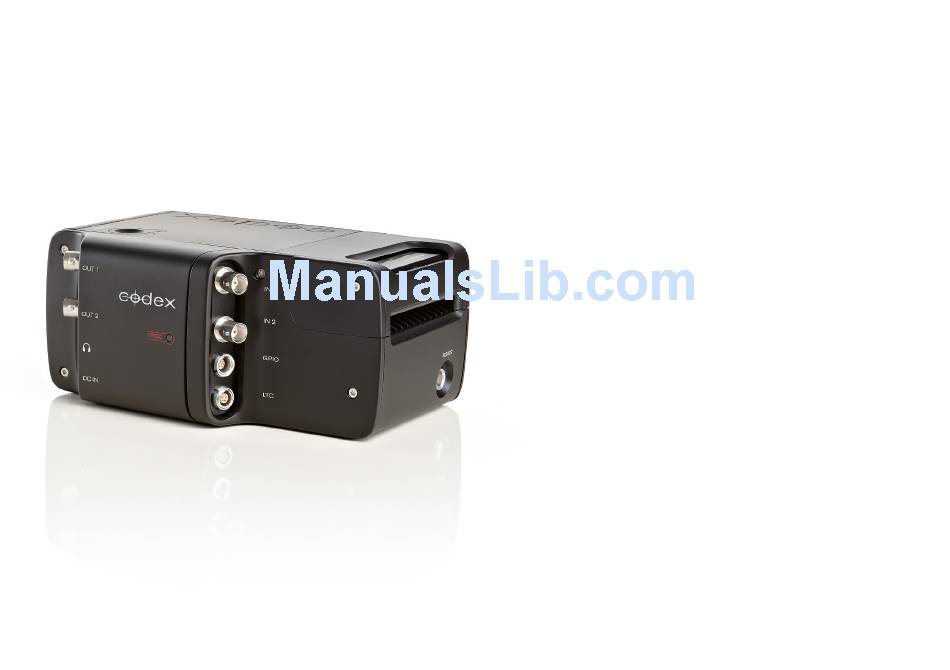

CONNECTOR PIN OUTS
LTC - 5 pin 0B Lemo socket
1 Ground
2 LTC IN +
3 LTC IN —
4 LTC OUT —
5 LTC OUT +
For unbalanced input, use 'LTC IN +' and connect 'LTC IN -' to ground (Pin 1).
RS422 - 6 pin 0B Lemo socket CURRENTLY FOR WIRED UI CONNECTION ONLY
GPIO - 7 pin 0B Lemo socket
1 Reserved for RS232 RX - DO NOT CONNECT
2 Reserved for RS232 TX - DO NOT CONNECT
3 Ground
4 GPI IN
5 GPI OUT
6 Reserved - DO NOT CONNECT
7 Reserved - DO NOT CONNECT
DC IN - 5 pin 1B Lemo socket
1 Battery V — (0V)
2 IDX SCL (IDX digital clock)
3 IDX SDA (IDX digital data)
4 AB DATA (Anton/Bauer coms)
5 Battery V+ (12-28V DC)
HEADPHONE OUT - 3.5mm Jack
Tip Left channel audio
Ring Right channel audio
Sleeve Ground
