Summary of Contents for Codex Onboard S

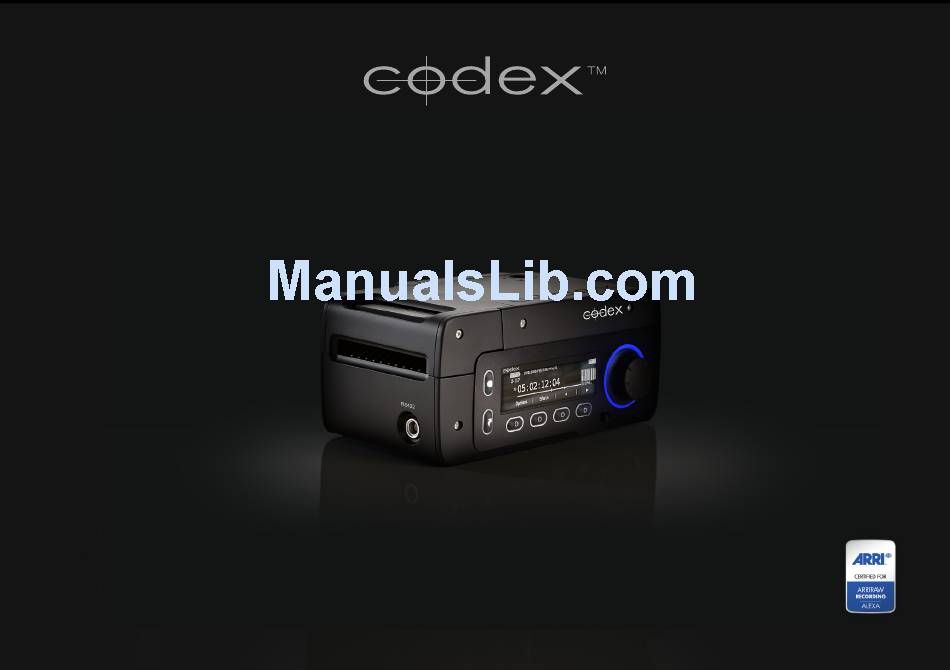

- Page 1 ON BOAR D S R ECOR DE R G ETTI NG STARTE D G U I DE...
-
Page 2: Safety Precautions
Whilst Codex endeavours to ensure that all printed documentation provided is correct at the time of publication, this guide is not guaranteed to be error-free or up-to-date. Codex does not assume responsibility for issues or losses due to misinterpretation of the information in this document, errors in this document, or incorrect configuration or installation of the equipment described herein. -
Page 3: Getting Started
The battery meter on the display shows minutes remaining and a capacity remaining percentage for smart batteries, or else just a voltage reading. If the Shutdown volts setting in the System menu has been set too high for your battery, then you may not be able to start up normally. In this case boot the Onboard S into safe mode by pressing a thin implement, such as a paperclip, through the small hole next to the power button, whilst pressing the power button. - Page 4 THE ONBOARD S CONTROL PANEL AND MENU SYSTEM There are a few global rules about how the Control Panel operates, which will be dealt with before menu specifics: MONITOR/RECORD JOG WHEEL (TURN) STOP/SELECT (PRESS) MAIN MENU MULTI-FUNCTION BUTTONS HOLD SWITCH You are only ever two button presses from recording: if you are anywhere in the menu system then one press of the Monitor/Rec button will engage Monitor mode, and a second press will begin a recording.
- Page 5 Take values) for the next shot, or from the Shots list for any previous recordings. When a change has been made it is not automatically stored. Press Accept to save any changes, or press Cancel to lose them. Use the Clear button to wipe the contents of a field without having to use the text editor. CODEX ONBOARD S RECORDER GETTING STARTED GUIDE VERSION 1.0...
- Page 6 Roll name (max. 8 characters). When the Roll has been created the drives should all be listed as ‘Good’ and the Status as ‘Ready’. If this is not the case then contact Codex Support. Delete can be used to delete a Roll and all the shots on it.
- Page 7 Onboard S to the remote computer, run the Codex software package and enter the Onboard S IP address in the Connect to Server box. Initially you will not be ‘IN CONTROL’, which means you can edit shot metadata but not control the functions of the Onboard S. Go to the SETUP tab, then the CONTROL screen, and you can press ‘TAKE CONTROL’...
-
Page 8: Error/Warning Messages
If it happens during recording on both channels then it could be a symptom of a Datapack write-speed problem, in which case you should contact Codex Support. Input video signal wrong type Check the Video Format settings and make the appropriate changes. -
Page 9: Connector Pinouts
2 IDX SCL (IDX digital clock) 3 IDX SDA (IDX digital data) 4 AB DATA (Anton/Bauer coms) 5 Battery V+ (12-28V DC) HEADPHONE OUT - 3.5mm Jack Left channel audio Ring Right channel audio Sleeve Ground CODEX ONBOARD S RECORDER GETTING STARTED GUIDE VERSION 1.0... - Page 10 NOTES CODEX ONBOARD S RECORDER GETTING STARTED GUIDE VERSION 1.0...
- Page 11 NOTES CODEX ONBOARD S RECORDER GETTING STARTED GUIDE VERSION 1.0...
- Page 12 INFO@CODEXDIGITAL.COM Codex Onboard S Recorder Getting Started Guide v1.0 Codex Digital Limited reserve the right to alter the specification at any time and without prior notice. © Copyright Codex Digital Limited. May 2012. All other trademarks used are the property of their respective owners.
