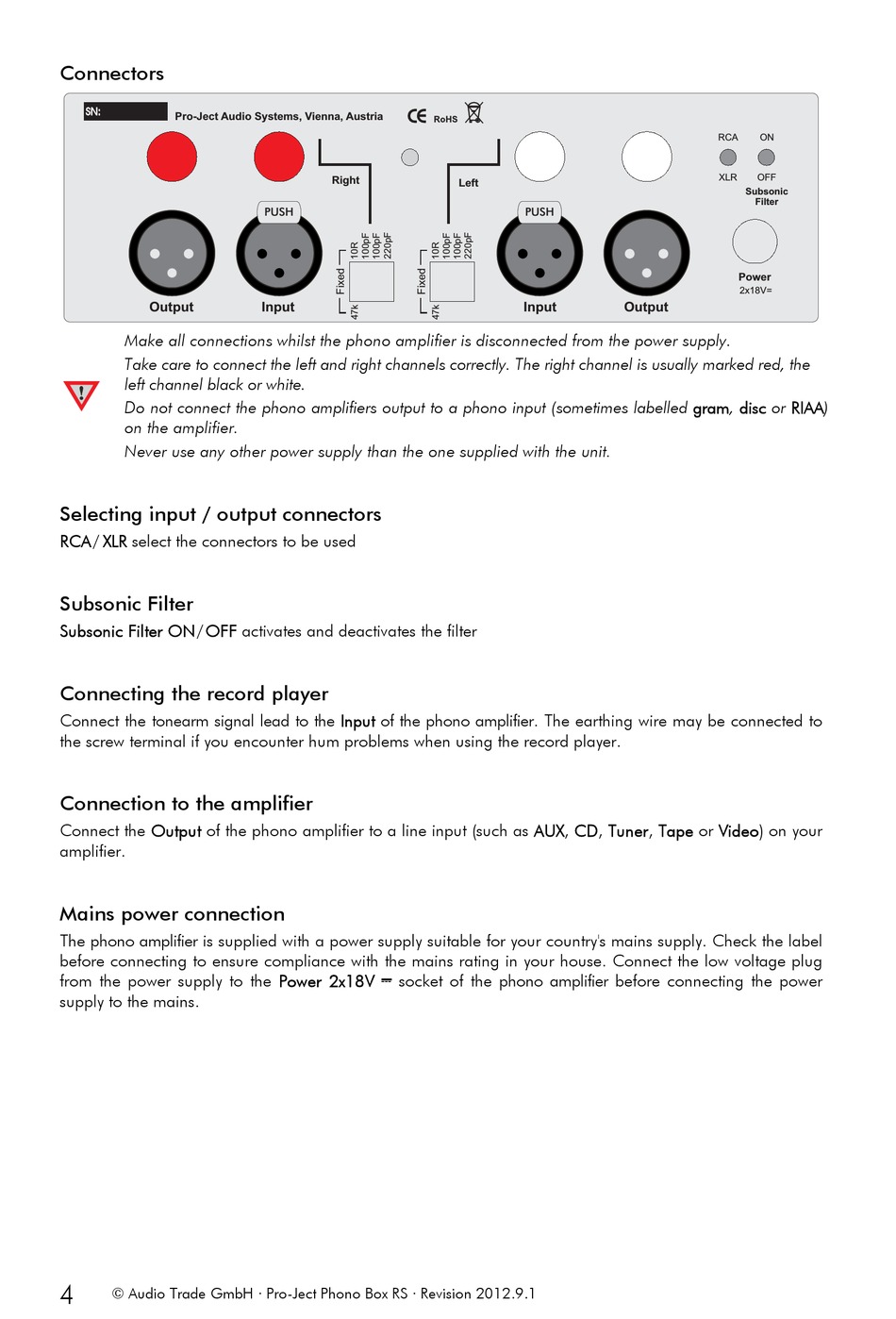

Connectors

Pro-Ject Audio Systems, Vienna, Austria
Output
Make all connections whilst the phono amplifier is disconnected from the power supply.
Take care to connect the left and right channels correctly. The right channel is usually marked red, the
left channel black or white.
Do not connect the phono amplifiers output to a phono input (sometimes labelled gram, disc or RIAA)
on the amplifier.
Never use any other power supply than the one supplied with the unit.

Selecting input / output connectors

RCA / XLR select the connectors to be used

Subsonic Filter

Subsonic Filter ON /OFF activates and deactivates the filter

Connecting the record player

Connect the tonearm signal lead to the Input of the phono amplifier. The earthing wire may be connected to
the screw terminal if you encounter hum problems when using the record player.

Connection to the amplifier

Connect the Output of the phono amplifier to a line input (such as AUX, CD, Tuner, Tape or Video) on your
amplifier.

Mains power connection

The phono amplifier is supplied with a power supply suitable for your country's mains supply. Check the label
before connecting to ensure compliance with the mains rating in your house. Connect the low voltage plug
from the power supply to the Power 2x18V
supply to the mains.
