Input / output connectors, input gain

RCA / XLR select the connectors to be used. Input gain for RCA can be set to 60, 50 or 40dB. The possible
settings for XLR are 66, 56 and 46dB.
RCA
60 66
50 56
40 46
XLR

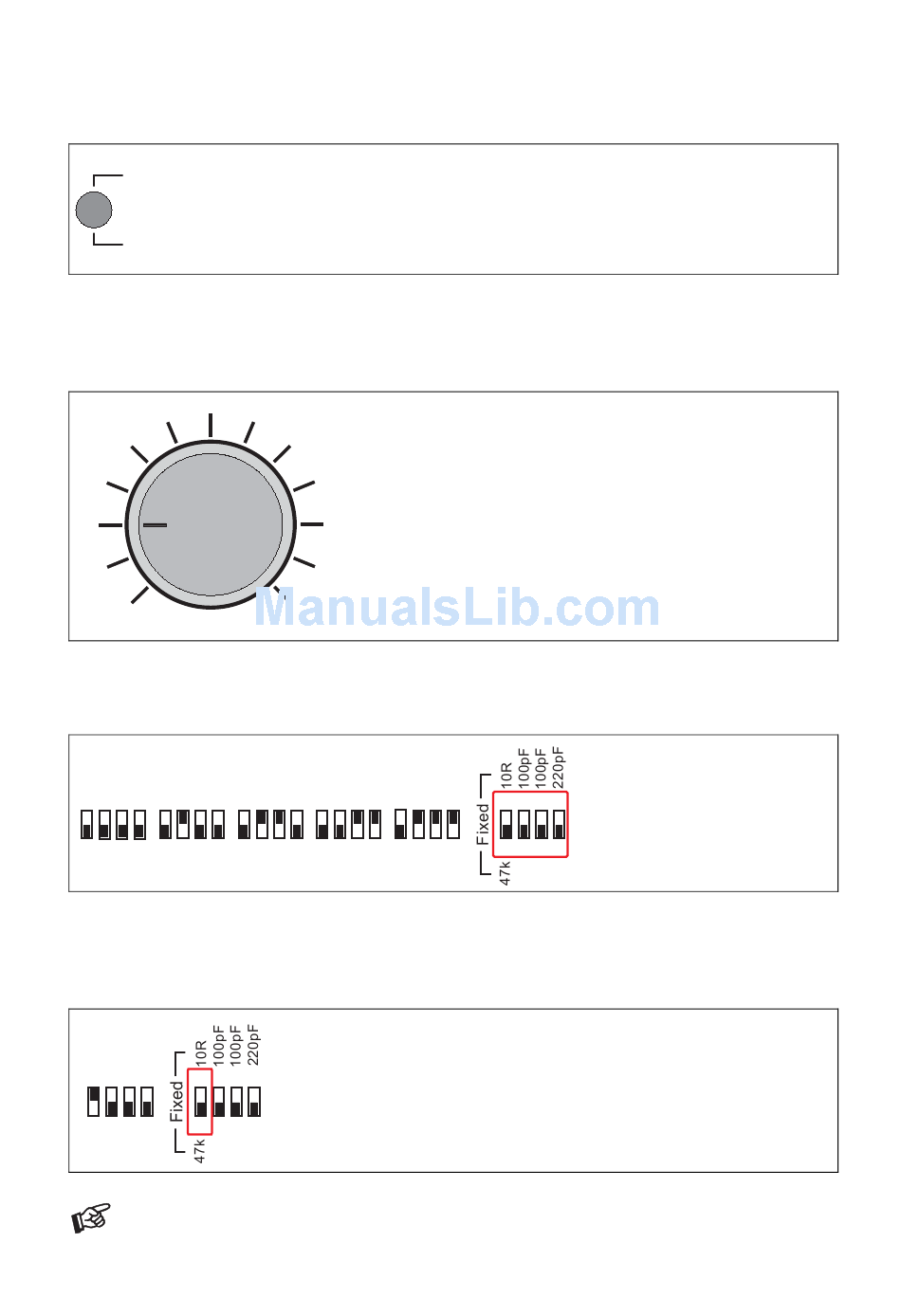

Input impedance, variable – low-output MC cartridges
* Input capacitance is irrelevant for low-output MC cartridges
The switch F/ V must be set to V
150
130
100
60
30
20
10
Ohm
Input capacitance, variable – high-output MC and MM cartridges
The switch F/ V must be set to F
100pF 200pF
ON ON
ON
1 1 2 2 3 4
2 3 4 2
Input impedance, fixed – low-output MC cartridges
* Input capacitance is irrelevant for low-output MC cartridges
The switch F/ V must be set to F
10 Ohm
ON ON
1 2 2 3 4 1 2 2 3 4
To find out which type your cartridge is, please consult the literature accompanying your cartridge.
The literature for cartridges should also specify the correct input impedance (low-output MC
cartridges) and the correct input capacitance (high-output MC and MM cartridges), into which the
cartridge is designed to work. If in doubt please consult your dealer.
200
400
700
1000
1100
1200
300pF 420pF 520pF
ON ON
1 2 3 4 2 1 2 2 3 4 1
