Summary of Contents for Hyundai Seasall D170s
-
Page 2: Table Of Contents

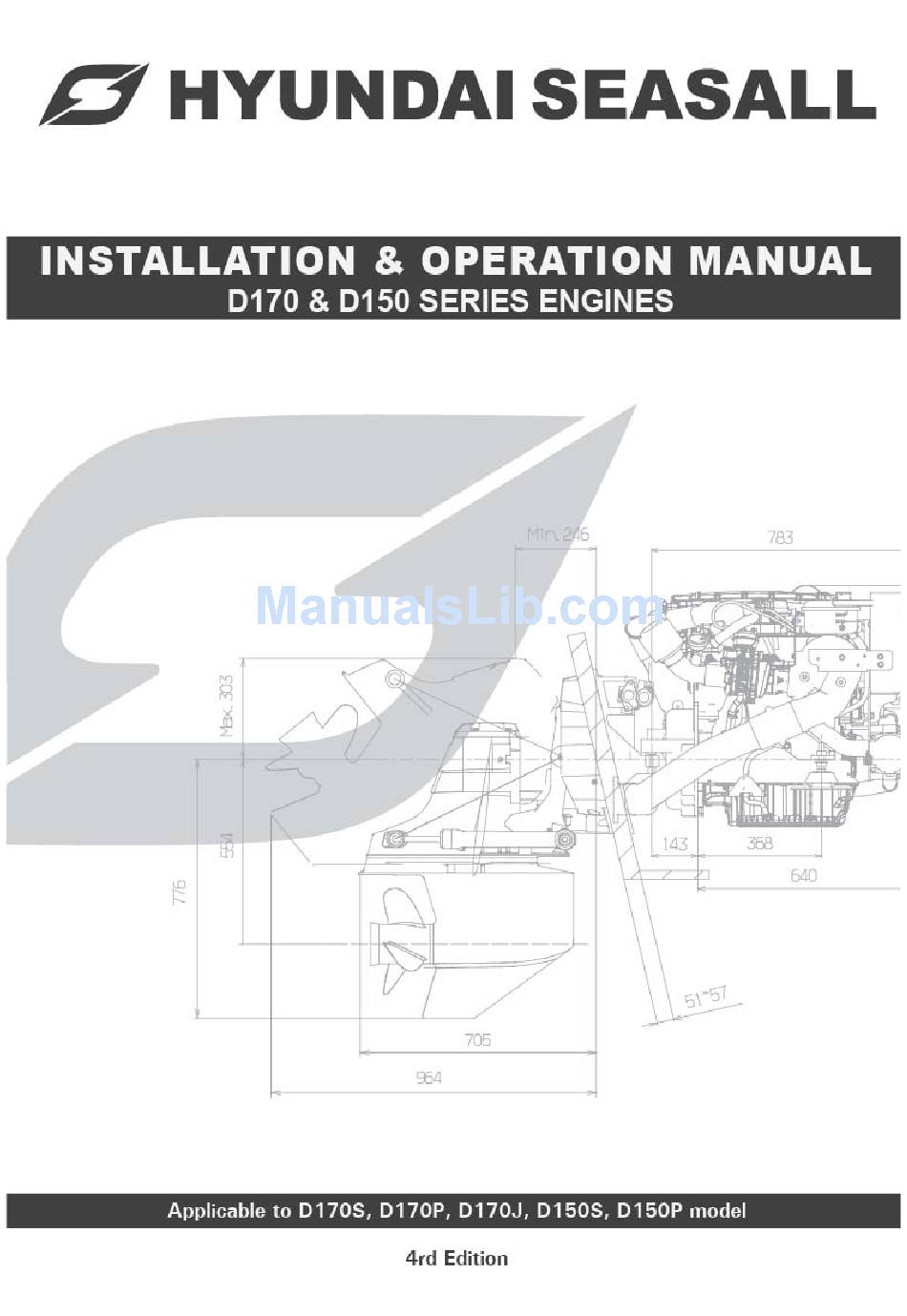

INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines TABLE OF CONTENTS PAGE NUMBER ABOUT THIS MANUAL …………………………………………………………………..…. SAFETY PRECAUTIONS ……………………………………………………………………... CHAPTER 1 ENGINE OVERVIEW ……………………………………………………………… 1. ENGINE COMPONENTS ……………………………………………………… 2. ENGINE SUSPENSION EYES ……………………………………………….. 3. ENGINE IDENTIFICATION ……………………………………………………. 4. SCHEMATIC DIAGRAM OF COMMON RAIL DIESEL ENGINE …….. 5. - Page 3 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines TABLE OF CONTENTS PAGE NUMBER CHAPTER 7 ELECTRICAL SYSTEM ……………………………………………………. 1. BATTERY CABLE CONNECTIONS ……………………………...……. 2. BATTERY CHECKS ………………………………………………..……. 3. FUSE AND RELAY …………………………………………………...….. CHAPTER 8 INSTRUMENT SYSTEM ……………………...………………………..1. INSTRUMENT CONNECTIONS .…………..…………………………… 2.
-
Page 4: About This Manual
This engine installation and operation manual is provided as guidance for the installation of Hyundai SeasAll engine in a boat, and to describe engine operation. Its purpose is to provide technical information to aid in performing an effective engine installation so as to achieve both maximum performance and service life. -
Page 5: Safety Precautions
Wait until the engine is fully cool to do inspection and maintenance. • Do not use the engine for a purpose other than what is intended by Hyundai SeasAll. Do not modify the performance of the supplied engine without the express permission of REFUELING Hyundai SeasAll. -
Page 6: Chapter 1 Engine Overview
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 1 ENGINE OVERVIEW 1. ENGINE COMPONENTS 1. ECU Box 7. Engine Oil Gauge 2. Coolant Expansion Tank 8. Acceleration Lever Sensor 3. Engine Oil Cap 9. Seawater Pump 4. Engine Oil Filter 10. -
Page 7: Engine Suspension Eyes
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 2. ENGINE SUSPENSION EYES 1) To lift the engine, first remove the engine cover. You will find two engine eyes (see figure) 2) To avoid engine damage, take care that engine lift chains or belts do not hit or touch surrounding parts during engine lifting. -
Page 8: Engine Identification
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 3. ENGINE IDENTIFICATION Engine identification is affixed to the engine block and the ECU box (see figure). SERIAL NUMBER ON THE ENGINE BLOCK NAME PLATE ON THE ECU BOX... -
Page 9: Schematic Diagram Of Common Rail Diesel Engine
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 4. SCHEMATIC DIAGRAM OF COMMON RAIL DIESEL ENGINE... -
Page 10: Technical Data
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 5. TECHNICAL DATA D170 / 150S D170 / 150P D170J Engine type 4-stroke, 4-valve After-cooled, direct-injection, water cooled Output ps (kW) 170ps (125) / 150ps (110) rpm at full load 3800/3200 Cylinders Ignition sequence 1-3-4-2... -
Page 11: Performance Curves
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 6. PERFORMANCE CURVES D170S & D170P MODEL *BSFC : Brake Specific Fuel Consumption *FC : Fuel Consumption -10-... - Page 12 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines D170J MODEL *BSFC : Brake Specific Fuel Consumption *FC : Fuel Consumption -11-...
- Page 13 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines D150S & D150P MODEL *BSFC : Brake Specific Fuel Consumption *FC : Fuel Consumption -12-...
-
Page 14: Engine Dimensions
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 7. ENGINE DIMENSIONS MerCruiser Bravo One X Diesel Front view Side view MerCruiser Bravo Two X Diesel Front view Side view -13-... - Page 15 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines MerCruiser Bravo Three X Diesel -14-...
- Page 16 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines ZF 45 C Front view Side view Waterjet adapter without ZF 45C / ZF 63C Front view Side view -15-...
-
Page 17: Chapter 2 Engine Mount System
2. ENGINE MOUNT DIMENSIONS CAUTION CAUTION USE ONLY THE ORIGINAL HYUNDAI SEASALL ENGINE MOUNTS THAT USE ONLY THE ORIGINAL HYUNDAI SEASALL ENGINE MOUNTS THAT WERE SUPPLIED WITH THE INITIAL PURCHASE. WERE SUPPLIED WITH THE INITIAL PURCHASE. -
Page 18: Engine Mount Tool For Sterndrive Model
FOR INFORMATION ON INSTALLATION OF THE STERNDRIVE BRAVO MODELS, PLEASE SEE THE SEPARATE BOOKLETS INCLUDED IN THE MODELS, PLEASE SEE THE SEPARATE BOOKLETS INCLUDED IN THE ORIGINAL PACKAGING OF YOUR HYUNDAI SEASALL PURCHASE. ORIGINAL PACKAGING OF YOUR HYUNDAI SEASALL PURCHASE. -17-... -
Page 19: Chapter 3 Cooling & Exhaust System
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 3 COOLING & EXHAUST SYSTEM 1. SCHEMATIC DIAGRAM OF ENGINE COOLING CIRCUIT ENG.OIL COOLER AIR FILTER CABIN HEATER CONNECTOR TURBO CHARGER COOLANT PUMP THERMOSTAT IN-MANIFOLD HEAT EXCHANGER OIL COOLER EXPANSION TANK SEA WATER PUMP INTERCOOLER... -
Page 20: Seawater Flow
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 2. SEAWATER FLOW – OPEN COOLING CIRCUIT Water strainer ← Water valve ← Water pickup ↓ ① Intercooler ↓ ② Seawater pump ↓ ③ Oil cooler ↓ ④ Heat exchanger ↓ ⑤... -
Page 21: Seawater Pump
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 4) To clean strainer filter, • Stop the engine and close the water valve • Remove the filter cap • Remove the filter element, flush it thoroughly with clean water or compressed air •... - Page 22 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines • Apply soapy water to impeller when assembling, and reassemble towards rotation direction • Replace of the O-ring on the impeller housing cover • Open the water valve • Start the engine and check if there is water leakage CAUTION CAUTION DO NOT RUN THE ENGINE WITHOUT SEAWATER.
-
Page 23: Engine Coolant Flow
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 3. ENGINE COOLANT FLOW – CLOSED COOLING CIRCUIT THERMOSTAT OPENED ① Engine coolant outlet ↓ Thermostat open(opening temp 85℃) ④ Expansion tank ② Heat exchanger ↓ ③ Engine coolant inlet 3.1 ENGINE COOLANT 1) The high-pressure cooling system has a reservoir filled with year-round antifreeze coolant. - Page 24 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 3) If the coolant level is low, add enough specified coolant to provide protection against freezing and corrosion. Bring the level to MAX, but do not overfill. 4) If frequent additions are required, see an authorized dealer for a cooling system inspection.
-
Page 25: Removing Air Bubble
1) In order to use cabin heater, an extra coolant circulation pump is needed. 2) After connecting cabin heater lines, engine coolant must be refilled and checked. 3) Check coolant flow direction, as shown in figure. 4) If in doubt, please contact your nearest Hyundai SeasAll dealer. To heater From heater * Outer diameter of line is Ø19.3 mm... -
Page 26: Exhaust System
D170 and D150 Series Engines 4. EXHAUST SYSTEM 1) Your Hyundai SeasAll engine’s exhaust system consists of a coolant-cooled exhaust manifold and a seawater-cooled exhaust elbow (water injected wet exhaust system). 2) The vessel’s exhaust line should not be made too long and should have as few bends as possible. -
Page 27: Chapter 4 Fuel System
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 4 FUEL SYSTEM The fuel supply system of this engine is diesel common rail direction injection. In order to optimize engine combustion, maximum injection pressure is up to 1600 bar. Multi-injection is possible thanks to the quick response of the solenoid type injector. -
Page 28: Fuelflow
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 1. FUELFLOW Fuel tank ↓ Auxiliary fuel filter ↓ ① Fuel pump (low pressure) ↓ ② Fuel filter with water detection sensor ↓ ③ Fuel pump (high pressure) ↓ ④ Common rail ↓... -
Page 29: Acceleration Sensor And Control Lever
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 3. ACCELERATION SENSOR AND CONTROL LEVER 65 mm When installing control lever cable to acceleration sensor, be sure that the acceleration sensor lever is fully released at the idle position and fully pulled the full-load position. -
Page 30: Recommended Fuel Quality
CAUTION CAUTION HYUNDAI SEASALL’S GUARANTEES OR WARRANTIES ARE VOID IN HYUNDAI SEASALL’S GUARANTEES OR WARRANTIES ARE VOID IN CASES WHERE DAMAGE TO FUEL INJECTON COMPONENTS (HIGH CASES WHERE DAMAGE TO FUEL INJECTON COMPONENTS (HIGH PRESSURE PUMP, INJECTORS, ETC.) CAN BE ATTRIBUTED TO THE... -
Page 31: Chapter 5 Air Intake System
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 5 AIR INTAKE SYSTEM The intake air system of this engine is optimized by VGT and a highly efficient intercooler system. The pressure of the air system is up to abs. 2.5 bar in order to optimize engine combustion. filter Air temp. -
Page 32: Air Filter Maintenance
D170 and D150 Series Engines AIR FILTER MAINTENANCE • The original Hyundai SeasAll air cleaner may be cleaned and reused. • If the air filter is very dirty, it can increase airflow resistance and reduce flow of air to the engine. -
Page 33: Chapter 6 Lubrication System
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 6 LUBRICATION SYSTEM 1. ENGINE OIL LEVEL CHECKS The engine oil level must be checked at regular intervals. Be sure the boat is level. Start the engine and allow it to reach normal operating temperature. -
Page 34: Engine Oil Extaction Pump
AND SOURCES OF IGNITION. IF YOU HAVE A USED OIL DISPOSAL PROBLEM, PLEASE HAVE THE ENGINE OIL CHANGED BY YOUR PROBLEM, PLEASE HAVE THE ENGINE OIL CHANGED BY YOUR NEAREST HYUNDAI SEASALL SERVICE DEALER. NEAREST HYUNDAI SEASALL SERVICE DEALER. -33-... -
Page 35: Chapter 7 Electrical System
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 7 ELECTRICAL SYSTEM 1. BATTERY CABLE CONNECTIONS ENGINE GROUND STARTER MOTOR WARNING WARNING DO NOT TOUCH OR REMOVE ELECTRICAL PART WHEN STARTING OR DO NOT TOUCH OR REMOVE ELECTRICAL PART WHEN STARTING OR DURING OPERATION. -
Page 36: Battery Checks
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 2. BATTERY CHECKS Battery inspection is very important in electronically controlled engines: You must check the battery condition regularly. LOAD TEST 1) Perform the following steps to complete the load test procedure for maintenance-free batteries. -
Page 37: Fuse And Relay
ECU box. Always replace a blown fuse with one of the same rating. If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Hyundai SeasAll dealer. Fuses in the ECU Box System Power: 30 Amp... - Page 38 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 3.2 RELAYS Relays in the ECU Box 1) Main Relay: 30 Amp 2) Oil Extraction Pump Relay: 30 Amp 3) Fuel Pump Relay : 30 Amp 4) Glow Relay: 70 Amp 5) Start Solenoid Relay: 30 Amp 6) Fuel Heater Relay: 30 Amp Using an ohmmeter, check that there is continuity between each terminal.
-
Page 39: Chapter 8 Instrument System
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 8 INSTRUMENT SYSTEM 1. INSTRUMENTS CONNECTION Gauges only available for dual EOI application ※ For information about the installation and operation of the EOI (Engine Operating Indicator) system, please refer to Chapter 9. -38-... - Page 40 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 1.1 GAUGE PANEL (Option) Ø 5 Ø 5 RPM Gauge Coolant Temperature Gauge Battery Voltmeter Gauge Ignition Key switch NOTE: Gauge panel (show above) is not standard but available as an option 1.2 COOLANT TEMPERATURE GAUGE 1) This gauge will work when the key is in the “ON”...
-
Page 41: Cut-Out For Gauge
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 1.3 RPM GAUGE 1) This gauge will work when the key is in the “ON” position. 2) This gauge indicates real-time engine rpm. 3) Avoid max. rpm and WOT (Wide Open Throttle) before a cold engine is fully warmed up, as it can harm the engine. -
Page 42: Chapter 9 Eoi System
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 9 EOI SYSTEM OVERVIEW OF EOI SYSTEM 1.1 INFORMATION LCD 1) Engine rpm (RPM) 6) Running Time (Hr) 2) Engine Coolant Temp. (℃) 7) Total WOT Running Time (Hr) 3) Throttle Lever Position (%) 8) Glow Plug Indicator lamp 4) Fuel Consumption (ℓ/h) 9) Neutral Lever Alarm lamp... -
Page 43: Switches
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 1.2 SWITCHES 1) Buzzer Reset Switch - This switch is used for turning off the alarm temporarily. 2) Dimmer Switch - This switch is used for controlling brightness of the other gauges connected to the EOI. -
Page 44: Eoi Connections
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines EOI CONNECTIONS Rear view 1. Connection plug – CN1 (from engine) 6. Connection plug – CN6 (service tool) 2. Connection plug – CN2 (to dual EOI) 7. Connection plug – CN7 (external) 3. -
Page 45: Eoi Pin Assignment
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 3. EOI PIN ASSIGNMENT CN1 (MAIN EOI CONNECTOR FROM ENGINE) 1. Ignition power 13. RPM signal 2. Main relay power 14. Spare 3. Permanent power 15. Spare 4. Not used 16. Spare 5. - Page 46 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CN3 (TACHOMETER) Main relay power RPM signal Ground Illumination Illumination CAN_H CAN_L Not used CN4 (COOLANT TEMP. GAUGE) Coolant temperature signal Ignition power Ground Illumination Illumination Not used CN5 (VOLT GAUGE) Ignition power Ground Illumination...
-
Page 47: Neutral Switch And Dual Eoi Connection
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CN8 (KEY SWITCH) 1. Ignition power 2. Start power 3. Permanent power 4. NEUTRAL SWITCH AND DUAL EOI CONNECTION 1) Neutral switch wires should be connected at pin #4 and #5 of the external connector of the EOI. -
Page 48: Trim Wiring Connection Diagram
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 5. TRIM WIRING CONNECTION DIAGRAM (STERNDRIVES ONLY) TRIM LIMITE TRIM SENDER TRIM PUMP REMOTE CONTROL TRANSOM PLATE TRAILER SWITCH (SIDE MOUNT TYPE ONLY) GEAR LUBE MONITOR GAUGE-TRIM GAUGE - VOLTMETER BATTERY E O I GAUGE &... -
Page 49: Alarm And Dtc(Diagnosis Trouble Code)
(diagnosis trouble code) will give you information about it. The DTC display is only for initial assistance and to aid communication with a Hyundai SeasAll dealer if there is an emergency. You should contact your nearest Hyundai SeasAll dealer as soon as possible if a system problem arises. - Page 50 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines - 49 -...
- Page 51 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines - 50 -...
-
Page 52: Dtc(Diagnosis Trouble Code) List
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 5.2 DTC(DIAGNOSIS TROUBLE CODE) LIST P code DESCRIPTION P0016 Crankshaft Position – Camshaft Position Correlation P0047 Turbocharger Boost Control Solenoid Circuit Low P0048 Turbocharger Boost Control Solenoid Circuit High P0069 Manifold Absolute Pressure – Barometric Pressure Correlation P0087 Fuel Rail/System Pressure - Too Low P0088... - Page 53 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines P code DESCRIPTION P0232 Fuel Pump Secondary Circuit High P0234 Turbocharger Over boost Condition P0237 Turbocharger Boost Sensor "A" Circuit Low P0238 Turbocharger Boost Sensor "A" Circuit High P0252 Pump Pressure Regulation Valve Circuit P0253 Pump Pressure Regulation Valve Circuit Low P0254...
- Page 54 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines P code DESCRIPTION P0341 Camshaft Position Sensor A Circuit Range/Performance P0381 Glow Plug/Heater Indicator Circuit P0562 System Voltage Low P0563 System Voltage High P0601 Internal Control Module Memory Check Sum Error P0602 Control Module Programming Error P0604...
- Page 55 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines P code DESCRIPTION P1171 Minimum Rail Pressure Exceeded P1172 Maximum Rail Pressure Exceeded P1173 Set Value of PCV not in Plausibility Range P1185 Maximum Pressure Exceeded P1186 Minimum Pressure at Engine Speed Too Low P1187 Regulator Valve Stuck P1188...
- Page 56 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines P code DESCRIPTION P2138 Throttle/Pedal Position Sensor/Switch “D” / “E” Voltage Correlation P2228 Barometric Pressure Circuit Low Input P2229 Barometric Pressure Circuit High Input P2262 Turbocharger Boost Pressure Not Detected - Mechanical P2263 Turbocharger Boost System Performance P2264...
-
Page 57: Chapter 10 Anti Corrosion System
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 10 ANTI CORROSION SYSTEM Heat exchanger Sacrificial anodes Intercooler The sacrificial anode must be replaced when more than 50% of it has been used. Check especially frequently when used in saltwater. It is recommended to replace the sacrificial anode at the start of each season. -
Page 58: Chapter 11 Engine Opration
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 11 ENGINE OPERATION 1. ENGINE ON/OFF 1) Before starting the engine, you should check engine oil, coolant, gearbox oil, fuel gauge, raw water pump, battery, seacocks and so on. 2) When you start the engine, check that the engine throttle lever① is in the neutral position. If not, the engine may not start or there is possibility of the boat moving inadvertently. -
Page 59: Engine Break-In
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 2. ENGINE BREAK-IN Initial Break-in Procedure The first 20 hours of operation is the engine break-in period. During this period, it is important that the engine is operated as outlined. 1) DO NOT operate engine at idle rpm for extended periods of time during the first 10 hours. -
Page 60: Emergency Stop
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 4. EMERGENCY STOP 1) You can stop the engine by pushing this button. After releasing the switch by twisting the button, you can start the engine again. (Normally, the button should be in the “out” position.) 2) When the button is pressed or if it doesn’t work normally, the engine doesn’t crank. -
Page 61: Chapter 12 Engine Storage
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 12 ENGINE STORAGE The major consideration in preparing your engine for storage is to protect it from rust, corrosion, and damage caused by freezing of trapped water. The following storage procedures should be followed to prepare your engine for out-of-season storage or prolonged storage (two months or longer and winter storage) : CHECK LIST •... -
Page 62: Chapter 13 Maintenance
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 13 MAINTENANCE 1. PREDELIVERY INSPECTION CHECK LIST 1.1 BEFORE THE WATER TEST 1.2 ON THE WATER TEST -ENGINE CHECKS -ENGINE CHECKS Boat drain plug in place Seawater inlet valve open (check before putting boat in water) Engine coolant level Seawater pump operation... -
Page 63: Maintenance Schedule
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 2. MAINTENANCE SCHEDULE Maintenance Whichever comes first Maintenance intervals 200h / 400h / Daily item 1year 2years ● Check the coolant level and for leaks ● Replace the seawater pump impeller ●... -
Page 64: Sterndrive & Transmission Maintenance Schedule
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 3. STERNDRIVE & TRANSMISSION MAINTENANCE SCHEDULE Whichever comes first Maintenance Maintenance 100h / intervals Daily item 1year ● Check sterndrive unit oil level (Transmission) ● Trim pump oil level ● Power steering fluid level ●... -
Page 65: Maintenance Log
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines 3. MAINTENANCE LOG DATE MAINTENANCE PERFORMED ENGINE HOURS - 64 -... -
Page 66: Chapter 14 Troubleshooting Guide
INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines CHAPTER 14 TROUBLESHOOTING GUIDE ■ Starter motor does not crank the engine Possible Causes •Engine stop switch “ON” position •Engine is not shifted to neutral position •Safety Stop Switch activated •Wrong neutral switch connection to EOI •Weak battery or battery connections are loose •Starter motor solenoid or slave solenoid failure or corroded... - Page 67 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines ■ Engine rattling, noisy engine Possible Causes •Compensation of individual injector not •No engine coolant temperature sensor signal adapted •Low compression pressure •Clogged injector return line •No rail pressure sensor signal •Faulty injector •Poor injector O-ring •Carbon deposit on the injector...
-
Page 68: Chapter 15 Warranty
CHAPTER 15 WARRANTY WHAT IS COVERED Hyundai SeasAll warrants its new products to be free of defects in material and workmanship during the period described below. DURATION OF COVERAGE This Limited Warranty provides coverage for two (2) years from the date the product is first sold to a recreational use retail purchaser or when the Product has been operated for 1000 hours, whichever occurs first. - Page 69 INSTALLATION & OPERATION MANUAL D170 and D150 Series Engines - 68 -...
- Page 70 • All incidental and/or consequential damages (storage charges, telephone or rental charges of any type, inconvenience or loss of time or income) are the owner’s responsibility. • Use of other than Hyundai SeasAll genuine replacement parts when making warranty repairs. • Participating in or preparing for racing or other competitive activity.
-
Page 71: Warranty Registration Card
WARRANTY REGISTRATION CARD Date of sale Check box if Warranty Transfer Month Year Please fill out the following registration card in English. ■OWNER’S INFORMATION Name/Company ZIP Code/Post Code Street/P.O. Box City State/Province Country E-Mail Telephone Mobile Phone ■ DEALER INFORMATION Dealer Name Dealer Code City...
