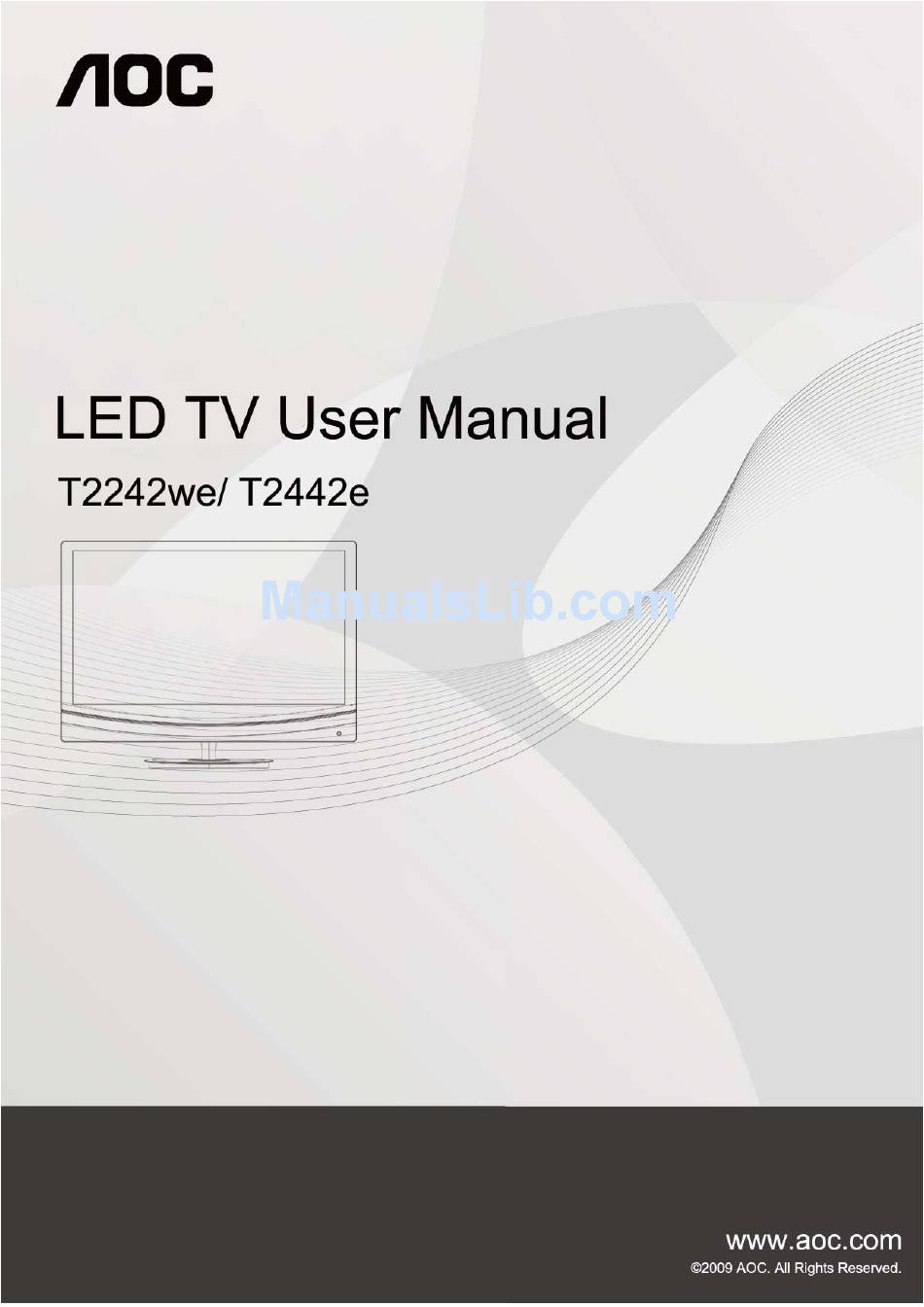

- Page 2 Thank you for choosing this AOC LED TV. Before installing and turning on your AOC LED TV, please spend a few minutes to read this manual thoroughly and retain it for future reference. Note: This product is subject to continuing improvement, and changes may be made without prior notice.
-
Page 3: Table Of Contents
HDMI INPUT SIGNAL REFERENCE TABLE ..........................14 VIDEO INPUT SIGNAL REFERENCE TABLE ..........................14 VIDEO COMPONENTS SUPPORTING TV, VIDEO AND S-VIDEO ................... 14 USING AOC TV ....................................15 Turning the TV on and off ........................................ 15 Setting Language ..........................................16 ... -
Page 4: Important Information
Do not use this apparatus near water. AOC strongly recommends that users use the wall-mount bracket or If the provided plug does not fit into your outlet, consult an table-top stand designed for your ACO LCD TV. Contact your dealers electrician for replacement of the obsolete outlet. -
Page 5: Safe Use Of Tv
Do not hang anything on the TV. Never allow children to climb on Do not pull on the cord. the TV. Do not use the power cord coming with your AOC LCD TV on Do not install the TV in places producing extreme temperatures, other equipment. -
Page 6: Wiring
lightning storms or when unused for long periods of time in order to Although smears may appear on the screen or the screen may turn prevent damage to the TV as a result of lightning or power line surges, dark when using the TV in a cold environment, it is not a sign of and thereby enhance the protection for the TV. -
Page 7: Small Accessories
Small accessories Cleaning Cleaning the AC power plug Keep small accessories out of children’s reach. Unplug the AC power cord to clean the plug regularly. If too much dust is deposited on the plug, it will absorb moisture, which reduces insulation performance and may lead to a fire. -
Page 8: Ventilation
Thank you for purchasing the AOC high-definition television. The picture quality on the screen varies according to the TV signals received. If you want to experience perfect picture quality of the AOC high-definition television, you should choose HD programs . The AOC... -
Page 9: Package Contents
After opening the TV package , check if the TV and all accessories are in good condition and free from damage. Not all signal cables (Analog, USB, DVI, and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 10: Locating Controls And Input In The Tv
For users to connect the headphones. If the size of the headphones connector is incorrect, please use an adaptor (not supplied by Headphone Jack AOC). The TV speakers will be muted after connecting the headphones to the TV. The Composite Video Input (yellow) is designed for connecting with composite video out on video equipment. The composite... -
Page 11: Inserting Batteries Into The Remote Control
Buttons located on the right hand side of the TV operate the same way as these buttons on the remote control. Button D escription Press this button to turn the TV on and off. When the TV is turned off, it will enter the energy-saving mode instead of disconnecting the Power button power unless the AC supply is turned off or the power cord is unplugged from the outlet. -
Page 12: Installation
TV, particularly for judging the strength of the wall to support the TV’s weight. For product protection and safety reasons, AOC strongly recommends you to use the wall-mount bracket designed for your TV model and have your TV installed on a wall by an AOC dealer or licensed contractor. -
Page 13: Connecting The Tv
Connecting the TV Cable System or VHF/UHF Antenna System Apart from the standard-definition programs, you can watch high-definition programs with this TV (if they are available in your area). This TV supports the reception of unscrambled digital programming for both cable and VHF/UHF antennas. As 300Ω... -
Page 14: Connection With Component Video
Connection with Component Video Component Video Input Audio HDMI AUDIO Service HDMI AUDIO Service CV IN Tuner CV IN Tuner Video Video Connection with Composite Video AV IN Video Audio HDMI AUDIO Service CV IN Tuner Video Video Video AV OUT Audio Video HDMI... -
Page 15: Pc Input Signal Reference Table
PC Input Signal Reference Table After connecting the PC to the TV with the VGA port, set the PC output signal according to the table below. Default PC mode Standard Resolution H. Sync. (kHz) V. Sync. (kHz) VESA 640 x 480 31.469 59.94 VESA... -
Page 16: Using Aoc Tv
Using AOC TV Turning the TV on and off Press the Power button on the TV or remote control to turn on the TV. -
Page 17: Setting Language
Setting Language Press the Menu button to open the menu. buttons to select [Function] and press the OK button. Press the Press the buttons to select [Menu Language]. Press the button to select a language : 简体中文, English, Français, Español, Português, Русский, ﺔ اﻟﻌﺮﺑﻴ... -
Page 18: Search Channels
Search Channels Press the Menu button to open the menu. and press the OK button. Press the buttons to select [Channel] buttons to select [Auto Search] and press the OK button. Press the buttons to select [Yes] and press the OK button. Press the... -
Page 20: Channel Switch/Return
Channel switch/return On the AOC TV, you can directly switch to another channel using the remote control or press the CH buttons on the side of the TV to switch to another channel. 1) Press the number buttons to switch to another channel . -
Page 21: Screen Settings
Screen settings Press the Menu button to open the menu. and press the OK button. Press the buttons to select [Video] Press the buttons to select an item: Picture Mode , Brightness, Contrast, Color, Sharpness, Noise Reduction , Color Temperature or Screen Ratio and press the OK button to enter. Press the button to adjust. -
Page 22: Sound Settings
Sound settings Press the Menu button to open the menu. buttons to select [Audio] and press the OK button. Press the button to select an item: Sound Mode, Bass, Treble, Balance , MTS, Surround, AVL, and press the OK Press the button to enter. -
Page 23: Channel Settings
Channel Settings The channel settings are available only in the TV mode. Press the Menu button to open the menu. and press the OK button. Press the buttons to select [Channel] Press the buttons to select an item: Auto Search, Add Channel , Manual Search, Lock Channel , Skip Channel or Channel Exchange and press the OK button to enter. -
Page 24: Pc Settings
PC Settings These settings are available only in the PC mode. Press the Menu button to open the menu. and press the OK button. Press the buttons to select [PC] buttons to select an item: Auto Adjustment., H. Sync, V. Sync, Pitch and Phase and press the OK Press the button to enter. -
Page 25: Function Settings
Function settings Press the Menu button to open the menu. and press the OK button. Press the buttons to select [Function] Press the buttons to select an item: Menu Language , Menu Display Time, Sleep Timer, Advanced Contrast, Dynamic Contrast, Backlight Control ,Channel Block or System Reset and press the OK button to enter. Press the buttons to adjust. -
Page 26: Troubleshooting
Troubleshooting Condition Explanation/Solution No picture No picture Check the Power Saving settings. Cannot receive any channels Make sure the power cord is correctly connected. Turn on the TV. Check the antenna/cable connections. Make sure the Cable setting is correct for your TV signal source. The TV is locked to one channel Run Auto Program to add receivable channels that are not present in the TV’s memory. -
Page 27: Dimensions And Specifications
Dimensions and specifications Model T2242we T2442e Panel size 54.6cm (21.5”) 60.9cm (24”) Resolution 1920 x 1080 1920 x 1080 Horizontal: 170° Horizontal: 170° Viewing angle Vertical: 160°(Typ.) Vertical: 160°(Typ.) Brightness 250cd/m 250cd/m Dynamic contrast 20,000,000:1 20,000,000:1 Speakers 5W x 2...
