ThinkStation P300
User Guide
Machine Types: 30AJ and 30AK

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkStation P300

Summary of Contents for Lenovo ThinkStation P300

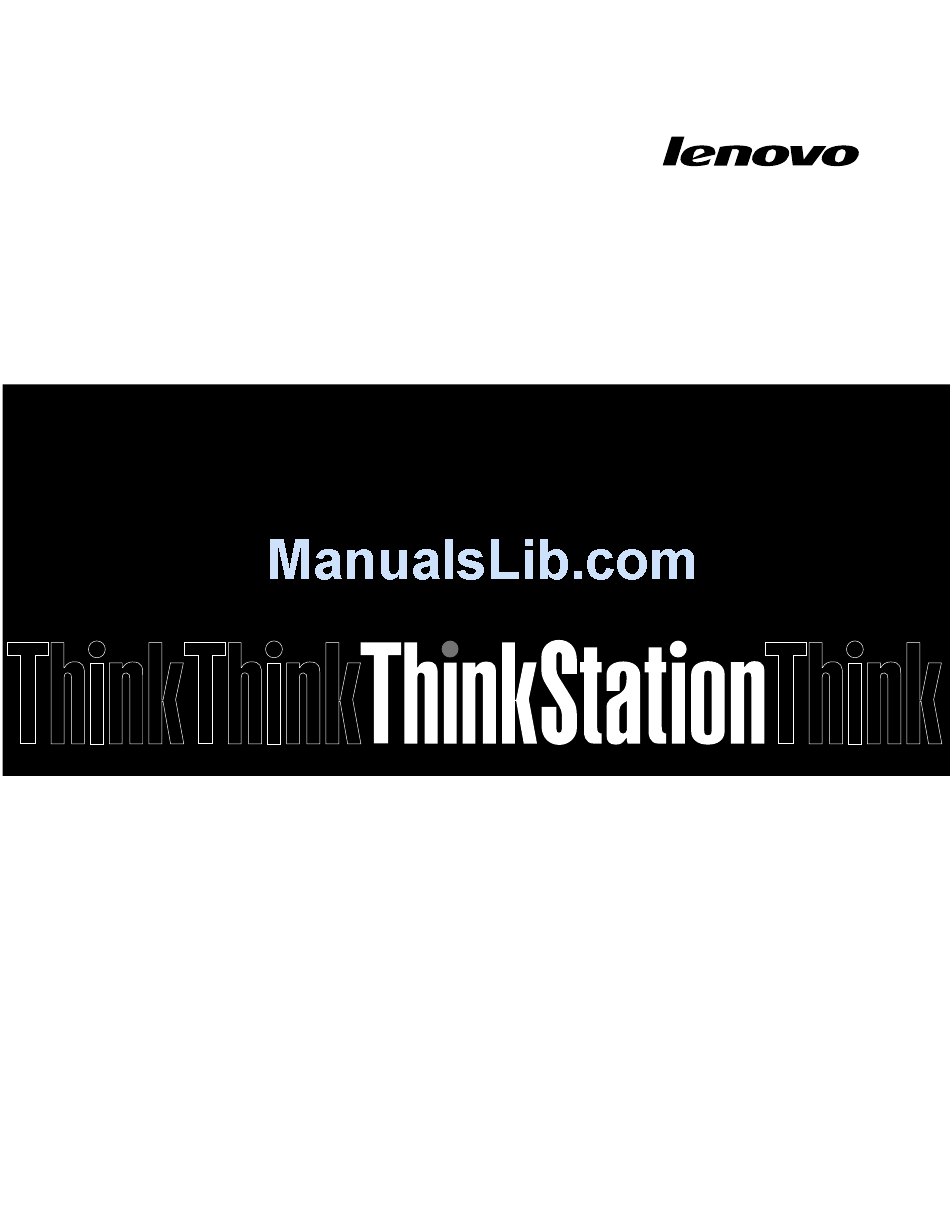

  • Page 1 ThinkStation P300 User Guide Machine Types: 30AJ and 30AK...
  • Page 2 Important safety information” on page v and Appendix F “Notices” on page 143. Second Edition (November 2014) © Copyright Lenovo 2014. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

  • Page 3: Table Of Contents

    Using BIOS passwords ..Enabling or disabling a device ..An introduction to Lenovo programs ..Selecting a startup device ..
  • Page 4 Recovery information for the Windows 7 operating Lenovo Web site ... . system ....
  • Page 5 Recycling information for Brazil ..Battery recycling information for Taiwan ..Battery recycling information for the European Union ....© Copyright Lenovo 2014...
  • Page 6 ThinkStation P300 User Guide...

  • Page 7: Read This First: Important Safety Information

    ® Format (PDF) version from the Lenovo Support Web site at http://www.lenovo.com/UserManuals. The Lenovo Support Web site also provides the Safety, Warranty, and Setup Guide and this User Guide in additional languages. Service and upgrades Do not attempt to service a product yourself unless instructed to do so by the Customer Support Center or your documentation.

  • Page 8: Power Cords And Power Adapters

    Never overload these devices. If power strips are used, the load should not exceed the power strip input rating. Consult an electrician for more information if you have questions about power loads, power requirements, and input ratings. ThinkStation P300 User Guide...

  • Page 9: Polyvinyl Chloride (Pvc) Cable And Cord Notice

    Extended contact with the body could cause discomfort or, potentially, a skin burn. • Do not charge the battery or operate your computer, power adapter, or accessories near flammable materials or in explosive environments. © Copyright Lenovo 2014...

  • Page 10: Operating Environment

    Do not eat or smoke over your keyboard. Particles that fall into your keyboard can cause damage. Laser compliance statement CAUTION: When laser products (such as CD-ROMs, DVD drives, fiber optic devices, or transmitters) are installed, note the following: viii ThinkStation P300 User Guide...

  • Page 11: Power Supply Statement

    Do not spray any liquid detergent directly on the computer or use any detergent containing flammable material to clean the computer. Spray the detergent on a soft cloth and then wipe the computer surfaces. © Copyright Lenovo 2014...
  • Page 12 ThinkStation P300 User Guide...

  • Page 13: Chapter 1. Product Overview

    • Locations of parts on the system board • Locations of internal drives • Computer features • Software programs provided by Lenovo Locations This section provides the following topics: • “Locating connectors, controls, and indicators on the front of your computer” on page 2 •...

  • Page 14: Locating Connectors, Controls, And Indicators On The Front Of Your Computer

    The following illustration shows the locations of the connectors, controls, and indicators on the front of your computer. Figure 1. Front connector, control, and indicator locations Optical drive eject/close button Power indicator Power button Hard disk drive activity indicator USB 3.0 connector Microphone connector Headphone connector USB 3.0 connector ThinkStation P300 User Guide...

  • Page 15: Locating Connectors On The Rear Of Your Computer

    Locating connectors on the rear of your computer The following illustration shows the locations of the connectors on the rear of your computer. Some connectors on the rear of your computer are color-coded to help you determine where to connect the cables on your computer.
  • Page 16 USB devices, you can purchase a USB hub, which you can use to connect additional USB devices. VGA connector Used to attach a VGA monitor or other devices that use a Video Graphics Array (VGA) connector. ThinkStation P300 User Guide...

  • Page 17: Locating Components

    Locating components The following illustration shows the locations of the various components in your computer. To remove the computer cover, see “Removing the computer cover” on page 74. Figure 3. Component locations Heat sink and fan assembly Power supply assembly Memory modules Optical drive (available on some models) Card reader (available on some models)

  • Page 18: Locating Parts On The System Board

    USB 2.0 connector or card reader connector USB hardware disable header Clear CMOS (Complementary Metal Oxide Serial (COM2) connector Semiconductor) /Recovery jumper Internal speaker connector Front audio connector PCI card slot PCI Express x16 card slot (negotiable link width x4, ThinkStation P300 User Guide...

  • Page 19: Locating Internal Drives

    PCI Express x1 card slot PCI Express x16 graphics card slot (available on some models) System fan connector Cover presence switch connector (Intrusion switch connector) Locating internal drives Internal drives are devices that your computer uses to read and store data. You can add drives to your computer to increase storage capacity and enable your computer to read other types of media.

  • Page 20: Machine Type And Model Label

    A 3.5-inch hard disk drive, 3.5-inch hybrid drive, or 2.5-inch solid-state drive might be installed in this bay. Machine type and model label The machine type and model label identifies your computer. When you contact Lenovo for help, the machine type and model information helps support technicians to identify your computer and provide faster service.
  • Page 21 • On the Microsoft Windows 8.1 operating system, go to the desktop and move your pointer to the top-right or bottom-right corner of the screen to display the charms. Then click Settings ➙ PC info to view the information. Memory Your computer supports up to four double data rate 3 unbuffered dual inline memory modules (DDR3 UDIMMs).
  • Page 22 • Intel Active Management Technology (AMT) (available on some models) Intel Active Management Technology is hardware and firmware technology that builds certain functionality into computers in order to make them easier and less expensive for businesses to monitor, maintain, update, upgrade, and repair. ThinkStation P300 User Guide...
  • Page 23 • Intel Matrix Storage Manager Intel Matrix Storage Manager is a device driver that provides support for SATA RAID 5 arrays and SATA RAID 10 arrays on specific Intel chipset system boards to enhance hard disk performance. • Preboot Execution Environment (PXE) The Preboot Execution Environment is an environment to start computers using a network interface independent of data storage devices (such as the hard disk drive) or installed operating systems.

  • Page 24: Specifications

    The operating system(s) listed here are being certified or tested for compatibility at the time this publication goes to press. Additional operating systems might be identified by Lenovo as compatible with your computer following the publication of this manual. This list is subject to change. To determine if an operating system has been certified or tested for compatibility, check the Web site of the operating system vendor.

  • Page 25: Lenovo Programs

    Control Panel. The icon name displayed in the search result or Control Panel might be different from the program name. You can find the program by its program name or icon name as shown in the Lenovo programs available on the Windows 7 operating system table.

  • Page 26: An Introduction To Lenovo Programs

    Use the Lenovo Reach program to enhance your cloud experience. Lenovo Reach keeps you connected at all times and enables you to access all your favorite items from personal computers, smartphones, or tablets. As a result, you can access, edit, and share your files from anywhere. With Lenovo Reach, ThinkStation P300 User Guide...
  • Page 27 • Lenovo SHAREit (Windows 7 and Windows 8.1) The Lenovo SHAREit program provides a quick and easy way to share files and folders among computers, smartphones, tablets, or smart TVs with the Android or the Windows operating system installed. SHAREit uses any type of network or even no network at all to share files and folders.
  • Page 28 ThinkStation P300 User Guide...

  • Page 29: Chapter 2. Using Your Computer

    When you register your computer, information is entered into a database, which enables Lenovo to contact you in case of a recall or other severe problem. After you register your computer with Lenovo, you will receive quicker service when you call Lenovo for help. In addition, some locations offer extended privileges and services to registered users.

  • Page 30: Using The Wheel Mouse

    If the volume icon is not on the taskbar, add the volume icon to the taskbar. To add the volume icon, do the following: • For Windows 7: 1. From the Windows desktop, click Start ➙ Control Panel ➙ Appearance and Personalization. 2. In the Taskbar and Start Menu section, click Customize icons on the taskbar. ThinkStation P300 User Guide...

  • Page 31: Setting The Volume From Control Panel

    3. Click Turn system icons on or off and change the volume behaviors from Off to On. 4. Click OK to save the new settings. • For Windows 8.1: 1. Open Control Panel, and click Appearance and Personalization. Note: For detailed information on how to open Control Panel on Windows 8.1, see “Accessing Control Panel on the Windows 8.1 operating system”...

  • Page 32: Handling And Storing A Disc

    If your computer is installed with a recordable optical drive, you can use the drive to record a disc. To record a disc, do the following: • On the Windows 7 operating system, use either the Corel DVD MovieFactory Lenovo Edition program or the Power2Go program installed on your computer.

  • Page 33: Navigating Among Screens On The Windows 8.1 Operating System

    1. On the Start screen, click the down arrow in the bottom-left corner to go to the Apps screen. Then type Power2Go in the search box in the top-right corner of the screen. 2. Click Power2Go in the search result to open the program. 3.

  • Page 34: Accessing Control Panel On The Windows 8.1 Operating System

    For the answers to more frequently asked questions about using your computer, go to: http://www.lenovo.com/support/faq How can I get my user guide in another language? The user guide is available in various languages at: http://www.lenovo.com/UserManuals ThinkStation P300 User Guide...
  • Page 35 Chapter 8 “Recovery information” on page 65. Additionally, in case of a hard-disk-drive failure, you can order a recovery disc set from the Lenovo Customer Support Center. For information about contacting the Customer Support Center, see Chapter 10 “Getting information, help, and service”...
  • Page 36 ThinkStation P300 User Guide...

  • Page 37: Chapter 3. You And Your Computer

    51 to 61 cm (20 to 24 inches), and position it so you can view it without having to twist your body. Also, position other equipment you use regularly, such as the telephone or a mouse, within easy reach. © Copyright Lenovo 2014...

  • Page 38: Glare And Lighting

    For more information about power cords, see “Power cords and power adapters” on page vi. Accessibility information Lenovo is committed to providing people with disabilities greater access to information and technology. Some technologies are already provided in your operating system. Others can be purchased through vendors.
  • Page 39 select one object with your keyboard, the object is highlighted. When you move the pointer to one object with your mouse, the introductory text of the object is displayed. To use on-screen notification, open Control Panel, click Ease of Access ➙ Ease of Access Center, and then click Use text or visual alternatives for sounds.
  • Page 40 Note: Setting too low of a resolution might prevent some items from fitting on the screen. For alternatives on increasing the size of text and other objects, see the following: • “Customizable text size” on page 28 • “Magnifier” on page 28 • “Zoom” on page 28 ThinkStation P300 User Guide...
  • Page 41 Ease of Access keyboard shortcuts The following table contains keyboard shortcuts that can help make your computer easier to use. Keyboard shortcut Function Windows logo key + U Open the Ease of Access Center Right Shift for eight seconds Turn Filter Keys on or off Shift five times Turn Sticky Keys on or off Num Lock for five seconds...

  • Page 42: Moving Your Computer To Another Country Or Region

    Documentation in accessible formats Lenovo provides electronic documentation in accessible formats. Lenovo electronic documentation, such as properly tagged PDF files or HyperText Markup Language (HTML) files, is developed to ensure that visually impaired users can read the documentation through a screen reader. Each image in the documentation also includes adequate alternative text to explain the image so that visually impaired users can understand the image when they use a screen reader.

  • Page 43: Chapter 4. Security

    Locking the computer cover helps prevent unauthorized people from gaining access to the inside of your computer. Your computer comes with a padlock loop so that the computer cover cannot be removed when a padlock is installed. Figure 7. Installing a padlock © Copyright Lenovo 2014...

  • Page 44: Attaching A Kensington-Style Cable Lock

    The cable lock also locks the buttons used to open the computer cover. This is the same type of lock used with many notebook computers. You can order such a cable lock directly from Lenovo by searching for Kensington at: http://www.lenovo.com/support Figure 8.

  • Page 45: Attaching A Cable Lock

    Attaching a cable lock A cable lock can be used to secure devices, such as the keyboard and the mouse, by locking the device cables to your computer. The cable lock attaches to the cable-lock slots on the rear of your computer. See “Locating connectors on the rear of your computer”...

  • Page 46: Windows Passwords

    To open Fingerprint Manager Pro or ThinkVantage Fingerprint Software and use the fingerprint reader, do the following: • On the Windows 7 operating system, see “Accessing Lenovo programs on the Windows 7 operating system” on page 13. • On the Windows 8.1 operating system, see “Accessing Lenovo programs on the Windows 8.1 operating system”...

  • Page 47: Using And Understanding Firewalls

    Your computer is preinstalled with an antivirus program to help you guard against, detect, and eliminate viruses. Lenovo provides a full version of antivirus software on your computer with a free 30-day subscription. After 30 days, you must renew the license to continue receiving the antivirus software updates.
  • Page 48 ThinkStation P300 User Guide...

  • Page 49: Chapter 5. Advanced Configuration

    The Setup Utility program menu lists various items about the system configuration. To view or change settings, start the Setup Utility program. See “Starting the Setup Utility program” on page 37. Then, follow the instructions on the screen. © Copyright Lenovo 2014...

  • Page 50: Using Bios Passwords

    • Contain at least one alphabetic character and one numeric character • Not be your name or your user name • Not be a common word or a common name • Be significantly different from your previous passwords ThinkStation P300 User Guide...

  • Page 51: Enabling Or Disabling A Device

    Setting, changing, and deleting a password To set, change, or delete a password, do the following: 1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 37. 2. From the Setup Utility program main menu, select Security. 3.

  • Page 52: Selecting A Startup Device

    42. Enabling ErP LPS compliance mode Lenovo computers meet the eco-design requirements of the ErP Lot 3 regulation. For more information, go http://www.lenovo.com/ecodeclaration You can enable ErP LPS compliance mode in the Setup Utility program to reduce the consumption of electricity when your computer is off or in sleep mode.

  • Page 53: Ice Performance Mode

    • Press the power button • Enable the wake up on alarm feature The wake up on alarm feature enables your computer to wake up at a set time. To enable the wake up on alarm feature, do the following: 1.

  • Page 54: Exiting The Setup Utility Program

    Configuring the system BIOS to enable SATA RAID functionality This section describes how to configure the system BIOS to enable SATA RAID functionality. Note: Use the arrow keys on the keyboard to make selections. To enable SATA RAID functionality, do the following: ThinkStation P300 User Guide...

  • Page 55: Creating Raid Volumes

    1. Start the Setup Utility program. See “Starting the Setup Utility program” on page 37. 2. Select Devices ➙ ATA Drive Setup. 3. Select Configure SATA as and press Enter. 4. Select RAID Mode and press Enter. 5. Press F10 to save the new settings and exit the Setup Utility program. Creating RAID volumes This section describes how to use the Intel Matrix Storage Manager option ROM configuration utility to create RAID volumes.

  • Page 56: Updating Or Recovering The Bios

    • Use the up and down arrow keys to select Exit and press Enter. Updating or recovering the BIOS Lenovo might make changes and enhancements to the BIOS. When updates are released, they are available as downloadable files on the Lenovo Web site at http://www.lenovo.com/drivers. Instructions for using the BIOS updates are available in a TXT file that is included with the update files.

  • Page 57: Updating The Bios From Your Operating System

    Updating the BIOS from your operating system Lenovo makes constant improvements to its Web sites. The Web page contents are subject to change without notice, including the contents referenced in the following procedure. To update the BIOS from your operating system, do the following: 1.
  • Page 58 11. Reconnect any cables that were disconnected and reinstall the PCI card if removed. 12. Reinstall the computer cover and reconnect any cables that were disconnected. 13. Press the power button to turn on the computer and restart the operating system. ThinkStation P300 User Guide...

  • Page 59: Chapter 6. Preventing Problems

    This section explains how to get the latest updates for your computer. Getting the latest device drivers for your computer Note: Lenovo makes constant improvements to its Web sites. The contents on the Web page are subject to change without notice, including the contents referenced in the following procedure.

  • Page 60: Using System Update

    To open System Update, see “Accessing Lenovo programs on the Windows 7 operating system” on page 13 or “Accessing Lenovo programs on the Windows 8.1 operating system” on page 13. If System Update is not currently installed on your computer, you can download it from the Lenovo Support Web site at: http://www.lenovo.com/support...

  • Page 61: Optical Mouse

    2. Wipe each keytop surface with the cloth. Wipe the keys one by one; if you wipe several keys at a time, the cloth may hook onto an adjacent key and possibly damage it. Ensure that no liquid drips onto or between the keys.

  • Page 62: Moving Your Computer

    A log book can help you or a Lenovo technician determine if a problem is related to change in hardware, change in software, or some other action that might have taken place.
  • Page 63 6. Lay the computer on its side and move the computer with both hands holding the bottom of the chassis. Figure 10. Moving the computer 7. If you saved the original shipping cartons and packing materials, use them to pack the units. If you are using different cartons, cushion the units to avoid damage.
  • Page 64 ThinkStation P300 User Guide...

  • Page 65: Chapter 7. Troubleshooting And Diagnostics

    Note: If you cannot correct the problem, have the computer serviced. For a list of service and support telephone numbers, refer to the Safety, Warranty, and Setup Guide that comes with your computer or go to the Lenovo Support Web site at: http://www.lenovo.com/support/phone...

  • Page 66: Troubleshooting Procedure

    If this does not correct the problem, continue with the next step. 6. Run the diagnostic program. See “Lenovo Solution Center” on page 63 for more information. • If the diagnostic program detects a hardware failure or if you are unable to run the diagnostic program, contact the Lenovo Customer Support Center.

  • Page 67: Audio Problems

    1. Remove the new hardware option or software. If you must remove the computer cover to remove a hardware option, ensure that you review and follow the electrical safety information provided with your computer. For your safety, do not operate the computer with the cover removed. 2.

  • Page 68: Dvd Problems

    Playback is slow or choppy Solutions: • Disable any background programs, such as AntiVirus or Desktop Themes. • Ensure that video resolution is set to less than 1152 x 864. Invalid disc or no disc found message Solutions: ThinkStation P300 User Guide...

  • Page 69: Intermittent Problems

    • Ensure that a DVD disc is in the drive with the shiny side of the disc facing down. • Ensure that video resolution is set to less than 1152 x 864. • On computers that have a CD-ROM or CD-RW drive in addition to a DVD-ROM drive, ensure that the DVD disc is in the drive labeled “DVD.”...

  • Page 70: Monitor Problems

    • Install the device drivers for the application programs. Refer to the documentation for the affected application program to check whether any device drivers are required. The image appears to be flickering Solution: Reset the refresh rate. 1. Open Control Panel. ThinkStation P300 User Guide...

  • Page 71: Networking Problems

    Note: To open Control Panel on Windows 8.1, see “Accessing Control Panel on the Windows 8.1 operating system” on page 22 2. Click Hardware and Sound ➙ Adjust screen resolution ➙ Advanced settings. 3. Click the Monitor tab to reset the refresh rate. Set the refresh rate to be the highest, noninterlaced refresh rate supported on your computer.
  • Page 72 • Check Network Name (SSID) and your password. – On Windows 7: 1. Click Start ➙ Lenovo ThinkVantage Tools ➙ Access Connections. 2. Switch to the Advanced view, and then click the Mobile Hotspot tab to check your SSID and password.

  • Page 73: I Have Connected An Option To My Computer, But It Does Not Work

    4. Select the Playback tab. 5. If you are using the Headset profile, select Bluetooth Hands-free Audio, and then click Set Default. If you are using the AV profile, select Stereo Audio, and then click Set Default. 6. Click OK. Note: Bluetooth is supported only on some computer models.

  • Page 74: The Printer Does Not Work

    When using a sort feature, dates cannot be sorted in the correct order Solution: Some application programs developed before the year 2000 used only the last two digits of a year to sort dates, assuming the first two digits were 19. Consequently, dates cannot be sorted in the ThinkStation P300 User Guide...

  • Page 75: My Usb Connectors Cannot Be Accessed

    Note: If you cannot isolate and repair the problem yourself after running the program, save and print the log files. You will need the log files when you speak to a Lenovo technical support representative. For additional information, refer to the Lenovo Solution Center help system.
  • Page 76 ThinkStation P300 User Guide...

  • Page 77: Chapter 8. Recovery Information

    Product Recovery program installed. If the Enhanced Backup and Restore icon in the Lenovo ThinkVantage Tools program is dimmed, it indicates that you must install the Rescue and Recovery program manually before enabling its features. To install the Rescue and Recovery program, do the following: 1.

  • Page 78: Creating Recovery Media

    Note: On the Windows 7 operating system, you can create recovery media using discs or external USB storage devices. To create recovery media on the Windows 7 operating system, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Factory Recovery Disks. Then, follow the instructions on the screen.
  • Page 79 To perform a recovery operation using the Rescue and Recovery program on the Windows 7 operating system, do the following: 1. From the Windows desktop, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Enhanced Backup and Restore. The Rescue and Recovery program opens.

  • Page 80: Creating And Using A Rescue Medium

    Creating a rescue medium To create a rescue medium on the Windows 7 operating system, do the following: 1. From the Windows desktop, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Enhanced Backup and Restore. The Rescue and Recovery program opens.

  • Page 81: Reinstalling Preinstalled Programs And Device Drivers

    Reinstalling preinstalled programs and device drivers Your computer enables you to reinstall preinstalled programs and device drivers. Reinstalling preinstalled programs To reinstall programs preinstalled on your Lenovo computer, do the following: 1. Turn on the computer. 2. Go to C:\SWTOOLS.

  • Page 82: Solving Recovery Problems

    Attention: If you reset your computer, all your personal files and settings will be deleted. To avoid data loss, make a backup copy of all the data that you want to keep. To reset your computer, do the following: ThinkStation P300 User Guide...

  • Page 83: Using The Advanced Startup Options

    1. Move the pointer to the top-right or bottom-right corner of the screen to display the charms. Click Settings ➙ Change PC settings ➙ Update and recovery ➙ Recovery. 2. In the Remove everything and reinstall Windows section, click Get started. Using the advanced startup options Advanced startup options enable you to change the startup settings of your Windows operating system, start the computer from an external device, or restore the Windows operating system from a system image.
  • Page 84 ThinkStation P300 User Guide...

  • Page 85: Chapter 9. Installing Or Replacing Hardware

    Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. Notes: • Use only computer parts provided by Lenovo. • When installing or replacing an option, use the appropriate instructions in this section along with the instructions that come with the option.

  • Page 86: Removing The Computer Cover

    Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. This section provides instructions on how to remove and reinstall the front bezel. To remove and reinstall the front bezel, do the following: ThinkStation P300 User Guide...
  • Page 87 1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Remove the computer cover. See “Removing the computer cover” on page 74. 3. Remove the front bezel by releasing the three plastic tabs on the top of the front bezel and pivoting the front bezel outward to remove it from the computer.

  • Page 88: Accessing The System Board Components And Drives

    PCI Express x16 graphics card for easier access to the memory slots. See “Installing or replacing a PCI card” on page 78. 6. Depending on whether you are installing or replacing a memory module, do one of the following: ThinkStation P300 User Guide...
  • Page 89 • If you are replacing an old memory module, open the retaining clips and gently pull the memory module out of the memory slot. Figure 14. Removing a memory module • If you are installing a memory module, open the retaining clips of the memory slot into which you want to install the memory module.

  • Page 90: Installing Or Replacing A Pci Card

    1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Remove the computer cover. See “Removing the computer cover” on page 74. 3. Rotate the PCI card retainer to the open position. ThinkStation P300 User Guide...
  • Page 91 4. Depending on whether you are installing or replacing a PCI card, do one of the following: • If you are installing a PCI card, remove the appropriate metal slot cover. • If you are replacing an old PCI card, grasp the old card that is currently installed and gently pull it out of the slot.

  • Page 92: Replacing The Battery

    1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Remove the computer cover. See “Removing the computer cover” on page 74. 3. Locate the battery. See “Locating parts on the system board” on page 6. ThinkStation P300 User Guide...

  • Page 93: Installing Or Replacing The Msata Solid-State Drive

    4. Remove the old battery. Figure 20. Removing the old battery 5. Install a new battery. Figure 21. Installing a new battery 6. Reinstall the computer cover and connect the cables. See “Completing the parts replacement” on page 123. Note: When the computer is turned on for the first time after replacing the battery, an error message might be displayed.
  • Page 94 Figure 22. Pivoting the drive bay assembly upward 6. Insert the mSATA solid-state drive into the mini PCI Express slot on the storage converter, and then press the mSATA solid-state drive downward. Figure 23. Installing the mSATA solid-state drive into the storage converter ThinkStation P300 User Guide...
  • Page 95 7. Install the two screws to secure the mSATA solid-state drive to the storage converter. Figure 24. Installing the screws that secure the mSATA solid-state drive 8. Insert the mSATA solid-state drive storage converter to the chassis and push the converter to the left to align the screw hole in the converter with the corresponding hole in the chassis.
  • Page 96 4. Locate the card reader drive bay. See “Locating internal drives” on page 7. 5. Press the release tab as shown and pivot the drive bay assembly upward. Figure 26. Pivoting the drive bay assembly upward 6. Disconnect the signal cable and power cable from the mSATA solid-state drive. ThinkStation P300 User Guide...
  • Page 97 7. Remove the screw that secures the mSATA solid-state drive storage converter. Then remove the mSATA solid-state drive storage converter from the chassis. Figure 27. Removing the mSATA solid-state drive storage converter 8. Remove the two screws that secure the mSATA solid-state drive from the storage converter. Figure 28.
  • Page 98 Figure 30. Installing the mSATA solid-state drive into the storage converter 11. Install the two screws to secure the mSATA solid-state drive to the storage converter. Figure 31. Installing the screws that secure the mSATA solid-state drive ThinkStation P300 User Guide...

  • Page 99: Installing Or Replacing The Optical Drive

    12. Insert the mSATA solid-state drive storage converter to the chassis and push the converter to the left to align the screw hole in the converter with the corresponding hole in the chassis. Then install the screw to secure the mSATA solid-state drive storage converter to the chassis. Figure 32.
  • Page 100 Press the optical drive lock on the right side of the drive bay assembly and slide the optical drive out of the rear of the bay. Then remove the optical drive retainer from the left side of the optical drive. ThinkStation P300 User Guide...
  • Page 101 Figure 34. Removing the optical drive 6. Install the optical drive retainer on the side of the new optical drive. Figure 35. Installing the optical drive retainer Chapter 9 Installing or replacing hardware...

  • Page 102: Installing Or Replacing The Solid-State Drive

    Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. This section provides instructions on how to install the 2.5-inch solid-state drive. To install the solid-state drive, do the following: ThinkStation P300 User Guide...
  • Page 103 1. Install the solid-state drive into the storage converter. Then, install the four screws to secure the solid-state drive to the storage converter. Figure 37. Installing the solid-state drive into the storage converter 2. To install the solid-state drive with the storage converter into the 3.5-inch hard disk drive bracket, flex the bracket and align pin , pin , pin...
  • Page 104 6. Flex the sides of the plastic 3.5-inch hard disk drive bracket to pull pins on the bracket out of the corresponding holes in the storage converter. Then remove the storage converter from the bracket. Figure 39. Removing the storage converter from the 3.5-inch hard disk drive bracket ThinkStation P300 User Guide...
  • Page 105 7. Remove the four screws that secure the solid-state drive. Then lift the solid-state drive out of the storage converter. Figure 40. Removing the solid-state drive from the storage converter 8. Install a new solid-state drive into the storage converter. Then install the four screws to secure the new solid-state drive to the storage converter.

  • Page 106: Replacing The Front Audio And Usb Assembly

    3. Remove the front bezel. See “Removing and reinstalling the front bezel” on page 74. 4. Locate the front audio and USB assembly. See “Locating components” on page 5. 5. Press the release tab as shown and pivot the drive bay assembly upward. ThinkStation P300 User Guide...
  • Page 107 Figure 43. Pivoting the drive bay assembly upward 6. Disconnect the front audio and USB assembly cables from the system board. See “Locating parts on the system board” on page 6. Note: Ensure that you note the locations of the cables when you disconnect the cables from the system board.

  • Page 108: Replacing The System Fan

    Figure 45. Pivoting the drive bay assembly upward 5. Disconnect the system fan cable from the power fan connector on the system board. See “Locating parts on the system board” on page 6. ThinkStation P300 User Guide...
  • Page 109 6. The system fan is attached to the chassis by four rubber mounts. Remove the system fan by cutting the rubber mounts and lifting the system fan out of the chassis. Note: The new system fan will have four new rubber mounts attached. Figure 46.

  • Page 110: Replacing The Heat Sink And Fan Assembly

    The heat sink and fan assembly might be very hot. Before you open the computer cover, turn off the computer and wait several minutes until the computer is cool. To replace the heat sink and fan assembly, do the following: 1. Turn off the computer and disconnect all power cords from electrical outlets. ThinkStation P300 User Guide...
  • Page 111 2. Remove the computer cover. See “Removing the computer cover” on page 74. 3. Lay the computer on its side for easier access to the system board. 4. Locate the heat sink and fan assembly. See “Locating parts on the system board” on page 6. 5.
  • Page 112 See “Locating parts on the system board” on page 6. 12. Lower and position the heat sink fan duct on the top of the heat sink and fan assembly until it snaps into position. Figure 50. Installing the heat sink fan duct ThinkStation P300 User Guide...

  • Page 113: Replacing The Power Supply Assembly

    What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 123. Replacing the power supply assembly Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information”...
  • Page 114 Figure 52. Pivoting the drive bay assembly upward 6. Record the cable routing and cable connections. Then, disconnect the power supply assembly cables from all drives and from power connectors , and on the system board. ThinkStation P300 User Guide...
  • Page 115 Figure 53. Power connectors on the system board 7. Release the power supply assembly cables from any cable clips or ties that secure the cables to the chassis. 8. At the rear of the computer, remove the three screws that secure the power supply assembly. Press the power supply clip downward to release the power supply assembly and then slide the power supply assembly to the front of the computer.
  • Page 116 10. Install the new power supply assembly into the chassis so that the screw holes in the new power supply assembly are aligned with the corresponding holes in the rear of the chassis. Then, install the three screws to secure the new power supply assembly in place. Note: Use only screws provided by Lenovo. ThinkStation P300 User Guide...
  • Page 117 Figure 55. Installing the power supply assembly 11. Connect the new power supply assembly cables to all drives and the system board. See “Locating parts on the system board” on page 6. 12. Press the release tab as shown and pivot the drive bay assembly downward until it snaps into position. Figure 56.

  • Page 118: Replacing The Primary Hard Disk Drive

    1. Turn off the computer and disconnect all power cords from electrical outlets. 2. Remove the computer cover. See “Removing the computer cover” on page 74. 3. Remove the front bezel. See “Removing and reinstalling the front bezel” on page 74. ThinkStation P300 User Guide...
  • Page 119 4. Press the release tab as shown and pivot the drive bay assembly upward. Figure 58. Pivoting the drive bay assembly upward 5. Locate the primary hard disk drive. See “Locating internal drives” on page 7. 6. Disconnect the signal cable and the power cable from the hard disk drive. 7.

  • Page 120: Replacing The Secondary Hard Disk Drive

    • To complete the installation or replacement, go to “Completing the parts replacement” on page 123. Replacing the secondary hard disk drive Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. ThinkStation P300 User Guide...
  • Page 121 This section provides instructions on how to replace the secondary hard disk drive. Note: The secondary hard disk drive is available only on some models. To replace the secondary hard disk drive, do the following: 1. Turn off the computer and disconnect all power cords from electrical outlets. 2.
  • Page 122 Figure 64. Positioning the bracket onto the bottom of the primary hard disk drive bay 9. Slide the secondary hard disk drive bracket to the left of the chassis until it snaps into position and the screw hole in the bracket is aligned with the screw hole in the bay ThinkStation P300 User Guide...
  • Page 123 Figure 65. Installing the secondary hard disk drive bracket 10. Install the screw to secure the secondary hard disk drive bracket to the chassis. Figure 66. Installing the screw to secure the secondary hard disk drive bracket Chapter 9 Installing or replacing hardware...

  • Page 124: Replacing The Wi-Fi Units

    • To complete the installation or replacement, go to “Completing the parts replacement” on page 123. Replacing the Wi-Fi units Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. ThinkStation P300 User Guide...
  • Page 125 This section provides instructions on how to replace the Wi-Fi units. The Wi-Fi units include a Wi-Fi adapter card, a Wi-Fi card module, and a rear Wi-Fi antenna cable. Replacing the Wi-Fi units involves the following operations: • “Removing the Wi-Fi adapter card” on page 113 •...

  • Page 126: Removing The Wi-Fi Card Module

    To remove the Wi-Fi card module, do the following: 1. Remove the Wi-Fi adapter card from the computer, and then disconnect the front and rear Wi-Fi antenna cables from the Wi-Fi card module. Figure 71. Removing the Wi-Fi antenna cables ThinkStation P300 User Guide...

  • Page 127: Installing The Wi-Fi Units

    2. Remove the two screws that secure the Wi-Fi card module to the Wi-Fi adapter card. Figure 72. Removing the screws that secure the Wi-Fi card module 3. Pull the Wi-Fi card module out of the mini PCI Express slot to remove it from the Wi-Fi adapter card. Figure 73.
  • Page 128 Figure 74. Installing the Wi-Fi card module ThinkStation P300 User Guide...

  • Page 129: Installing Or Removing The Front Wi-Fi Antenna

    2. Connect the front antenna cable and rear antenna cable to the Wi-Fi card module. Figure 75. Installing the Wi-Fi antenna cables 3. Install the Wi-Fi adapter card into the PCI Express x1 slot on the system board. See “Locating parts on the system board”...
  • Page 130 3. Remove the front bezel. See “Removing and reinstalling the front bezel” on page 74. 4. Press the release tab as shown and pivot the drive bay assembly upward. Figure 77. Pivoting the drive bay assembly upward 5. Peel off the paper that protects the sticker on the front antenna. ThinkStation P300 User Guide...
  • Page 131 Figure 78. Peeling off the paper that protects the sticker 6. Stick the front antenna to the front panel as shown. Then insert the front antenna cable through the hole in the front panel. Figure 79. Installing the front Wi-Fi antenna 7.
  • Page 132 Figure 81. Removing the front Wi-Fi antenna What to do next: • To work with another piece of hardware, go to the appropriate section. • To complete the installation or replacement, go to “Completing the parts replacement” on page 123. ThinkStation P300 User Guide...

  • Page 133: Installing Or Removing The Rear Wi-Fi Antenna

    Installing or removing the rear Wi-Fi antenna Attention: Do not open your computer or attempt any repair before reading and understanding the “Read this first: Important safety information” on page v. This section provides instructions on how to install or remove the rear Wi-Fi antenna. Installing the rear Wi-Fi antenna To install the rear Wi-Fi antenna, do the following: 1.

  • Page 134: Replacing The Keyboard Or Mouse

    2 or “Locating connectors on the rear of your computer” on page 3. Figure 84. Connecting the USB keyboard or mouse What to do next: • To work with another piece of hardware, go to the appropriate section. ThinkStation P300 User Guide...

  • Page 135: Completing The Parts Replacement

    • To complete the installation or replacement, go to “Completing the parts replacement” on page 123. Completing the parts replacement After completing the installation or replacement for all parts, you need to reinstall the computer cover and reconnect cables. Depending on the parts you installed or replaced, you might need to confirm the updated information in the Setup Utility program.

  • Page 136: Obtaining Device Drivers

    9. To update your configuration, refer to “Using the Setup Utility program” on page 37. Note: In most areas of the world, Lenovo requires the return of the defective Customer Replaceable Unit (CRU). Information about this will come with the CRU or will come a few days after the CRU arrives.

  • Page 137: Chapter 10. Getting Information, Help, And Service

    You can use the information in this section to access useful resources relating to your computing needs. Lenovo ThinkVantage Tools The Lenovo ThinkVantage Tools program guides you to a host of information sources and provides easy access to various tools to help you work more easily and securely.

  • Page 138: Lenovo Support Web Site

    Most computers come with a diagnostic program that help you identify hardware problems. You can also get the latest technical information and download device drivers and updates from Lenovo Support Web site at: http://www.lenovo.com/support...

  • Page 139: Using Other Services

    Service availability and service name might vary by country or region. For more information about these services, go to the Lenovo Web site at: http://www.lenovo.com...
  • Page 140 ThinkStation P300 User Guide...

  • Page 141: Appendix A. System Memory Speed

    E3-1225V3, E3-1230V3, E3-1240V3, E3-1245V3, 1600 MHz E3-1270V3, E3-1275V3, E3-1280V3 Table 3. : DIMM type and speed: PC3-12800E (1.5 V) Microprocessor model Memory frequency Intel i5-4570, i5-4670, i7-4770, Intel Xeon E3-1220V3, E3-1225V3, E3-1230V3, E3-1240V3, E3-1245V3, 1600 MHz E3-1270V3, E3-1275V3, E3-1280V3 © Copyright Lenovo 2014...
  • Page 142 ThinkStation P300 User Guide...

  • Page 143: Appendix B. Regulatory Information

    • Consult an authorized dealer or service representative for help. Lenovo is not responsible for any radio or television interference caused by using other than specified or recommended cables and connectors or by unauthorized changes or modifications to this equipment.
  • Page 144 Geräte der Klasse B. Dieses Gerät ist berechtigt, in Übereinstimmung mit dem Deutschen EMVG das EG-Konformitätszeichen - CE - zu führen. Verantwortlich für die Konformitätserklärung nach Paragraf 5 des EMVG ist die Lenovo (Deutschland) GmbH, Gropiusplatz 10, D-70563 Stuttgart. Informationen in Hinsicht EMVG Paragraf 4 Abs. (1) 4: Das Gerät erfüllt die Schutzanforderungen nach EN 55024 und EN 55022 Klasse B.

  • Page 145: Eurasian Compliance Mark

    All regulatory notices are available on the Lenovo Support Web site in electronic format. To access electronic copies of the documentation, go to http://www.lenovo.com/UserManuals.
  • Page 146 ThinkStation P300 User Guide...

  • Page 147: Appendix C. Weee And Recycling Information

    Collecting and recycling a disused Lenovo computer or monitor If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources.

  • Page 148: Recycling Information For Brazil

    If you need to replace it with a new one, contact your place of purchase or contact Lenovo for service. If you need to dispose of a disused lithium battery, insulate it with vinyl tape, contact your place of purchase or an industrial-waste-disposal operator, and follow their instructions.
  • Page 149 Customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances. For proper collection and treatment, go to: http://www.lenovo.com/recycling Appendix C. WEEE and recycling information...
  • Page 150 ThinkStation P300 User Guide...

  • Page 151: Appendix D. Restriction Of Hazardous Substances Directive (Rohs)
