Summary of Contents for DSC SCW9047-433
-

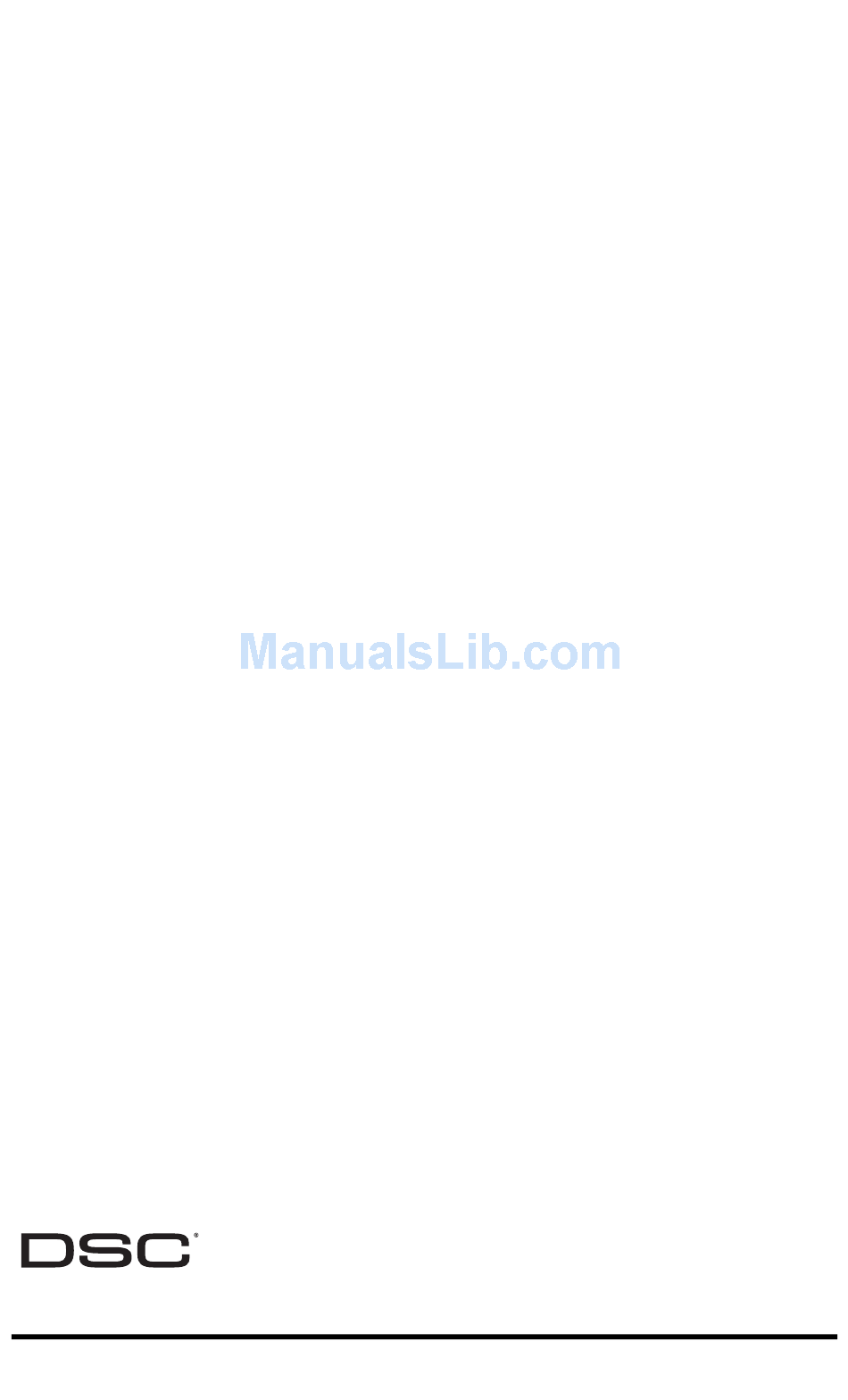

Page 1: User Manual
WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. The entire manual should be carefully read. User Manual Self Contained Wireless S E C U R I T Y S Y S T E M... -
Page 2: Fcc Compliance Statement
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits paired by the end user. are designed to provide reasonable protection against harmful interfer- DSC c/o APL Logistics 757 Douglas Hill Rd., Lithia Springs, GA ence in a residential installation. This equipment generates, uses and can 30122... -
Page 3: Table Of Contents
Table of Contents About Your Security System ......... . 1 Fire Detection . - Page 4 Fire Escape Planning ..........13 This publications covers the following models: •SCW9047-433 •SCW9045-433 •SCW9047-868†...
-
Page 5: About Your Security System
• Do not wash the security equipment with a wet cloth. Light dusting with a slightly moistened cloth should remove normal accumulations of dust. • DSC recommends replacing the standby batteries every 4-5 years. • For other system devices such as smoke detectors, motion detectors, glassbreak detectors or door/ window contacts, consult the manufacturer’s literature for testing and maintenance instructions if... -
Page 6: Controls & Indicators
Controls & Indicators IMPORTANT NOTICE A security system cannot prevent emergencies. It is only intended to alert you and – if included – your central station of an emergency situation. Security systems are generally very reliable but they may not work under all conditions and they are not a substitute for prudent security practices or life and property insurance. -
Page 7: Night Arming
Night Arming To fully arm the system when it has been armed in Stay Mode, press at the keypad. All inte- rior zones will now be armed except for devices programmed as Night Zones. Night zones are only armed in Away mode, this permits limited movement within the premises when the system is fully armed. -
Page 8: Remote Arming And Disarming
Remote Arming and Disarming The system can be armed and/or disarmed using the remote control device (wireless key). When arming the system by using the Arm button on the wireless key, the system will acknowledge the command by sounding a single bell squawk (if bell squawk is enabled) and when disarming using the Disarm button on the wireless key the system will acknowledge the command by sounding two bell squawks (if bell squawk is enabled). - Page 9 Bypassing Zones With the system disarmed. 1. Press to enter the function menu. The keypad will display “Press for < > Zone Bypass”. 2. Press , then your [access code] (if required). The keypad will display “Scroll to < > Bypass Zones”.
-
Page 10: Trouble Conditions
Trouble Conditions When a trouble condition is detected, the Trouble ( ) indicator will turn on, and the keypad will beep every 10 seconds. Press the key to silence the beeps. Press to view the trouble con- dition. The Trouble ( ) indicator will flash. Use the keys to view troubles. -
Page 11: Access Codes
Access Codes [ ][5][Master Code] (when disarmed) The [ ][5] User’s Programming command is used to program additional access codes. User Codes - User Codes 1-16 are available for the System. Master Code (Access Code 40) - The Master Code has all of the attributes listed in the Program- mable Attributes list below. -
Page 12: User Function Commands
User Function Commands First disarm the system then enter [Master Code] command is used to gain access to the following list of Master functions of the system. [1] Time and Date Enter 4 digits for 24 Hour System Time (HH-MM). Valid entries are 00-23 for the hour and 00-59 for minutes. -
Page 13: Reference Sheets
Reference Sheets Fill out the following information for future reference and store this guide in a safe place. System Information Enabled? FIRE AUXILIARY PANIC The Exit Delay Time is _______ seconds. The Entry Delay Time is _______ seconds. For Service Central Station Information Account#: ___________________ Telephone#: __________________ Installer Information:... -
Page 14: Sensor / Zone Information
Sensor / Zone Information Sensor Protected Area Sensor Type Sensor Protected Area Sensor Type... -
Page 15: Testing Your System
Testing Your System NOTE: Inform your Monitoring Station when you begin and end System Testing. All smoke detectors in this installation must be tested by your smoke detector installer or dealer once a year to ensure they are functioning correctly. It is the user’s responsibility to test the system weekly (excluding smoke detectors). -
Page 16: Guidelines For Locating Smoke Detectors
Guidelines for Locating Smoke Detectors Research has shown that all hostile fires in homes generate smoke to a greater or lesser extent. Experiments with typical fires in homes indicate that detectable quantities of smoke precede detectable levels of heat in most cases. For these reasons, smoke alarms should be installed out- side of each sleeping area and on each storey of the home. -
Page 17: Household Fire Safety Audit
Household Fire Safety Audit Read this section carefully for important information about fire safety. Most fires occur in the home. To minimize this danger, we recommend that a household fire safety audit be conducted and a fire escape plan be developed. 1. - Page 19 NOTES:...
-
Page 20: Warning Please Read Carefully
Even if the smoke detector operates as intended, there may be circum- stances when there is insufficient warning to allow all occupants to escape in time to avoid injury or death. ©2007 Digital Security Controls Toronto, Canada • www.dsc.com Printed in Canada 29007326R001...
Need help?
Do you have a question about the SCW9047-433 and is the answer not in the manual?
Questions and answers

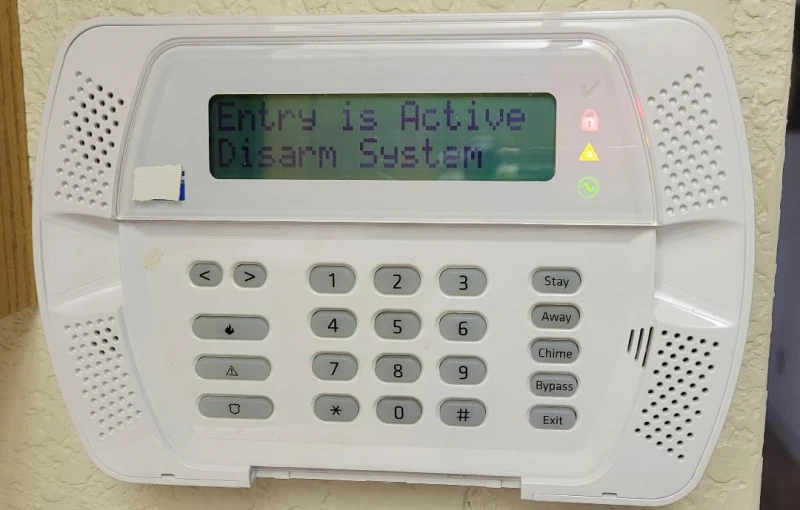

I can't seem to get the alarm sound when active operating when armed and entering or exiting?
The alarm sound may not activate when the DSC SCW9047-433 is armed and entering or exiting if the Silent Exit Delay feature is enabled. When using the Stay key or the 'No Entry' Arming method, the keypad buzzer is silenced and the exit time is doubled for that period.
