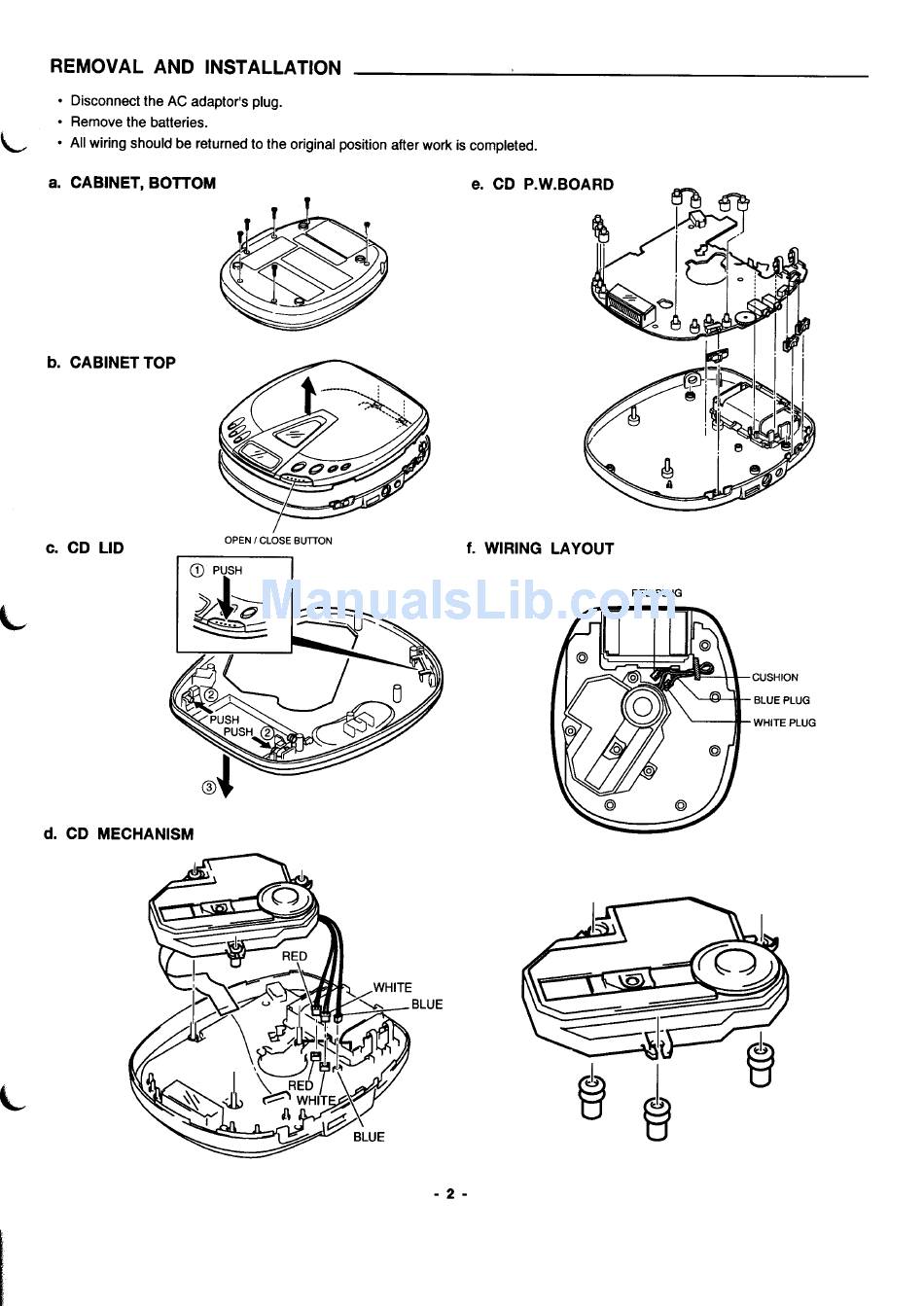

REMOVAL
AND INSTALLATION
Disconnect the AC adaptor's plug.
Remove the batteries.
L
All wiring should be returned to the original position after work is completed.
a. CABINET, BOTTOM
b. CABINET TOP
c. CD LID
L
OPEN / CLOSE BUITON
d. CD
MECHANISM
e. CD P.W,,BO
f. WIRING LAYOUT
RED PLUG
CUSHION
BLUE PLUG
WHITE
PLUG
.UE
L
-2-
