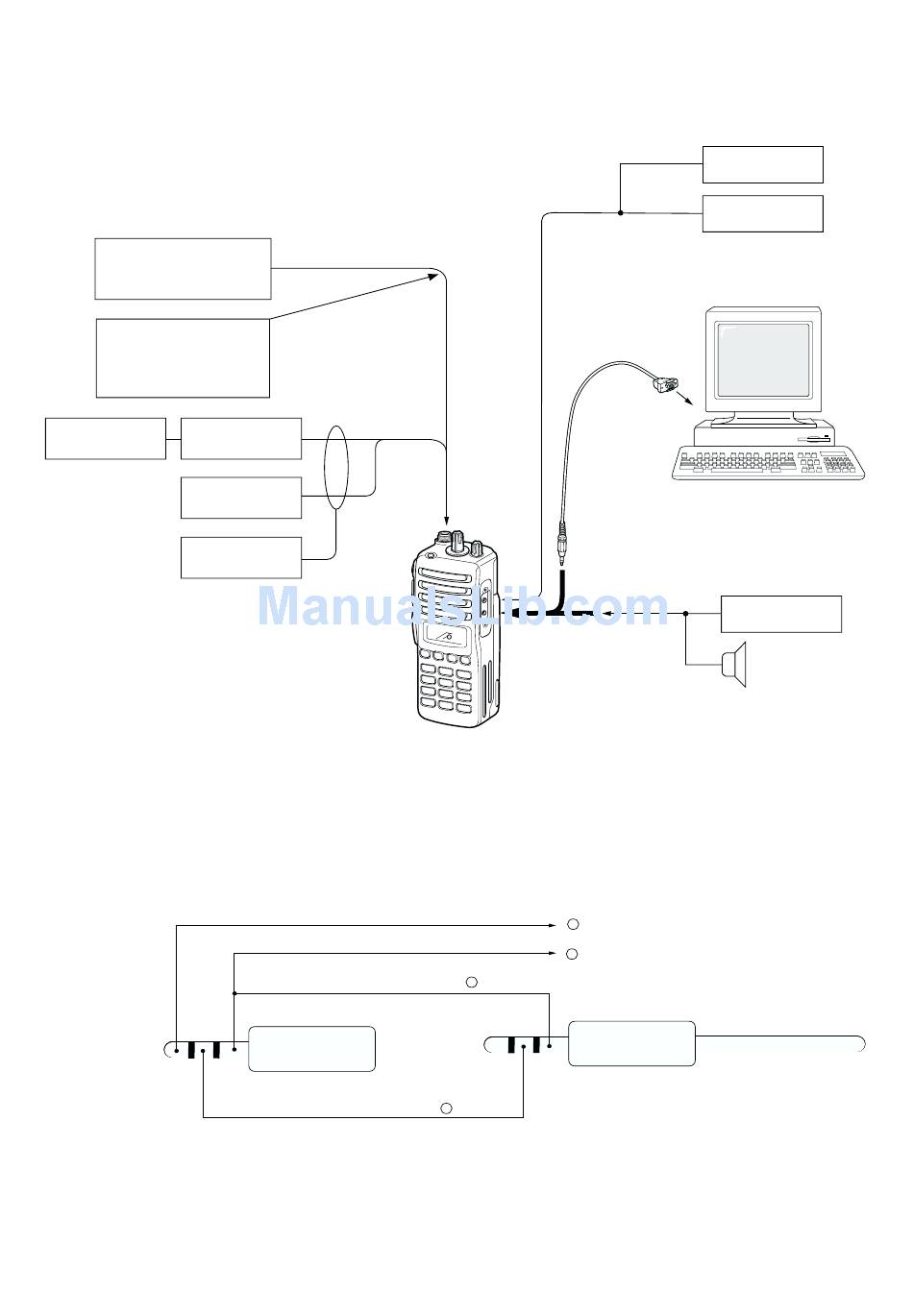

• CONNECTION
Standard signal generator
0.1 µV to 32 mV
(–127 dBm to –17 dBm)
CAUTION!
DO NOT transmit while
to SSG is connected to
the antenna connector
FM Attenuator
deviation meter 40 dB or 50 dB
RF power meter
0.1–10 W/50 Ω
Frequency
counter
• JIG CABLE
To IC-F43TR [SP] jack
to the antenna connector
3-conductor 3.5(d) mm plug
JIG cable
To [MIC]
JIG cable
To [SP]
IC-F43TR
(10-keypad version)
( + SP)
( – SPE)
( – GND)
( + CLONE)
5 - 3
AC millivoltmeter
Audio generator
Personal
computer
OPC-478
to RS-232C port
SINAD meter
Speaker (8 Ω)
OPC-478
