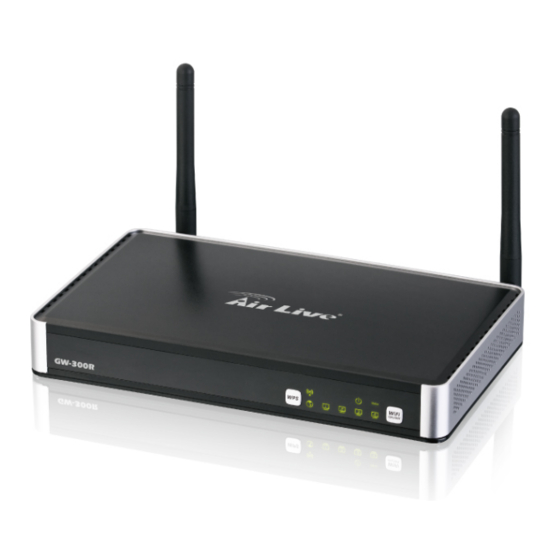

Air Live GW-300R User Manual

Wireless 2t2r 300mbps giga router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Copyright and Disclaimer
GW-300R
Wireless 2T2R 300Mbps Giga Router
User's Manual
AirLive GW-300R User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GW-300R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Air Live GW-300R

Summary of Contents for Air Live GW-300R

  • Page 1 Copyright and Disclaimer GW-300R Wireless 2T2R 300Mbps Giga Router User’s Manual AirLive GW-300R User’s Manual...

  • Page 2: Fcc Interference Statement

    Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. AirLive GW-300R User’s Manual...

  • Page 3: Ce Declaration Of Conformity

    Copyright and Disclaimer CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. The specification is subject to change without notice. AirLive GW-300R User’s Manual...

  • Page 4: Table Of Contents

    802.1x Setting......................71 WPA Settings ....................... 76 FAQ and Troubleshooting....................85 What can I do when I have some trouble at the first time? .......... 85 How do I connect router by using wireless? ..............88 AirLive GW-300R User’s Manual...

  • Page 5: Introduction

    SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product. AirLive GW-300R User’s Manual...

  • Page 6: Packing List

    1. Introduction 1.1 Packing List items Description Contents Quantity WiFi Gigabit Router Power adapter 12V 1A AirLive GW-300R User’s Manual...

  • Page 7: Spec Summary Table

    DoS (Deny of Service) detection and protection ● Routing Protocol Static route, dynamic route (RIP v1/v2) ● Management SNMP, UPnP IGD, syslog, DDNS ● Administration Web-based UI, remote login, backup/restore setting ● Performance NAT up to 700Mbps and Wireless up to150Mbps AirLive GW-300R User’s Manual...

  • Page 8: Hardware Configuration

    Package Information Package weight (g) Temp.: 0~40oC, Humidity 10%~90% Operation Temp. ● non-condensing Temp.: -10~70oC, Humidity: 0~95% Storage Temp. ● non-condensing EMI Certification CE/FCC compliance ● RoHS RoHS compliance ● 1.3 Hardware Configuration Figure 2-1 Front Panel AirLive GW-300R User’s Manual...

  • Page 9: Led Indicators

    RJ45 cable is plugged LAN LED Green in flash Data access Green WLAN is on Green in flash Data access WiFi LED Green in fast Device is in WPS PBC mode flash Green in dark Wi-Fi Radio is disabled AirLive GW-300R User’s Manual...

  • Page 10: Procedure For Hardware Installation

    Step 2 Insert the Ethernet cable into LAN Port: Insert the Ethernet patch cable into LAN port on the back panel of Router, and an available Ethernet port on the network adapter in the computer you will use to configure the unit. AirLive GW-300R User’s Manual...
  • Page 11 Step 4. Power on Router: 4.1. Connect the power adapter to the receptor on the back panel of your Router and Push Power switch Step 5. Complete the setup. 5.1. When complete, the Status LED will flash. AirLive GW-300R User’s Manual...

  • Page 12: Getting Start

    Insert the CD into CD reader on your PC. The program, AutoRun, will be executed automatically. And then you can click the Easy setup Icon for this utility. Configure the settings by the following steps. 2.1.Select Language then click “Next” for continues. AirLive GW-300R User’s Manual...
  • Page 13 You can select Wizard mode to run the setup step-by-step or run advanced mode to diagnose the network settings of the router. 2.3 Advanced mode Setup. Check the PC, Router or Internet icons for the Status of PC, Router or Internet. AirLive GW-300R User’s Manual...
  • Page 14 LAN port of the router 3. Make sure your network adapter has an IP address. Click “Next” for continues 2.5. Wireless Setting. Key in the SSID, Channel and Security options, and then click “Next” for continues. AirLive GW-300R User’s Manual...
  • Page 15 Click “Next” for continue. Click the button, “Let me select WAN service by myself”, to disable this function. Note: The Item supports to detect the Dynamic and PPPoE WAN Services only Example, the Dynamic WAN type is detected. AirLive GW-300R User’s Manual...
  • Page 16 2.7. Manual select WAN Service In the manual mode, Click the any icons for continues. 2.8 Summary of the settings and Next to “Reboot” Click “Next” for continue. 2.9 Apply the Settings or Modify. Click “Next” for continue. AirLive GW-300R User’s Manual...
  • Page 17 You can ignore the by select the “Ignore Test”. 2.11 Setup Completed. The EzSetup is finish, you can open the default web browser to configure advanced settings of the Router. Click “Finish” to complete the installation. AirLive GW-300R User’s Manual...

  • Page 18: Making Configuration

    This product provides Web based configuration scheme, that is, configuring by your Web browser, such as Mozilla Firefox or or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms. AirLive GW-300R User’s Manual...

  • Page 19: Login To Configure From Wizard

    3. Making Configuration 3.1 Login to Configure from Wizard Type in the IP Address (http://192.168.1.254) Type password, the default is “airlive” and click ‘login’ button. Press “Wizard” for basic settings with simple way. Press “Next” to start wizard. AirLive GW-300R User’s Manual...
  • Page 20 3. Making Configuration Step 1: Set up your system password. Step 2: Select Wan Type. Auto Detecting or Setup Manually. AirLive GW-300R User’s Manual...
  • Page 21 3. Making Configuration Step 3: Setup the LAN IP and WAN Type. Step 4: Example: Please fill in PPPoE service information which is provided by your ISP. Step 5: Set up your Wireless. AirLive GW-300R User’s Manual...
  • Page 22 3. Making Configuration Set up your Authentication and Encryption. Step 6: Then click Apply Setting. And then the device will reboot. Step 7: Click Finish to complete it. AirLive GW-300R User’s Manual...

  • Page 23: System Status

    If the WAN port is assigned a dynamic IP, there may appear a “Renew” or “Release” button on the Sidenote column. You can click this button to renew or release IP manually. Statistics of WAN: enables you to monitor inbound and outbound packets AirLive GW-300R User’s Manual...

  • Page 24: Advanced

    3. Making Configuration 3.3 Advanced 3.3.1 Basic Setting Please Select “Advanced Setup” to Setup AirLive GW-300R User’s Manual...
  • Page 25 PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their services. PPTP: Some ISPs require the use of PPTP to connect to their services. F. L2TP: Some ISPs require the use of L2TP to connect to their services AirLive GW-300R User’s Manual...
  • Page 26 Host Name: optional. Required by some ISPs, for example, @Home. Renew IP Forever: this feature enables this product to renew your IP address automatically when the lease time is expiring-- even when the system is idle. AirLive GW-300R User’s Manual...
  • Page 27 Connect-on-demand: The device will link up with ISP when the clients send outgoing packets. Auto-Reconnect(Always-on):The device will link with ISP until the connection is established. Manually : The device will not make the link until someone clicks the connect-button in the Staus-page. AirLive GW-300R User’s Manual...
  • Page 28 Connect-on-demand: The device will link up with ISP when the clients send outgoing packets. Auto-Reconnect(Always-on):The device will link with ISP until the connection is established. Manually: The device will not make the link until someone clicks the connect-button in the Staus-page. AirLive GW-300R User’s Manual...
  • Page 29 Maximum Idle Time: the time of no activity to disconnect your PPTP session. Set it to zero or enable Auto-reconnect to disable this feature. If Auto-reconnect is enabled, this product will connect to ISP automatically, after system is restarted or connection is dropped. AirLive GW-300R User’s Manual...
  • Page 30 Connect-on-demand: The device will link up with ISP when the clients send outgoing packets. Auto-Reconnect(Always-on):The device will link with ISP until the connection is established. Manually :The device will not make the link until someone clicks the connect-button in the Staus-page. AirLive GW-300R User’s Manual...
  • Page 31 Global IP: Enter the global IP address assigned by your ISP. Local IP: Enter the local IP address of your LAN PC corresponding to the global IP address. Enable: Check this item to enable the Virtual Computer feature. AirLive GW-300R User’s Manual...
  • Page 32 Primary WINS/Secondary WINS: This feature allows you to assign WINS Servers Gateway: The Gateway Address would be the IP address of an alternate Gateway. This function enables you to assign another gateway to your PC, when DHCP server offers an IP to your PC. AirLive GW-300R User’s Manual...
  • Page 33 Network ID (SSID): Network ID is used for identifying the Wireless LAN (WLAN). Client stations can roam freely over this product and other Access Points that have the same Network ID. (The factory setting is “default”) AirLive GW-300R User’s Manual...
  • Page 34 WDS it is possible to wirelessly connect Access Points, and in doing so extend a wired infrastructure to locations where cabling is not possible or inefficient to implement. Hybrid Mode It means the device can support WDS and AP Mode simultaneously. AirLive GW-300R User’s Manual...
  • Page 35 Wireless user must authenticate to this router first to use the Network service. RADIUS Server IP address or the 802.1X server’s domain-name. RADIUS Shared Key Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server. AirLive GW-300R User’s Manual...
  • Page 36 1. Select Encryption and Pre-share Key Mode If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If ASCII, the length of pre-share key is from 8 to 63. AirLive GW-300R User’s Manual...
  • Page 37 If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If ASCII, the length of Pre-share key is from 8 to 63. 2. Fill in the key, Ex 12345678 AirLive GW-300R User’s Manual...
  • Page 38 If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If ASCII, the length of Pre-share key is from 8 to 63. 2. Fill in the key, Ex 12345678 AirLive GW-300R User’s Manual...
  • Page 39 Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server. Wireless Client List 3.3.1.4 Change Password You can change Password here. We strongly recommend you to change the system password for security reason. AirLive GW-300R User’s Manual...

  • Page 40: Forwarding Rules

    3. Making Configuration 3.3.2 Forwarding Rules 3.3.2.1 Virtual Server AirLive GW-300R User’s Manual...
  • Page 41 This product provides some predefined settings Select your application and click Copy to to add the predefined setting to your list. Note! At any given time, only one PC can use each Special Application tunnel. AirLive GW-300R User’s Manual...
  • Page 42 You have to configure this item if you want to access an FTP server whose port number is not 21. This setting will be lost after rebooting. Xbox Support The Xbox is a video game console produced by Microsoft Corporation. Please enable this function when you play games. AirLive GW-300R User’s Manual...

  • Page 43: Security Settings

    3. Making Configuration UpnP Setting The device also supports this function.If the OS supports this function enable it,like Windows Xp.When the user get ip from Device and will see icon as below: 3.3.3 Security Settings AirLive GW-300R User’s Manual...
  • Page 44 You can specify 8 rules for each direction: inbound or outbound. For each rule, you can define the following: Source IP address Source port address Destination IP address Destination port address Protocol: TCP or UDP or both. Use Rule# AirLive GW-300R User’s Manual...
  • Page 45 (21), and News Server (119) defined in Virtual Server or DMZ Host. Example 1: (1.2.3.100-1.2.3.149) Remote hosts are allow to send mail (port 25), and browse the Internet (port 80) (1.2.3.10-1.2.3.20) Remote hosts can do everything (block nothing) Others are all blocked. AirLive GW-300R User’s Manual...
  • Page 46 FTP (port 21) behind Router Server. Others are all allowed. After Inbound Packet Filter setting is configured, click the save button. Outbound Filter: To enable Outbound Packet Filter click the check box next to Enable in the Outbound Packet Filter field. AirLive GW-300R User’s Manual...
  • Page 47 (192.168.12.100-192.168.12.149) Located hosts are only allowed to send mail (port 25), receive mail (port 110), and browse Internet (port 80); port 53 (DNS) is necessary to resolve the domain name. (192.168.12.10-192.168.12.20) Located hosts can do everything (block nothing) Others are all blocked. AirLive GW-300R User’s Manual...
  • Page 48 Router LAN IP is 192.168.12.254 (192.168.12.100 and 192.168.12.119) Located Hosts can do everything except read net news (port 119) and transfer files via FTP (port 21) Others are allowed After Outbound Packet Filter setting is configured, click the save button. AirLive GW-300R User’s Manual...
  • Page 49 A suffix of URL to be restricted. For example, ".com", "xxx.com". Action When someone is accessing the URL met the domain-suffix, what kind of action you want. Check drop to block the access. Check log to log these access. Enable Check to enable each rule. AirLive GW-300R User’s Manual...
  • Page 50 URL include “www.sina.com” will not be blocked, but the action will be record in log-file. URL include “www.baidu.com” will be blocked, but the action will not be record in log-file. IP address x.x.x.1~x.x.x.99 can access Internet without restriction. AirLive GW-300R User’s Manual...
  • Page 51 If any part of the Website's URL matches the pre-defined word, the connection will be blocked. For example, you can use pre-defined word "sex" to block all websites if their URLs contain pre-defined word "sex". Enable Checked to enable each rule. AirLive GW-300R User’s Manual...
  • Page 52 Internet without restriction. It also provides 3 features to access Internet: MAC Control by host, Group MAC Control and Interface Access Control depend as user-defined time Schedule. Administrator MAC Control Regardless the MAC access configuration of administrator, specific MAC can access the device. AirLive GW-300R User’s Manual...
  • Page 53 Check "Connection control" to enable the controlling of which wired and wireless clients can connect to this device. If a client is denied to connect to this device, it means the client can't access to the Internet either. Choose "allow" or "deny" to allow or AirLive GW-300R User’s Manual...
  • Page 54 IP address. When "Connection control" is checked, check "C" will allow the corresponding client to connect to this device. When "Association control" is checked, check "A" will allow the corresponding client to associate to the wireless LAN. AirLive GW-300R User’s Manual...
  • Page 55 3 is wired. 1.The "MAC Address Control" function is enabled. 2."Connection control" is enabled, and all of the wired and wireless clients not listed in the "Control table" are "allowed" to connect to this device. AirLive GW-300R User’s Manual...
  • Page 56 Group MAC Access Control Administrator can define hosts in which Group to allow Internet. For example, Father and Mother are in Group1 without limitation and hosts Brother and Sister are in Group2 to access according as Schedule Rule2. AirLive GW-300R User’s Manual...
  • Page 57 3. Making Configuration For example, Schedule Rule 1 sets “always” everyday with limitation. AirLive GW-300R User’s Manual...
  • Page 58 Schedule Rule 2 sets 08:00~23:00 Monday ~ Friday. Administrator can set guests in Lan3 and Lan4 to access Internet according as Schedule Rule 2. Set Friends in Lan1 ,Lan2 and WiFi according as Schedule Rule 1. AirLive GW-300R User’s Manual...
  • Page 59 When this feature is enabled, the router will detect and log the DoS attack comes from the Internet. Currently, the router can detect the following DoS attack: SYN Attack, WinNuke, Port Scan, Ping of Death, Land Attack etc. AirLive GW-300R User’s Manual...

  • Page 60: Advanced Settings

    IP layer and allow IPSec tunnels to pass through the router. VPN PPTP Pass-Through It is a setting/feature on routers which is required in order to connect to a Remote PPTP VPN account. 3.3.4 Advanced Settings AirLive GW-300R User’s Manual...
  • Page 61 Selected if you want to Set Date and Time manually. Set Date and Time manually Selected if you want to Set Date and Time manually. Function of Buttons Sync Now: Synchronize system time with network time server Daylight Saving:Set up where the location is. AirLive GW-300R User’s Manual...
  • Page 62 25. For example, "mail.your_url.com" or "192.168.1.100:26". Send E-mail alert to The recipients who will receive these logs. You can assign more than 1 recipient, using ';' or ',' to separate these email addresses. AirLive GW-300R User’s Manual...
  • Page 63 Next you can enter the appropriate information about your Dynamic DNS Server. You have to define: Provider Host Name Username/E-mail Password/Key You will get this information when you register an account on a Dynamic DNS server. AirLive GW-300R User’s Manual...
  • Page 64 IP 1, IP 2, IP 3, IP 4 Input your SNMP Management PC’s IP here. User has to configure to where this device should send SNMP Trap message. SNMP Version Please select proper SNMP Version that your SNMP Management software supports. AirLive GW-300R User’s Manual...
  • Page 65 Static Routing: For static routing, you can specify up to 8 routing rules. You can enter the destination IP address, subnet mask, gateway, hop for each routing rule, and then enable or disable the rule by checking or unchecking the Enable checkbox. AirLive GW-300R User’s Manual...
  • Page 66 192.168.1.103 (a gateway), And if it sends Packets to 192.168.3.11 will go via 192.168.1.216 Each rule can be enabled or disabled individually. After routing table setting is configured, click the save button. AirLive GW-300R User’s Manual...
  • Page 67 Press “Add New Rule” You can write a rule name and set which day and what time to schedule from “Start Time” to “End Time”. The following example configure “ftp time” as everyday 14:10 to 16:20 AirLive GW-300R User’s Manual...
  • Page 68 To delete the schedule rule, and the rule# of the rules behind the deleted one will decrease one automatically. Schedule Rule can be apply to Virtual server and Packet Filter, for example: Exanple1: Virtual Server – Apply Rule#1 (ftp time: everyday 14:20 to 16:30) AirLive GW-300R User’s Manual...
  • Page 69 3. Making Configuration Exanple2: Packet Filter – Apply Rule#1 (ftp time: everyday 14:20 to 16:30). AirLive GW-300R User’s Manual...
  • Page 70 3. Making Configuration 3.3.4.7 QoS Rule Local IP: Please input Client IP,ex192.168.1.161. Remote Priority: Please input Global IP and port,ex:168.96.2.3 and port 21 AirLive GW-300R User’s Manual...

  • Page 71: Toolbox

    3. Making Configuration 3.3.5 Toolbox 3.3.5.1 View Log You can View system log by clicking the View Log button AirLive GW-300R User’s Manual...
  • Page 72 Once you want to restore these settings, please click Firmware Upgrade button and use the bin file you saved. 3.3.5.4 Reset to default You can also reset this product to factory default by clicking the Reset to default button. AirLive GW-300R User’s Manual...
  • Page 73 Domain Name or IP Address for Test Allow you to configure an IP, and ping the device. You can ping a secific IP to test whether it is alive. AirLive GW-300R User’s Manual...

  • Page 74: Appendices And Index

    Authentication Server: Windows 2000 RADIUS server with Service Pack 3 and HotFix Q313664. Note. Windows 2000 RADIUS server only supports PEAP after upgrade to service pack 3 and HotFix Q313664 (You can get more information from h ttp://support.microsoft.com/default.aspx?scid=kb; en-us;313664UHH) AirLive GW-300R User’s Manual...
  • Page 75 Protected EAP (PEAP) option. Choose MD5-Challenge or Smart Card or other Certificate as the EAP type. 3.If choosing use smart card or the certificate as the EAP type, we select to use a certificate on this computer. (Fig 3) AirLive GW-300R User’s Manual...
  • Page 76 The DUT will send the user's certificate to the RADIUS server, and then send the message of authentication result to PC1. (Fig 5) Windows XP will prompt that the authentication process is success or fail and end the authentication procedure. ( Fig 6) AirLive GW-300R User’s Manual...
  • Page 77 Appendices and Index Terminate the test steps when PC1 get dynamic IP and PING remote host successfully. Figure 4: Certificate information on PC1 AirLive GW-300R User’s Manual...
  • Page 78 PC2 is on Windows XP platform with Service Pack 1a. PEAP is supported on Windows XP with Service Pack 1 only. Windows XP with Service Pack 1 allows 802.1x authentication only when data encryption function is enable. AirLive GW-300R User’s Manual...

  • Page 79: Wpa Settings

    Appendices and Index WPA Settings Wireless Router: LAN IP: 192.168.1.254 WAN IP: 192.168.122.216 Radius Server: 192.168.122.1 UserA : XP Wireless Card:Ti-11g Tool: Odyssey Client Manager Refer to: HH www.funk.comUHH Download: HHUhttp://www.funk.com/News&Events/ody_c_wpa_preview_pn.aspU Or Another Configuration: AirLive GW-300R User’s Manual...
  • Page 80 1. The UserA or UserB have to get certificate from Radius, first. HHUhttp://192.168.122.1/certsrvU account : fae1 passwd : fae1 2. Then, Install this certificate and finish. 3. Go to the Web manager of Wireless Router to configure, like below: AirLive GW-300R User’s Manual...
  • Page 81 Appendices and Index 4. Go to Odyssey Client Manager, choose “Profiles” and Setup Profile name as “1” AirLive GW-300R User’s Manual...
  • Page 82 Appendices and Index Login name and passwd are fae1 and fae1. Remember that you get certificate from Radius in Step1. 5. Then Choose “certificate” like above. AirLive GW-300R User’s Manual...
  • Page 83 Appendices and Index 6. Then go to Authentication and first Remove EAP/ TLS and Add EAP/TLS again. AirLive GW-300R User’s Manual...
  • Page 84 Appendices and Index 7. Go “Network” and Select “1” and ok AirLive GW-300R User’s Manual...
  • Page 85 Appendices and Index 8. Back to Connection and Select “123kk. If successfully, the wireless client has to authenticate with Radius Server, like below: 9.Result: AirLive GW-300R User’s Manual...
  • Page 86 Appendices and Index Method 2: 1. The UserA or UserB have to get certificate from Radius,first. HHUhttp://192.168.122.1/certsrvU account:fae1 passwd:fae1 2. Then Install this certificate and finish. 3. Setting on the router and client: Router: AirLive GW-300R User’s Manual...
  • Page 87 Go to “Network Connection” and select wireless adapter. Choose “View available Wireless Networks” like below: Advanced choose “123kk” Select “WirelessCA and Enable” in Trusted root certificate authority: Then, if the wireless client wants to associate, it has to request to authenticate. AirLive GW-300R User’s Manual...

  • Page 88: Faq And Troubleshooting

    A: First, make sure that which port is plugged. If the cable is in the Wan port, please change to plug in Lan port 1 or Lan port 4: Then, please check if the Pc gets ip address from Router. Use command mode as below: AirLive GW-300R User’s Manual...
  • Page 89 Q4. 3.How to reset to factory default? A: Press Wireless on /off and WPS button simultaneously about 5 sec Status will start flashing about 5 times, remove the finger. The RESTORE process is completed. AirLive GW-300R User’s Manual...
  • Page 90 202.93.91.218, But I can not access the site that inputs domain name, for example HHUhttp://espn.comUHH ? A: Please check the dns configuration of Static IP Address. Please refer to the information of ISP and assign one or two in dns item. AirLive GW-300R User’s Manual...

  • Page 91: How Do I Connect Router By Using Wireless

    Then click and will see the ap list that wireless client can be accessed: If the client can not access your wireless router, please refresh network list again. However, I still can not fine the device which ssid is “default”, please refer to Q3. AirLive GW-300R User’s Manual...
  • Page 92 FAQ and Troubleshooting Choose the one that you will want to connect and Connect: If successfully, the computer will show and get ip from router: AirLive GW-300R User’s Manual...
  • Page 93 A: First, you must check if the driver of wireless client supports AES encryption. Please refer to the below: If SSID is default and click “Properties” to check if the driver of wireless client supports AES encryption. AirLive GW-300R User’s Manual...
  • Page 94 3. When I use wireless to connect the router, but I find the signal is very low even if I am close to the router? A: Please check if the wireless client is normal, first. If yes, please send the unit to the seller and verify what the problem is. AirLive GW-300R User’s Manual...

Table of Contents
