SPLIT-TYPE, AIR CONDITIONERS
TECHNICAL & SERVICE MANUAL

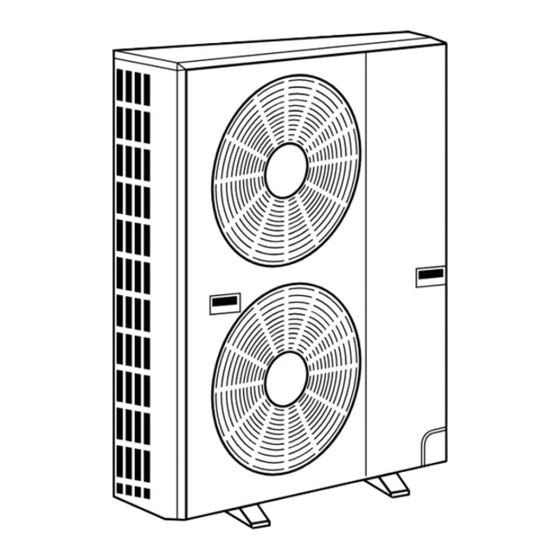

Outdoor unit
[Model names]
PU-5TJSA
PU-6TJSA
[Service Ref.]
PU-5TJSA
PU-6TJSA
Outdoor unit
REVISED EDITION-A
PU-5TJSA
1
PU-6TJSA
1
Revision:
• This service manual describes only the
change points.
• Please refer to OC127 REVISED EDITION-A
as to excluding this manual.
• PU-5TJSA
and PU-6TJSA
2
REVISED EDITION-A .
• Please void OC199.
CONTENTS
1. TECHNICAL CHANGE····································3
3. SPECIFICATIONS ···········································4
4. OUTLINES AND DIMENSIONS ······················5
5. WIRING DIAGRAM ·········································6
6. REFRIGERANT SYSTEM DIAGRAM·············7
7. PARTS LIST ····················································8
2003
No.OC199
2
2
are added to
2
Advertisement
Related Manuals for Mitsubishi Electric Mr. Slim PU-5TJSA1
Summary of Contents for Mitsubishi Electric Mr. Slim PU-5TJSA1
-
Page 1: Table Of Contents
SPLIT-TYPE, AIR CONDITIONERS 2003 No.OC199 REVISED EDITION-A TECHNICAL & SERVICE MANUAL Outdoor unit [Model names] [Service Ref.] PU-5TJSA PU-5TJSA PU-5TJSA PU-6TJSA PU-6TJSA PU-6TJSA Revision: • This service manual describes only the change points. • Please refer to OC127 REVISED EDITION-A as to excluding this manual. -
Page 3: Technical Change
TECHNICAL CHANGE (OC199) PU-5TJSA PU-5TJSA PU-6TJSA PU-6TJSA (CHANGE POINTS) 1. LP switch is added. Refer to 5.WIRING DIAGRAM, 6.REFRIGERANT SYSTEM DIAGRAM and 7.PARTS LIST for details. 2. Combination of indoor and outdoor units are added. Refer to 2.COMBINATION OF INDOOR AND OUTDOOR UNITS. 3. -
Page 4: Specifications
SPECIFICATIONS PU-5TJSA PU-6TJSA Service Ref. PU-5TJSA PU-6TJSA 3, 60Hz, 220V Power supply (phase, cycle, voltage) Input 5.63 6.15 Running current 16.83 18.70 Starting current Munsell 5Y 7/1 External finish Capillary tube Refrigerant control Hermetic Compressor Model ZR61KC-TF5 ZR68KC-TF5 Motor output Line start Starter type Thermal switch, HP switch, LP switch, Inner thermostat... -
Page 5: Outlines And Dimensions
OUTLINES AND DIMENSIONS PU-5TJSA PU-6TJSA Unit : mm (inch) PU-5TJSA PU-6TJSA... -
Page 6: Wiring Diagram
WIRING DIAGRAM PU-5TJSA PU-6TJSA POWER SUPPLY (3PHASE) 220V 60Hz L1/1 T1/2 L2/3 CIRCUIT BREAKER T2/4 L3/5 T3/6 GRN/YLW 49F3 (5A) 49F4 COMPRESSOR PROTECTOR C3, 4 FAN MOTOR CAPACITOR FUSE (5A) PHASE PROTECTOR COMPRESSOR MF3, 4 FAN MOTOR TERMINAL BLOCK (POWER SUPPLY) TERMINAL BLOCK (CONNECTING WIRES INDOOR/OUTDOOR) THERMAL SWITCH INTERNAL THERMOSTAT (MC) -
Page 7: Refrigerant System Diagram
REFRIGERANT SYSTEM DIAGRAM PU-5TJSA PU-6TJSA PU-5TJSA PU-6TJSA Check plug Low pressure High pressure switch switch Strainer Charge plug [19.05 (3/4) Ball valve Outdoor heat exchanger Accumulator Strainer Compressor Capillary tube PU-5TJSA PU-5TJSA (O.D. 4.0 oI.D. 2.4 o840)o2pcs PU-6TJSA PU-6TJSA (O.D. 4.0 oI.D. 2.4 o740)o2pcs [9.52 (3/8) Ball valve... -
Page 8: Parts List
PARTS LIST STRUCTURAL PARTS PU-5TJSA PU-6TJSA PU-5TJSA PU-6TJSA PU-5TJSA PU-6TJSA ty/set Price Wiring Recom- PU-5 PU-6 Remarks Part No. Part Name Specification Diagram mended TJSA TJSA (Drawing No.) Unit Amount Symbol TJSA TJSA TJSA TJSA R01 A14 668 FRONT PANEL R01 A00 675 FAN GUARD R01 A00 655... - Page 9 FUNCTIONAL PARTS 24 23 PU-5TJSA PU-5TJSA PU-5TJSA ty/set Price Recom- Wining Remarks PU-5 mended Part No. Part Name Specification Diagram (Drawing No.) Unit Amount Symbol TJSA TJSA TJSA T7W A04 763 FAN MOTOR PA6N100-UE MF3,4 T7W A00 408 HEAT EXCHANGER R01 A00 115 PROPELLER FAN R01 30L 097...
- Page 10 FUNCTIONAL PARTS 24 23 PU-6TJSA PU-6TJSA PU-6TJSA ty/set Price Recom- Wining Remarks PU-6 mended Part No. Part Name Specification Diagram (Drawing No.) Unit Amount Symbol TJSA TJSA TJSA T7W A04 763 FAN MOTOR PA6N100-UE MF3,4 T7W A01 408 HEAT EXCHANGER R01 A00 115 PROPELLER FAN R01 30L 097...
- Page 12 HEAD OFFICE : MITSUBISHI DENKI BLDG., 2-2-3, MARUNOUCHI, CHIYODA-KU TOKYO 100-8310, JAPAN CCopyright 1999 MITSUBISHI ELECTRIC ENGINEERING CO.,LTD. Distributed in Nov. 2002. No. OC199 REVISED EDITION-A 517 Reprinted in Oct. 2002. No. OC199 5 Reprinted in Apr. 2002. No. OC199 50 Reprinted in Feb.
