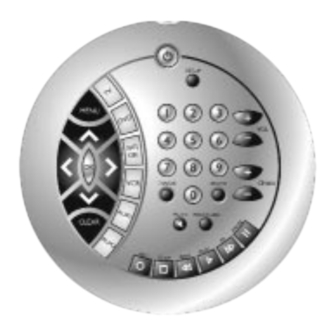

Universal Remote Control RM24961 INSTRUCTION MANUAL
http://www.manuallib.com/file/2589422
From ManualLib.com
ManualLib.com collects and classifies the global product
instrunction manuals to help users access anytime and
anywhere, helping users make better use of products.
Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/
This Manual: http://www.manuallib.com/file/2589422

Advertisement

Table of Contents

   Also See for GE RM24961

   Related Manuals for GE RM24961

   Summary of Contents for GE RM24961

  • Page 1 Universal Remote Control RM24961 INSTRUCTION MANUAL http://www.manuallib.com/file/2589422 From ManualLib.com ManualLib.com collects and classifies the global product instrunction manuals to help users access anytime and anywhere, helping users make better use of products. Home: http://www.manuallib.com/ Chinese: http://www.shuomingshuku.com/ This Manual: http://www.manuallib.com/file/2589422...
  • Page 2 RM24961 Universal Remote Control INSTRUCTION MANUAL...
  • Page 3: Table Of Contents

    The Indicator Light flashes to show that the remote is working. button operates the same as your original remote (note: some RCA, GE and ProScan models require you to press the device key to turn the device on and the key to turn the device off).
  • Page 4: Battery Installation

    ENTER Shows teh TV’s channel/time display.The ENTER button is used to complete channel selection for some brands of TV. It is also used to complete the code entry process. VOL & CHAN The VOL (Volume) and CH (Channel) buttons increase or decrease channel numbers or volume.
  • Page 5: Button Description

    Button Description...
  • Page 6: Programming For Tv

    Programming For TV 1. Manually turn on the TV. 2. Press the TV button. It will light for one second and go out. 3. Press and hold the SETUP SETUP button until TV button stays lit, then release the SETUP button. 4.
  • Page 7: Programming For Dvd

    Programming for DVD The DVD button can be used for a DVD player. 1. Manually turn on the DVD player. 2. Press the DVD button. It will light for one second and then go out. 3. Press and hold the SETUP SETUP button until the DVD button remains...
  • Page 8: Programming For Cable Box Or Satellite

    Programming For Satellite Receiver or Cable Box The SAT/CBL button is defaulted to RCA/GE/ProScan DBS systems, however other DBS systems can be programmed to this button. 1. Manually turn on the Satellite Receiver or Cable Box. SAT/ 2. Press the SAT/CBL button.
  • Page 9: Programming For Vcr

    Programming For VCR 1. Manually turn on the VCR. 2. Press the VCR button. It willlight for one second and then go out. 3. Press and hold the SETUP button SETUP until the VCR button INDICATOR remains lit, then LIGHT release the SETUP button.
  • Page 10: Programming For Auxillary Devices

    Programming for Auxillary (AUX 1, AUX 2) Button The Auxillary buttons can be used to assign a second TV, VCR, DVD player, satellite receiver or cable box, or audio receiver/cd system. NOTE: All device buttons (except the TV button) can be programmed for any device, regardless of what is indicated on the button.
  • Page 11: Code Search

    Programming With Code Search If your TV, VCR, DVD, CD player, satel- lite receiver, or Cable Box or audio receiver does not respond after you have tried all the codes for your brand, or if your brand is not listed, try searching for your code by following the steps below.
  • Page 12: Retrieving Codes

    Retrieving Codes If you need to find the three-digit code for your TV, VCR, DBS Receiver, or Cable Box or audio equipment after your device is set-up, use this proce- dure. 1. Press the device button for the device for which you are retrieving SAT/ the code.
  • Page 13: Menu Function

    Menu Function The Menu Function is used to make changes in the selected settings such as setting color, channels, timer, and many other on-screen menu options.It can also be used to navigate and select from on-screen guides.. Entering the Menu Mode: 1.
  • Page 14: Trouble Shooting

    Trouble Shooting Solution Problem No device buttons A) Replace the batteries light when you (with fresh, new AAA Alkaline batteries). press any key B) Check that batteries are properly installed. The remote does A) Try all the codes listed for your brand. not operate your B) Try the Code Search device...
  • Page 15: Warranty

    90 Day Limited Warranty Jasco Products Company warrants this product to be free from manufacturing defects for a period of ninety days from the original date of consumer purchase. This warranty is limited to the repair or replacement of this product only and does not extend to consequential or incidental damage to other products that may be used with this unit.
  • Page 16: Code List

    SAMSUNG ... .004 005 009 015 GE ..000 003 004 009 015 022 031 044 ....104 105 106 109 172 .
  • Page 17 SIGNATURE ....227 GE ..225 246 278 285 340 342 345 359 SINGER ....246 285 286 GOLDSTAR .
  • Page 18 PANASONIC DSS ... . .586 626 GE ......549 PRIMESTAR .
  • Page 19 MARANTZ....688 824 GE ......725 MITSUBISHI .
  • Page 20 Distributed for THOMSON INC. by Jasco Products Company, 311 N.W. 122nd Street, Oklahoma City, OK 73114. www.jascoproducts.com...
