Trantec S4.16 Operating Manual

Uhf wireless system
Hide thumbs Also See for S4.16:

Advertisement

Table of Contents

See also: Operating Manual
Trantec S4.16 Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S4.16 and is the answer not in the manual?

Questions and answers

Related Manuals for Trantec S4.16

Summary of Contents for Trantec S4.16

  • Page 1 Connevans.info Solutions to improve the quality of life This product may be purchased from Connevans Limited connevans.co.uk secure online store at www.connevans.co.uk...
  • Page 2 WIRELESS SYSTEM OPERATING MANUAL...
  • Page 3 CONTENTS Introduction and Safety Trantec S4.16 System Overview Receiver Layout and Operation Handheld Layout and Operation Beltpack Layout and Operation General Set-up, Operating Hints and Fault Finding System Contents Description and System Part Numbers Multi-Channel Configuration Technical Specifications Accessories/Warranty Terms...
  • Page 4 INTRODUCTION The Trantec S4.16 Series represents Trantec's commitment to providing high- quality, affordable Wireless Audio Links using our considerable design expertise gained over many years as a leading edge manufacturer. We would like to thank you for purchasing this product and would like you to spend a short time reading this Operations Manual so as to familiarise yourself with the features of the Trantec S4.16 series.

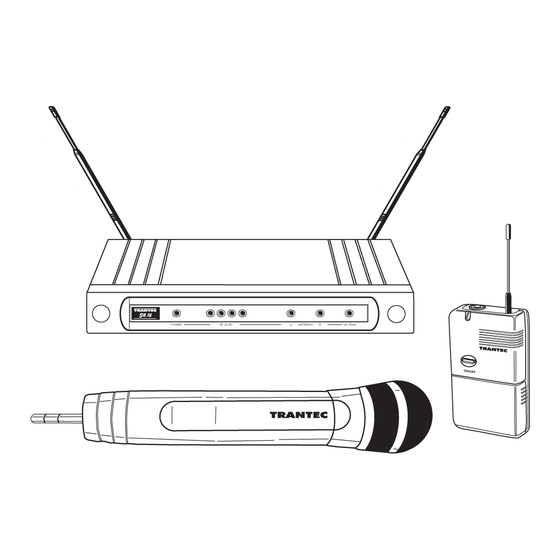

  • Page 5 S4.16 SYSTEM OVERVIEW The Trantec S4.16 is a high-quality UHF Wireless Microphone System. The S4.16 has many features including:- >> 16 User Selectable Channels. >> Diversity Receiver Operation - to minimise drop-outs. >> User Adjustable Audio Output Level - adjustable on both Jack and XLR outputs.

  • Page 6: Receiver Operation

    S4.16 RECEIVER LAYOUT DIVERSITY A DIVERSITY B RF SIGNAL POWER AF PEAK O/L LEVEL 16 CHANNEL AUDIO SELECTOR SWITCH OUTPUT XLR ANTENNA B ANTENNA A AUDIO AUDIO MUTE/ OUTPUT JACK OUTPUT SQUELCH ADAPTOR LEVEL CONTROL INLET RECEIVER OPERATION 1. Connect the appropriate AC adaptor into the DC inlet as marked on the rear panel and observe the Supply indicator (green Led ) lights up.

  • Page 7: Channel Selection

    S4.16 HANDHELD LAYOUT LOCKING RING GRILLE ANTENNA BODY HANDHELD BATTERY INSERTION 1. Rotate the top collar locking ring in the direction indicated in the illustration and gently pull the body downwards. 2. Insert a 9V MN1604 (IEC 6 LR61) PP3 type alkaline battery, being sure to observe the correct polarity as marked.
  • Page 8 S4.16 BELTPACK LAYOUT LAPEL MICROPHONE ANTENNA AUDIO BATTERY INPUT STATUS INDICATOR ROTATING BELT ON/OFF CLIP SWITCH BATTERY/ CONTROL HOUSING BELTPACK BATTERY INSERTION 1. Slide the battery compartment to the rear and hinge upwards to expose the battery. 2. Insert a 9V MN1604 (IEC 6 LR61) PP3 type alkaline battery, being sure to observe the correct polarity as marked.

  • Page 9: Microphone Connection

    Try and keep the mic cable away from the ANTENNA The microphone supplied with the S4.16 has an Omni-directional response, which means it will pick up sounds from all directions. In view of this we recommend that the microphone is placed as close as possible to the required sound source.
  • Page 10 This will reduce the operating range considerably. 2. SQUELCH/RSSI SET UP. The S4.16 incorporates a Fixed Noise Squelch and a variable “Received Signal strength” Mute Control on the rear panel of the Receiver. This function is to reduce or eliminate the effect of interference from outside sources.
  • Page 11 Is the AF Gain Control set correctly on the Receiver? b. Is the Squelch Control set correctly (Normally mid-position).? c. Is the MIC/INST switch in the correct position on the Beltpack? S4.16 SYSTEM PACKAGE CONTENTS S4.16L SYSTEM: S4.16M SYSTEM: S4.16RX...
  • Page 12 Try to ensure that each Transmitter is separated by 0.5m (1.5 feet) during operation. It is recommended that for systems with 4 or more channels the Trantec Antenna Distribution Amplifier S4000ADU is used together with the S4.16 Rackmount kit, this allows the use of only 1 set of antennas to feed several receivers which are then fixed onto 19”...

  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS:- OVERVIEW. Fully synthesised 16 channel PLL Quartz Controlled FM Wireless Microphone System incorporating a Dual Conversion Diversity Receiver with Integral Audio Dynamics Processor. OPERATING FREQUENCIES - UK: 863.150 863.725 864.150 864.850MHz 854.900 855.900 856.175 856.575MHz 857.950 858.200 858.650 859.500MHz 860.400 860.900 861.200 861.750MHz AF S/N RATIO: >...

  • Page 14: Handheld Transmitter

    HANDHELD TRANSMITTER OPERATING VOLTAGE: 9V @ <50mA. OPERATING TIME: approx 10 hours. OUTPUT POWER: 10mW max. CONTROLS: Frequency select, On-off switch. INDICATORS: Battery status Led. TRANSDUCER TYPE: Dynamic with Cardioid pattern. DIMENSIONS: 280 x 50mm max. (including grille) WEIGHT: Approx 210g BELTPACK TRANSMITTER OPERATING VOLTAGE: 9V @ <50mA.

  • Page 15: Declaration Of Conformity

    More information available at: www.trantec.co.uk GUARANTEE: All Trantec products are guaranteed for a period of one year from date of purchase against defects in materials and workmanship. In the event of a claim under guarantee the system should be returned to your dealer in its original packaging and with proof of purchase.
  • Page 16 BBM ELECTRONICS GROUP LIMITED Kestrel House . Garth Road . Morden Surrey . SM4 4LP . England Telephone: +44 (0) 20 8330 3111 Facsimile: +44 (0) 20 8330 3222 www.trantec.co.uk...
